Product Specification
|
|
Overview
|

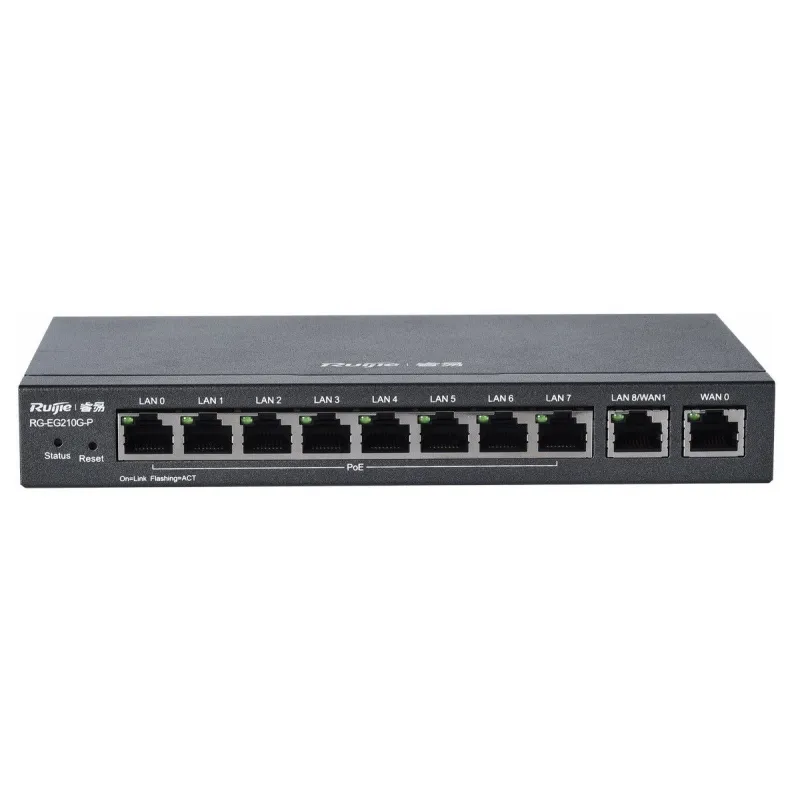

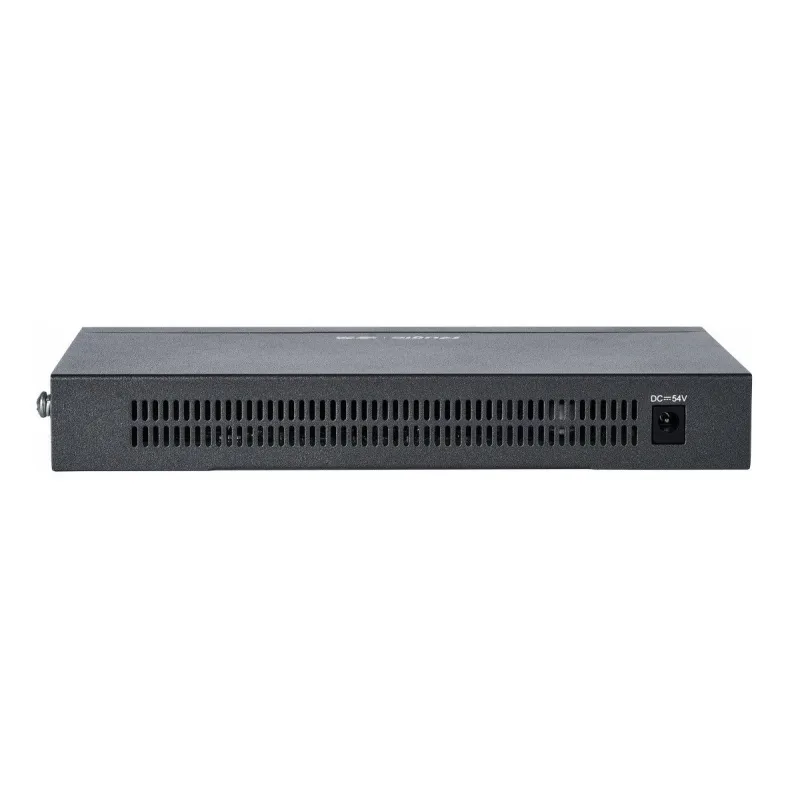

Reyee RG-EG210G-P Cloud Managed Router 2 WAN (Up to 4WAN) รองรับ 200 Concurrent users, พร้อม Switch Gigabit 10 Port จ่ายไฟ POE มาตรฐาน 802.3af/at สูงสุด 70W
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
Fixed ports
|
10 10/100/1000M Base-T ports
Supporting up to 4 WAN ports (Default: 1 WAN port and 9 LAN ports LAN8, LAN7 and LAN6 can be switched to WAN ports)
|
|
RAM
|
256MB
|
|
Flash
|
16MB
|
|
PoE
|
External power adapter, maximum PoE output: 70W
Support standard 802.3 af/at
Support up to 8 LAN ports as PoE ports
|
|
Maximum number of clients
|
Up to 200 concurrent clients
|
|
Recommended bandwidth
|
600M asymmetric bandwidth (flow control disabled)
500M asymmetric bandwidth (flow control enabled)
|
|
Local power supply
|
Support 220V AC local power supply
|
|
Power consumption
|
<80W
|
|
Basic network features
|
|
Network access
|
PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers
|
|
Routing
|
Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams
|
|
Security
|
ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping
|
|
Other protocols
|
DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS
|
|
Gateway
|
|
Application recognition
|
Built-in self-developed application signature database to identify applications
Support free upgrades
|
|
Flow control
|
Support custom flow control policies, IP-based automatic bandwidth assignment
|
|
Traffic audit
|
Real-time traffic audit, IP traffic visualization
|
|
Behavior management
|
Time-based and IP policy-based access control
|
|
VPN
|
IPsec VPN (8 tunnels) server and client
|
|
Wireless management
|
|
Management capacity
|
In AC mode, the maximum management capacity is 500
In gateway mode, the maximum management capacity is 150
|
|
AP management
|
Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist
|
|
Roaming
|
Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track
|
|
Switch management
|
|
Management capacity
|
Maximum manageable cloud managed switches: 128
|
|
Port management
|
Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search
|
|
Status display
|
Port statistics, monitoring information, cable detection, VLAN configuration, MAC list
|
|
Device management
|
Per-device upgrade, batch upgrade
|
|
Special features
|
|
Featured solutions
|
Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution
|
|
Flexible management
|
Eweb and Ruijie Cloud
|
|
Physical specifications
|
|
Dimensions
|
202×107×28 (mm)
|
|
Weight
|
1.5kg
|
|
Temperature
|
Operating temperature: 0 - 40C
Storage temperature: -10C - 70C
|
|
Humidity
|
Operating humidity: 10% ~ 90% (non-condensing)
Storage humidity: 5% ~ 95% (non-condensing)
|
|
ประกัน
|
3 ปี, Adapter 1 ปี
|
