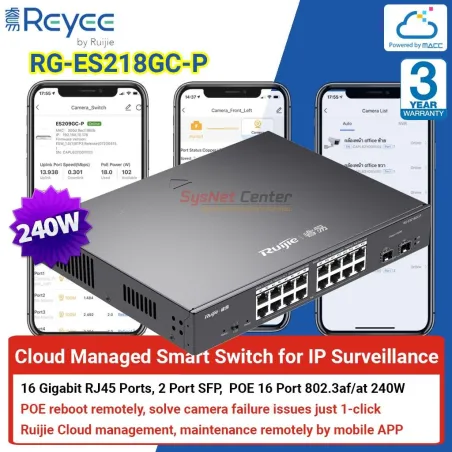

Reyee RG-ES218GC-P Cloud Managed Smart POE Switch 6 Port Gigabit, 2 Port SFP, จ่ายไฟ POE 16 Port 802.3at สูงสุด 240W รองรับการทำ VLAN, Loop Detection, Remote Reboot POE บริหารจัดการผ่าน Ruijie Cloud
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Reyee Series Implementation Cookbook V1.0
RG-ES200 Series Web-Based Configuration Guide
Ruijie RG-ES200 Series Switches Hardware Installation and Reference Guide
RG-ES205GC Quick Installation Guide
RG-ES200 Series Datasheet
L2-Managed Gigabit POE Switch 16 Port ความเร็ว Gigabit มาพร้อม Port SFP สำหรับใส่ SFP Module x 2 เพื่อเชื่อมต่อผ่านสาย Fiber Optic 2 Port ให้ได้ระยะที่ไกลกว่าสาย UTP
สามารถจ่ายไฟ POE มาตรฐาน 802.3af/at (15.4W/30W) ได้ 16 Port รวมกำลังไฟสูงสุด 240W เฉลี่ยต่อ Port 15W
*** กรณีกล้องพวก Speed Dome หรือ Access Point ประเภท 3x3, 4x4 ที่ใช้กำลังไฟสูงๆ (เกิน 13.5W) เชื่อมต่อหลายๆอุปกรณ์ แนะนำให้คำนวนให้ดีครับ หรือ ส่ง Spec อุปกรณ์ให้ทางร้านคำนวนให้ได้เลย
หรือ
กรณีใช้กับ Access Point ที่เป็น WIFI 6 ถ้าติดตั้งหลายๆตัว ค่า Forwarding Rate อาจจะไม่พอ แนะนำเป็น Reyee Series NBS3100 ขึ้นไปจะดีกว่าครับ
รุ่นนี้ Port Uplink จะเป็น SFP Port ครับ ถ้า Port LAN RJ45 ถูกใช้ทั้ง 16 Port และต้องการเพิ่ม Port Lan อีกซัก 1 Port แนะนำให้ใช้ร่วมกับ SFP Module Gigabit
Product Specification | |
Ports | 16 Ports 10/100/1000 Base-T จ่ายไฟมาตรฐาน IEEE 802.3af/at (PoE/PoE+) |
Maximum output power per PoE port | 30W |
10/100/1000Base-T ports | 16 |
1000Base-X SFP ports | 2 |
PoE/PoE+ ports | 16 |
Max. PoE budget | 240W |
Layer Type | Layer 2 |
Switching capacity | 36 Gbps |
Forwarding rate | 26.78 Mpps |
Packet Buffer | 4.1 Mbit |
MAC address table | 8000 |
Maximum VLAN Support | 16 |
Dimensions (W x D x H) | 300 mm x 230 mm x 43.6 mm |
Weight (With package) | 3.5 kg |
MTBF (Hours) | > 200,000 |
Software Features | |
10/100/1000M Auto/Full/Half Duplex Negotiation | Support |
Flow Control | Support |
Storm Suppression | Support |
Management IP | 10.44.77.200 |
VLAN | Support 802.1Q VLAN |
Port-based VLAN | Support |
DHCP Client | Support |
DHCP Snooping | Support |
Many-to-one Port Mirroring | Support |
Downlink Loop Protection | Support |
Loop Disabled Port | Support |
Disconnection Duration | Support |
Cable Testing | Support |
Management | Web-based Management |
Reset Button | Front |
Power Supply Slot | Single, fixed power supply |
Power Consumption | ≤ 280W |
Power Supplies | 100 - 240V AC, 6A |
Fan Adaptive Speed Adjustment | Support |
Acoustic Noise | < 45dB |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Operating Humidity | 10% to 90% RH |
Storage Humidity | 5% to 95% RH |
Port Surge | 4 kV |
Certificate | CE, RoHS |
ประกัน | ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
Reyee RG-ES218GC-P Cloud Managed Smart POE Switch 6 Port Gigabit, 2 Port SFP, จ่ายไฟ POE 16 Port 802.3at สูงสุด 240W รองรับการทำ VLAN, Loop Detection, Remote Reboot POE บริหารจัดการผ่าน Ruijie Cloud
