RG-EST100-E Reyee Wireless Bridge 2.4GHz Dual-stream 500m

Product Specification

Radio Design

2 GHz Single-Band Dual-Stream

Transmission Protocol

IEEE 802.11b/g/n

Operating Frequency

802.11b/g/n: 2.400～2.483GHz

Antenna Type

Directional antennas, 8 dBi

Polarization

Horizontal: 70°, Vertical: 70°

Bridging Distance

500m (recommended)

Spatial Streams

2x2, MU-MIMO

Maximum Throughput

Up to 300 Mbps at 2.4 GHz

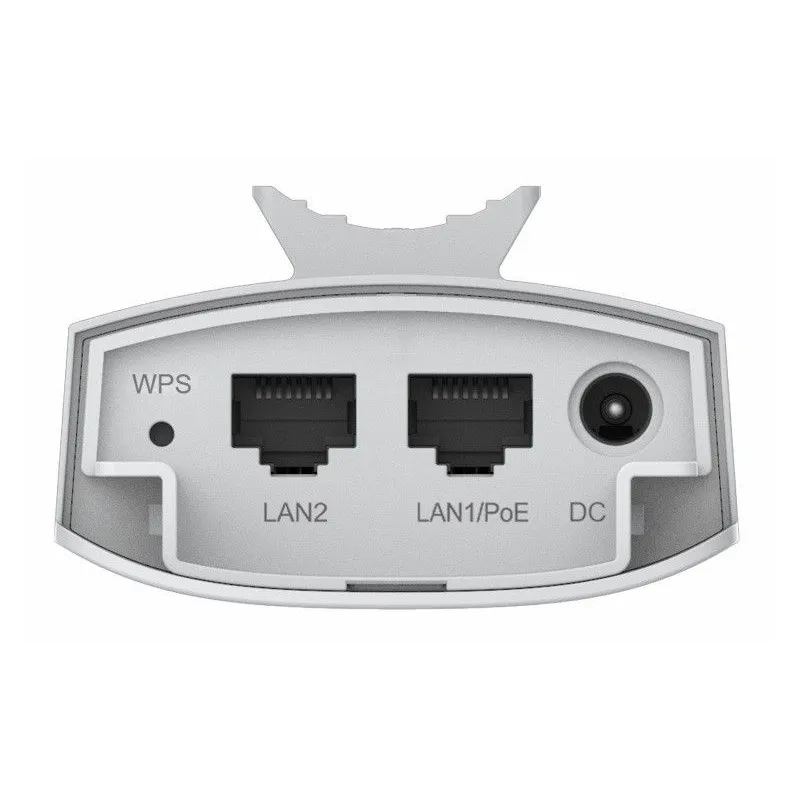

Ports

2 10/100Base-T Ethernet ports, port 1 with Passive PoE

Max. Transmit Power

≤100 mW(20 dBm) (adjustable)

IP Rating

IP55

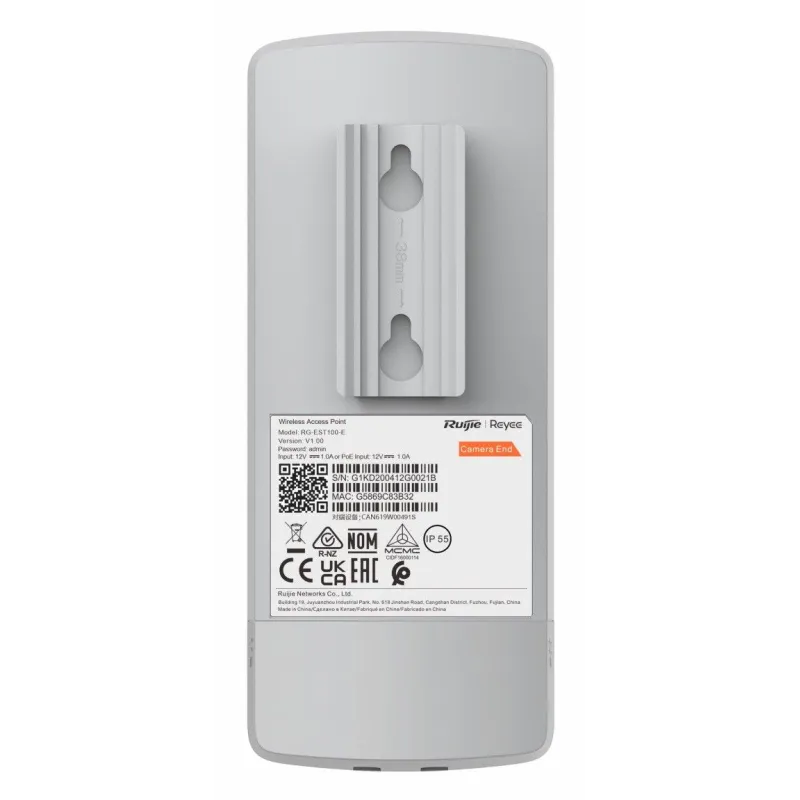

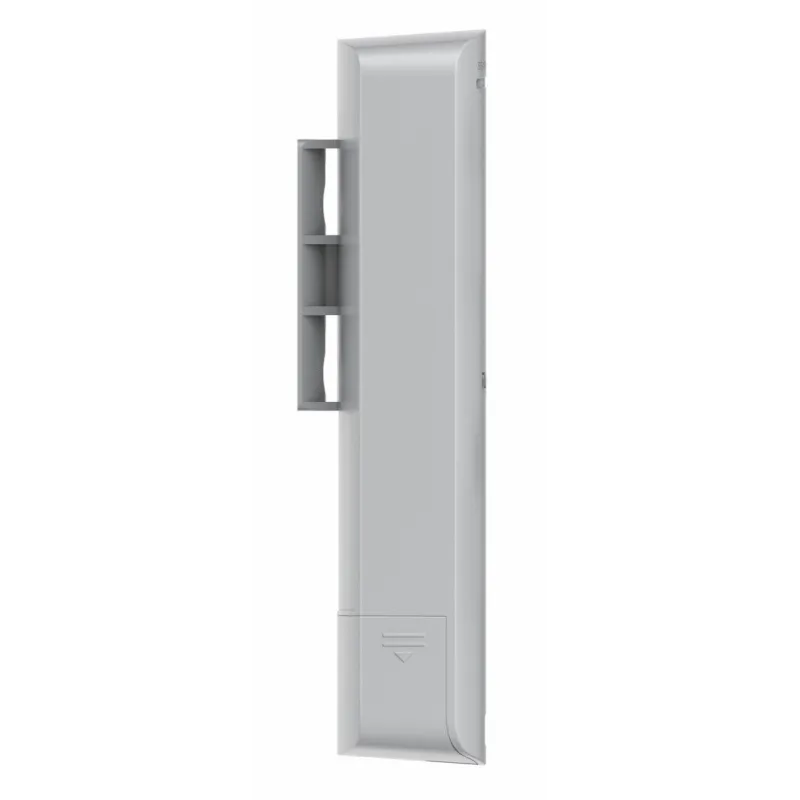

Installation

Wall-mounted/ Pole-mounted

Weight

0.3 kg

Dimensions (D x W x H)

165.5mm×68.7mm×42mm

Software Features

Ethernet

LAN Port Working in Bridging Mode

VLAN

802.1Q VLAN

Basic Settings

AP/CPE Switchover
LAN Settings
Hostname Settings
Password Settings
Country/Region Code Settings
Time Zone Settings
Clock Settings

WDS Settings

One-click optimization
Switching among multiple working modes (high-bandwidth/normal/anti-interference)
WDS: SSID Hiding, Not Open
AP/CPE Switchover
SSID, Channel and Power Settings
Bridging Status LED
LED off: No bridging
One LED blinking: < -78dBm
One LED on: -78dBm< RSSI <-72dBm
Two LEDs on: -72dBm< RSSI <-65dBm
Three LEDs on: RSSI > -65dBm
Root AP RSSI: The lowest RSSI shall prevail.
Link Quality: High, Medium and Low
If the CPE end detects bridging failure and fails to connect again in 5 minutes, it will be rebooted automatically to set up bridging again.
Unlocked: Default SSID (Broadcast, Open), @ruijie-bXXXX
Locked: Default SSID (Hidden, Open), @ruijie-bXXXX
The locked device supports re-pairing on Eweb and can be locked again.
AP/CPE supports fetching AP SSID/BSSID list by scanning.
Display Recommended Camera Count
Multi-VLAN Transparent Transmission

Power Supply

12 VDC power supply or 12 VDC Passive PoE

Power Consumption

5W

LED indicator

LEDs indicate the bridging quality:
LED off: No bridging
LED blinking: ≤-78dBm
One LED on: -78dBm< RSSI ≤-72dBm
Two LEDs on: -72dBm< RSSI ≤-65dBm
Three LEDs on: >-65dBm

Environment

Operating temperature: -30°C to 60°C (-22°F ~ 140°F)
Storage temperature: -40°C to 70°C (-40°F ~ 158°F)
Operating humidity: 5% to 95% (noncondensing)
Storage humidity: 5% to 95% (noncondensing)

Camera Number

3M

14/100 meters
5/500 meters

4-5M

6/100 meters
3/500 meters

6-7M

3/100 meters
1/500 meters

MTBF

>400000H
