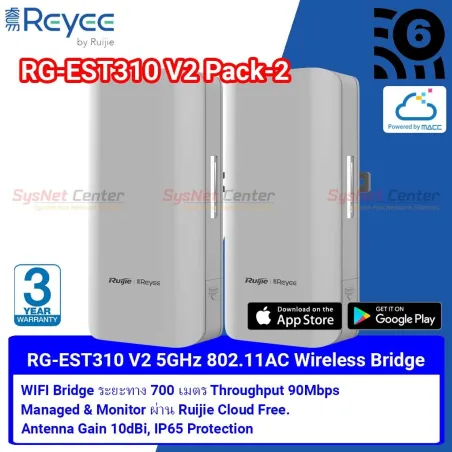

RG-EST310 V2 Reyee Wireless Bridge 5GHz Dual-stream 802.11ac

Product Specification

Radio Design

Single Freque ncy Dual Stream

Transmission Protocol

802.11 a/n/ac

Operating Frequency

802.11a/n/ac  5.150 5.350GHz 5.47 0 5.725 GHz 5.725 5.850GHz
United States: 802.11a/n/ac:5.180~5.240GHz , 5.745~5.825GHz

Antenna Type

Built in Directional Antenna, Horizontal 60° Vertical 30°

Spatial Streams

The 5GHz frequency band provides a wireles s transmission speed of up to 867Mbps.

Modulation Types

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps,64 QAM@48/54Mbps
OFDM: BPSK, QPSK,16QAM, 64QAM, 256QAM

Receiver sensitivity

802.11a:89 dBm (6 Mbps), 80 dBm (24 Mbps), 76 dBm (36 Mbps), 71 d Bm (54Mbps)

802.11n:83 dBm@MCS0, 65 dBm@MCS7, 83 dBm@MCS8, 65 dBm@MCS15
802.11ac: 86 dBm(MCS0), 63 dBm(MCS9)

Max Transmit Power

400mw (26dBm) (Single Stream)

Transmit Power Adjustment

1 dBm

Dimensions (L x W x H without bracket)

147 mm × 76 mm × 37 mm ( 5.78 in x 2.99 in. x 1.46 in.

Weight

0.35 kg (0.77)

Service Ports

One 10/100 BASE T port, supporting 24 V non standard PoE power supply

Management Ports

N/A

Status LED

One system LED, one Ethernet port LED, and three signal LEDs

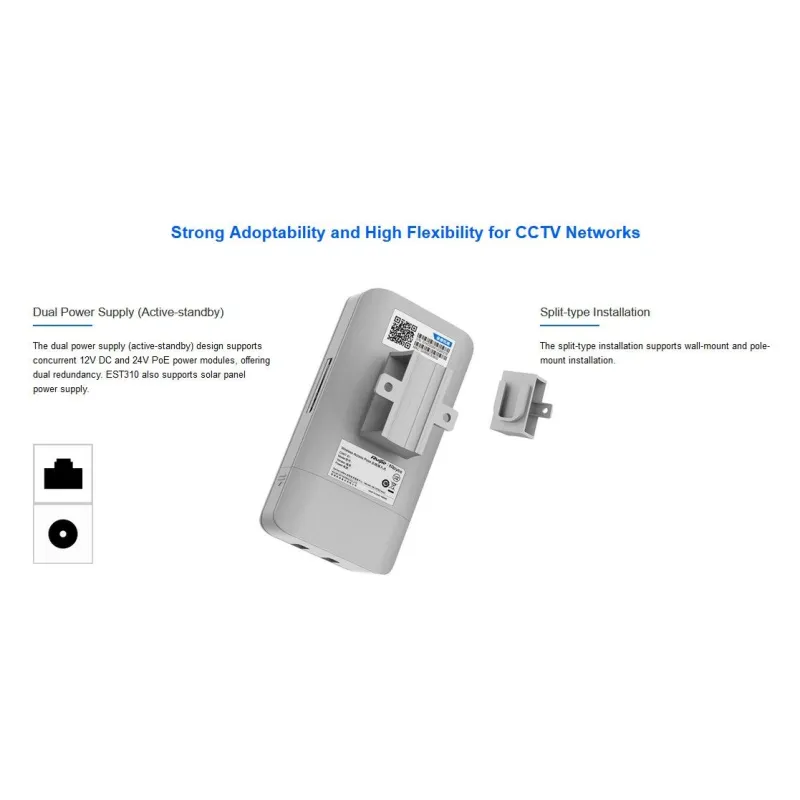

Power Supply Method

12 VDC and 24 V non standard PoE power supply

Max Power Consumption

7 W

Bluetooth 5.0

Not supported

Temperature

Operating Temperature: 30°C to 55°C 22 F to 131 F)
Storage Temperature: 40°C to 70°C 40 F to 158 F)
Operating Humidity: 5% to 95% RH (non condensing)
Storage Humidity: 5% to 95% RH (non condensing)

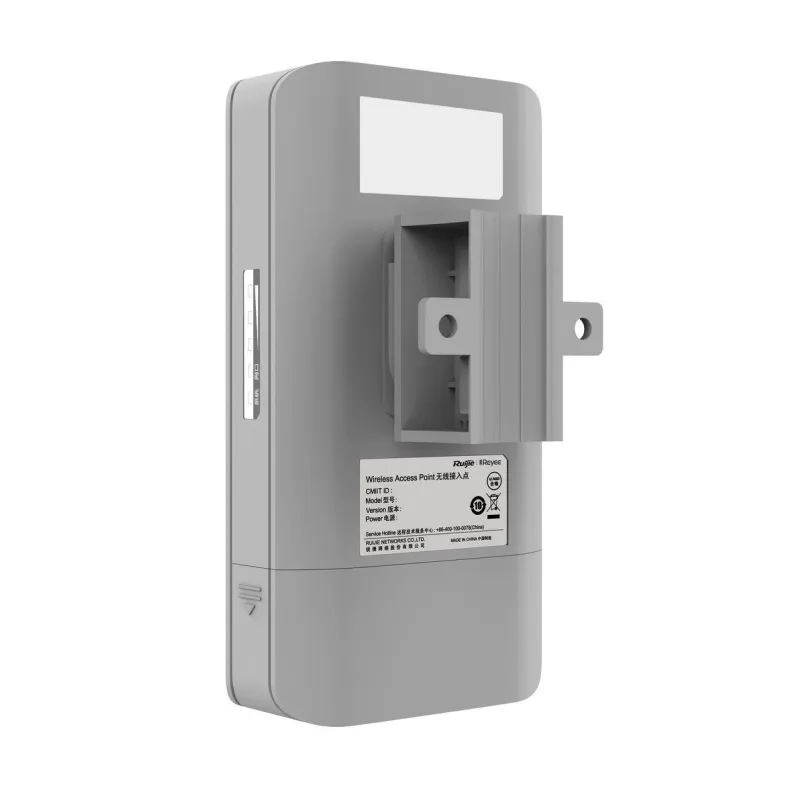

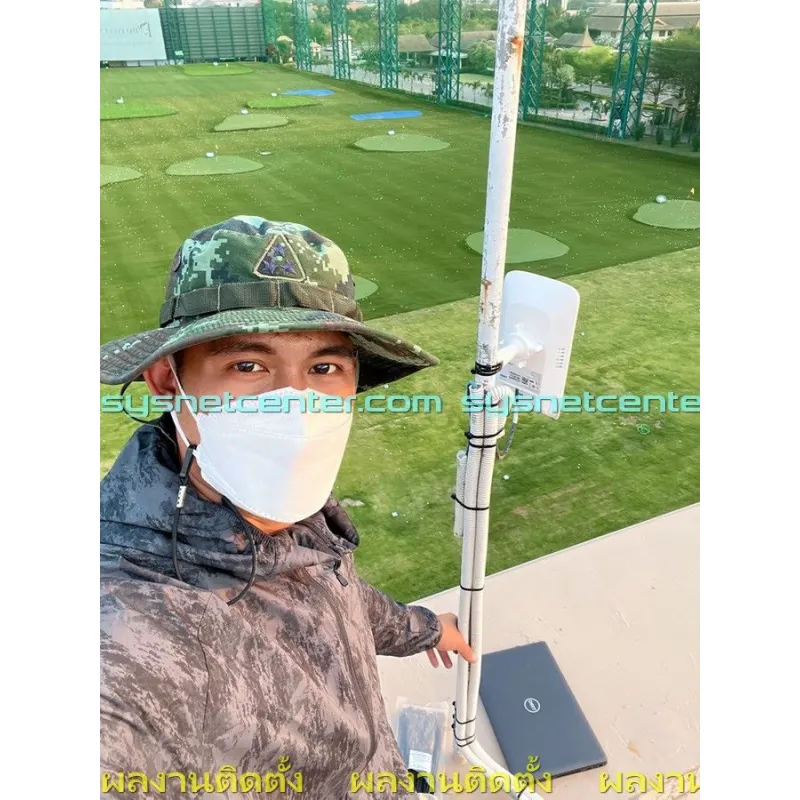

Installation Methods

Wall Mounting/ Pole Mounting

Certification

CE

MTBF

>400000H

รับประกัน

3 ปี
