- ใหม่


Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Review Reyee RG-EW300 Pro อุปกรณ์ WIFI Home-Router ราคาประหยัด
RG-EW300 PRO User Manual
RG-EW300 PRO Datasheet
Product Specification | |

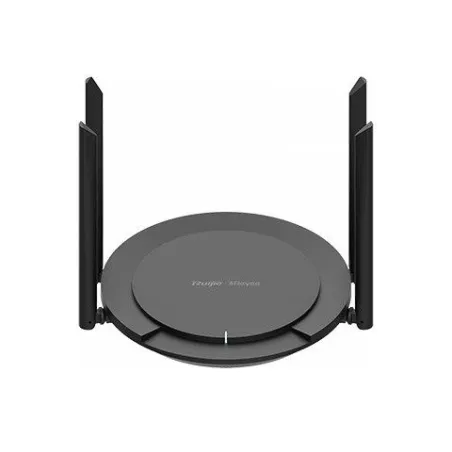

Overview | Reyee RG-EW300 PRO 300Mbps Wireless Smart Router WIFI 802.11n ความถี่ 2.4Ghz เสาอากาศกำลังขยายสูง 4x5dBi เหมาะสำหรับทำ Repeater, WISP Mode กระจายสัญญาณในตำแหน่งอับสัญญาณ พร้อม 4 Port Lan เชื่อมต่ออุปกรณ์ Network ได้หลังจากทำ Mode Repeater, ราคาประหยัด Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ |
Wi-Fi Standards | Wi-Fi 4 (802.11n) |
Max. Wi-Fi Speed | 2.4 GHz: 300 Mbps |
MIMO | 2.4 GHz: 2×2 |
Recommended Users * 1Mbps/terminal guaranteed | 16 |
Antennas | 4 |
Antenna Gain | 2.4 GHz: 5 dBi |

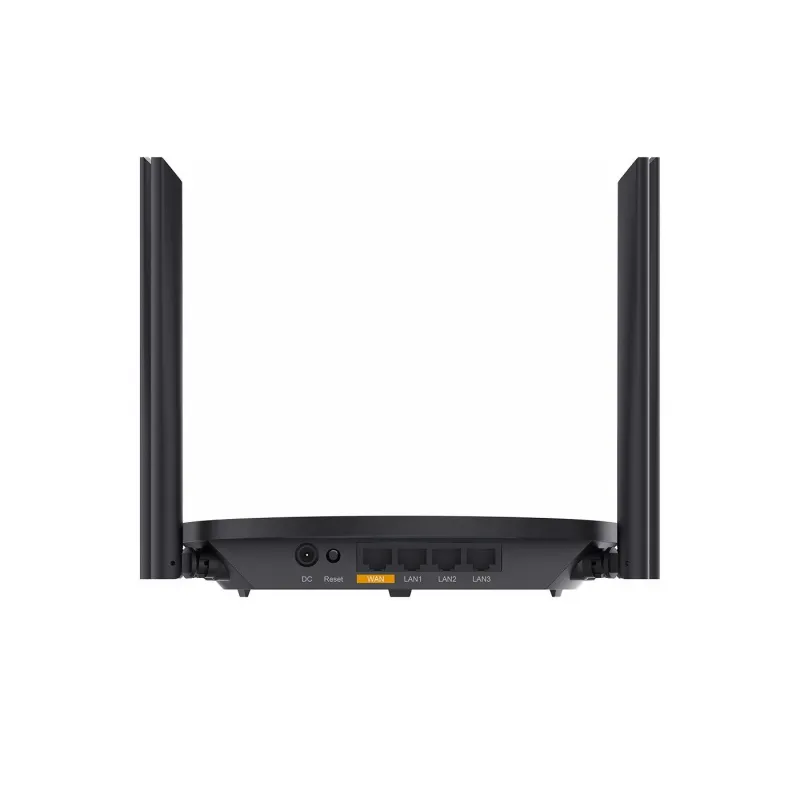

WAN Port(s) | 1 10/100 Base-T Port |
LAN Port(s) | 3 10/100 Base-T Ports |

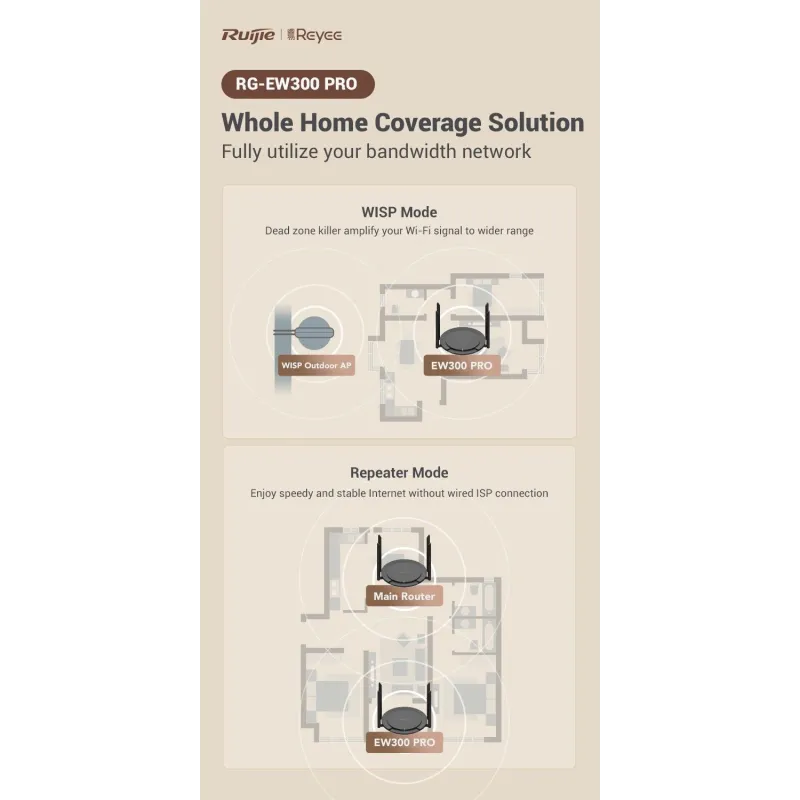

Operating Mode | Repeater, Router, AP, WISP, ไม่รองรับ Mode MESH |
IPTV | Yes |
Parental Control | Yes |
APP Management | Yes |
Firewall | Yes |
Dimensions (W x D x H) | 210 mm × 180 mm × 33 mm |
Weight | 0.26 kg (packages not included) |
Power Supply | DC 12V/1A |
ประกัน | 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
Model | ||||||
สัญญาณครอบคลุม | 20 เมตร | 20 เมตร | 30 เมตร | 30 เมตร | 30 เมตร | 30 เมตร |
จำนวน Clients ที่แนะนำ | 40 | 80 | 48 | 80 | 100 | 100 |
มาตรฐาน WIFI | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11ac wave2 | 802.11ac wave2, wave1 | 802.11ax | 802.11ax |
ความเร็วสูงสุด (2.4GHz) | 400Mbps | 400Mbps | 400Mbps | 400Mbps | 574Mbps | 800Mbps |
ความเร็วสูงสุด (5GHz) | 867Mbps | 867Mbps | 867Mbps | 867Mbps | 1201Mbps | 2402Mbps |
กำลังส่งสูงสุด (2.4G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
กำลังส่งสูงสุด (5G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
จำนวน SSID | 8 | 8 | 8 | 8 | 8 | 8 |
Spatial Streams | 2.4G: 2x2 MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 4x4 MIMO |
Antenna | PCB antenna | PF antenna | Array antennas 2.4G: 2dBi | Array antennas | Internal antennas 2.4G: 3dBi | Internal antennas 2.4G: 3dBi |
Service Ports | Front: Rear: | Front: Rear: | 2 Port 10/100 Mbps PoE/LAN1 port supports PoE | 2 Port 10/100/1000 Mbps | 2 Port 10/100/1000 Mbps | 1 Port 10/100/1000M/2.5G supports PoE; 1 Port 10/100/1000Mbps |
SON Number | 150 | 150 | 150 | 300 | 300 | 300 |
Power Supply | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1at | PoE 803.1at |
Port Aggregation | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
VLAN | Support | Support | Support | Support | Support | Support |
Port Base VLAN | Support | Support | Not Support | Not Support | Not Support | Not Support |
DHCP Snooping | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
ARP Check | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
IP Source Guard | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
LLDP | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Static ARP Bind | Support | Support | Support | Support | Support | Support |
ARP Proxy | Support | Support | Support | Support | Support | Support |
Ping | Support | Support | Support | Support | Support | Support |
Traceroute | Support | Support | Support | Support | Support | Support |
NAT | Support | Support | Support | Support | Support | Support |
Static Route | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
DHCP Server | Support | Support | Support | Support | Support | Support |
Telnet | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
SSH | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
รองรับการจัดการผ่าน Ruijie Cloud | Support | Support | Support | Support | Support | Support |
รองรับการจัดการผ่าน Ruijie Cloud APP | Support | Support | Support | Support | Support | Support |
802.1x | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PPPoE | Support | Support | Support | Support | Support | Support |
Same SSID with differnet VLAN | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Same VLAN with differnet SSID | Support | Support | Support | Support | Support | Support |
L2 Roaming | Support | Support | Support | Support | Support | Support |
L3 Roaming | Support | Support | Support | Support | Support | Support |
Global whitelist/blacklist | Support | Support | Support | Support | Support | Support |
SSID-based whitelist/blacklist | Support | Support | Support | Support | Support | Support |
Wireless bridge | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PoE Out | Not Support | Support | Not Support | Not Support | Not Support | Not Support |
