Product Specification
|
|
Overview
|

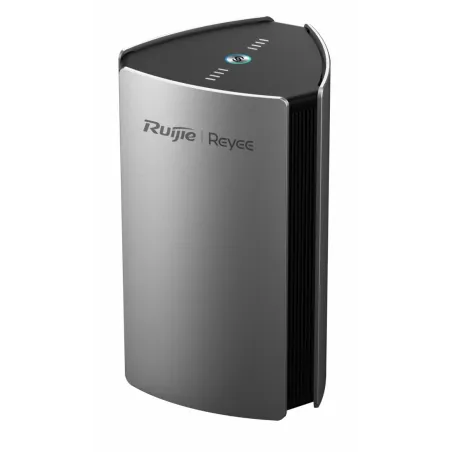

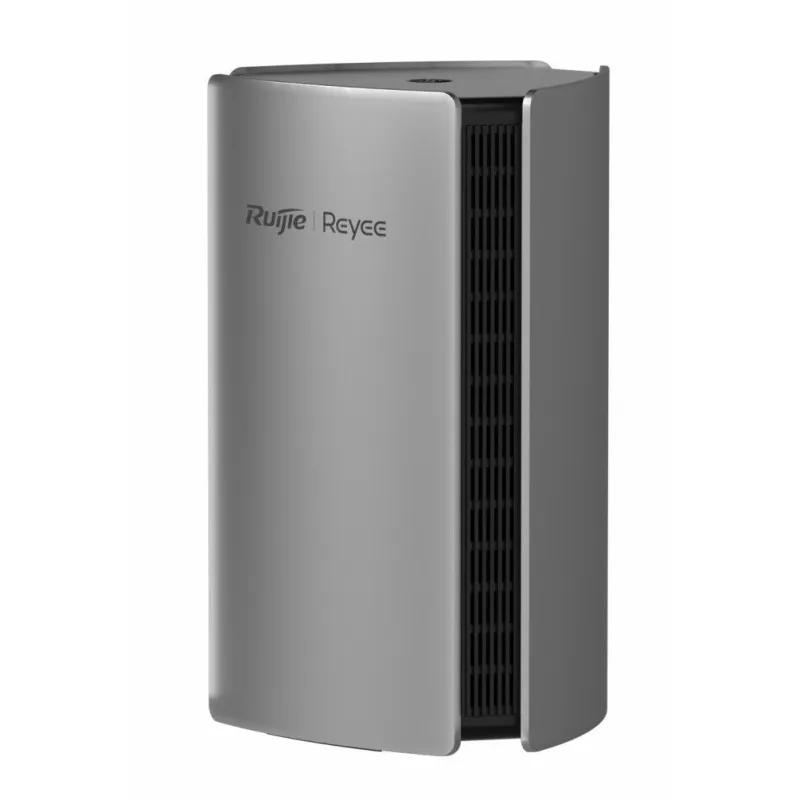

Reyee RG-M32 3200M Dual-band Gigabit Wireless Mesh Router มาตรฐาน WIFI6 802.11ax 4x4 MU-MIMO เสา 4 ต้น อัตราขยายสัญญาณสูง ทำให้รับ-ส่งสัญญาณได้ไกลครอบคลุมทุกพื้นที่

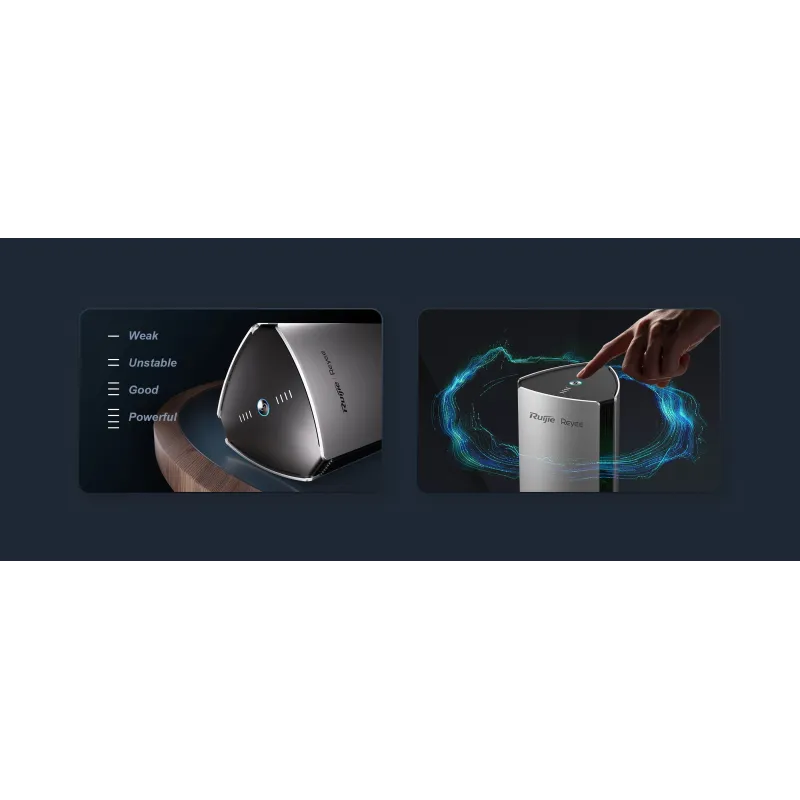

รองรับการทำ WIFI Mesh ง่ายเพียงกดปุ่มที่อุปกรณ์

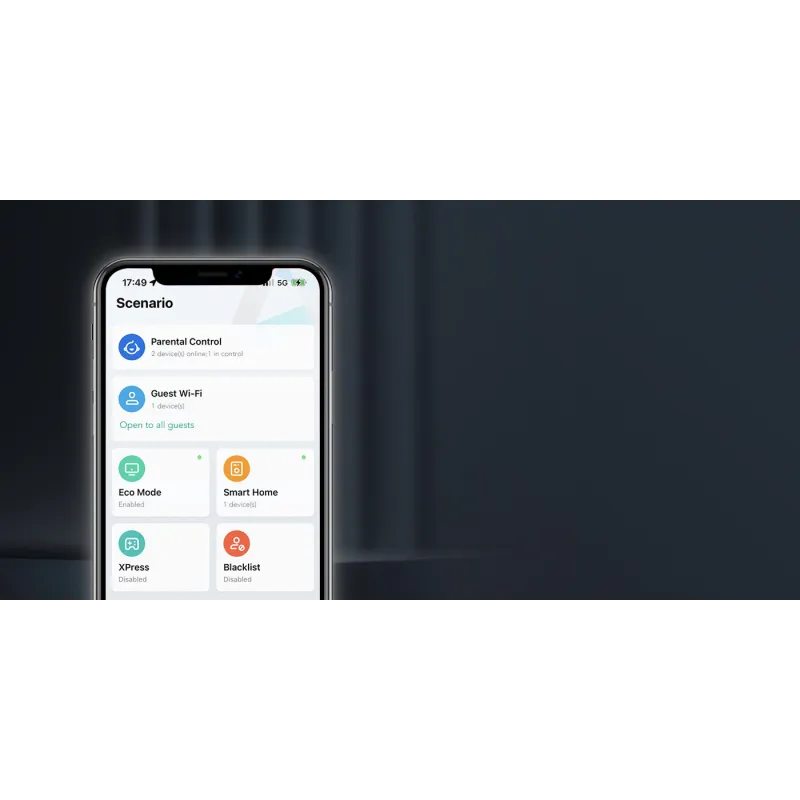

Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
Dimensions (W×D×H)
|
119 mm × 128 mm × 201 mm
(4.7 in. × 5 in. × 7.9 in. antennas not included)
|
|
Weight
|
1.3 kg (packages not included)
|
|
Wi-Fi Standards
|
Wi-Fi 6 (802.11ax)
|
|

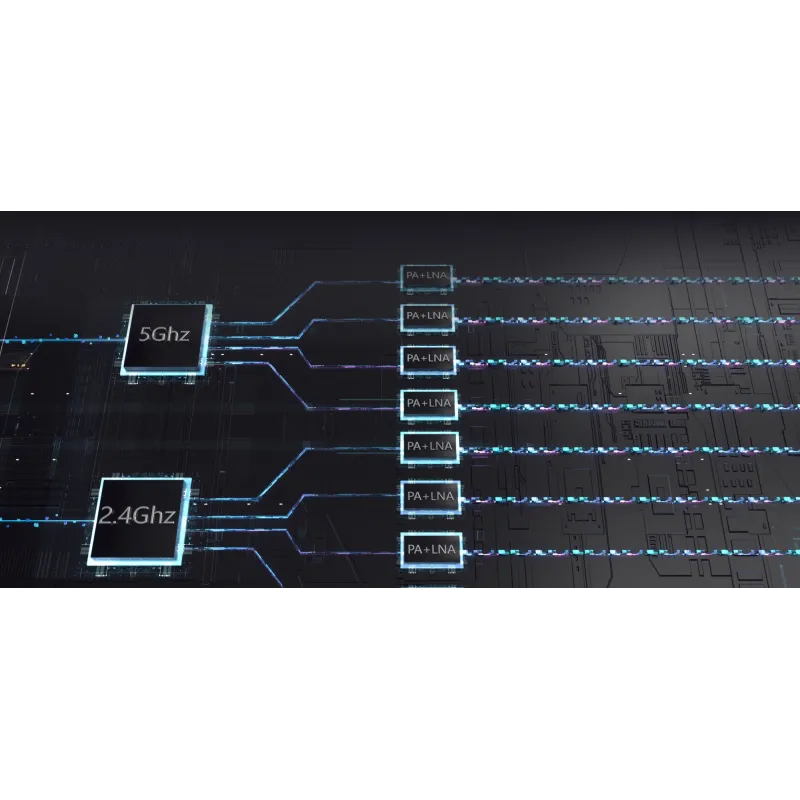

MIMO
|
2.4 GHz, 4×4, MU-MIMO
5 GHz, 4×4, MU-MIMO
|
|
Max. Wi-Fi Speed
|
2.4 GHz: 800 Mbps
5 GHz: 2402 Mbps
|
|
Channel Width
|
2.4 GHz: Auto/20/40 MHz
5 GHz: Auto/40/80/160 MHz
|
|
Antennas
|
4 dual-band
|
|
Antennas Type
|
Internal Omnidirectional
|
|
Antenna Gain
|
2.4 GHz: 4 dBi
5 GHz: 4 dBi
|
|

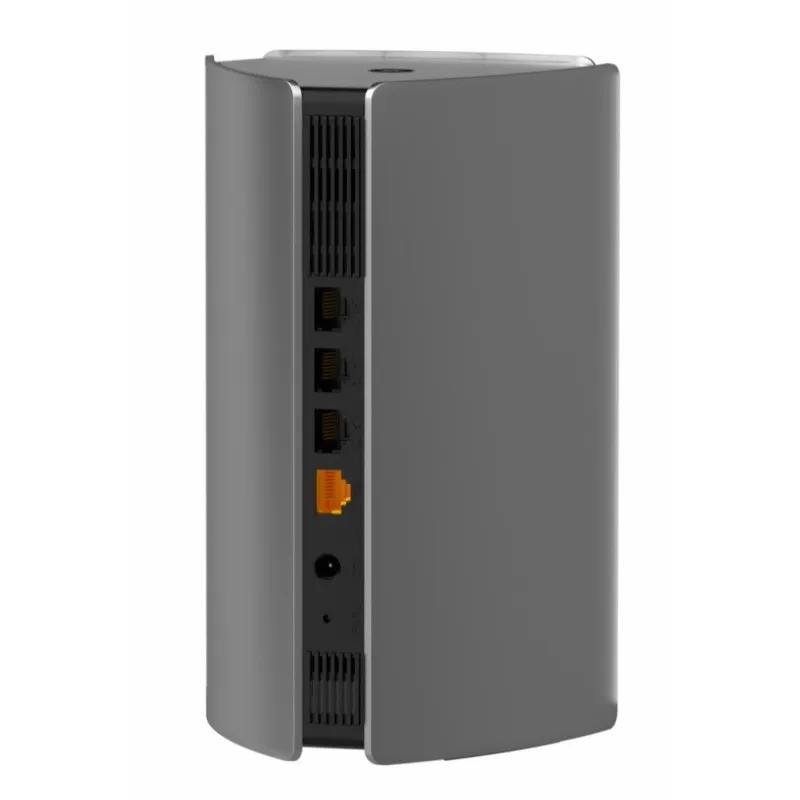

WAN Port
|
1×10/100/1000 Base-T
|
|
LAN Ports
|
3×10/100/1000 Base-T
|
|
Recommended Users
|
60 |
|
Max. Users
|
192 |
|
Power Supply
|
DC 12V/2A
|
|
Power Consumption
|
< 24 W
|
|
Operation Frequency Bands
|
802.11b/g/n/ax: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
country-specific restrictions apply
|
|
Transmit Power
|
CE EIRP: ≤20dBm (2.4GHz)
≤27dBm (5GHz)
≤20dBm 2400~2483.5MHz(Bluetooth)
2400~2483.5MHz ≤ 20dBm(EIRP)
5150~5350MHz ≤ 23dBm(EIRP)
5470~5725MHz ≤ 30dBm(EIRP)
5725~5850MHz ≤ 30dBm(EIRP)
|
|
Receive Sensitivity
|
2.4 GHz:
802.11b: -96 dBm(1 Mbps)
802.11g: -91 dBm(6 Mbps), -85 dBm(54 Mbps)
802.11n: -90dBm(MCS0), -85 dBm(MCS7)
5 GHz:
802.11n: -90 dBm(MCS0), -70 dBm(MCS7)
802.11a: -88 dBm(6 Mbps), -60 dBm(54 Mbps)
802.11ac: -82dBm(MCS0), -57dBm(MCS7), -52dBm(MCS9)
|
|
Operating Temperature
|
-10 °C to +45 °C (14 °F to 113 °F)
|
|
Operating Humidity
|
5% to 95% Noncondensing
|
|
Certifications
|
CE, SIRIM, RCM RoHS
|
|
Wireless
|
|
OFDMA
|
Support |
|
MU-MIMO
|
Support |
|
BSS Coloring
|
Support |
|
Maximum Number of SSIDs
|
6 |
|
SSID Hiding
|
Support |
|
Band Steering
|
Support |
|
Guest Wi-Fi
|
Support |
|
WPA/WPA2
|
Support |
|
WPA3
|
Support |
|
Roaming
|
Layer 3 Roaming
|
|
Blacklist
|
Support |
|
Reyee Mesh
|
Support |
|
Mesh Pairing
|
By Hardware
By Mesh Button
By Eweb
|
|
Recommended Hop Count
|
≤2
|
|
Wi-Fi Optimization
|
Support |
|
QoS (WMM)
|
Support |
|
Transmission Power Adjustment
|
Support |
|
Hardware
|
|
CPU
|
MT7622B+MT7911AN+MT7915AN
|
|
Flash
|
16 MB
|
|
RAM/SDRAM
|
64 MB
|
|
Color
|
Black
|
|
System LED Indicator
|
Support |
|
Reyee Mesh LED Indicator
|
Support |
|
Reyee Mesh Button
|
Support |
|
Power Button
|
Support |
|
Reset Button
|
Support |
|
WAN
|
|
Learning PPPoE Account & Password
|
Support |
|
VLAN Tagging
|
Support |
|
LAN
|
|
DHCP Server
|
Support |
|
Client List
|
Support |
|
Static IP Assignment
|
Support |
|
Port-Based Flow Control
|
Support |
| Feature |
IPv6
DDNS
IPTV
Alarm
Diagnosis
UPnP
ARP Binding
Port Mapping
DMZ Host
Rate Limitation of Terminals
Hardware Acceleration
MAC Address Cloning
Cloud Management
Repeater Mode
|
| Security |
PPTP VPN Server
PPTP VPN Client
L2TP VPN Client
Protect TCP Flood Attacks
|
|
Parental Control
|
Time Schedule
|
|
System
|
|
Default Access/Password
|
192.168.110.1 No Password Required by Default
|
|
URL Access
|
Support |
|
Upgrade
|
Local/Online/App |
|
Syslog
|
Support |
|
Backup
|
Support |
|
Factory Reset
|
Support |
|
Language
|
Chinese
English
Vietnamese
Indonesian
Thai
Arabic
Traditional Chinese
Spanish
Russian
|
|
ประกัน
|
3 ปี
|
