Product Specification |

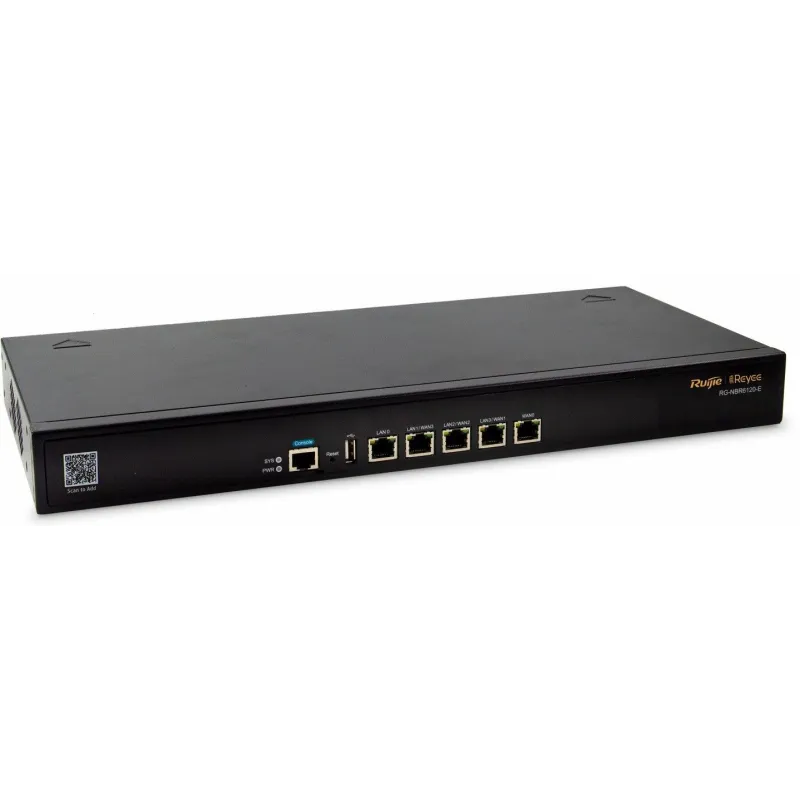

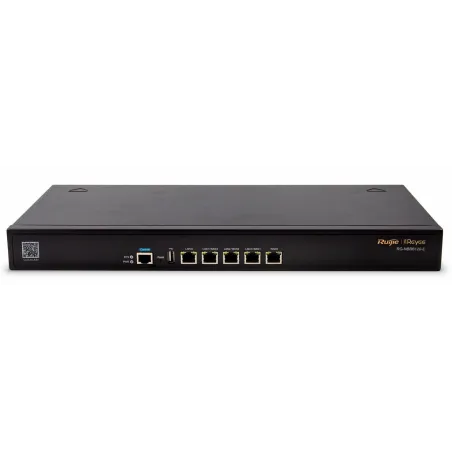

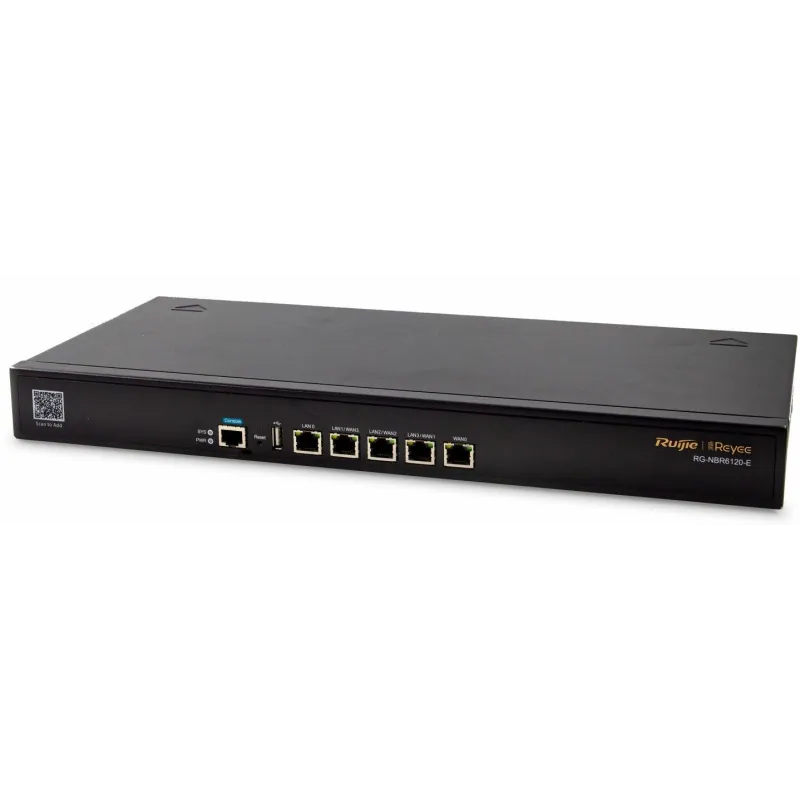

Overview | Reyee RG-NBR6120-E High-performance Security Router รองรับ Loadbalance 3 WAN, IPSec VPN/ L2TP with IPSecs/ PPTP, รองรับ Internet Throughput 600Mbps, รองรับ Users 200 Concurrent รองรับการทำ Captive Portal ผ่าน Ruijie Cloud รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ |
Specifications |
|---|
WAN Port | 1 x 10/100/1000 Base-T port |
LAN Port | 1 x 10/100/1000 Base-T port |
LAN/WAN Switchable Port | 3 x 10/100/1000 Base-T port |
Throughput | 600 Mbps |
Client (Recommended) | 200 |
CPU | 2 Cores, 880 MHz |
SDRAM/RAM | 512 MB |
Flash Memory | 4 GB |
Hard Disk Drive | Not Support (ไม่มี Harddisk ในชุด กรณีเก็บ Log ต้องส่งไปเก็บที่ NAS) |
LED | 1 x System Status LED
1 x Power Status LED |
Button | 1 x Power button |
Dimensions (W x D x H) | 440 mm x 43.6 mm x 200 mm (17.32 in. x 1.72 in. x 7.87 in., without rubber pads) |
Mounting Method | Rack-mounted |
Rack Size | 1U 19-inch Rack-mounted |
Fan | N/A |
Environment |
|---|
Operating Temperature | –5ºC to 45ºC (23°F to 113°F) |
Operating Humidity | 10% to 90% RH (non-condensing) |
Performance |
|---|
Max Managed Access Points | 16 Access points or 32 wall-mounted access points |
PPPoE Server Accounts | 64 |
Basic Features |
|---|
Internet Access Mode | PPPoE Client
DHCP Client
Static IP |
Access Mode Auto-Identification | Support |
WAN Address Collision Avoidance | Support |
VLAN | Support |
IPv6 | Not Support |
SNMP | Support |
Network Management |
|---|
Port Isolation | Support |
Port Mirroring | Support |
LAN Port Link Aggregation | Not Support |
AC Mode | Support |
Application Identification | Support |
Application Priority | Support |
Behavior Management | App Block (Time/IP-based Policy)
Website Filtering
Blacklist/Whitelist |
Flow Control | User Flow Control Policies
IP-based Automatic Bandwidth Assignment
VPN Flow Control |
Local Authentication | Portal Authentication
Password Authentication
Voucher Authentication |
VPN |
|---|
L2TP VPN | Support |
PPTP VPN | Support |
IPsec VPN | Support |
L2TP/PPTP Tunnels | 16 |
L2TP/IPsec VPN Performance | 8 Mbps |
Routing |
|---|
Static Routing | Support |
RIP/RIPng | Support |
OSPFv2 | Support |
OSPFv3 | Not Support |
Equal-Cost Multi-Path Routing | Support |
Policy-Based Routing | Support |
Active/Standby Switchover of Ports | Support |
WAN Load Balancing | Support |
Network |
|---|
PPPoE Client | Support |
PPPoE Server | Support |
DHCP Server | Support |
DHCP Snooping | Support |
DNS Client | Support |
DNS Server | Support |
DNS Proxy | Support |
FTP Client | Support |
FTP Server | Support |
TFTP Client | Support |
NTP Client | Not Support |
DDNS | Cloud DNS |
NAT | Support |
SNMP | Support |
Ruijie Cloud | Support |
ACL |
|---|
ACL | Support |
Time-based Extended ACL | Support |
Security |
|---|
SYN Flood Attack Guard | Not Support |
UDP Flood Attack Guard | Not Support |
ICMP Flood Attack Guard | Not Support |
ICMP Redirection Attack Guard | Not Support |
ICMP Unreachable Packet Attack Guard | Not Support |
Fraggle Attack Guard | Not Support |
Overlength ICMP Packet Attack Prevention | Not Support |
Winnuke Attack Guard | Not Support |
IP-based Security Domain Division | Not Support |
Security Domain Division based on Physical Port (Sub Interface and Aggregation Port) and Dialup Port | Not Support |
Service and Support |
|---|
Cloud Management | Support |
App Management | Support |
App Upgrade | Support |
App Restart | Support |
ประกัน | 3 ปี |
