Product Specification
|
|
Overview
|

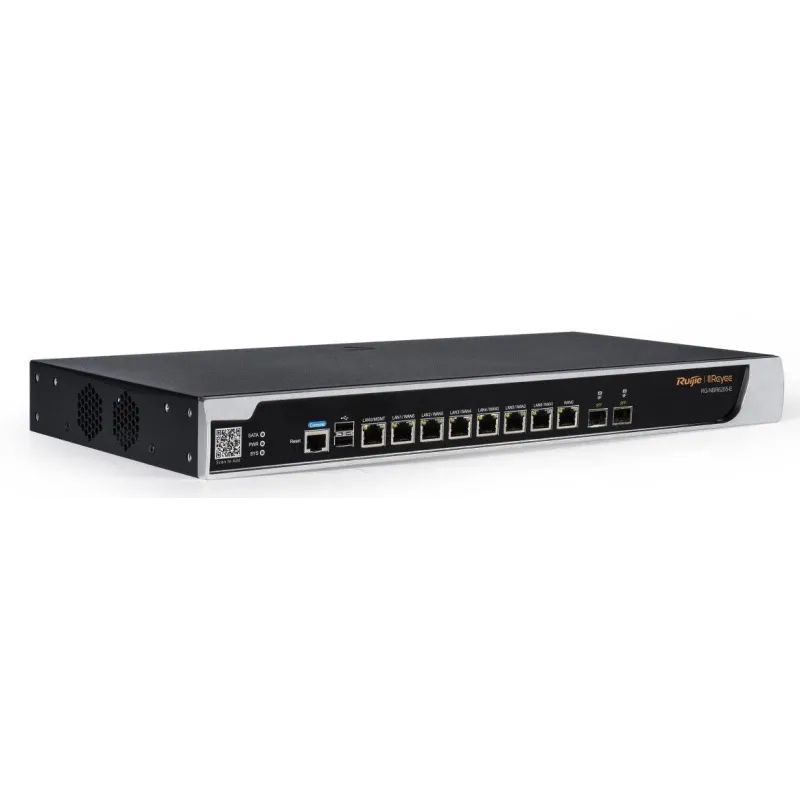

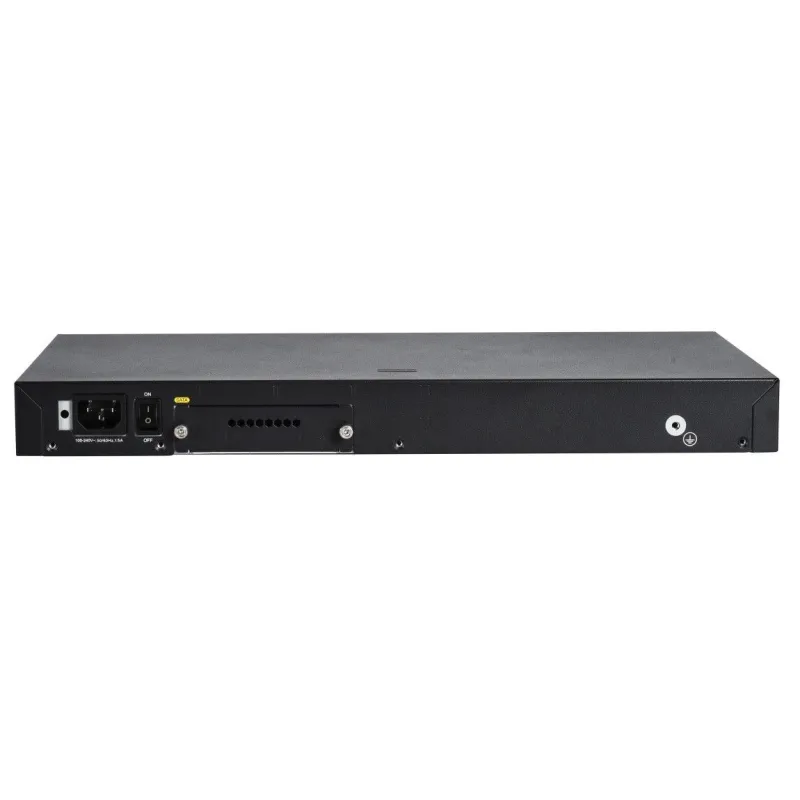

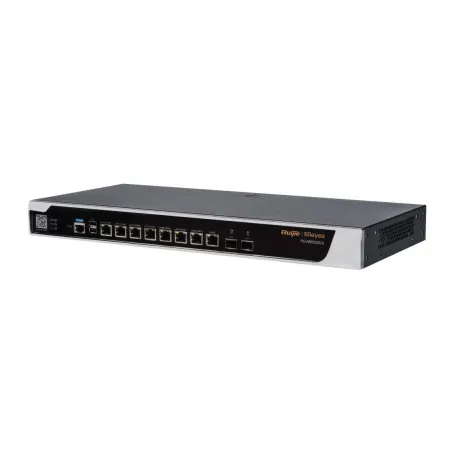

Reyee RG-NBR6205-E High-performance Security Router รองรับ Loadbalance 6 WAN, IPSec VPN/ L2TP with IPSecs/ PPTP, รองรับ Internet Throughput 1.2Gbps, รองรับ Users 500 Concurrent
รองรับ Harddisk ขนาด 1TB (Not Include)
รองรับการทำ Captive Portal ผ่าน Ruijie Cloud
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
WAN Port
|
1 x 10/100/1000 Base-T port
|
|
LAN Port
|
1 x 10/100/1000 Base-T port
|
|
LAN/WAN Switchable Port
|
6 x 10/100/1000 Base-T ports
2 x 1GBase-X SFP ports
|
|
Throughput
|
1.5 Gbps
|
|
Client (Recommended)
|
500
|
|
CPU
|
2 Cores, 1.2 GHz
|
|
SDRAM/RAM
|
2 GB
|
|
Flash Memory
|
8 MB
|
|
Hard Disk Drive
|
1 TB (Not delivered with the router, can be added)
|
|
LED
|
1 x System Status LED
1 x Power Status LED
1 x SATA LED
|
|
Button
|
1 x Power button
|
|
Dimensions (W x D x H)
|
440 mm x 43.6 mm x 200 mm (17.32 in. x 1.72 in. x 7.87 in., without rubber pads)
|
|
Mounting Method
|
Rack-mounted
|
|
Rack Size
|
1U 19-inch Rack-mounted
|
|
Fan
|
2
|
|
Operating Temperature
|
0ºC to 45ºC (32°F to 113°F)
|
|
Operating Humidity
|
10% to 90% RH (non-condensing)
|
|
Max Managed Access Points
|
32 Access points or 64 wall-mounted access points
|
|
PPPoE Server Accounts
|
64
|
|
Internet Access Mode
|
PPPoE Client
DHCP Client
Static IP
|
|
Access Mode Auto-Identification
|
Support
|
|
WAN Address Collision Avoidance
|
Support
|
|
VLAN
|
Support
|
|
IPv6
|
Support
|
|
SNMP
|
Support
|
|
Port Isolation
|
Support
|
|
Port Mirroring
|
Support
|
|
LAN Port Link Aggregation
|
Support
|
|
AC Mode
|
Support
|
|
Application Identification
|
Support
|
|
Application Priority
|
Support
|
|
Behavior Management
|
App Block (Time/IP-based Policy)
Website Filtering
Blacklist/Whitelist
|
|
Flow Control
|
User Flow Control Policies
IP-based Automatic Bandwidth Assignment
VPN Flow Control
|
|
Local Authentication
|
Portal Authentication
Password Authentication
Voucher Authentication
|
|
L2TP VPN
|
Support
|
|
PPTP VPN
|
Support
|
|
IPsec VPN
|
Support
|
|
L2TP/PPTP Tunnels
|
400
|
|
L2TP/IPsec VPN Performance
|
400 Mbps
|
|
Static Routing
|
Support
|
|
RIP/RIPng
|
Support
|
|
OSPFv2
|
Support
|
|
OSPFv3
|
Support
|
|
Equal-Cost Multi-Path Routing
|
Support
|
|
Policy-Based Routing
|
Support
|
|
Active/Standby Switchover of Ports
|
Support
|
|
WAN Load Balancing
|
Support
|
|
PPPoE Client
|
Support
|
|
PPPoE Server
|
Support
|
|
DHCP Server
|
Support
|
|
DHCP Snooping
|
Support
|
|
DNS Client
|
Support
|
|
DNS Server
|
Support
|
|
DNS Proxy
|
Support
|
|
FTP Client
|
Support
|
|
FTP Server
|
Support
|
|
TFTP Client
|
Support
|
|
NTP Client
|
Support
|
|
DDNS
|
Cloud DNS
|
|
NAT
|
Support
|
|
SNMP
|
Support
|
|
Ruijie Cloud
|
Support
|
|
ACL
|
Support
|
|
Time-based Extended ACL
|
Support
|
|
SYN Flood Attack Guard
|
Support
|
|
UDP Flood Attack Guard
|
Support
|
|
ICMP Flood Attack Guard
|
Support
|
|
ICMP Redirection Attack Guard
|
Support
|
|
ICMP Unreachable Packet Attack Guard
|
Support
|
|
Fraggle Attack Guard
|
Support
|
|
Overlength ICMP Packet Attack Prevention
|
Support
|
|
Winnuke Attack Guard
|
Support
|
|
IP-based Security Domain Division
|
Support
|
|
Security Domain Division based on Physical Port (Sub Interface and Aggregation Port) and Dialup Port
|
Support
|
|
Cloud Management
|
Support
|
|
App Management
|
Support
|
|
App Upgrade
|
Support
|
|
App Restart
|
Support
|
|
ประกัน
|
3 ปี
|
High Performance, “All-in-One” Security Router
Multi-service, One is Enough
All-in-one: Firewall + Network Behavior Audit + IPS + AC = NBR
Open API, Freely Third Party Integration
Accurate Screen Mirroring
One-to-one guest room screen mirroring.
L7 DPI and Intelligent Flow Control in VPN Tunnels
Not only powerful behavior management(2500+ rules library) based on L7 DPI,
but also visualized VPN, to guarantee key service in tunnel.
Integrated Wireless AC, Free to Use
Support to manage max. 64 Indoor AP (128 Wall AP), cut down network failure point, save cost to users.
Cloud, Make Your Business Easy
-
Self-organization network
-
Scenario-based configuration guide
-
Marketing portal authentication
-
Quickly advanced service setup by APP
-
Cloud APP maintenance remotely
รายละเอียดสินค้า
10 รายการ
ข้อมูลสินค้า
- จำนวน WAN/ Internet
- 6 Wan/Internet
- รองรับ VPN
- Yes
