Product Specification
|
|
Overview
|

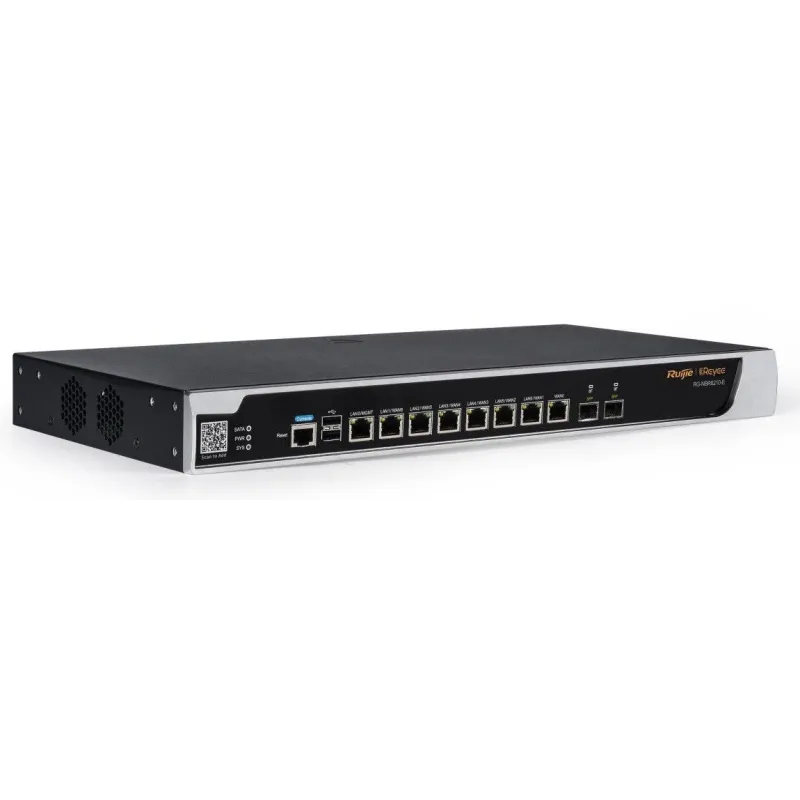

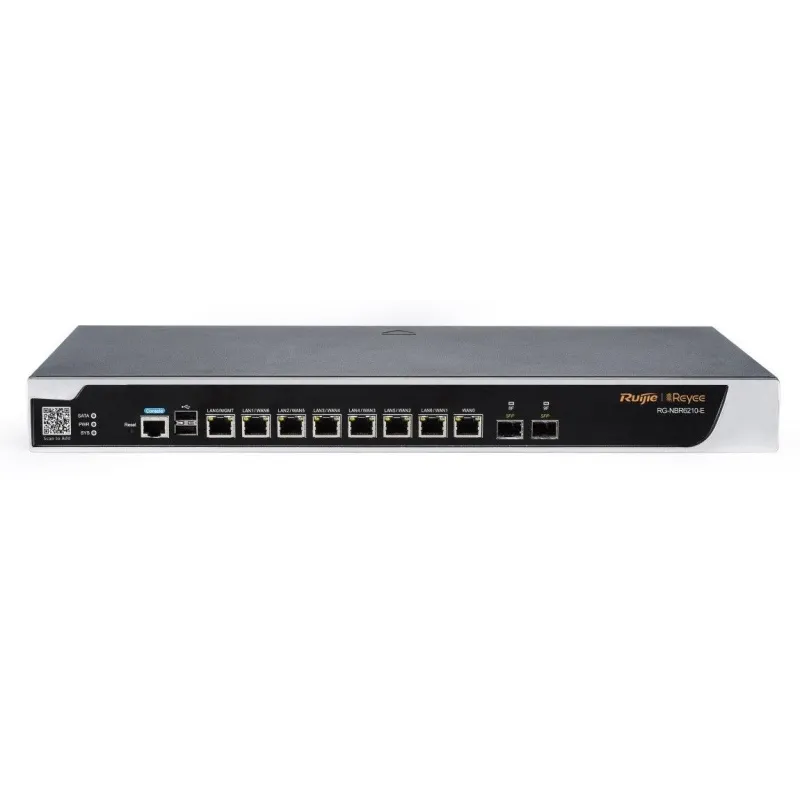

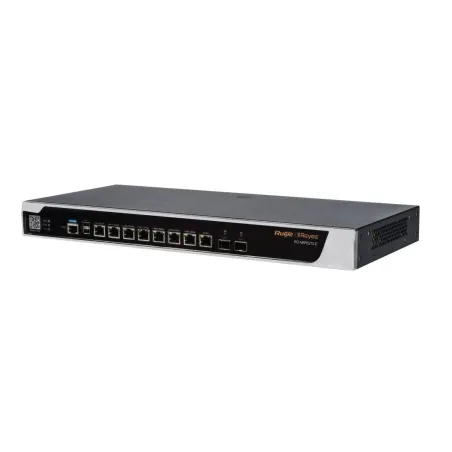

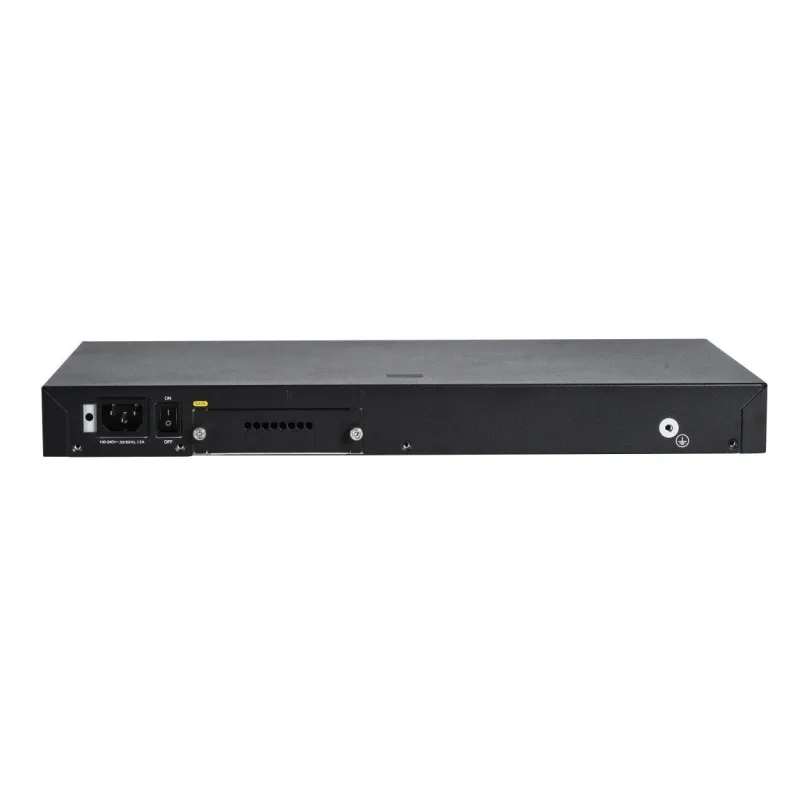

Reyee RG-NBR6210-E High-performance Security Router รองรับ Loadbalance 6 WAN, IPSec VPN/ L2TP with IPSecs/ PPTP, รองรับ Internet Throughput 2.5Gbps, รองรับ Users 1000 Concurrent
รองรับ Harddisk ขนาด 1TB (Not Include)
รองรับการทำ Captive Portal ผ่าน Ruijie Cloud
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
WAN Port
|
1 x 10/100/1000
Base-T port
|
|
LAN Port
|
1 x 10/100/1000
Base-T port
|
|
LAN/WAN Switchable Port
|
6 x 10/100/1000
Base-T ports
2 x 1GBase-X SFP ports
|
|
Throughput
|
2.5 Gbps
|
|
Client (Recommended)
|
1000
|
|
CPU
|
3 Cores, 1.2 GHz
|
|
SDRAM/RAM
|
2 GB
|
|
Flash Memory
|
8 MB
|
|
Hard Disk Drive
|
1 TB (Not delivered with the router, can be added)
|
|
LED
|
1 x System Status LED
1 x Power Status LED
1 x SATA LED
|
|
Button
|
1 x Power button
|
|
Dimensions
(W x D x H)
|
440 mm x 43.6 mm x 200 mm (17.32 in. x 1.72 in. x 7.87in., without rubber pads)
|
|
Mounting Method
|
Rack-mounted
|
|
Rack Size
|
1U 19-inch
Rack-mounted
|
|
Fan
|
2
|
|
Operating Temperature
|
0ºC to 45ºC (32°F to 113°F)
|
|
Operating Humidity
|
10% to 90% RH (non-condensing)
|
|
Max Managed Access Points
|
64 Access
points or 128 wall-mounted access points
|
|
PPPoE Server Accounts
|
64
|
|
Internet Access Mode
|
PPPoE Client
DHCP Client
Static IP
|
|
Access Mode Auto-Identification
|
Support
|
|
WAN Address Collision Avoidance
|
Support
|
|
VLAN
|
Support
|
|
IPv6
|
Support
|
|
SNMP
|
Support
|
|
Port Isolation
|
Support
|
|
Port Mirroring
|
Support
|
|
LAN Port Link Aggregation
|
Support
|
|
AC Mode
|
Support
|
|
Application Identification
|
Support
|
|
Application Priority
|
Support
|
|
Behavior Management
|
App Block (Time/IP-based Policy)
Website Filtering
Blacklist/Whitelist
|
|
Flow Control
|
User Flow Control Policies
IP-based Automatic Bandwidth Assignment
VPN Flow Control
|
|
Local Authentication
|
Portal Authentication
Password Authentication
Voucher Authentication
|
|
L2TP VPN
|
Support
|
|
PPTP VPN
|
Support
|
|
IPsec VPN
|
Support
|
|
L2TP/PPTP Tunnels
|
600
|
|
L2TP/IPsec VPN Performance
|
600 Mbps
|
|
Static Routing
|
Support
|
|
RIP/RIPng
|
Support
|
|
OSPFv2
|
Support
|
|
OSPFv3
|
Support
|
|
Equal-Cost
Multi-Path Routing
|
Support
|
|
Policy-Based Routing
|
Support
|
|
Active/Standby Switchover of Ports
|
Support
|
|
WAN Load Balancing
|
Support
|
|
PPPoE Client
|
Support
|
|
PPPoE Server
|
Support
|
|
DHCP Server
|
Support
|
|
DHCP Snooping
|
Support
|
|
DNS Client
|
Support
|
|
DNS Server
|
Support
|
|
DNS Proxy
|
Support
|
|
FTP Client
|
Support
|
|
FTP Server
|
Support
|
|
TFTP Client
|
Support
|
|
NTP Client
|
Support
|
|
DDNS
|
Cloud DNS
|
|
NAT
|
Support
|
|
SNMP
|
Support
|
|
Ruijie Cloud
|
Support
|
|
ACL
|
Support
|
|
Time-based Extended ACL
|
Support
|
|
SYN Flood Attack Guard
|
Support
|
|
UDP Flood Attack Guard
|
Support
|
|
ICMP Flood Attack Guard
|
Support
|
|
ICMP Redirection Attack Guard
|
Support
|
|
ICMP Unreachable Packet Attack Guard
|
Support
|
|
Fraggle Attack Guard
|
Support
|
|
Overlength ICMP Packet Attack Prevention
|
Support
|
|
Winnuke Attack Guard
|
Support
|
|
IP-based Security Domain Division
|
Support
|
|
Security Domain Division based on Physical Port (Sub Interface and Aggregation Port) and Dialup Port
|
Support
|
|
Cloud Management
|
Support
|
|
App Management
|
Support
|
|
App Upgrade
|
Support
|
|
App Restart
|
Support
|
|
ประกัน
|
3 ปี
|
