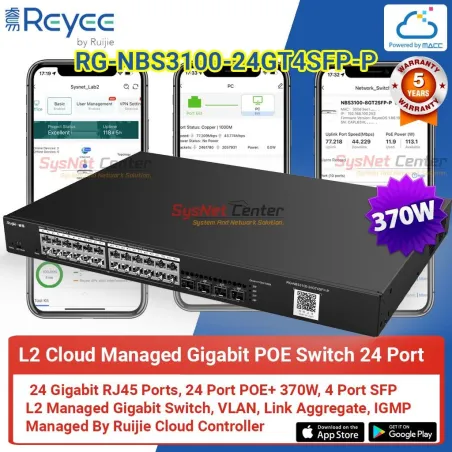

Reyee RG-NBS3100-24GT4SFP-P L2 Cloud Managed POE Switch 24 Port มาตรฐาน 802.3af/at กำลังไฟสูงสุด 370W พร้อม Port SFP 4 Port บริหารจัดการผ่าน Ruijie Cloud
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Review Ruijie RG-ES200 Series Cloud Managed POE Switch สำหรับงาน CCTV, WIFI
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
Ruijie RG-NBS3100 Series Cloud Managed Smart Switch Datasheet
L2 Managed Gigabit POE Switch 24 Port ความเร็ว Gigabit สามารถจ่ายไฟ POE มาตรฐาน 802.3af/at (15.4W/30W) ได้ 24Port รวมกำลังไฟสูงสุด 370W เฉลี่ยต่อ Port 15.4W
กรณีใช้กับ Access Point ที่เป็น WIFI 6 ประเภท 4x4 หรือกล้องพวก Speed dome พวกนี้ใช้กำลังไฟสูงมาก ต้องคำนวนดีๆครับ เพราะไฟอาจจะไม่พอ แต่ถ้าใช้กับ Access Point WIFI6 พวก 2x2 ใช้ได้ 24 ตัวสบายๆ หรือให้ทางร้านคำนวนให้ได้เลยครับ
รุ่นนี้ Port Uplink เป็น Port SFP x 4Port Gigabit ถ้าใช้ LAN RJ45 ครบทุก Port ต้องใช้ร่วมกับ SFP Module เชื่อมต่อผ่านสาย Fiber Optic ข้อดีเวลาใช้ Fiber Optice ทำ Uplink จะทำเดินสายได้เกิน 100 เมตรครับ ระยะที่ได้จะสูงถึง 10กิโลเมตร เลย
Product Specification | |
Ports | 24 10/100/1000 Base-T ports |
Maximum output power per PoE port | 30W |
Maximum PoE output power per switch | 370W |
Switching capacity | 336Gbps |
Packet forwarding rate | 42Mpps |
MAC address | Support static MAC address, MAC address filtering |
MAC address table size | 8K |

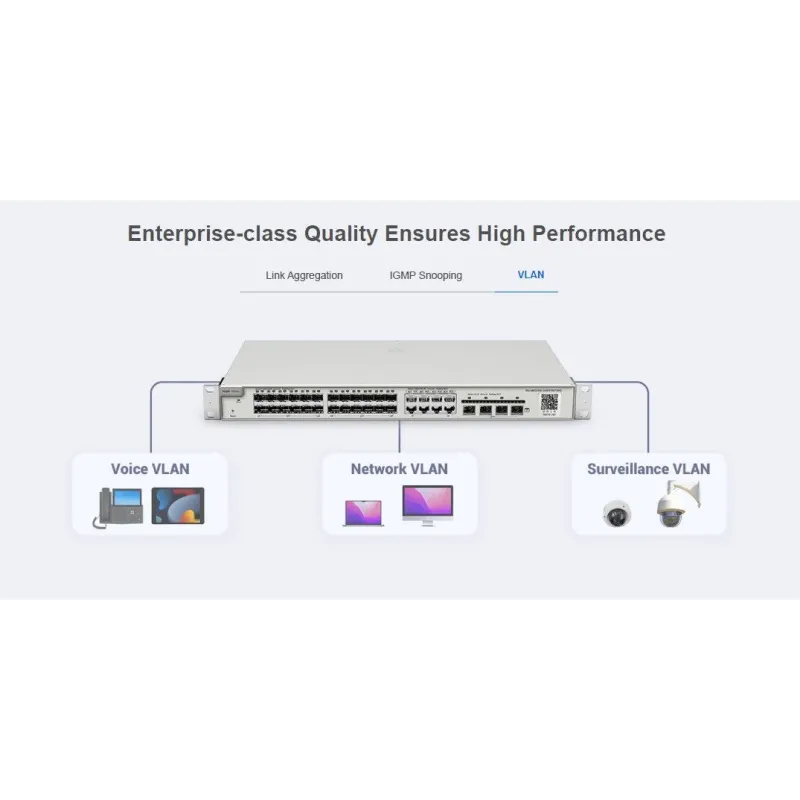

Number of VLANs | 4094 |

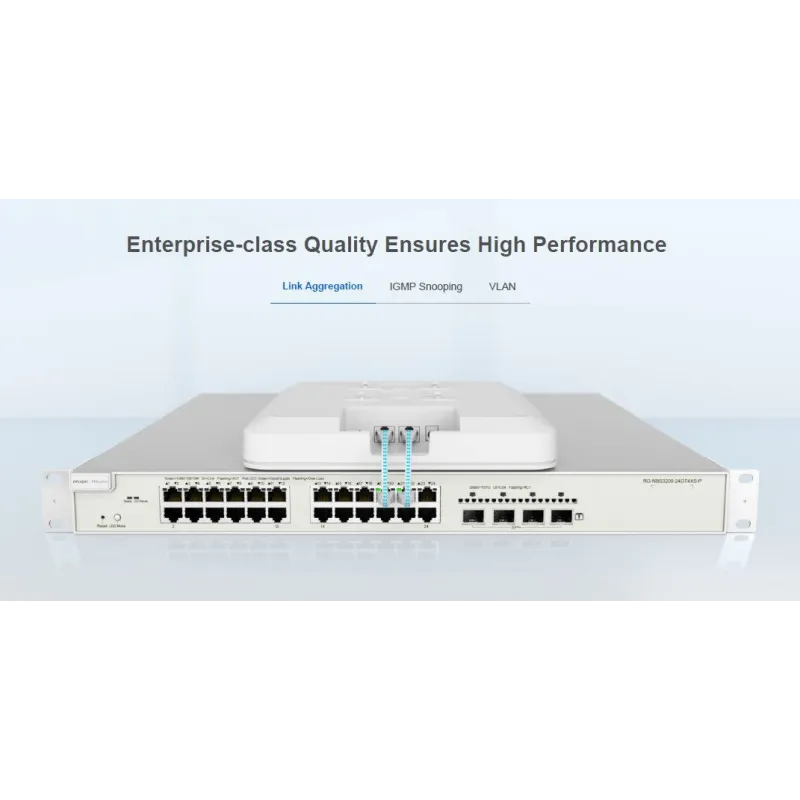

Link aggregation | Support Static Link Aggregation |
Port mirroring | Many-to-one mirroring |
Spanning tree | STP, RSTP |
LLDP | Support |
IP routing | N/A |
ACL | IP standard ACL |
QoS | Port-based speed limit (ingress/egress) |

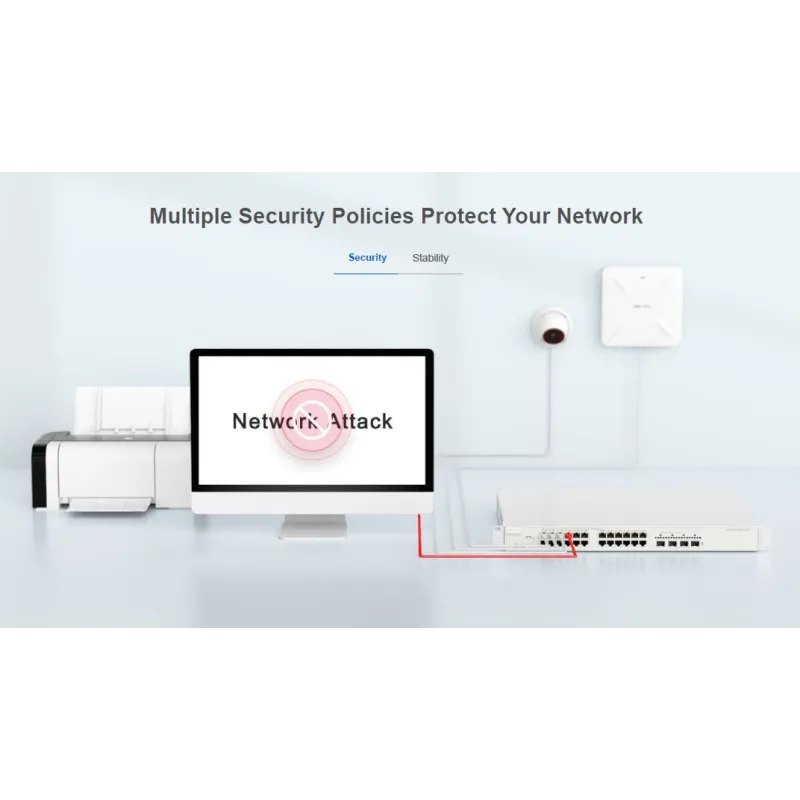

Security | Port protection |
Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
DHCP | DHCP snooping |
EEE | Support |
Dimensions | 440×293×44mm |
PoE | 24 Base-T ports (support PoE and PoE+) |
Temperature | Operating temperature: 0 C - 50C |
Humidity | Operating humidity: 10% ~ 90% RH |
ประกัน | 5 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
