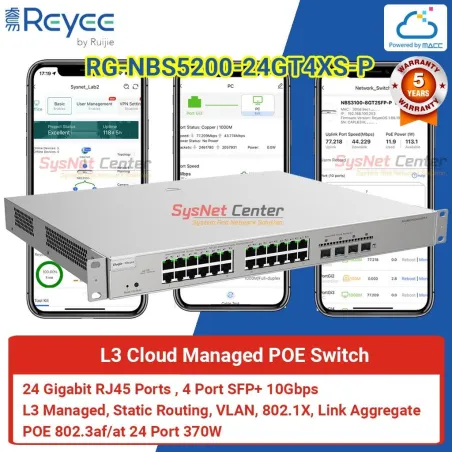

Reyee RG-NBS5200-24GT4XS-P L3 Managed POE Switch 24 Port Gigabit, 4 Port SFP+
- 24-Port gigabit Layer 3 managed PoE switch, 4 SFP+ uplink
- Enterprise-class Quality Ensures High Performance
- 6KV surge protection reduces the possibility of port damage
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
| Product Specification |
Feature | Reyee RG-NBS5200-24GT4XS-P L3 Managed POE Switch 24 Port Gigabit, 4 Port SFP+ 10Gbps รองรับ Dynamic/Static Routing, VLAN, IGMP Snooping, Static Link Aggregate, 802.1x
จ่ายไฟ POE มาตรฐาน 802.3af/at 24 Port สูงสุด 370W บริหารจัดการผ่าน Ruijie Cloud |
10/100/1000Base-T ports | 24 |
SFP ports | - |
SFP+ ports | 4 |
PoE++ ports (802.3bt) | - |
PoE/PoE+ ports (802.3af/at) | 24 |
Max. PoE budget | 370W |
Switching capacity | 128Gbps |
Forwarding rate | 96Mpps |
Packet Buffer | 12 Mbit |
MAC address table | 16K |
Maximum VLAN Support | 4094 |
Dimensions (W x D x H) | 440 mm x 357.6 mm x 43.6 mm |
Weight (With package) | 6.51 kg |
MTBF | > 200,000 |
Layer 2 Features |
Jumbo Frame | 9216 |
Flow Control | Support |
STP (IEEE 802.1d)
RSTP (IEEE 802.1w)
MSTP (IEEE 802.1s) | Support |
Port Fast | Support |
BPDU Guard | Support |
Max. Aggregation Group | 16 |
Max. Member per Group | 8 |
Many-to-One Mirroring | Support |
VLAN Range | 1-4094 |
VLAN | Port-based VLAN
MAC-based VLAN
IP-based VLAN
Voice VLAN |
RLDP/ LLDP / LLDP-MED | Support |
Cable Testing | Support |
IGMP Snooping v1/v2/v3 | Support |
Software Features |
Ping | Support |
Traceroute | Support |
ACL Entries | 1900 |
Static Routing | Support |
| ACL | IP Standard ACL
MAC-based Extended ACL
IP-based Extended ACL |
Port-based Rate Limit (Ingress/Egress) | Support |
SNMP v1/v2c/v3 | Support |
OSPF | Support |
RIP | Support |
802.1X | Support |
IPV6 | Support |
DHCP Server | Support |
Management | Web Management
Management IP 10.44.77.200
HTTP/HTTPS
Cloud Management
SON (Self-Organizing Network) with IP |
Camera Recognition | Support |
| Protection | Loop Prevention
Loop Notification
PoE Usage Alarm
Protection Port
IP Source Guard
Anti-ARP Spoofing
DHCP Snooping |
DHCP Client | Support |
Flash Memory | 256MB |
Power Supply Slot | Single, fixed power supply |
Power Supplies | 100 - 240V AC, 6A |
Power Consumption | ≤ 431.86W |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Operating Humidity | 10% to 90%RH |
Storage Humidity | 5% to 95%RH |
Port Surge | 6 kV |
Certificate | CE, RoHS |
| ประกัน | ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 5 ปี |
Reyee RG-NBS5200-24GT4XS-P L3 Managed POE Switch 24 Port Gigabit, 4 SFP+ 370W

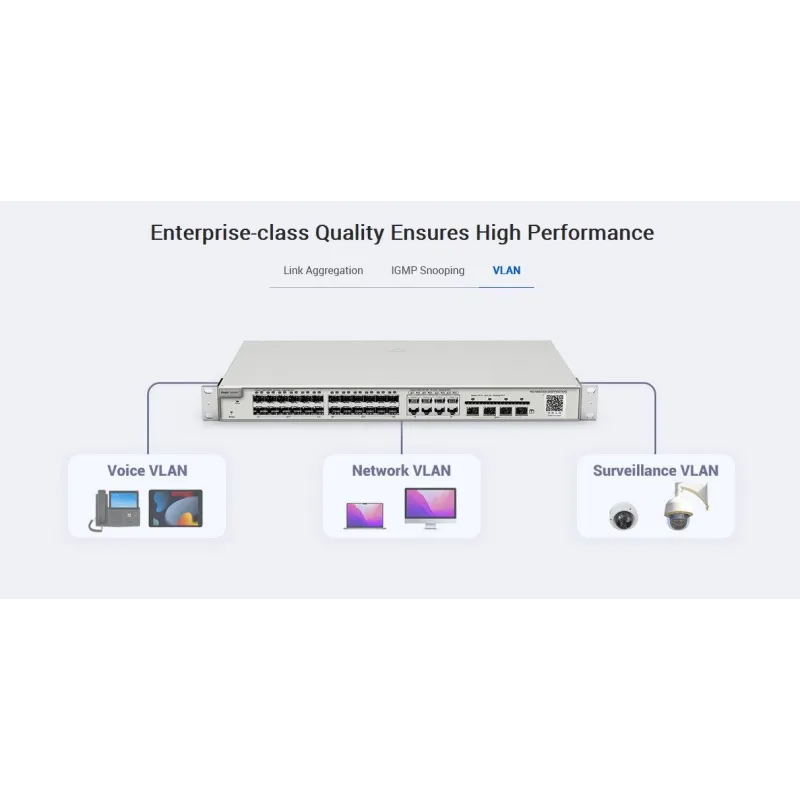

Enterprise-class Quality Ensures High Performance
Link Aggregation

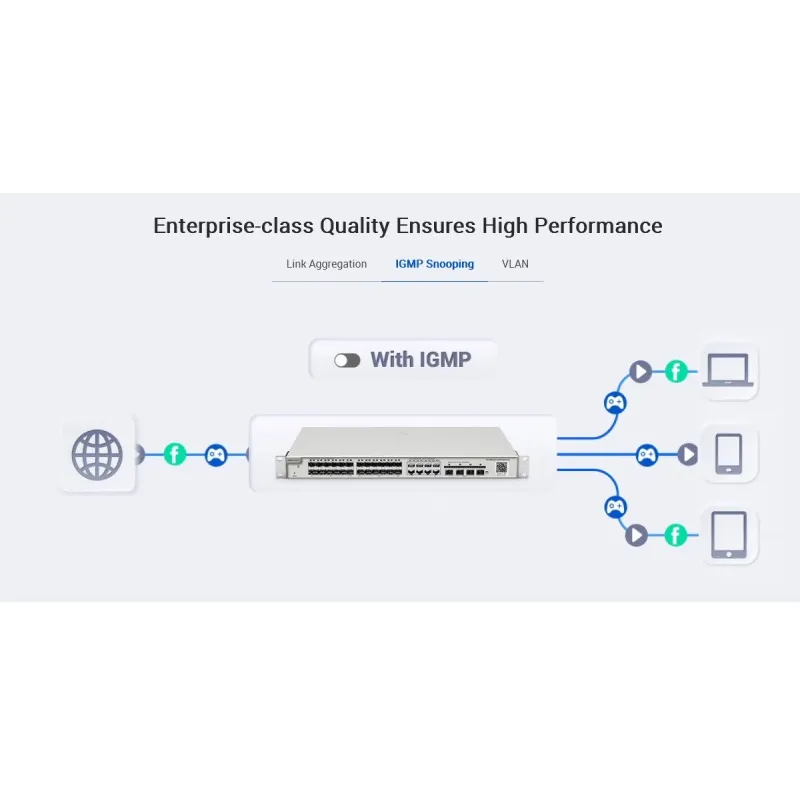

IGMP Snooping
VLAN

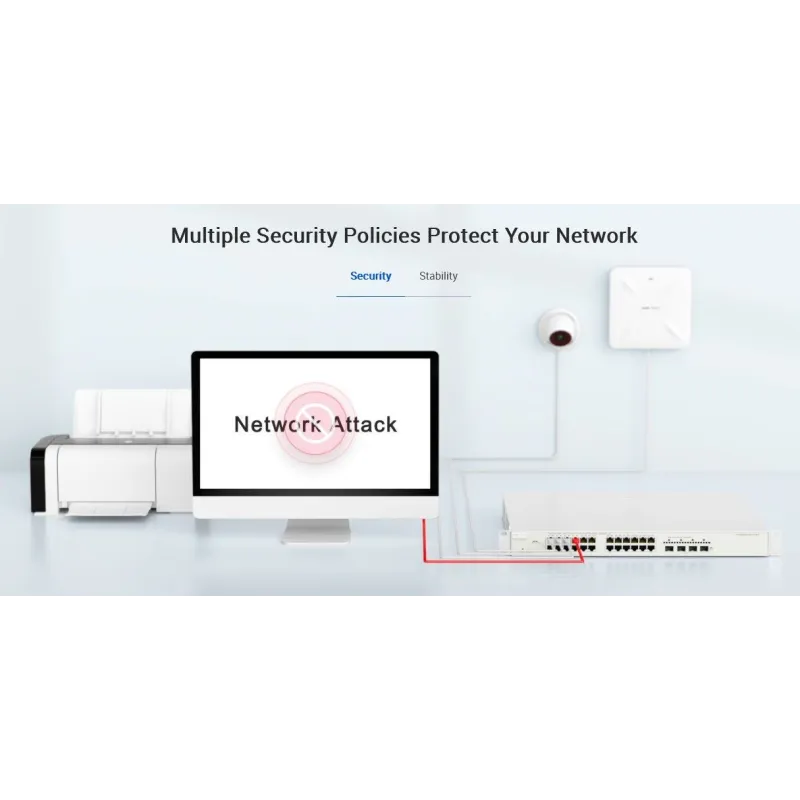

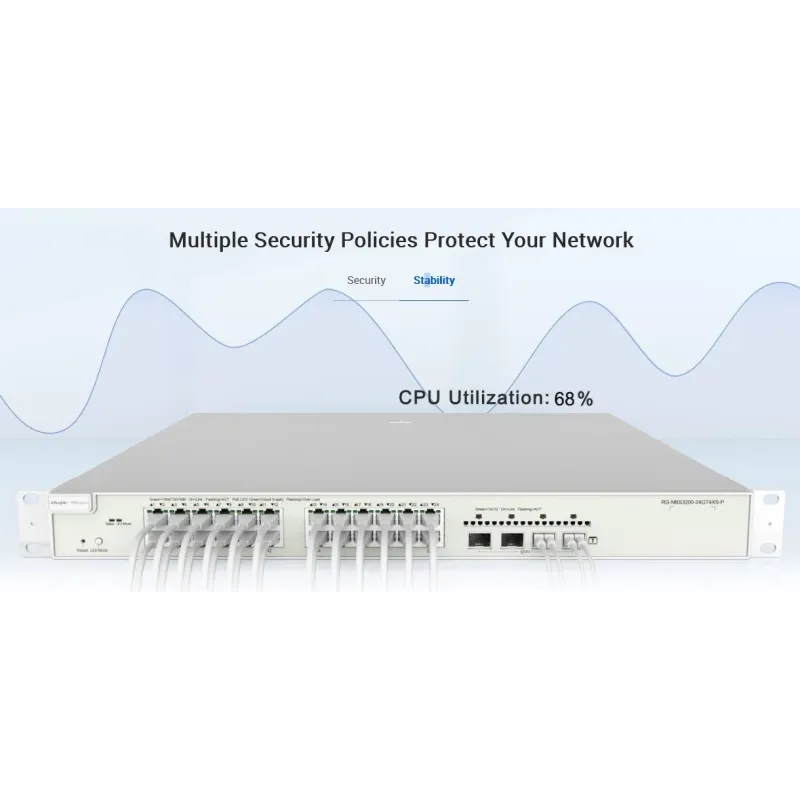

Multiple Security Policies Protect Your Network
Security
Stability

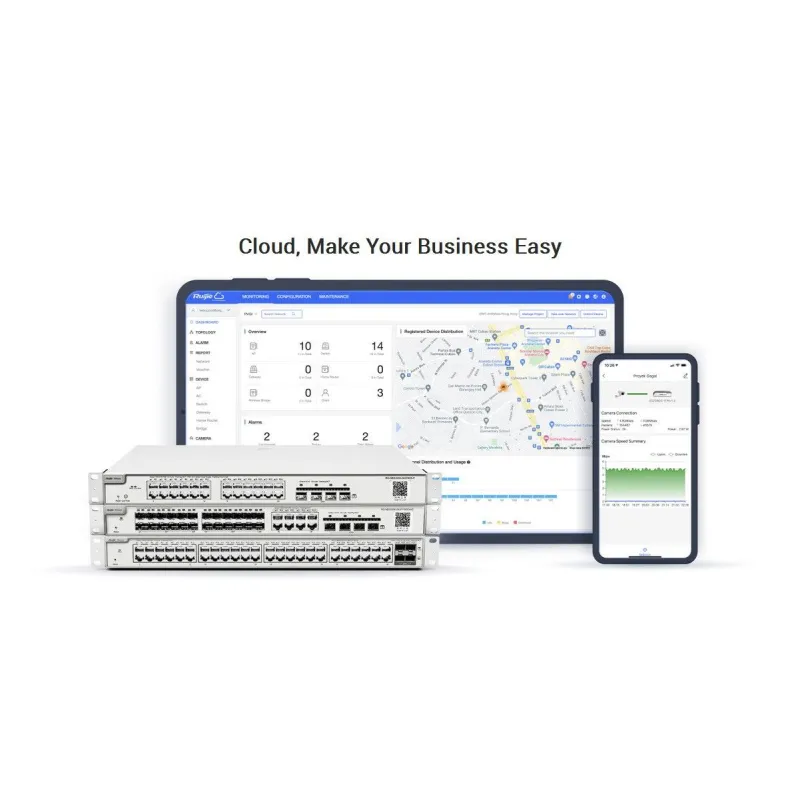

Cloud, Make Your Business Easy
- SON, zero touch provisioning to Cloud
- Monitor switch statistics at anytime anywhere
- Configure VLANs on Ruijie Cloud APP
- Easy maintainance, save onsite time and cost
