Reyee RG-NIS3100 Series Highlight Features
- Three Different Models Meet Various Business Scenario Needsy
- Unique Industrial Design Ensures Stable Operation in -40℃ to 80℃
- 8 KV Protection: The Shield Against Voltage Spike
- IP40 Against 1mm Intruders in Dusty Conditions
- ERPS Plug-and-Play, without Complicated Configuration
- Local Network SON, Easy Configuration even without Cloud
- Ruijie Cloud :Easy Management even in Harsh Environments
|
Product Specification
|
|
Overview
|

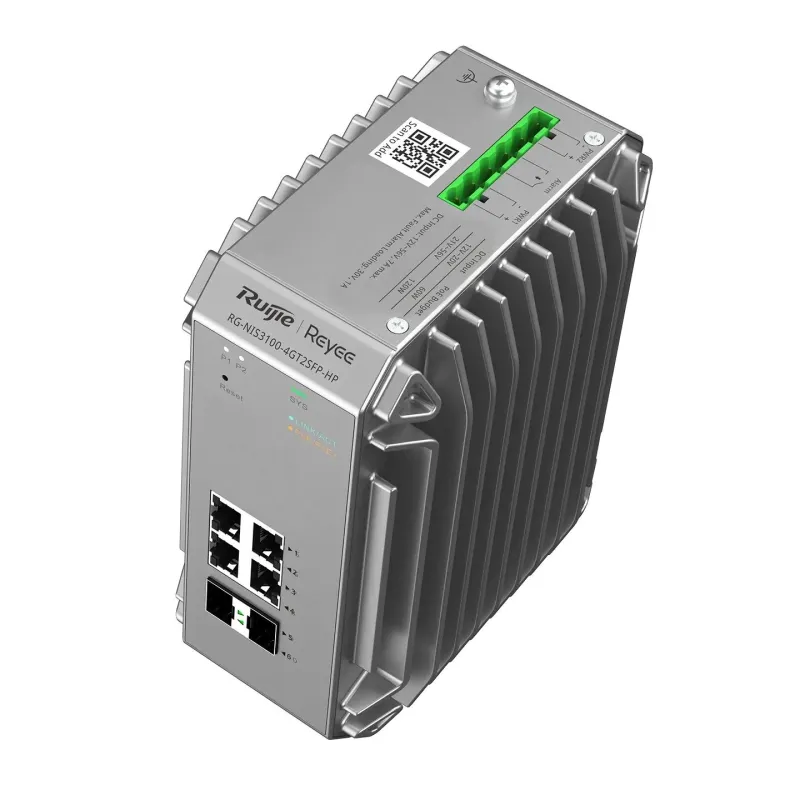

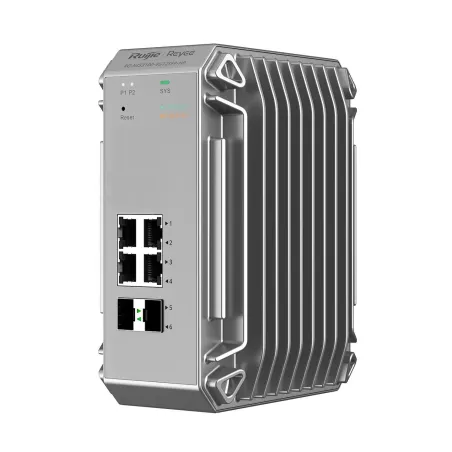

Reyee RG-NIS3100-4GT2SFP-HP Industrial-Grade L2-Managed POE Switch 4 Port, 2 SFP ทนอุณหภูมิสูงสุด 80C, IP40
จ่ายไฟ POE 4 Port มาตรฐาน 802.3af/at สูงสุด 120W (ใช้ร่วมกับ Power Supply RG-NIS-PA120-48)
รองรับ VLAN, Link Aggregate, RSTP, IGMP V1/v2/v3, ACL
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
|
|
10/100/1000Base-T ports
|
4
|
|
SFP ports
|
2
|
|
PoE/PoE+ ports
|
4
|
|
Max. PoE budget
|
120W
|
|
PoE Power Output
|
Per port 56V DC, max 30 watts
|
|
Power Pin Assignment
|
1/2(+)，3/6(-)
|
|
PoE Power Budget
|
60W (Input：12V-20V)
120W (Input：21V-45V)
120W (Input：46V-56V)
|
|
Extend Mode
|
250 meters
|
|
Layer Type
|
Layer 2
|
|
Switching capacity
|
12 Gbps
|
|
Forwarding rate
|
8.93 Mpps
|
|
Packet Buffer
|
4.1 Mbit
|
|
SDRAM
|
256 MB
|
|
MAC address table
|
8,000
|
|
Maximum VLAN Support
|
4094
|
|
Dimensions (W x D x H)
|
85 * 132 * 165
|
|
Weight (With package)
|
1.91 kg
|
|
MTBF
|
250,000 Hours
|
|
Warranty
|
5 Years
|
|
ประกัน
|
5 ปี
|
RG-NIS3100 Series Industrial Switch
Three Different Model Meet Various Business Scenario Needs
A Must-Have for Coastal Areas Conquer Salt Spray Corrosion
50 μm Conformal Coating on PCB Boards.
A precisely applied 50 μm coating effectively isolates against salt
spray, maintaining equipment thermal performance and conductivity.
Enhanced Gold Plating Ports
Gold plating thickness on ports from 3 μm to 15 μm against salt spray corrosion.
Specialized Outdoor Powder Coating
Preventing equipment surface damage from salt spray erosion.

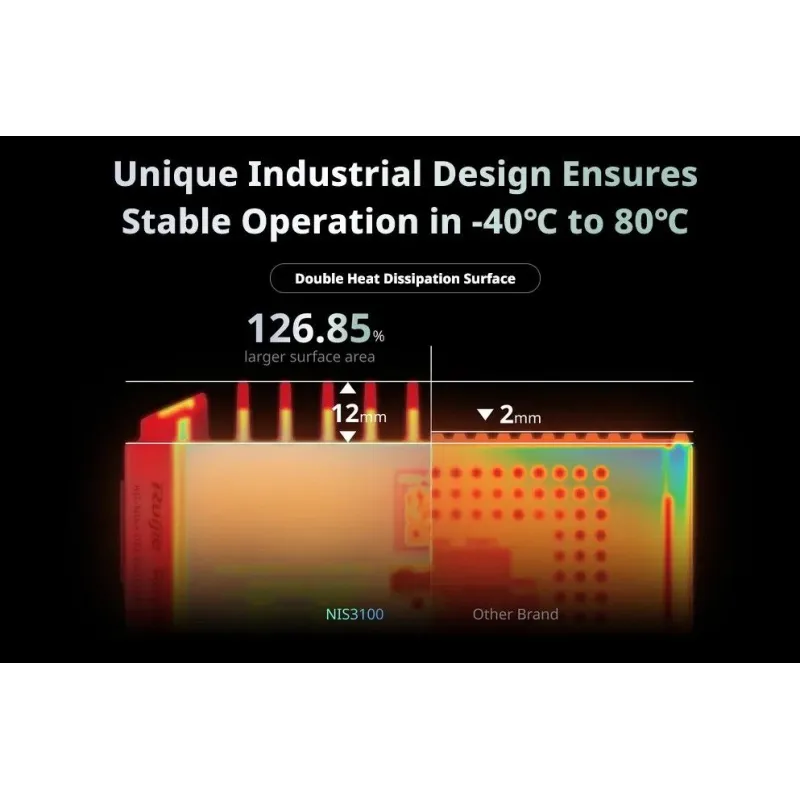

Unique Industrial Design Ensures
Stable Operation in -40℃ to 80℃ Double Heat Dissipation Surface

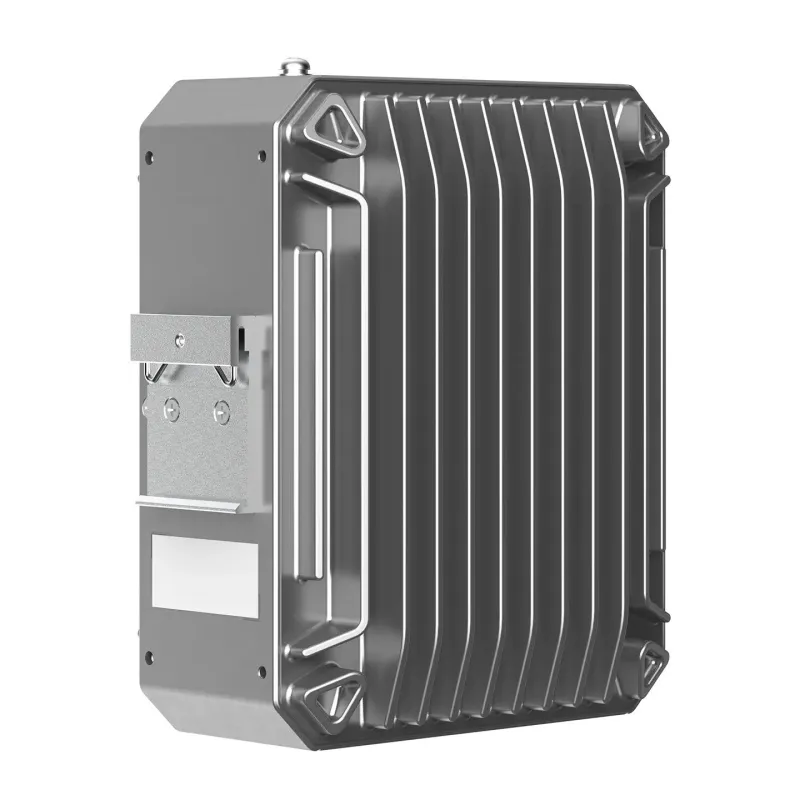

360° Cooling, Full Aluminum Alloy Enclosure
True Industrial-Grade Chips
Stand Strong in Dusty Environment
IP40 Protection: Against 1mm intruders in sandstorm conditions
High kV Protection: The Shield Against Voltage Spike
ERPS Plug-and-Play
Without complicated configuration
LAN Self-Organizing Network (SON)
Skip individual configurations, simplify setup
Ruijie Cloud: Distance No Barrier
Easily manage devices remotely anytime, anywhere
Power Supply
รายละเอียดสินค้า
20 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- L2 Managed
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
- จำนวน Port Lan
- 8 Port
- มาตรฐานจ่ายไฟ POE
- 802.3af/at (30W)
- จำนวน Port POE
- 4 Port
- SFP Port Gigabit
- 1 Port
