Ruijie Reyee RG-RAP1200(F) Wall-Mountable Wireless AP Dual-Band รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud
Ruijie Reyee RG-RAP1200(F) Datasheet
Product Specification | |

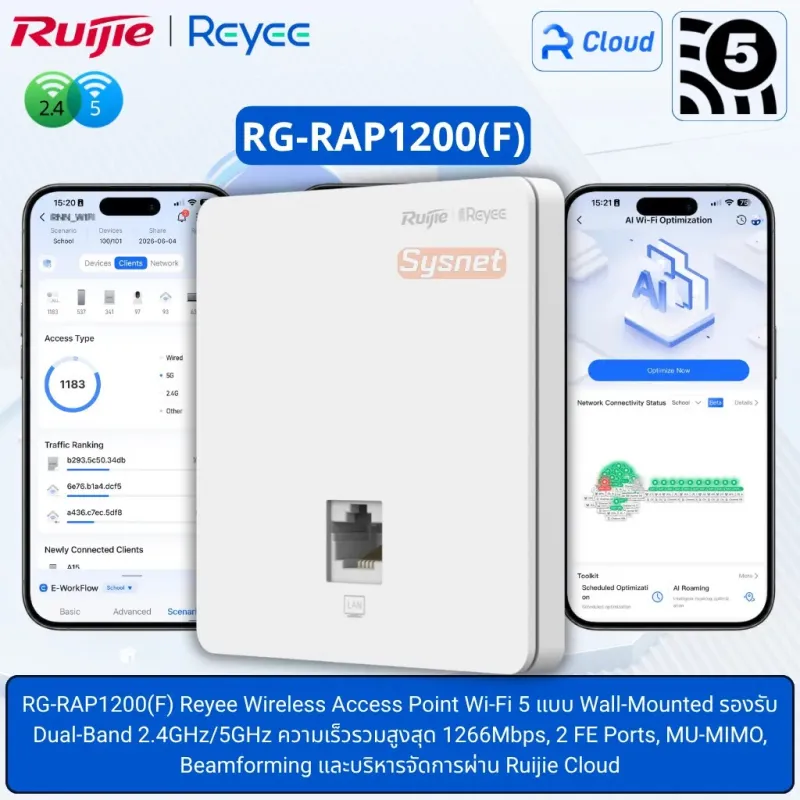

Overview | Ruijie RG-RAP1200(F) Wall-Mountable Wireless Access Point กระจายสัญญาณ 2.4/5GHz Dual-Band มาตรฐาน AC Port Lan ความเร็ว 10/100Mbps รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control |
Radio | Dual-stream dual-band |
Protocol | Concurrent 802.11b/g/n/ac |
Operating Bands | 802.11b/g/n :2.4G ~ 2.4835GHz |
Antenna | PCB antenna |
Spatial Streams | 2.4G: 2 Spatial Streams,2x2 MIMO |
Max Throughput | 2.4G: up to 400Mbps |
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
Receive Sensitivity | 11b:-97dBm(1Mbps) -92dBm(5Mbps) -89dBm(11Mbps) |
Maximum Transmit Power | 20dBm (adjustable) |
Adjustable Power | 1dBm |

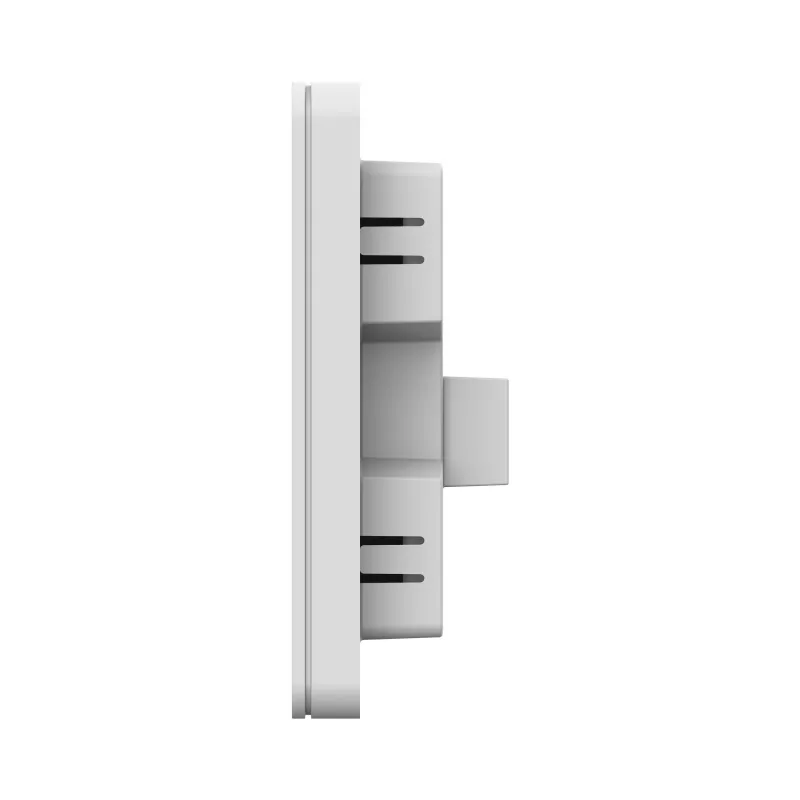

Dimensions | 86*86*29.3 |
Weight | <0.25kg |
Service Ports | Front: 1 10/100Mbps Ethernet port |
Management Port | N/A |
LED Indicator | Support |
Power Supply | Support 802.3af power supply |
Power Consumption | <8W |
Environment | Operating temperature: 0°C~40°C |

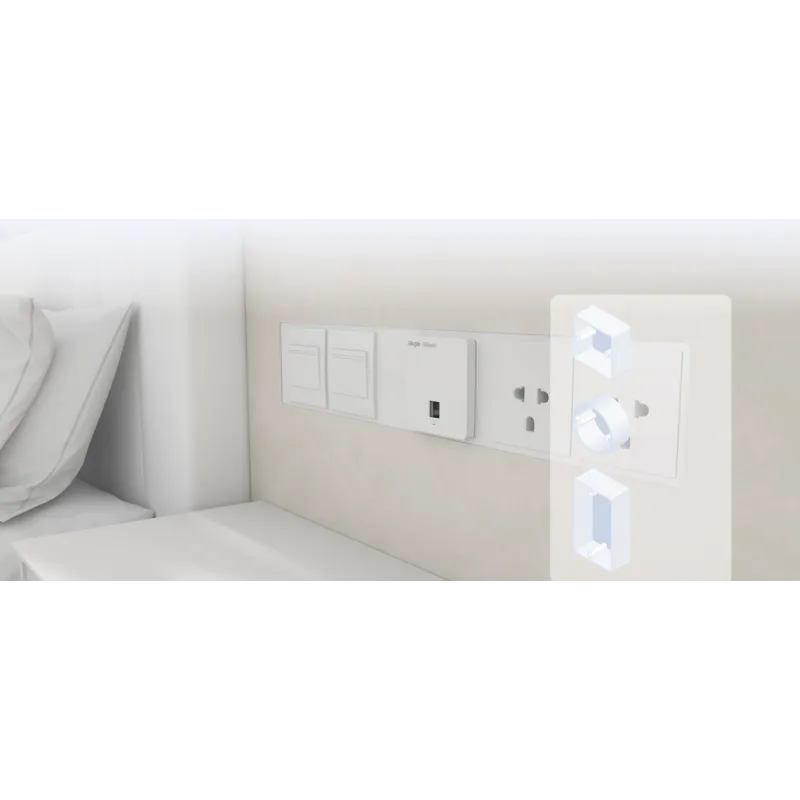

Installation | 86mm wall plate installation |
IP Rating | IP41 |
Safety Standard | GB4943, IEC 60950-1 |
EMC Standard | GB9254, EN301 489,EN50155:EN50121 |
Vibration Standard | IEC61373 |
Radio Standard | SRRC certification |
Software Features |
|
Operating Mode | AP mode and routing mode |
WLAN | Maximum number of clients: 110 |
Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support static blacklist and whitelist |
Routing | Support static IP address, DHCP, PPPoE Dial Up |

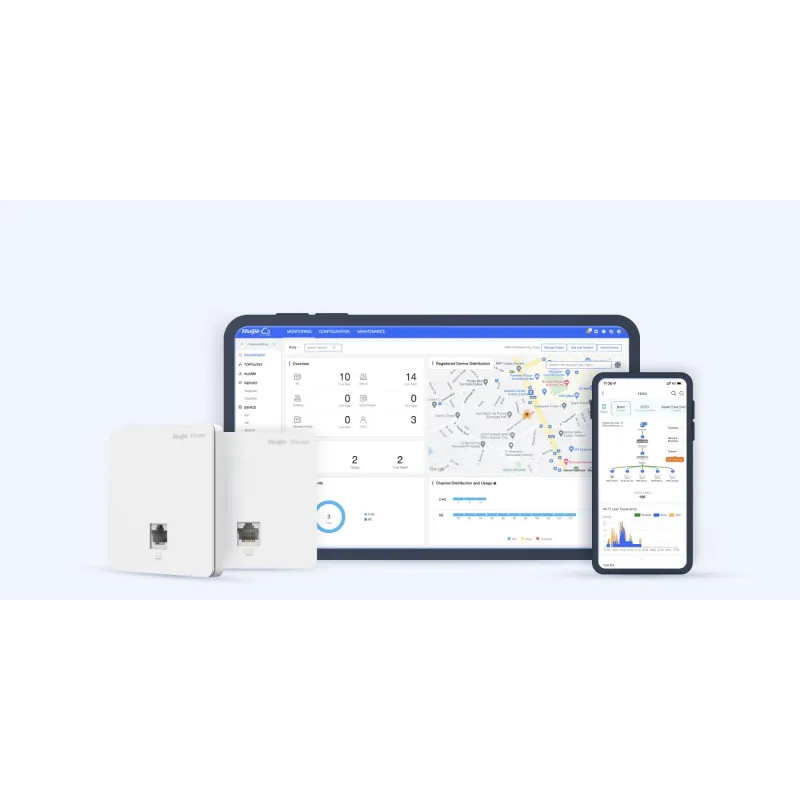

Management and maintenance | Support unified networking of all network equipment |

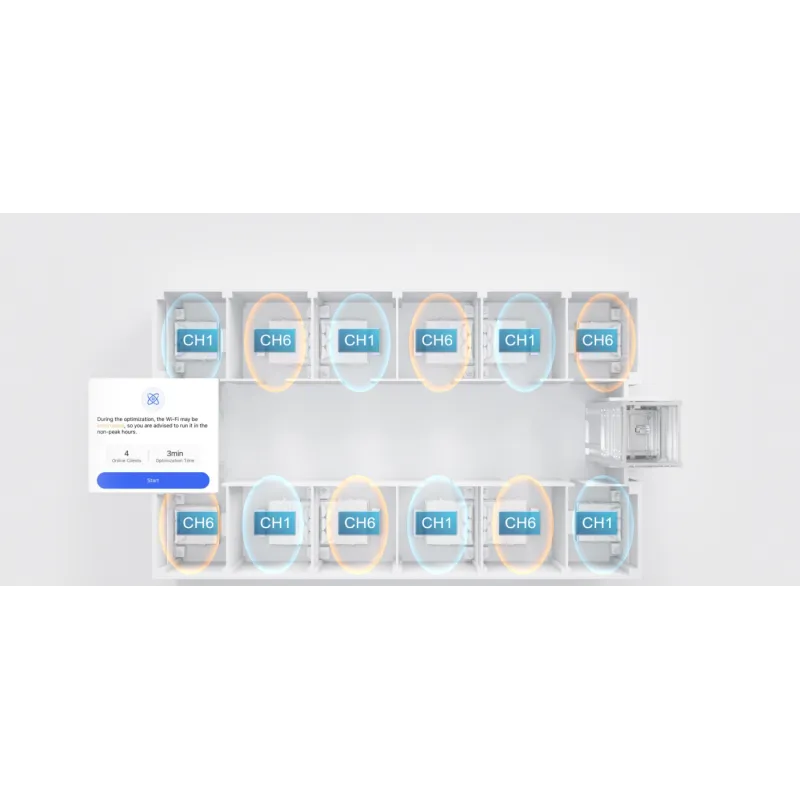

Platform management features | Automatic RF adjustment via the platform |
รับประกัน | 3 ปี |
|
|
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
คู่มือการ Register ลงทะเบียน Ruijie Cloud
คู่มือการ Config Ruijie Access Point เบื้องต้น
กลุ่มผู้ใช้งาน Ruijie-Reyee Technical Group (Facebook)
ช่องทางจำหน่ายสินค้า Line Shop (Line OA)
Webboard การ Config อุปกรณ์ Ruiie Network
คู่มือการ Bypass Ruijie Cloud ใน Mikrotik Hotspot Server
คู่มือการทำ Link Aggregate บนอุปกรณ์ Ruijie Reyee Switch
คู่มือการ Config VLAN Switch Ruijie บน Ruijie Cloud
คู่มือการทำ L3-Based VLAN บนอุปกรณ์ Ruijie XS-1960 Series แบบ GUI
คู่มือการ Config VLAN บนอุปกรณ์ Ruijie Switch XS-1920 Series
คู่มือการทำ Multi-SSID VLAN Taging, Ruijie Access Point, Ruijie Switch
คู่มือการ Share Network / Hand Over ใน Ruijie Cloud
คู่มือการ Config ACL อุปกรณ์ Ruijie Reyee Switch
คู่มือการ Set Email Alert ใน Ruijie Cloud
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Presales Tools | Support | Support |
Fast Provisioning | QR-code Device Scan/ Cloud Config Sync | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | Additional: | Basic |
Multi-tenant | Support | Support |
Scenario-based Config Wizard | N/A | Support (App) |
WLAN | ||
Standard | Wi-Fi4 /5 /5 Wave2 / 6 | Wi-Fi 5 Wave2 , 6 (Roadmap) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
WLAN Features | Adv CLI script configuration | Basic |
WLAN Controller (Appliances) | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink) |
L2 | IGMP Snooping, MSTP, LACP VLAN, Link Aggregate, SuperVlan, VoiceVlan, ACL | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
|
