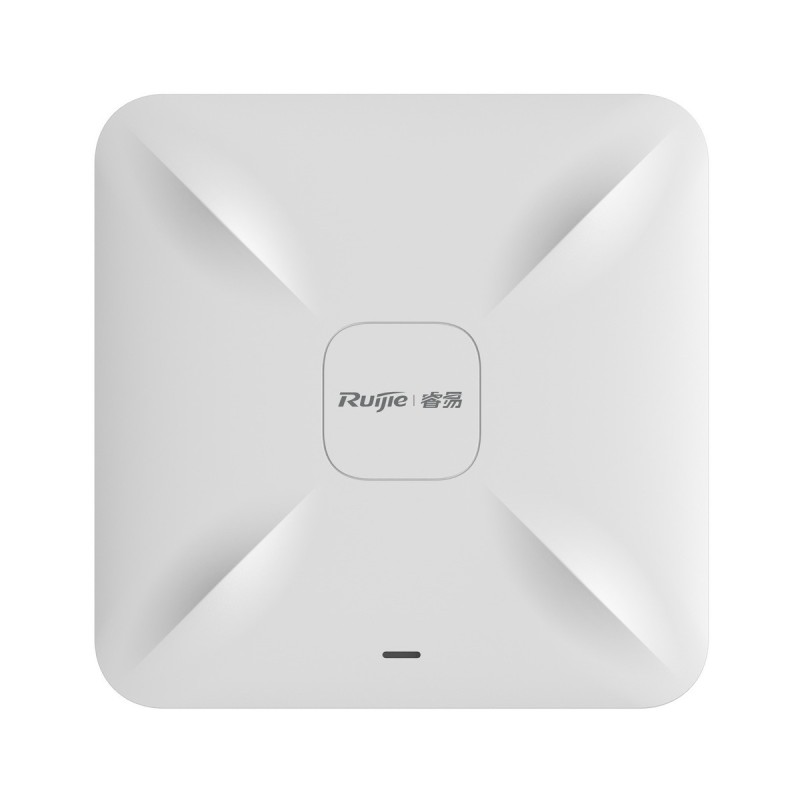

Ruijie Reyee RG-RAP2200(F) Wireless Access Point มาตรฐาน ac Wave 2 ความเร็ว 1.267Gbps, Port Lan 100Mbps, รองรับ Ruijie Cloud
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud
Ruijie Reyee RG-RAP2200(E) Datasheet
Product Specification | |
Overview | Ruijie RG-RAP2200(F) Wireless Access Point มาตรฐาน ac Wave 2 ความเร็ว 1.267Gbps, Port Lan Fast Ethernet, รองรับ Ruijie Cloud พร้อม Ruijie Cloud License แบบ Lifetime ** เพื่อให้อุปกรณ์ราคาประหยัด ความเร็ว Port Lan ของอุปกรณ์เป็น 100Mbps เมื่อเชื่อมต่อสัญญาณ WIFI จะได้ความเร็วสูงสุดที่ 100Mbps เหมาะกับการติดตั้งในห้องพัก โรงแรม |
Radio | 2.4GHz & 5GHz dual-band dual-stream |
Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
Max Throughput | Up to 400Mbps at 2.4G |
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
Receive Sensitivity | 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps) |
Maximum Transmit Power | 5.725~5.850GHz:≤20dBm (EIRP) |
Adjustable Power | 1dBm |
Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
Weight | 0.45kg (excluding mounting kits) |

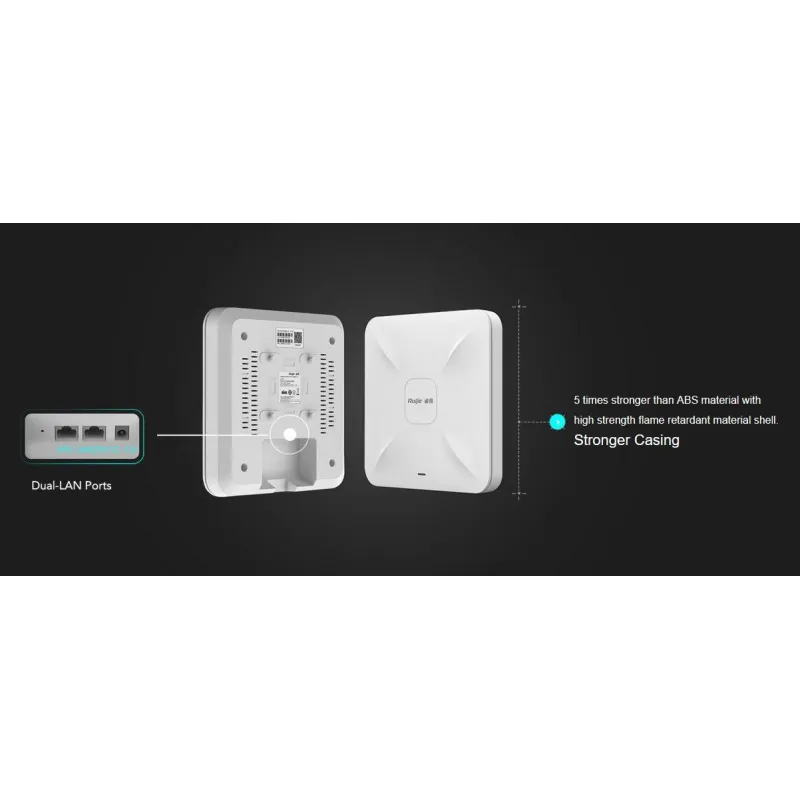

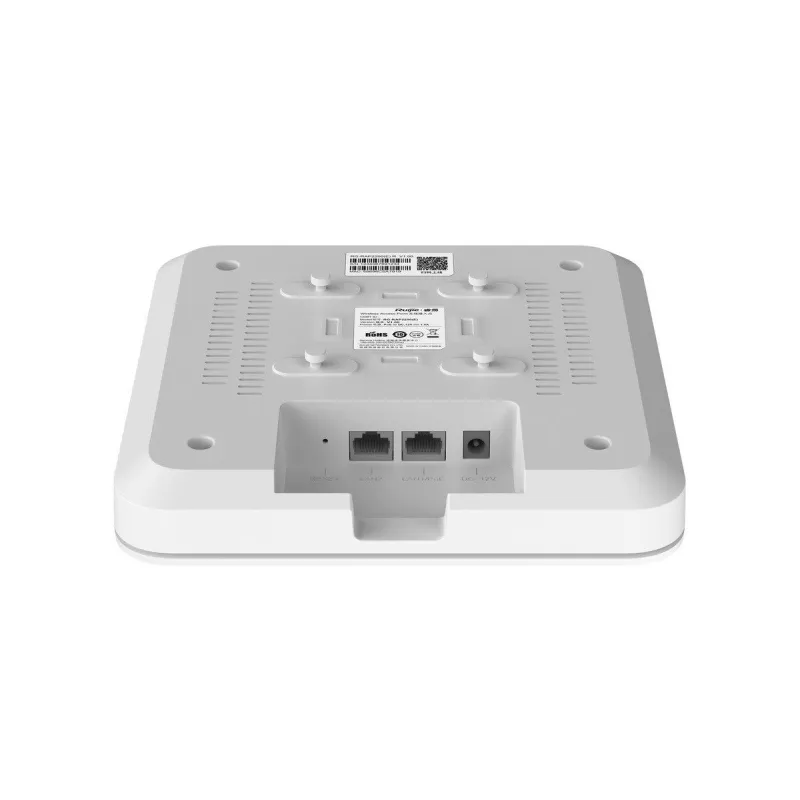

Service Ports | 2 10/100Base-T Ethernet ports, PoE/LAN1 port supports PoE |
Management Port | N/A |
LED Indicator | Single indicator (green light) |
Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) |
Power Consumption | 12.95W |
Environment | Operating temperature: 0°C~40°C |
Installation | Wall-mount, ceiling-mount |
Safety Standard | GB4943, IEC 60950-1 |
EMC Standard | GB9254, EN301 489, EN50155: EN50121 |
Vibration Standard | IEC61373 |
Radio Standard | SRRC certification, EN300 328, EN301 893 |
MTBF | 400000H |
WLAN | Maximum number of clients: 110 |

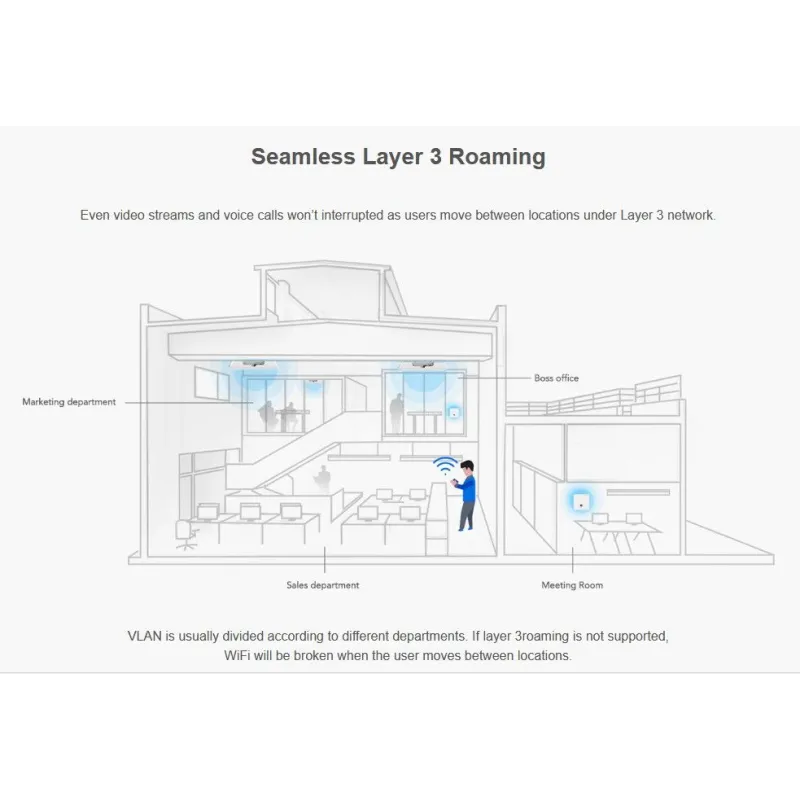

Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support PSK authentication |
Routing | Support static IP address, DHCP, PPPoE Dial Up |
Management and maintenance | Support unified networking of all network equipment |
Platform management features | Automatic RF adjustment via the platform |
ประกัน | 3 ปี |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud
Review Ruijie Reyee POE Switch รองรับ Managed ผ่าน Ruijie Cloud
คู่มือการ Register ลงทะเบียน Ruijie Cloud
คู่มือการ Config Ruijie Access Point เบื้องต้น
กลุ่มผู้ใช้งาน Ruijie-Reyee Technical Group (Facebook)
ช่องทางจำหน่ายสินค้า Line Shop (Line OA)
Webboard การ Config อุปกรณ์ Ruiie Network
คู่มือการ Bypass Ruijie Cloud ใน Mikrotik Hotspot Server
คู่มือการทำ Link Aggregate บนอุปกรณ์ Ruijie Reyee Switch
คู่มือการ Config VLAN Switch Ruijie บน Ruijie Cloud
คู่มือการทำ L3-Based VLAN บนอุปกรณ์ Ruijie XS-1960 Series แบบ GUI
คู่มือการ Config VLAN บนอุปกรณ์ Ruijie Switch XS-1920 Series
คู่มือการทำ Multi-SSID VLAN Taging, Ruijie Access Point, Ruijie Switch
คู่มือการ Share Network / Hand Over ใน Ruijie Cloud
คู่มือการ Config ACL อุปกรณ์ Ruijie Reyee Switch
คู่มือการ Set Email Alert ใน Ruijie Cloud
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Presales Tools | Support | Support |
Fast Provisioning | QR-code Device Scan/ Cloud Config Sync | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | Additional: | Basic |
Multi-tenant | Support | Support |
Scenario-based Config Wizard | N/A | Support (App) |
WLAN | ||
Standard | Wi-Fi4 /5 /5 Wave2 / 6 | Wi-Fi 5 Wave2 , 6 (Roadmap) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
WLAN Features | Adv CLI script configuration | Basic |
WLAN Controller (Appliances) | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink) |
L2 | IGMP Snooping, MSTP, LACP VLAN, Link Aggregate, SuperVlan, VoiceVlan, ACL | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
|
