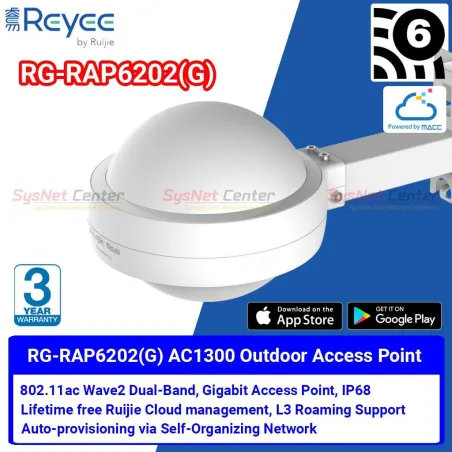

Ruijie Networks Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
  • Ruijie Networks Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
  • Ruijie Networks Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
  • Ruijie Networks Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
  • Ruijie Networks Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
  • Ruijie Networks Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point
  • Ruijie Networks Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point

Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 Outdoor Omni-directional Access Point

Ruijie Networks
Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 6 Wireless Access Point แบบติดตั้งภายนอกอาคาร มาตรฐาน ac กระจายสัญญาณรอบทิศทาง ความเร็ว 1267Mbps, Port Lan Gigabit, กันฝุ่นกันฝนมาตรฐาน IP68 รองรับ Ruijie Cloud
฿6,790.00
ยังไม่ได้รวมภาษี
จำนวน
สินค้าหมด


ร้าน Sysnet เป็นตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ สอบถามราคาลดพิเศษทาง Line @sysnet  ได้เลยครับ


Line: @sysnet
Click โทรสอบถามข้อมูลเพิ่มเติม


รายละเอียด

Reyee Series Implementation Cookbook V1.0
Reyee RG-RAP6202(G) Datasheet

Product Specification

Overview

Reyee RG-RAP6202(G) Wi-Fi 5 AC1300 6 Wireless Access Point แบบติดตั้งภายนอกอาคาร มาตรฐาน ac กระจายสัญญาณรอบทิศทาง ความเร็ว 1267Mbps, Port Lan Gigabit รองรับ POE (ไม่มีในชุดอุปกรณ์), กันฝุ่นกันฝนมาตรฐาน IP68

พร้อม Ruijie Cloud License แบบ Lifetime

Wi-Fi Standards

Wi-Fi 5 (IEEE 802.11ac Wave2)
Wi-Fi 4(IEEE 802.11n)

RF Design2.4 GHz, 2×2, MU-MIMO 5 GHz, 2×2, MU-MIMO
Max. Wi-Fi Speed

2.4 GHz: 400 Mbps
5 GHz: 867 Mbps

Antenna4
Antenna TypeBuilt-In Omnidirectional
Antenna Gain2.4 GHz: 3 dBi 5 GHz: 3 dBi
Transmit Power

EIRP
≤ 26 dBm(2.4GHz)
≤ 27 dBm(5GHz )
country-specific restrictions apply

Thailand:
2400 MHz~2483.5 MHz ≤ 20 dBm
5150 MHz~5350 MHz ≤ 23 dBm
5470 MHz~5725 MHz ≤ 25 dBm
5725 MHz~5850 MHz ≤ 30 dBm

Fixed Ports2×10/100/1000 Base-T
Max. Clients110
Recommended Clients

96

Max. SSIDs8
Software Feature
WLAN Basic Features
SSID HidingSupport
Power AdjustmentSupport
RoamingLayer 2 roaming
Layer 3 roaming
OFDMASupport
Target wake time (TWT)*Support
WMMSupport
Radar Signal Detection and Frequency HoppingSupport
WLAN Security
Security ModeWPA-PSK, WPA2-PSK, WPA/WPA2-PSK;
Blacklist and WhitelistSupport
Enhanced User Experience
Wi-Fi OptimizationSupport
Automatic RF adjustment via the platformSupport
User IsolationLayer 2 user isolation
STA limitSupport
Removing Low-RSSI STAsSupport
Configuring STAs' RSSI ThresholdSupport
Average Speed ThresholdSupport
Adjusting Sending Rate of Beacon and Probe ResponseSupport
Syslog Recording Why Users Lose ConnectionSupport
Auto Channel and Power Adjustment on CloudSupport
RSSI Threshold for STA AccessSupport
Quick channel adjustment (auto channel selection)Support
Networks
Network Access ModeDHCP Client
VLANSupport
System
Cloud ManagementSupport
App ManagementSupport
App UpgradeSupport
App RestartSupport
Scheduled RestartSupport
Local UpgradeSupport
Online UpgradeSupport
Factory ResetSupport
WLAN Features
Frequency Bandwidth2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz
Recommended Wi-Fi Coverage Radius2.4G 50m, 5G 150m
Max. Wi-Fi Coverage Radius2.4G 100m, 5G 300m
Operation Frequency Bands

802.11b/g/n: 2.400 GHz to 2.483 GHz
802.11a/n/ac: 5.150 GHz to 5.350 GHz
802.11a/n/ac: 5.470 to 5.725 GHz , 5.725 to 5.850 GHz
country-specific restrictions apply

Receive Sensitivity

802.11b: -91 dBm(1Mbps),-88 dBm(5.5Mbps),-85 dBm(11Mbps)
802.11a/g: -89 dBm(6Mbps), -80 dBm(24Mbps), -76 dBm(36Mbps), -71dBm(54Mbps)
802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
802.11ac VHT20: -83 dBm(MCS0), -57 dBm(MCS9)
802.11ac VHT40: -79 dBm(MCS0), -57 dBm(MCS9)
802.11ac VHT80: -76 dBm(MCS0), -51 dBm(MCS9)

Physical
LED Indicator3 x system LED indicator
Buttons1 x Reset button
Dimensions (W x D x H)200mm × 220mm × 166mm(Without Mounting Bracket)
Weight1.0kg(Without Mounting Bracket)
Power
Power SuppliesIEEE 802.3at PoE DC 12V/1.5A (ไม่มี POE Injector/ DC Adapter ในชุดอุปกรณ์)
Power Consumption≤ 13W
DC Port DimensionsOuter Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm
Environmental
Operating Temperature-30°C to 65°C
Storage Temperature-40°C to 85°C
Operating Humidity0% to 100% (Noncondensing)
Storage Humidity0% to 100% (Noncondensing)
IP(Ingress Protection)IP68
Port Surge4 kV
MTBF>250000H

ประกัน

3 ปี

Antenna Schematic

2.4GHz Pattern:



5GHz Pattern:

รายละเอียดสินค้า

Data sheet

ลักษณะงาน Wireless
กระจายสัญญาณ WIFI
ความเร็ว Wireless
WIFI-5 (802.11ac: 650Mbps+)
ย่านความถี่
Dual-Band 2.4/5GHz
รองรับ Controller
Cloud Controller
รองรับติดตั้งนอกอาคาร
Yes
รองรับ POE
Yes

ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

Ruijie Cloud: Perfect Network Solution For SME

Ruijie Cloud Site Survey Planner (SSP) Overview

Ruijie AP Quick Provisioning

Ruijie Cloud Deployment Quick Start

ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie VS Reyee

Feature

Ruijie Enterprise

Reyee

Ruijie Cloud

Support

Support

Mobile App
(รองรับ iOS และ Android)

Support

Support

Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

Presales Tools
(ระบบการขาย เช่น BOM, การคำนวนกำลังไฟ POE, Report)

Support

Support

Fast Provisioning
(การเพิ่มอุปกรณ์ขึ้น Cloud))

Scan QR-code Device
Cloud Config Sync

Self-organizing network (SON)
Scan QR-code Device

Monitoring & Alarm

Support

Support

Device Management

Additional:
RRM
Web CLI
Telnet/SSH
Configuration Mgmt (Backup/Restore)

Basic
Web Config
Cloud Config

Gateway Management

WAN Load Balance
Block Web
Block Bittorrent
App/Web Control L7 Filter
L7 DPI Analysis
App Cache
Sub-Interface VLAN (802.1Q)
VPN L2TP, PPTP, IPSecs
Bandwidth Management
ACL
EWeb Tunnel (Remote Config ผ่าน Cloud)

WAN Load Balance
Block Web
Block Bittorrent
Sub-Interface VLAN (802.1Q)
VPN L2TP, PPTP, IPSecs
Bandwidth Management
ACL
NO-IP, DDNS
EWeb Tunnel (Remote Config ผ่าน Cloud)

Gateway Authen

Local Authen (Captive Portal)
Sync with Cloud Auth (Captive Portal)
Web Audit (เก็บ Log การเข้า Website)

Local Authen (Captive Portal)
Sync with Cloud Auth (Captive Portal)
QR-Code Auth

Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway
Review Reyee Gateway RG-EG210G-E แบบ Full Test

Multi-tenant
รองรับการจัดการ Project จากหลาย Account

Support

Support

Scenario-based
Config Wizard

N/A

Support (App)

Wireless

Standard

WIFI 4 (n)
WIFI 5 (ac)
WIFI 5 Wave2 (ac)
WIFI 6 (ax)

WIFI 5 Wave2 (ac)
WIFI 6 (ax)

Capacity

Max Client 1024 (Wi-Fi 6)

Max Client 128

WLAN Auth

802.1x Auth
PPSK

Customized Captive Portal
Voucher, Account, Facebook, SMS OTP

PSK/WPA2
Basic Captive-Portal (ต้องใช้ร่วมกับ Ruijie/Reyee Gateway)

Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet

WLAN Features

L2/L3 Roaming
Adv CLI script configuration
WIDS(Rogue AP detection)
Wireless Radio Analytics (RRM)
Location tracking (LBS)
Bluetooth (BLE) support
Speed Limit Per Client
Speed Limit Per SSID

L2 Roaming
Wireless Load Balance
Basic Feature

WLAN Controller
(Appliances)

Yes
RG-WS6000 Series (upto 6400 AP)

Yes
RG-NBC Series (up to 500 AP)

Switches

Capacity

Chassis model option (upto 48 10GE)

Box Switches model (upto 24GE +10G uplink

L2

IGMP Snooping
MSTP
LACP VLAN
Link Aggregate (LACP)
SuperVlan
VoiceVlan
ACL
DHCP Snooping
Port Isolate

VLAN
Link Aggregate (Static)
ACL
DHCP Snnoping
Port Isolate

L3

IPv6, RIP, OSPF, PBR, VRRP

N/A<

Security / Availability

802.1x, CPP/NFPP, REUP, VSU

N/A

Management

Managed with Web & CLI (Console port), SSH, SNMP

Web Smart Managed & Unmanaged

Review Ruijie RG-ES200 Series Cloud Managed POE Switch

ตารางเปรียบเทียบข้อมูล Reyee RG-RAP Series Access Point



Model

RG-RAP1200(F)

RG-RAP1200(P)

RG-RAP2200(F)

RG-RAP2200(E)

RG-RAP2260(G)

RG-RAP2260(E)

สัญญาณครอบคลุม

20 เมตร

20 เมตร

30 เมตร

30 เมตร

30 เมตร

30 เมตร

จำนวน Clients ที่แนะนำ

40
8(2.4G) + 32(5G)

80
16(2.4G) + 64(5G)

48
16(2.4G) + 32(5G)

80
16(2.4G) + 64(5G)

100
16(2.4G) + 84(5G)

100
16(2.4G) + 84(5G)

มาตรฐาน WIFI

802.11b/g/n/ac

802.11b/g/n/ac

802.11ac wave2
802.11a/b/g/n

802.11ac wave2, wave1
802.11a/b/g/n

802.11ax
802.11ac wave2
802.11a/b/g/n

802.11ax
802.11ac wave2 802.11a/b/g/n

ความเร็วสูงสุด (2.4GHz)

400Mbps

400Mbps

400Mbps

400Mbps

574Mbps

800Mbps

ความเร็วสูงสุด
(5GHz)

867Mbps

867Mbps

867Mbps

867Mbps

1201Mbps

2402Mbps

กำลังส่งสูงสุด
(2.4G)

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

กำลังส่งสูงสุด
(5G)

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

20dBm = 100mW

จำนวน SSID

8

8

8

8

8

8

Spatial Streams

2.4G: 2x2 MIMO
5G: 2x2 MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 2x2MIMO
5G 2x2MIMO

2.4G 4x4 MIMO
5G 4x4 MIMO

Antenna

PCB antenna

PF antenna
2.4G: 2dBi
5G: 2dBi

Array antennas 2.4G: 2dBi
5G: 2dBi

Array antennas
2.4G: 2dBi
5G: 2dBi

Internal antennas 2.4G: 3dBi
5G: 3dBi

Internal antennas 2.4G: 3dBi
5G: 3dBi

Service Ports

Front:
1 Port 10/100Mbps Ethernet port

Rear:
1 Port 10/100Mbps, Support PoE

Front:
4  Port 10/100/1000 Mbps
LAN1 port supports 802.3af PoE

Rear:
1 Port  10/100/1000Mbps

2 Port 10/100 Mbps PoE/LAN1 port supports PoE

2 Port 10/100/1000 Mbps
PoE/LAN1 port supports PoE

2 Port 10/100/1000 Mbps
PoE/LAN1 port supports PoE

1 Port 10/100/1000M/2.5G supports PoE;

1 Port 10/100/1000Mbps

SON Number

150

150

150

300

300

300

Power Supply

PoE 803.1af

PoE 803.1af

PoE 803.1af
DC 12V 1.5A

PoE 803.1af
DC 12V 1.5A

PoE 803.1at
DC 12V 1.5A

PoE 803.1at
DC 12V 1.5A

Port Aggregation

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

VLAN

Support

Support

Support

Support

Support

Support

Port Base VLAN

Support

Support

Not  Support

Not  Support

Not  Support

Not  Support

DHCP Snooping

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

ARP Check

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

IP Source Guard

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

LLDP

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Static ARP Bind

Support

Support

Support

Support

Support

Support

ARP Proxy

Support

Support

Support

Support

Support

Support

Ping

Support

Support

Support

Support

Support

Support

Traceroute

Support

Support

Support

Support

Support

Support

NAT

Support

Support

Support

Support

Support

Support

Static Route

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

DHCP Server

Support

Support

Support

Support

Support

Support

Telnet

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

SSH

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

รองรับการจัดการผ่าน Ruijie Cloud

Support

Support

Support

Support

Support

Support

รองรับการจัดการผ่าน Ruijie Cloud APP

Support

Support

Support

Support

Support

Support

802.1x

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

PPPoE

Support

Support

Support

Support

Support

Support

Same SSID with differnet VLAN

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Same VLAN with differnet SSID

Support

Support

Support

Support

Support

Support

L2 Roaming

Support

Support

Support

Support

Support

Support

L3 Roaming

Support

Support

Support

Support

Support

Support

Global whitelist/blacklist

Support

Support

Support

Support

Support

Support

SSID-based whitelist/blacklist

Support

Support

Support

Support

Support

Support

Wireless bridge

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

Not  Support

PoE Out

Not  Support

Support

Not  Support

Not  Support

Not  Support

Not  Support

You might also like

ยี่ห้อ: Ruijie Networks

Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit

Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit สำหรับจ่ายไฟให้กับอุปกรณ์ที่ใช้ POE มาตรฐาน 802.3af/at, Port Lan ความเร็ว Gigabit

ราคา ฿960.00
More
มีสินค้า



Follow us on Facebook
