RG-RAP6262(G) Outdoor Access Point Datasheet
RG-RAP6262(G) Hardware Installation and Reference Guide V1.0
Product Specification | |
| Wi-Fi Standards | Wi-Fi6 (IEEE 802.11ax) Wi-Fi5 (IEEE 802.11ac Wave2) Wi-Fi4(IEEE 802.11n) |
| RF Design | 2.4 GHz, 2×2, MU-MIMO 5 GHz, 2×2, MU-MIMO |
| Max. Wi-Fi Speed | 2.4 GHz: 574 Mbps 5 GHz: 1201 Mbps |
| Antenna | 4 |

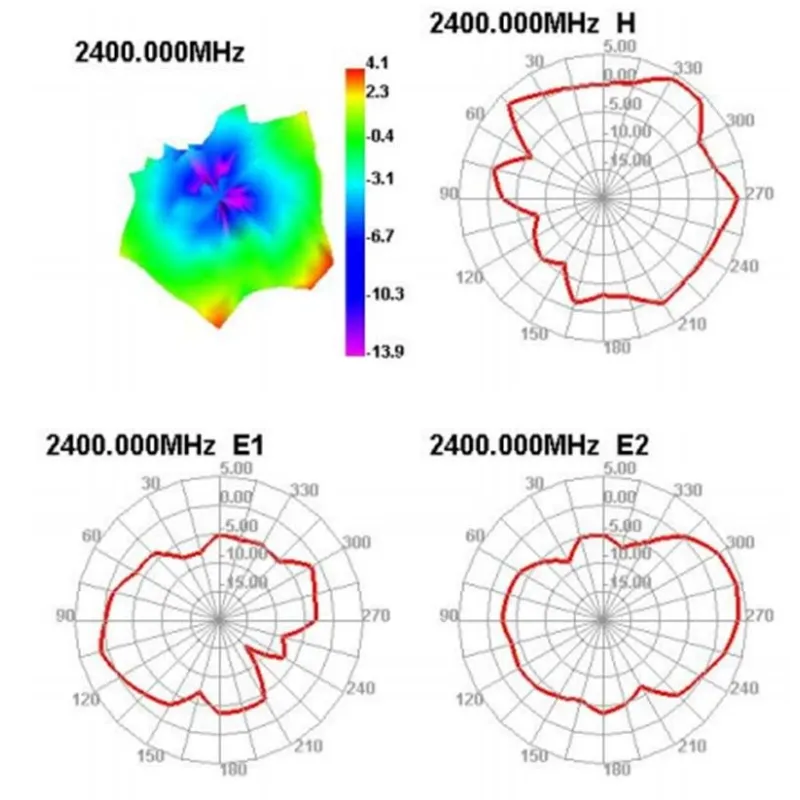

| Antenna Type | Built-In Omnidirectional |

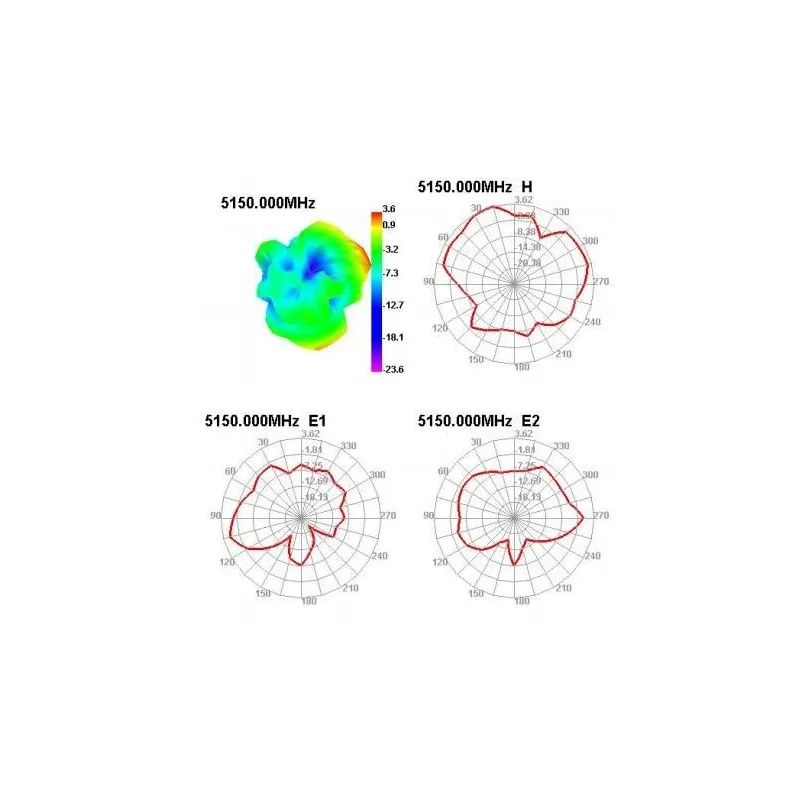

| Antenna Gain | 2.4 GHz: 3 dBi 5 GHz: 5 dBi |
| Transmit Power | EIRP ≤ 26 dBm(2.4GHz) ≤ 25 dBm( 5GHz ) country-specific restrictions apply Myamar: 2400~2483.5MHz ≤ 20dBm 5150~5350MHz ≤ 23dBm 5470~5850MHz ≤ 25dBm |
| Fixed Ports | 2×10/100/1000 Base-T |
| Max. Clients | 256, 64(2.4GHz) or 256(Total) |
| Recommended Clients | 100 11AX Terminal: 16(2.4GHz) + 84(5GHz) 11AC Terminal: 16(2.4GHz)+64(5GHz) |
| Max. SSIDs | 8 |
| Software Feature | |
| WLAN Basic Features | |
| SSID Hiding | Support |
| Power Adjustment | Support |
| Roaming | Layer 2 roaming Layer 3 roaming |
| OFDMA | Support |
| Target wake time (TWT)* | Support |
| WMM | Support |
| Radar Signal Detection and Frequency Hopping | Support |
| WLAN Security | |
| Security Mode | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK; |
| Blacklist and Whitelist | Support |
| Enhanced User Experience | |
| Wi-Fi Optimization | Support |
| Automatic RF adjustment via the platform | Support |
| User Isolation | Layer 2 user isolation |
| STA limit | Support |
| Removing Low-RSSI STAs | Support |
| Configuring STAs' RSSI Threshold | Support |
| Average Speed Threshold | Support |
| Adjusting Sending Rate of Beacon and Probe Response | Support |
| Syslog Recording Why Users Lose Connection | Support |
| Auto Channel and Power Adjustment on Cloud | Support |
| RSSI Threshold for STA Access | Support |
| Quick channel adjustment (auto channel selection) | Support |
| Networks | |
| Network Access Mode | DHCP Client |
| VLAN | Support |
| System | |
| Cloud Management | Support |
| App Management | Support |
| App Upgrade | Support |
| App Restart | Support |
| Scheduled Restart | Support |
| Local Upgrade | Support |
| Online Upgrade | Support |
| Factory Reset | Support |
| WLAN Features | |
| Frequency Bandwidth | 2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz |
| Recommended Wi-Fi Coverage Radius | 2.4G 50m, 5G 150m |
| Max. Wi-Fi Coverage Radius | 2.4G 100m, 5G 300m |
| Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz 802.11a/n/ac: 5.150 GHz to 5.350 GHz 802.11a/n/ac/ax: 5.470 to 5.725 GHz , 5.725 to 5.850 GHz country-specific restrictions apply |
| Receive Sensitivity | |
| Physical | |
| LED Indicator | 3× system LED indicator |
| Buttons | 1×Reset button |
| Dimensions (W x D x H) | 200mm × 220mm × 166mm(Without Mounting Bracket) |
| Weight | 1.2kg(Without Mounting Bracket) |
| Power | |
| Power Supplies | IEEE 802.3at PoE DC 12V/1.5A |
| Power Consumption | ≤ 18W |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Environmental | |
| Operating Temperature | -30°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 0% to 100% (Noncondensing) |
| Storage Humidity | 0% to 100% (Noncondensing) |
| IP(Ingress Protection) | IP68 |
| Port Surge | 4 kV |
| MTBF | >250000H |
ประกัน | ประกันศูนย์ Ruijie Thailand 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
| Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
| Model | ||||||
| สัญญาณครอบคลุม | 20 เมตร | 20 เมตร | 30 เมตร | 30 เมตร | 30 เมตร | 30 เมตร |
| จำนวน Clients ที่แนะนำ | 40 | 80 | 48 | 80 | 100 | 100 |
| มาตรฐาน WIFI | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11ac wave2 | 802.11ac wave2, wave1 | 802.11ax | 802.11ax |
| ความเร็วสูงสุด (2.4GHz) | 400Mbps | 400Mbps | 400Mbps | 400Mbps | 574Mbps | 800Mbps |
| ความเร็วสูงสุด (5GHz) | 867Mbps | 867Mbps | 867Mbps | 867Mbps | 1201Mbps | 2402Mbps |
| กำลังส่งสูงสุด (2.4G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
| กำลังส่งสูงสุด (5G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
| จำนวน SSID | 8 | 8 | 8 | 8 | 8 | 8 |
Spatial Streams | 2.4G: 2x2 MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 4x4 MIMO |
| Antenna | PCB antenna | PF antenna | Array antennas 2.4G: 2dBi | Array antennas | Internal antennas 2.4G: 3dBi | Internal antennas 2.4G: 3dBi |
Service Ports | Front: Rear: | Front： Rear： | 2 Port 10/100 Mbps PoE/LAN1 port supports PoE | 2 Port 10/100/1000 Mbps | 2 Port 10/100/1000 Mbps | 1 Port 10/100/1000M/2.5G supports PoE; 1 Port 10/100/1000Mbps |
| SON Number | 150 | 150 | 150 | 300 | 300 | 300 |
| Power Supply | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1at | PoE 803.1at |
| Port Aggregation | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| VLAN | Support | Support | Support | Support | Support | Support |
| Port Base VLAN | Support | Support | Not Support | Not Support | Not Support | Not Support |
| DHCP Snooping | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| ARP Check | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| IP Source Guard | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| LLDP | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| Static ARP Bind | Support | Support | Support | Support | Support | Support |
| ARP Proxy | Support | Support | Support | Support | Support | Support |
| Ping | Support | Support | Support | Support | Support | Support |
| Traceroute | Support | Support | Support | Support | Support | Support |
| NAT | Support | Support | Support | Support | Support | Support |
| Static Route | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| DHCP Server | Support | Support | Support | Support | Support | Support |
| Telnet | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| SSH | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| รองรับการจัดการผ่าน Ruijie Cloud | Support | Support | Support | Support | Support | Support |
| รองรับการจัดการผ่าน Ruijie Cloud APP | Support | Support | Support | Support | Support | Support |
| 802.1x | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| PPPoE | Support | Support | Support | Support | Support | Support |
| Same SSID with differnet VLAN | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| Same VLAN with differnet SSID | Support | Support | Support | Support | Support | Support |
| L2 Roaming | Support | Support | Support | Support | Support | Support |
| L3 Roaming | Support | Support | Support | Support | Support | Support |
| Global whitelist/blacklist | Support | Support | Support | Support | Support | Support |
| SSID-based whitelist/blacklist | Support | Support | Support | Support | Support | Support |
| Wireless bridge | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| PoE Out | Not Support | Support | Not Support | Not Support | Not Support | Not Support |
