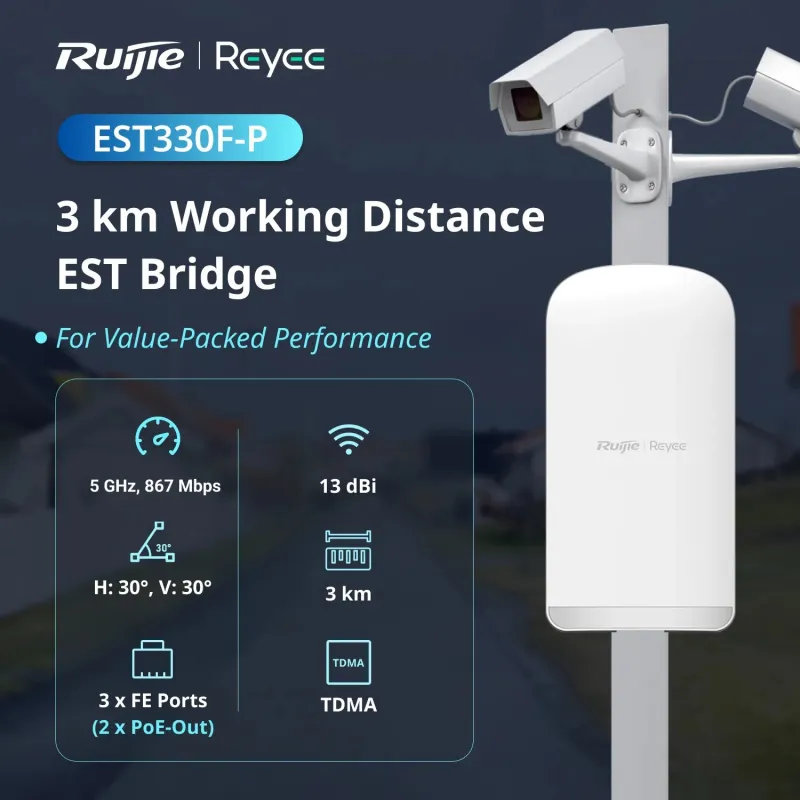

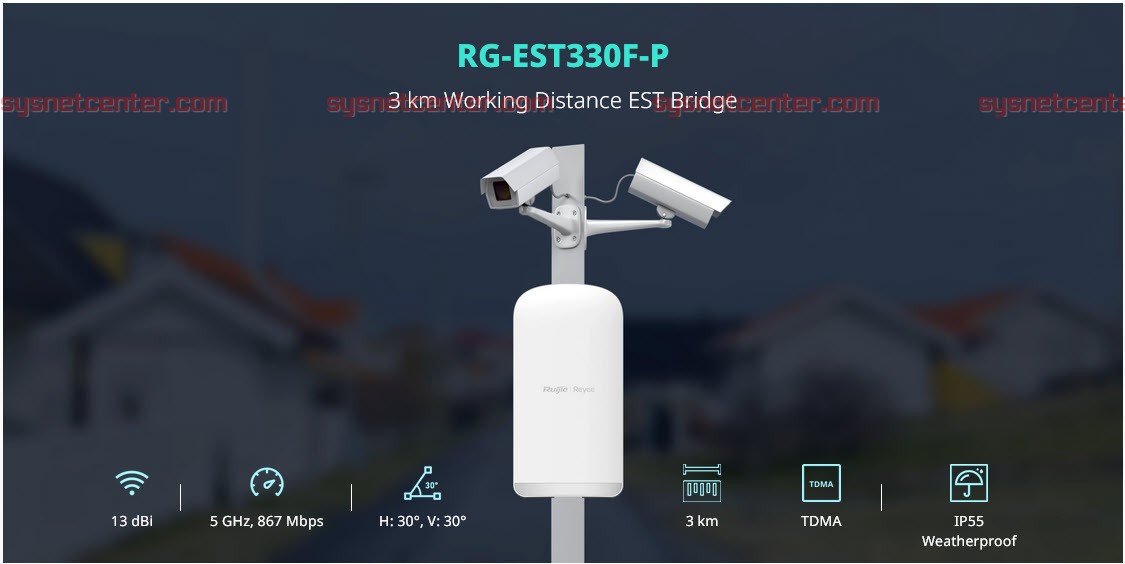

RG-EST330F-P Reyee Wireless Bridge 5GHz ac รองรับจ่ายไฟ POE-Out

Product Specification

Radio Design

5 GHz dual-stream
2.4 GHz single-stream

Protocol and Standard

5 GHz: 802.11ac/n/a
2.4 GHz: 802.11b/g/n

Wi-Fi Standard

Wi-Fi 5

Spatial Streams

5 GHz dual-stream, 2x2 MIMO
2.4 GHz single-stream

Channel Width

2.4 GHz Auto/20/40 MHz
5 GHz Auto/20/40/80 MHz

Receiver Sensitivity

11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps),-71 dBm (54 Mbps);
11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15;
11ac: -86 dBm (MCS0), -63 dBm (MCS9)

Wi-Fi Protocols

2.4 GHz Wi-Fi 4
5 GHz Wi-Fi 5 (IEEE 802.11ac)

Wireless Data Rate

2.4 GHz 150 Mbps
5 GHz 867 Mbps

Frequency Bands

2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz
5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
Note: Country-specific restrictions apply.

Transmit Power

2.4 GHz Max. 20dBm
5 GHz Max. 26 dBm

Surge Protection

Common mode: ±4 kV Differential mode: ±2 kV

Weight

0.37 kg (0.82 lbs.)

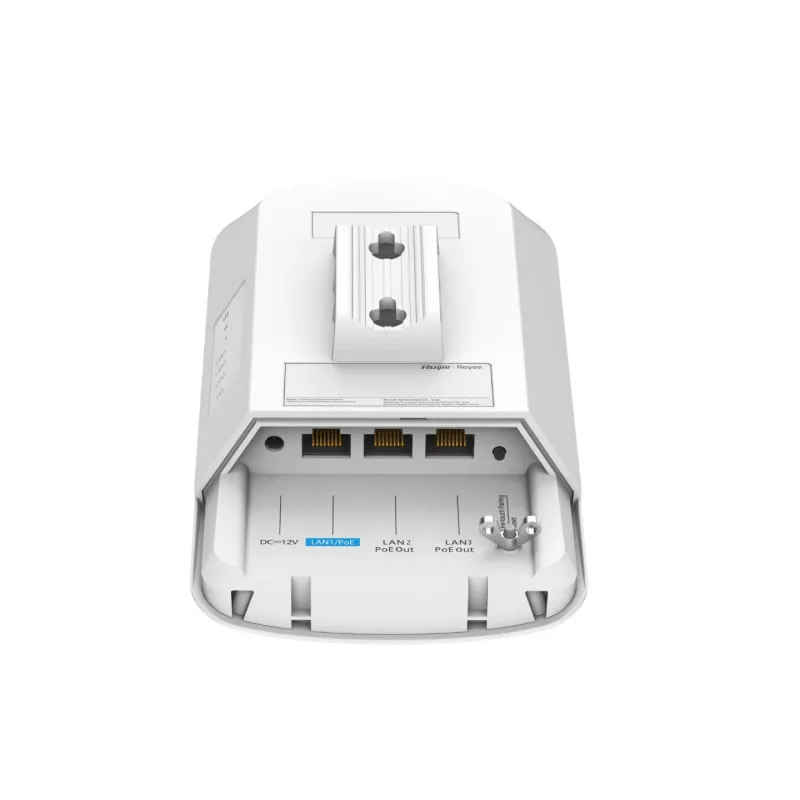

Number of Fixed LAN Ports

3

LAN Port Rate

10/100 Mbps

Reset

Yes

Status LED

Yes

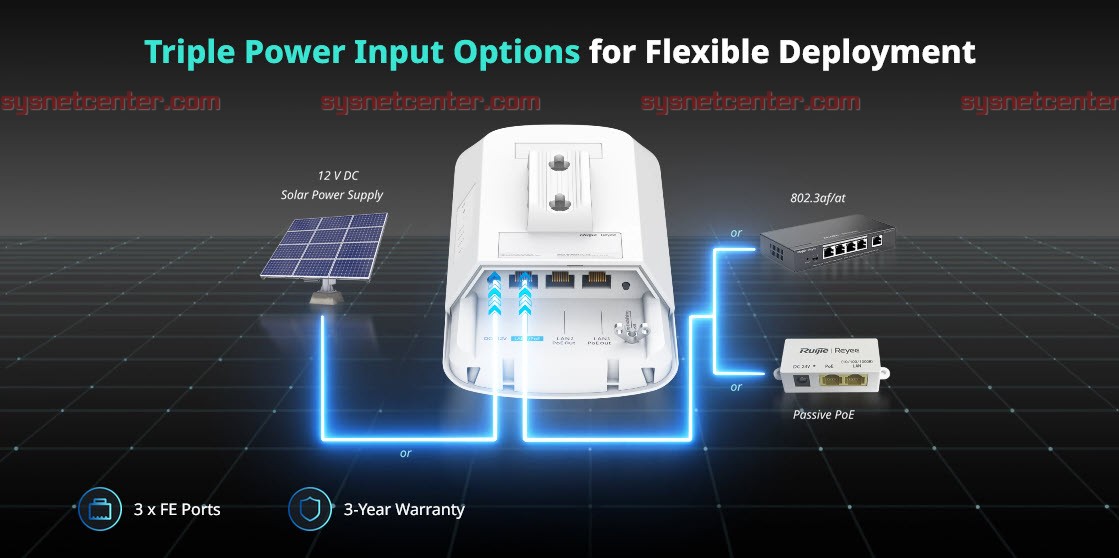

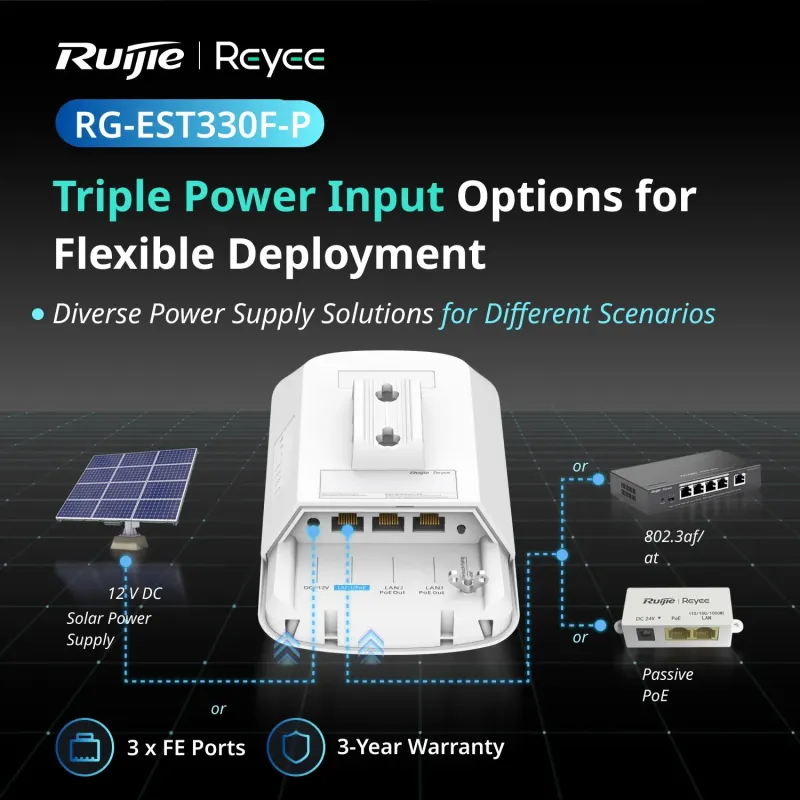

Power Supply

12 V DC or 24 V passive PoE or 802.3af/at

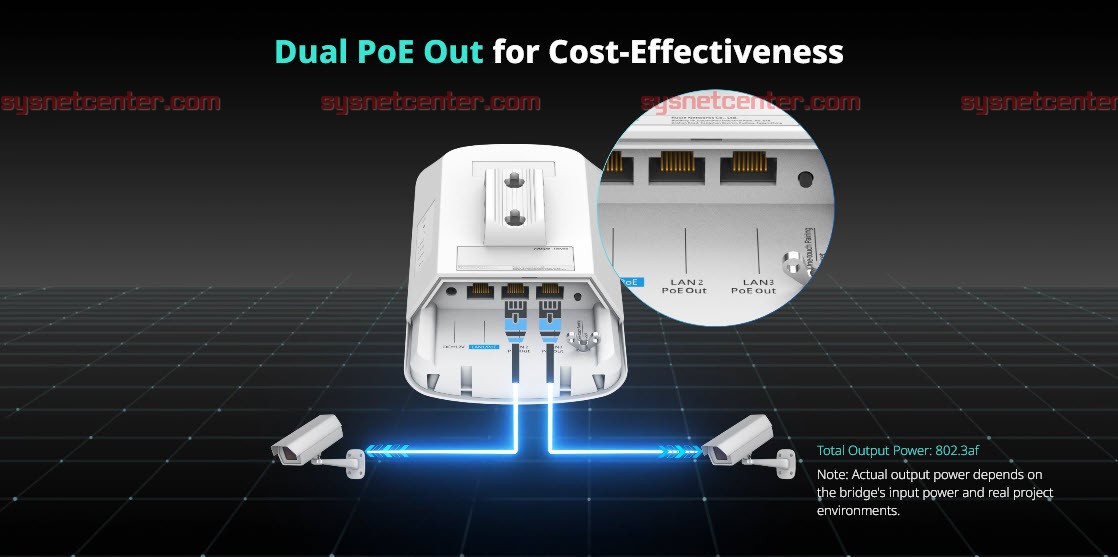

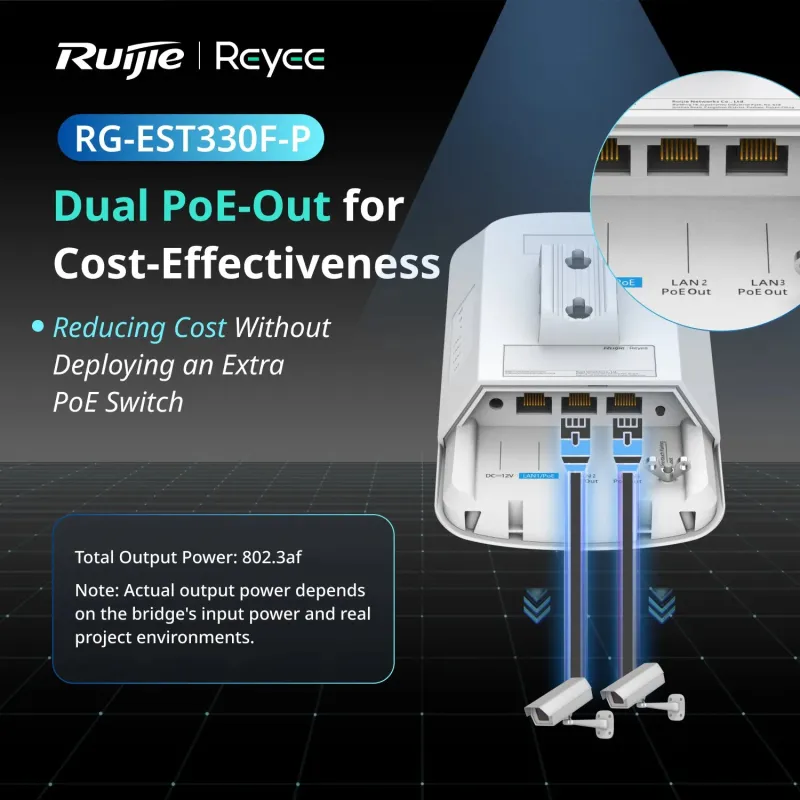

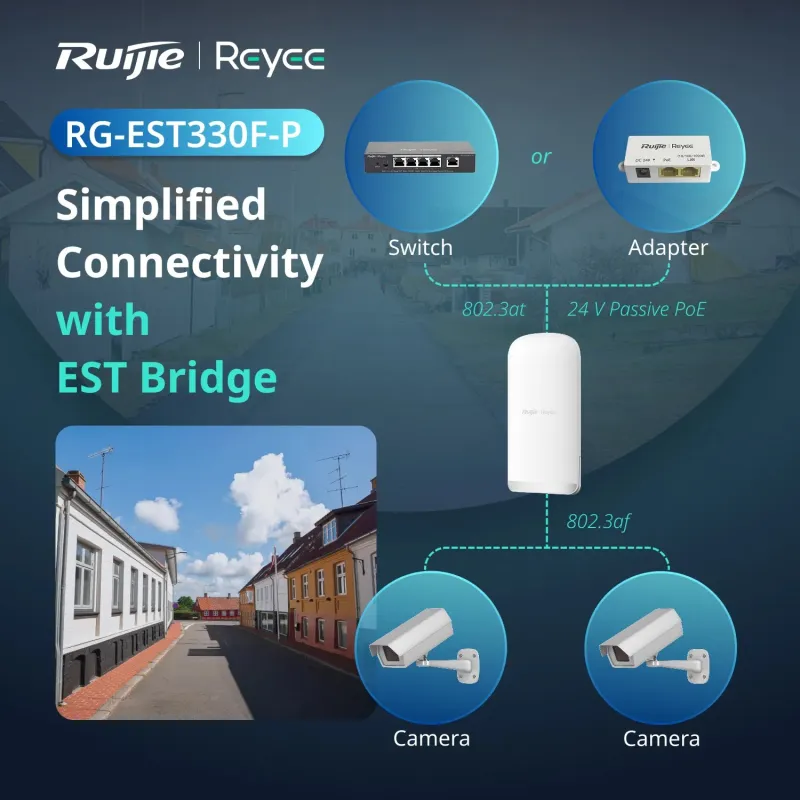

PoE Out

Yes

Supported PoE Standards

802.3af/at

Antenna Type

Built-in antenna, horizontal 30°/vertical 30°

Antenna Gain

2.4 GHz 2dBi
5 GHz 13dBi

Power Consumption

< 9 W (Without PoE Out)
< 24.4 W (With PoE Out)

IP Rating

IP55

Operating Temperature

–30°C to +55°C (–22ºF to +149ºF) (–40°C to +80°C [–40°F to +176°F] in publicity materials)

Storage Temperature

–40°C to +85°C (–22ºF to +185ºF)

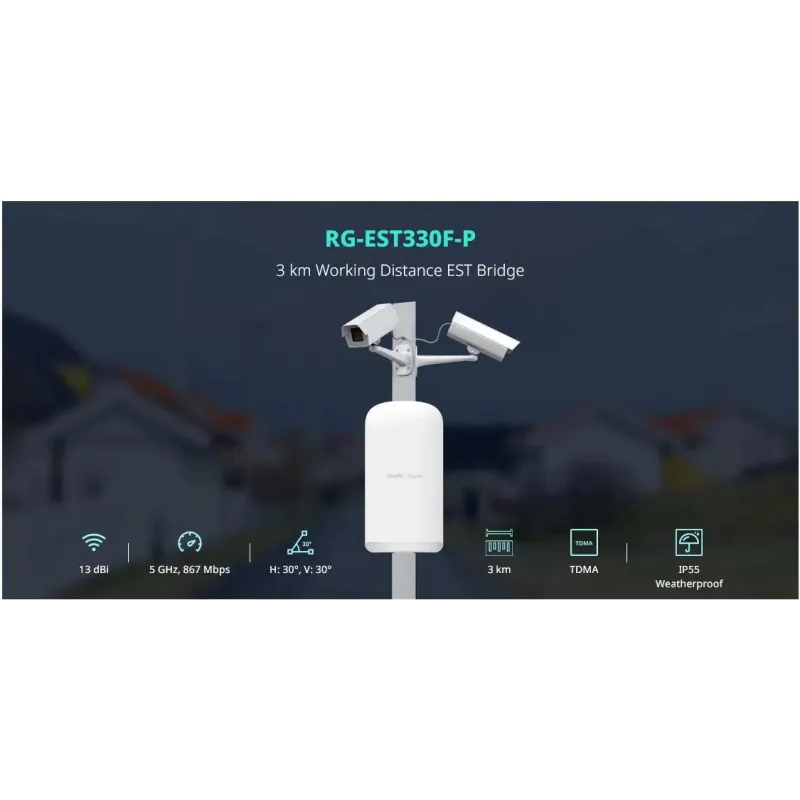

Bridging Performance

90 Mbps/0.5 km
80 Mbps/1 km (HT40)
60 Mbps/2 km (HT40)
40 Mbps/3 km (HT40)

Software Features

Operating Mode

BaseStation/CPE

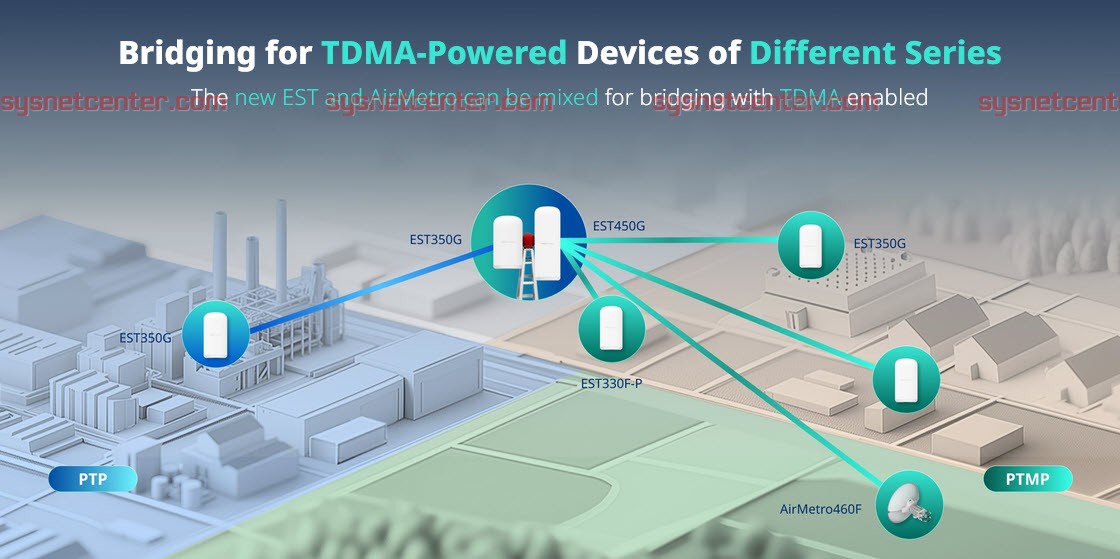

TDMA

Fixed Mode/Flexible Mode

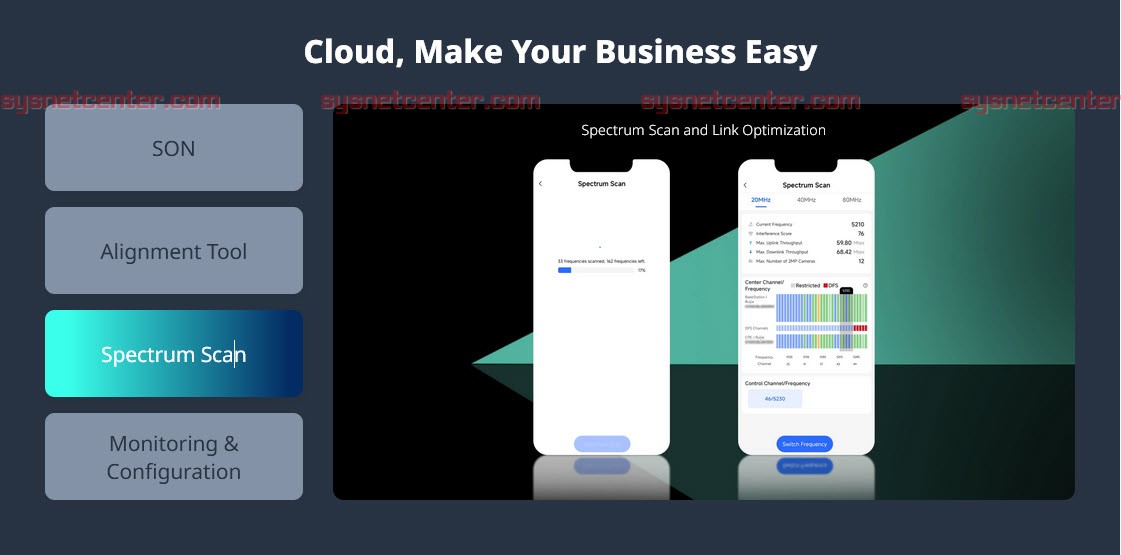

Spectrum Scan

Yes

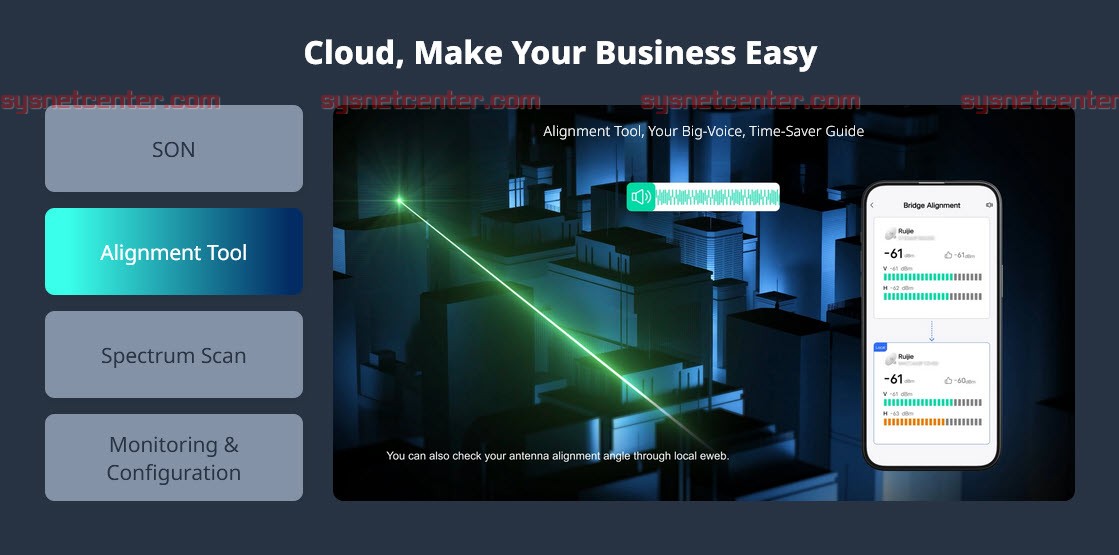

Antenna Aligment

Yes

One-Touch Pairing

Yes

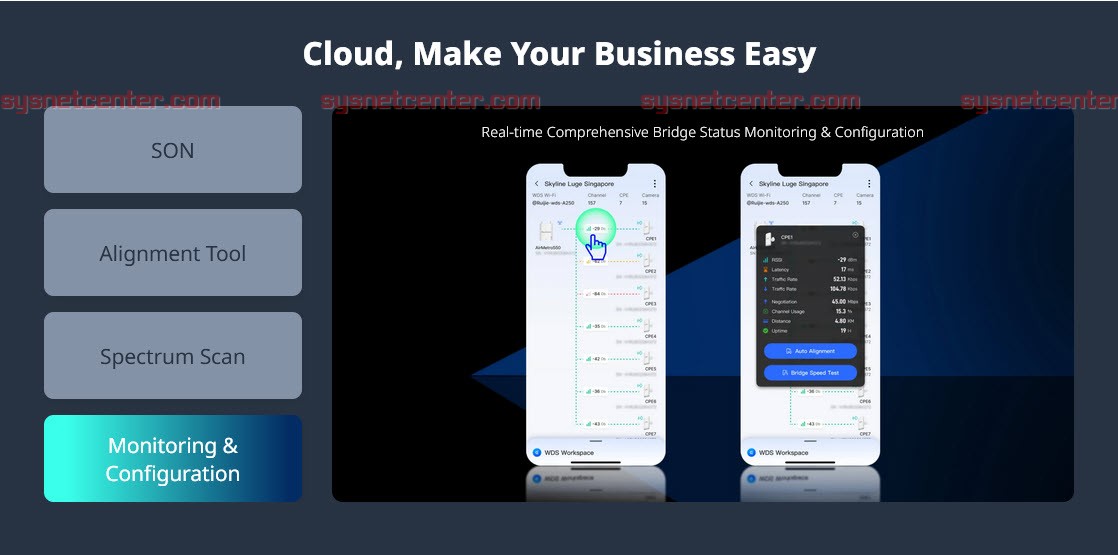

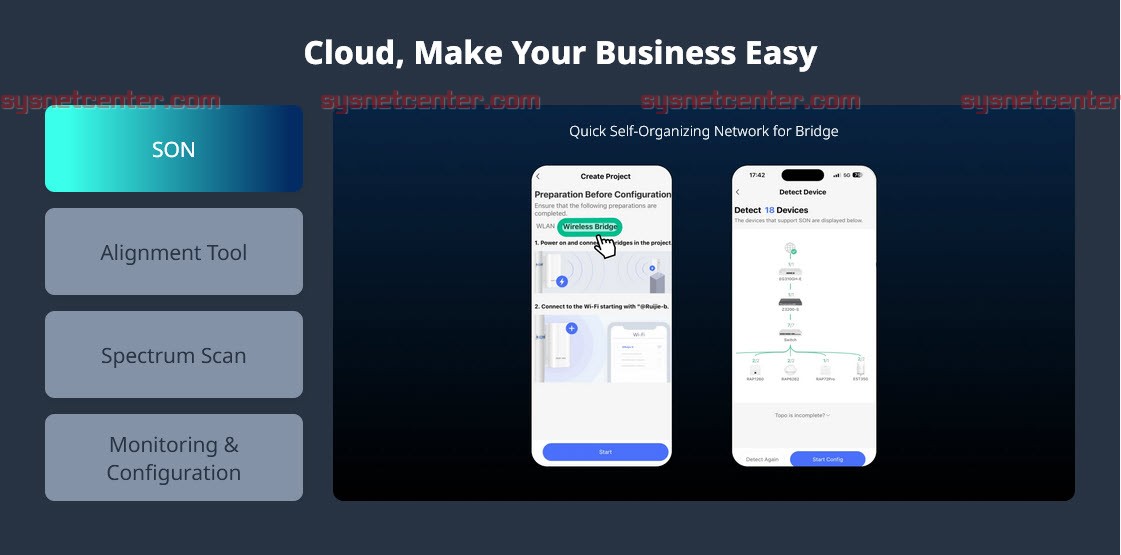

Cloud Management

Yes

SON (Self-organizing Networking with all Reyee Devices)

Yes

Bridge Speed Test

Yes

AI Heatmap

Yes

WLAN Security

WPA2-PSK

รับประกัน

3 ปี
