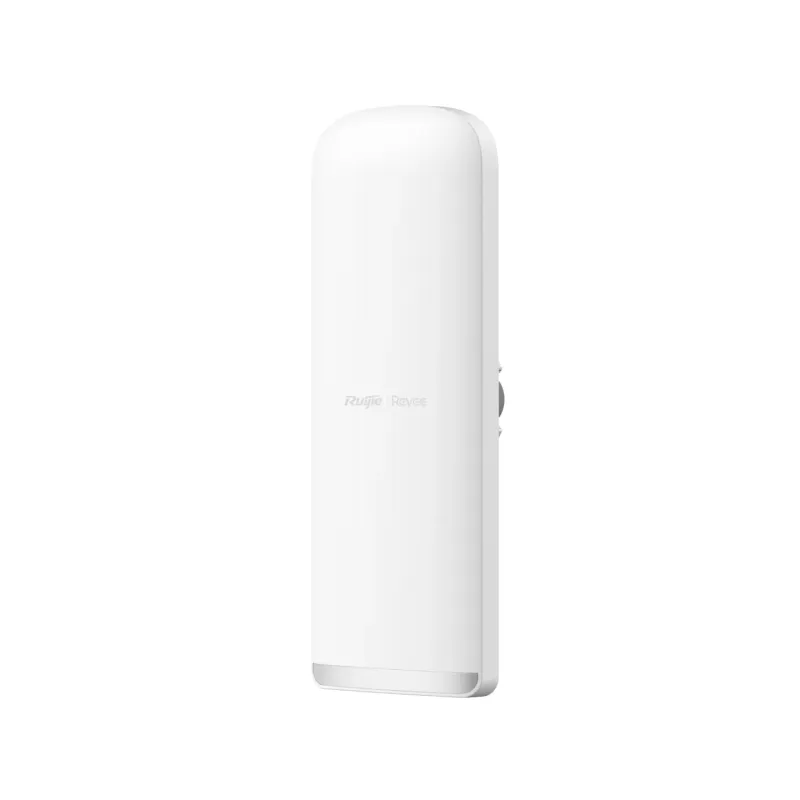

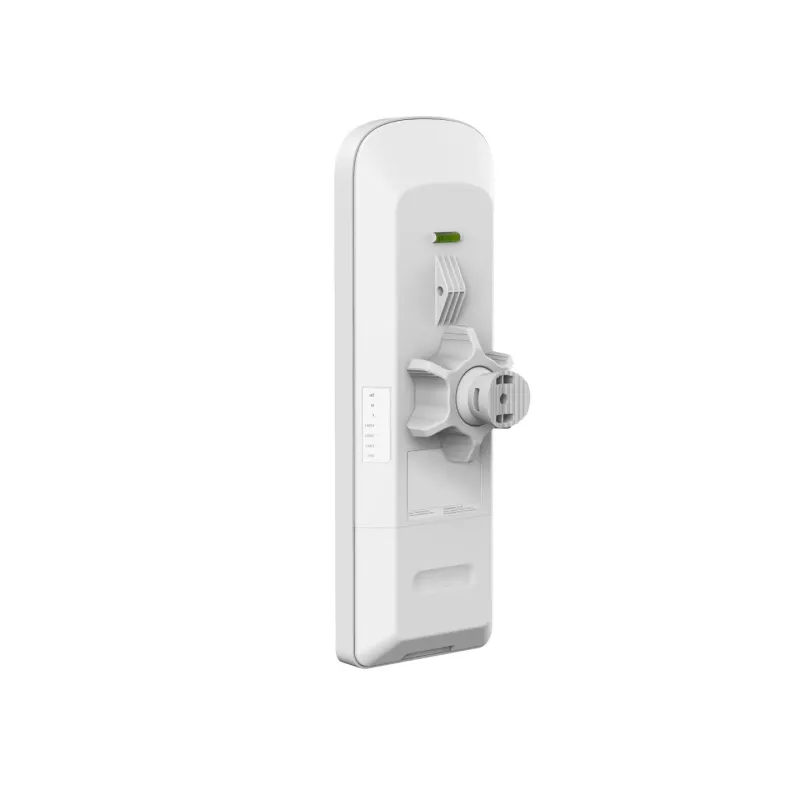

RG-EST450G Ruijie Wireless Bridge 5GHz 802.11ac, PTMP 5Km

Product Specification

Model

RG-EST450G

Hardware Features

Radio Design

5 GHz dual-stream
2.4 GHz single-stream

Protocol and Standard

5 GHz: 802.11ac/n/a
2.4 GHz: 802.11b/g/n

Wi-Fi Standard

Wi-Fi 5

Spatial Streams

5 GHz dual-stream, 2x2 MIMO
2.4 GHz single-stream

Channel Width

2.4GHz Auto/20/40 MHz
5GHz Auto/20/40/80 MHz

Receiver Sensitivity

11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps),-71 dBm (54 Mbps);
11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15;
11ac: -86 dBm (MCS0), -63 dBm (MCS9)

Wireless Data Rate

1017 Mbps
150 Mbps @ 2.4GHz
867 Mbps @ 5GHz

Frequency Bands

2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz
5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
Note: Country-specific restrictions apply.

Transmit Power

Surge Protection

Common mode: ±4 kV Differential mode: ±2 kV

Dimensions (W x D x H)

355 mm x 124 mm x 48 mm (13.98 in. x 4.88 in. x 1.89 in.)(without bracket)

Weight

0.83 kg (1.83 lbs.)

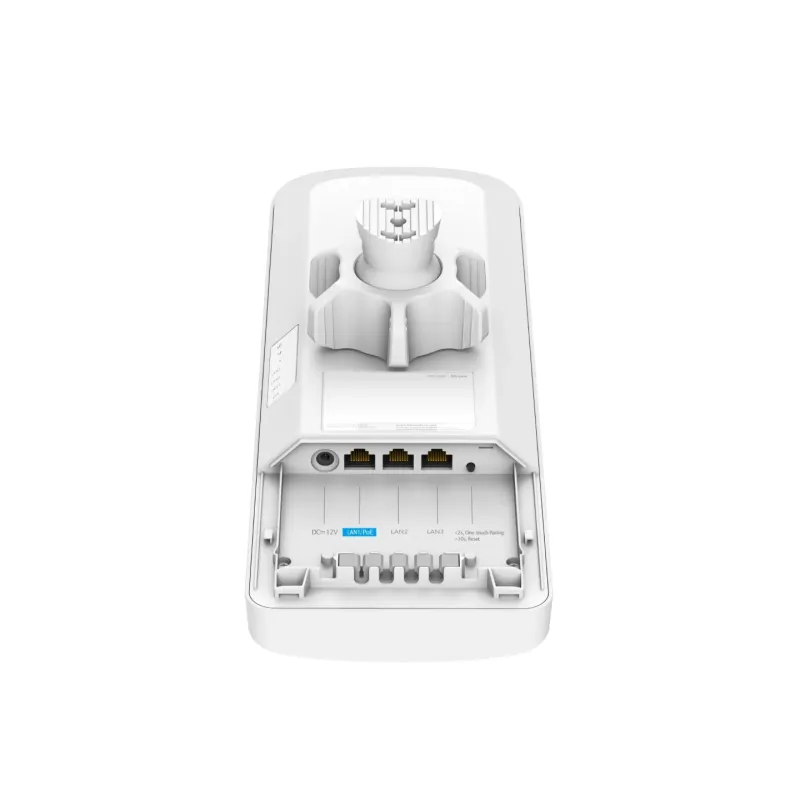

Number of Fixed LAN Ports

3

Number of 10/100/1000BASE-T Ports

LED

1 x system LED
3 x port LEDs
3 x signal strength LEDs

Supported PoE Standards

802.3af/at

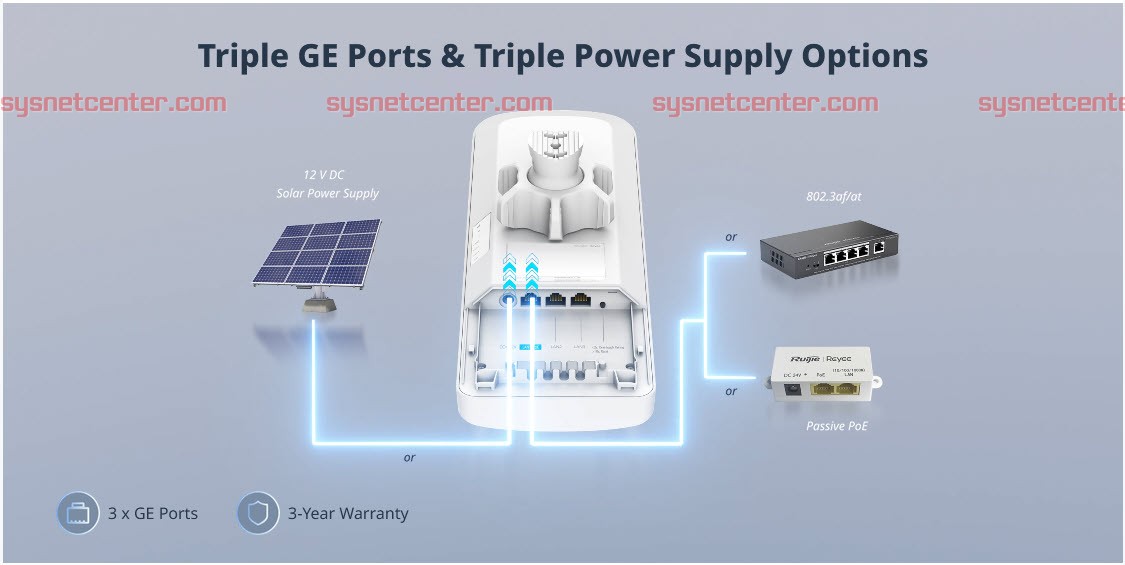

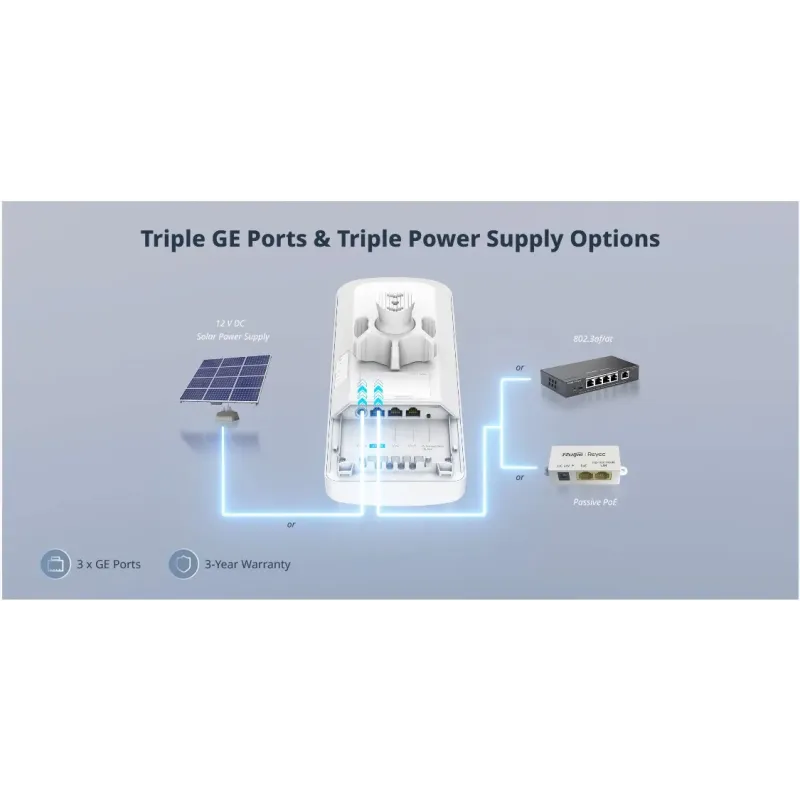

Power Supply

12 V DC or 24 V passive PoE or 802.3af/at

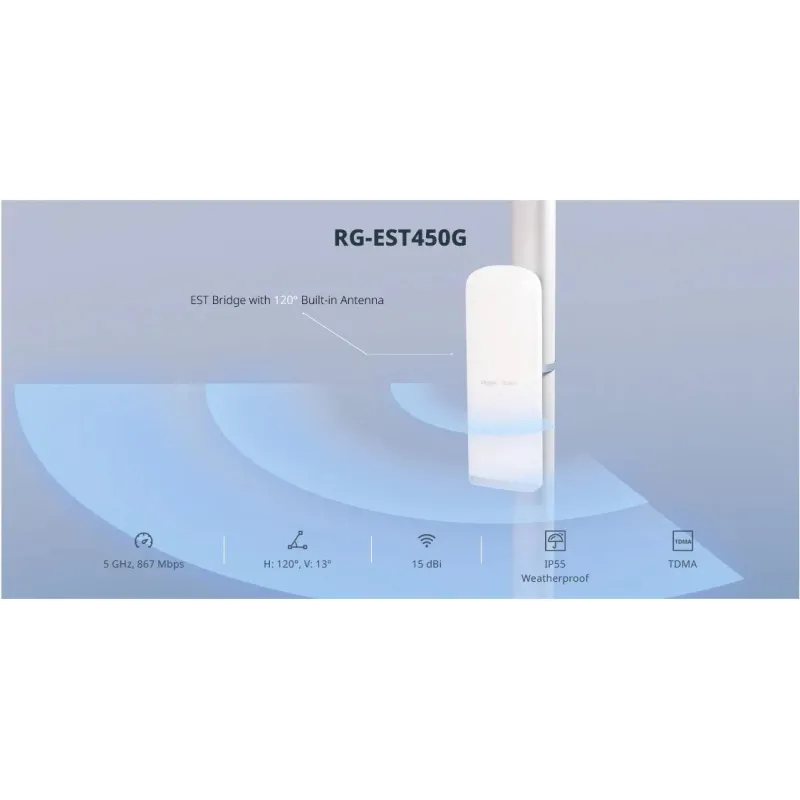

Antenna Type

Built-in antenna, horizontal 120°/vertical 13°

DC Voltage/Current

12 V/1.2 A, 24 V/0.6 A

Antenna Gain

Power Consumption

< 12 W

IP Rating

IP55

Operating Temperature

–30°C to +65°C (–22ºF to +149ºF) (–40°C to +80°C [–40°F to +176°F] in publicity materials)

Storage Temperature

–40°C to +85°C (–22ºF to +185ºF)

Working Distance

5 km

Bridging Performance

200 Mbps/1 km (HT40)
130 Mbps/3 km (HT40)
80 Mbps/5 km (HT40)

Software Features

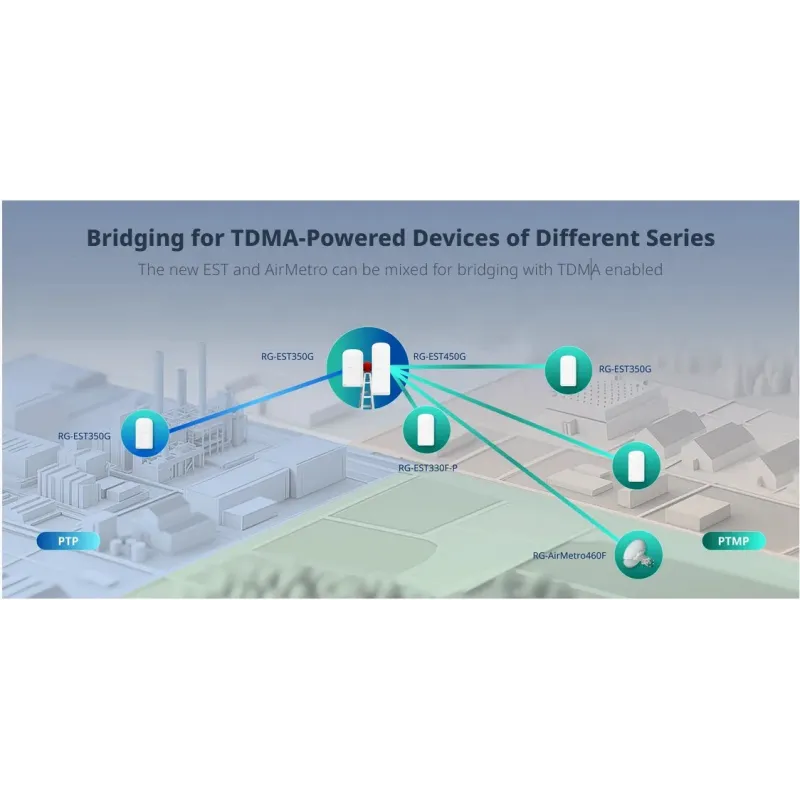

Operating Mode

BaseStation/CPE

TDMA

Fixed Mode/Flexible Mode

Spectrum Scan

Yes

Antenna Aligment

Yes

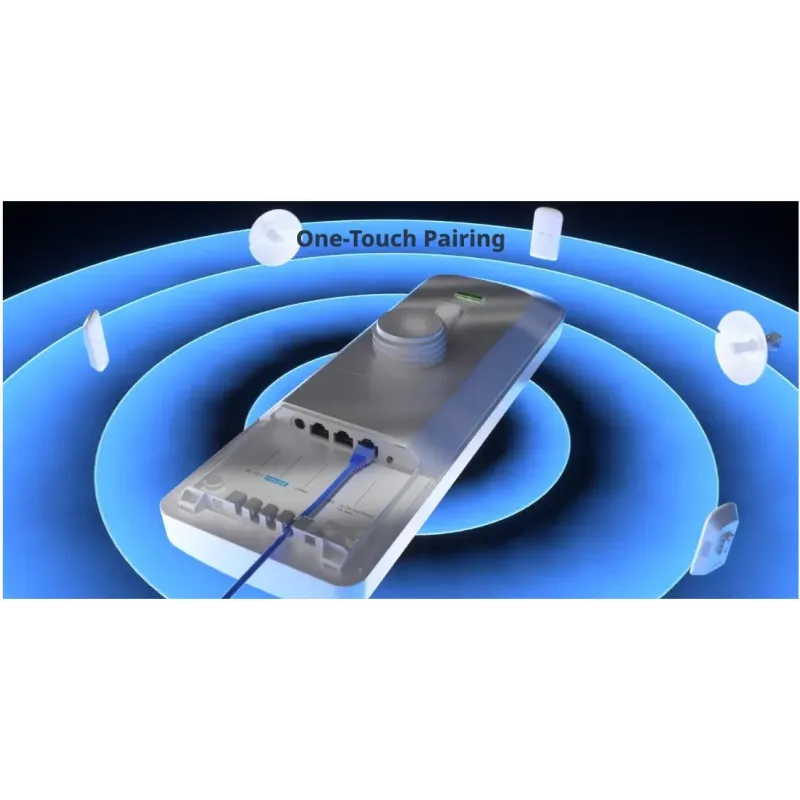

One-Touch Pairing

Yes

Cloud Management

Yes

SON (Self-organizing Networking with all Reyee Devices)

Yes

Bridge Speed Test

Yes

AI Heatmap

Yes

WLAN Security

WPA2-PSK

รับประกัน

3 ปี
