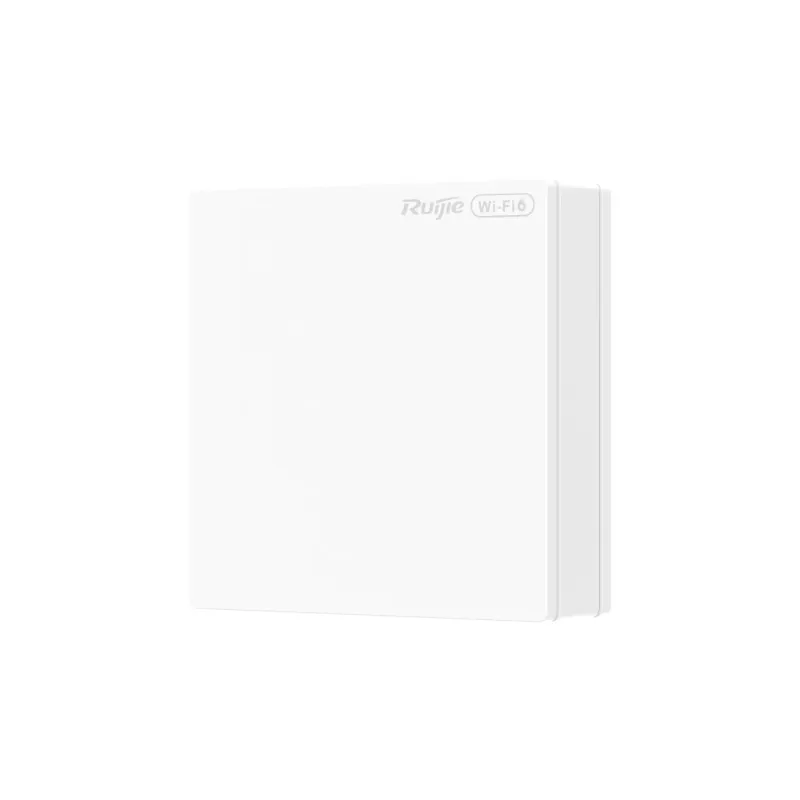

RG-RAP62-Wall-Lite

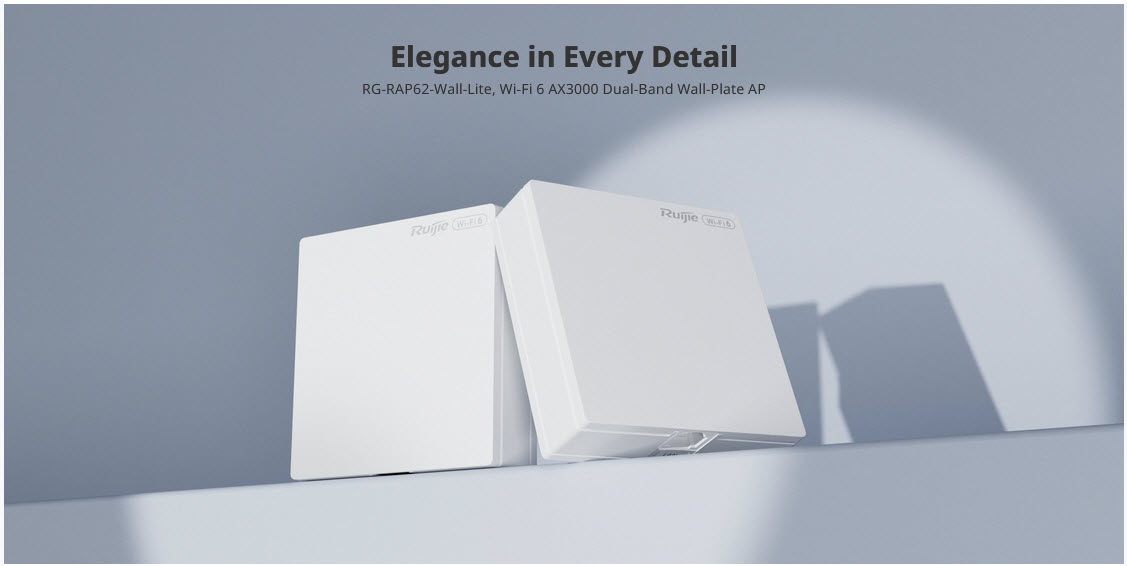

Reyee Wi-Fi 6 AX3000 Dual-Band Wall-Plate AP
Highlight Features
- Wi-Fi 6 AX3000 speeds: Maximum 2401 Mbps in 5 GHz + Maximum 573 Mbps in 2.4 GHz

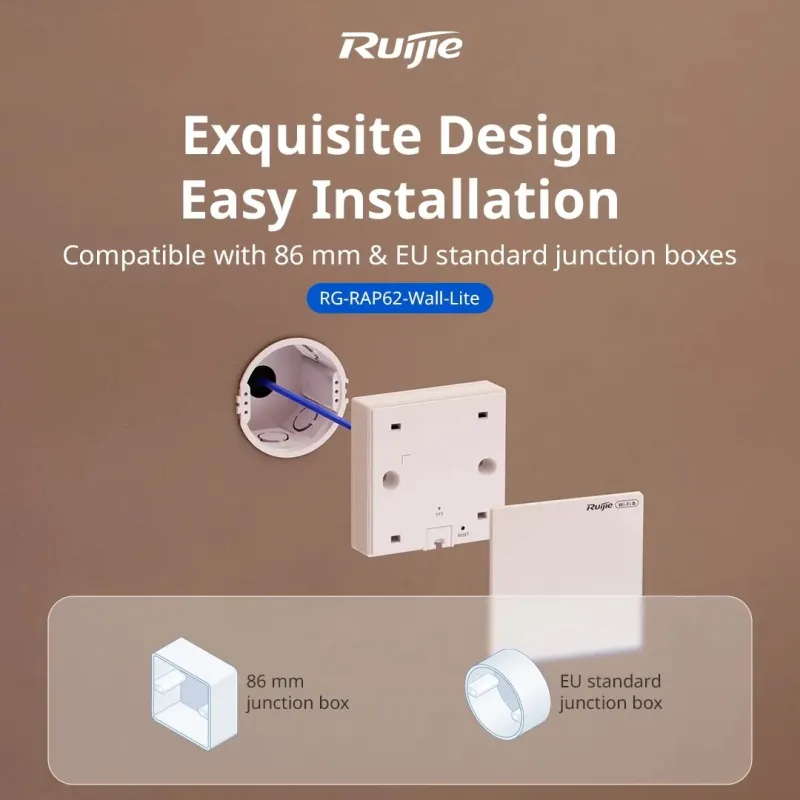

- Compatible with 86-mm and EU standard junction boxes
- Blending into the indoor environment

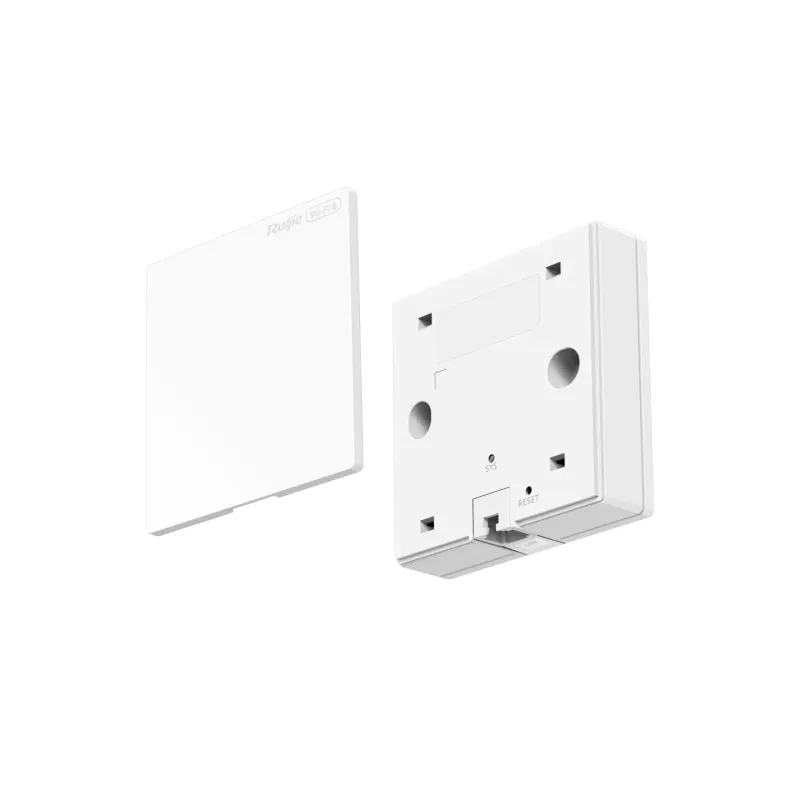

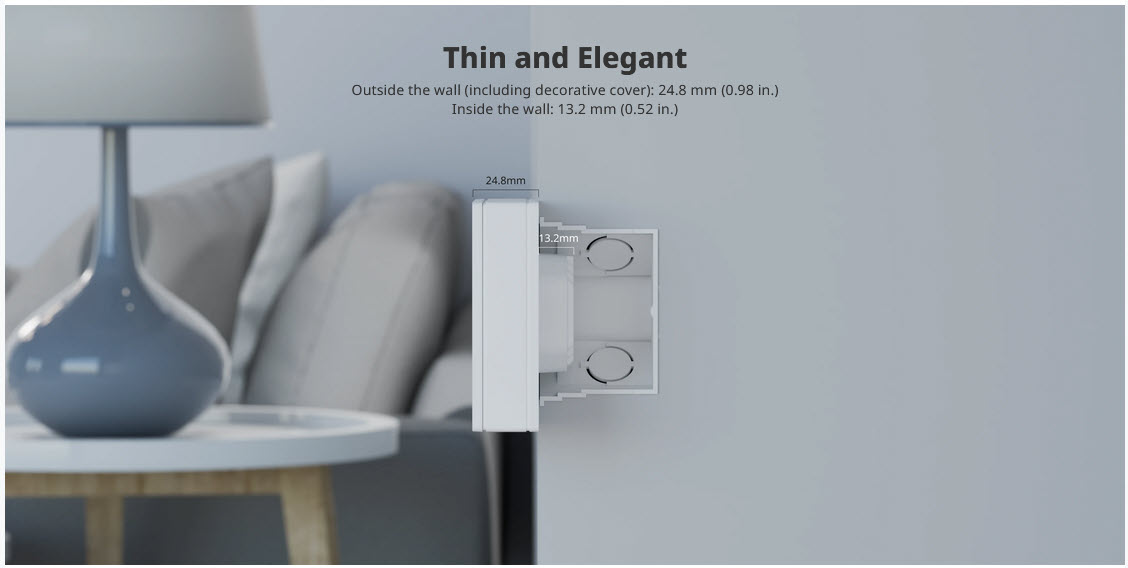

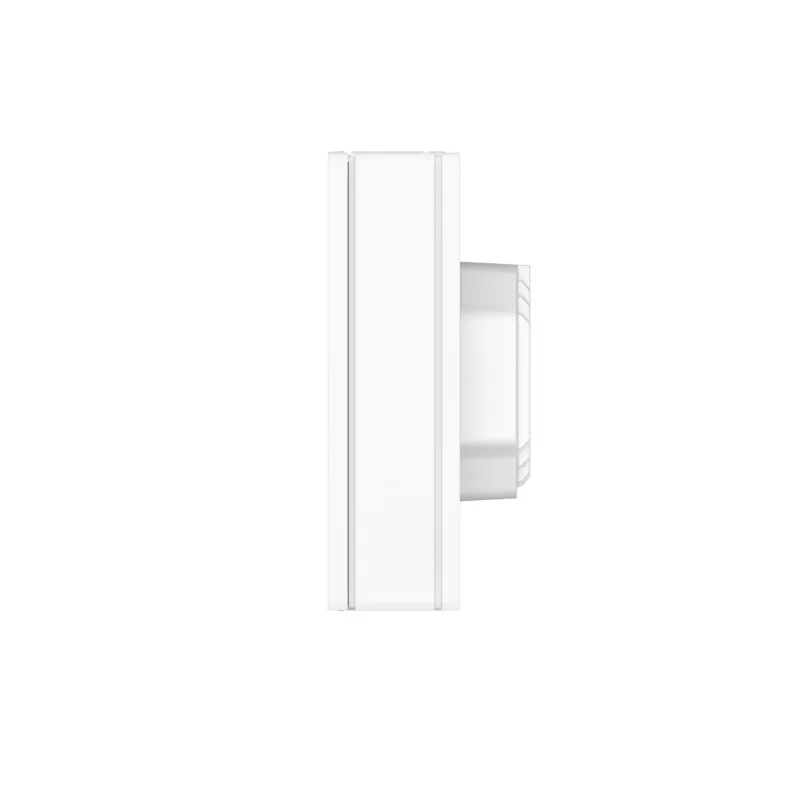

- Thickness-segmented design, with only 24.8 mm (0.98 in.) exposed on the wall
- Centralized management on Ruijie Cloud
| |
Overview | Reyee RG-RAP62-Wall-Lite Dual-Band Wall Plate Access Poin มาตรฐาน WIFI6 AX3000 2 Port Lan Gigabit รองรับการ Managed แบบ Stanalone, Free Cloud Control, Hardware Control |
Hardware specifications |
Wi-Fi Standards | 802.11a/n/ac/ax802.11b/g/n/ax |
MIMO | 2.4 GHz, 2x2, MU-MIMO
5 GHz, 2x2, MU-MIMO |
Max. Data Rate | 2.4 GHz: 574 Mbps
5 GHz: 2974 Mbps |
Antennas | GHz: 1 built-in omnidirectional antenna Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas |
Antenna Gain | 2.4 GHz: 3.07 dBi
5 GHz:: 4.42 dBi
Note: The peak gain mentioned above refers to the gain of a single antenna. |
Transmit Power | 2.4 GHz: 21 dBm
5 GHz: 21 dBm
Note: The transmitted power may vary based on local laws and regulations. |

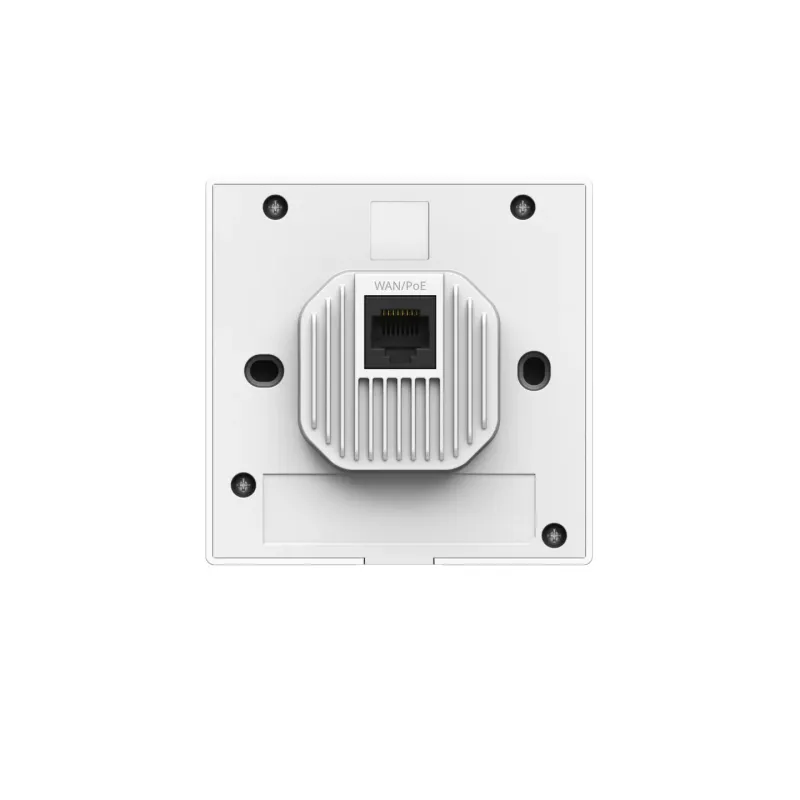

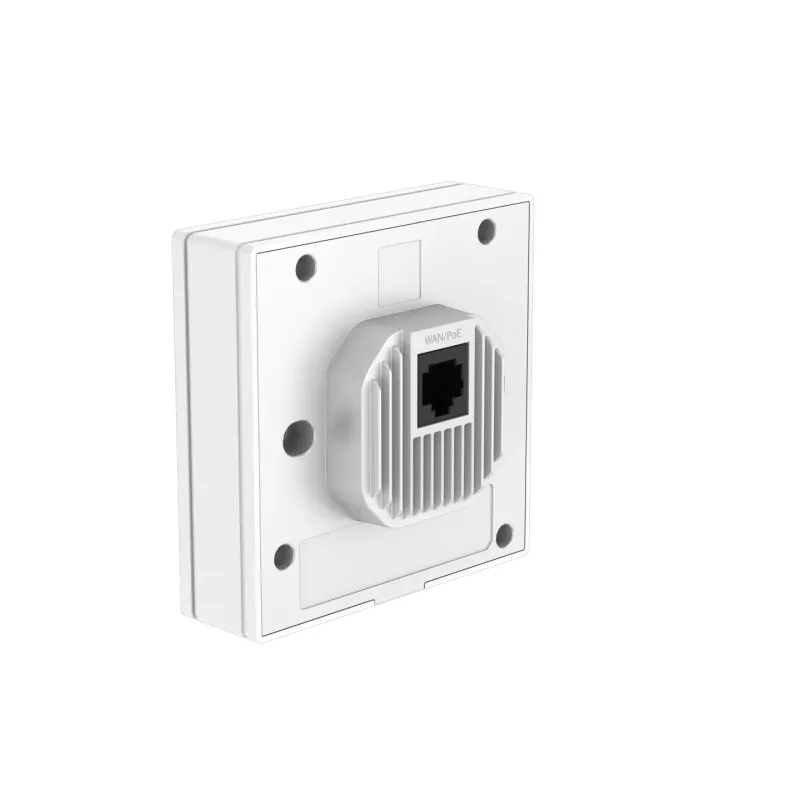

Fixed Ports | 1 x 10/100/1000Base-T Ethernet uplink port
1 x 10/100/1000Base-T Ethernet downlink ports1 x Reset hole |
Recommended number of associated wireless clients | Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled)
Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)
Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled) |
Max. Number of SSIDs | 8 |
Supported Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz
802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz,5.725 GHz to 5.850 GHz
Note: Country-specific restrictions apply. |
Software Features |
Power Adjustment | Support |
Channel Bandwidth | 2.4 GHz: Auto/20 MHz/40 MHz5 GHz: Auto/20 MHz/40 MHz/80 MHz/160 MHz |
Roaming | Layer 2 roamingLayer 3 roaming802.11k/v roaming |
OFDMA | Support |
Beamforming | Support |
Wi-Fi Multimedia (WMM)) | Support |
Radar Signal Detection and Frequency Hopping (DFS) | Support |
WLAN Security |
Security Mode | WAP-PSK, WAP2-PSK, and WPA-WAP2-PSK |
Blocklist and Allowlist | Support |
Enhanced User Experience |
Wi-Fi Optimization | Support |
Removing Low-RSSI STAs | Support |
Syslog Recording Why Users Lose Connection | Support |
Auto Channel and Power Adjustment on Cloud | Support |
RSSI Threshold for STA Access | Support |
Load Balancing | Support |
Networks |
Network Access Mode | PPPoE ClientDHCP ClientStatic IP |
Avoidance of WAN IP Address Conflicts | Support |
VLAN | Port-based VLANVLAN over 802.1QTV projection screen |
DHCP Server | Support |
System |
Management | Cloud ManagementApp Management |
App Upgrade | Support |
App Restart | Support |
Scheduled Restart | Support |
Default Access/Password | 10.44.77.253 (No password required by default.) |
Upgrade | Local UpgradeOnline Upgrade |
Backup | Support |
Factory Reset | Support |
Diagnostics | Support |
Network Check | Support |
Hardware Features |

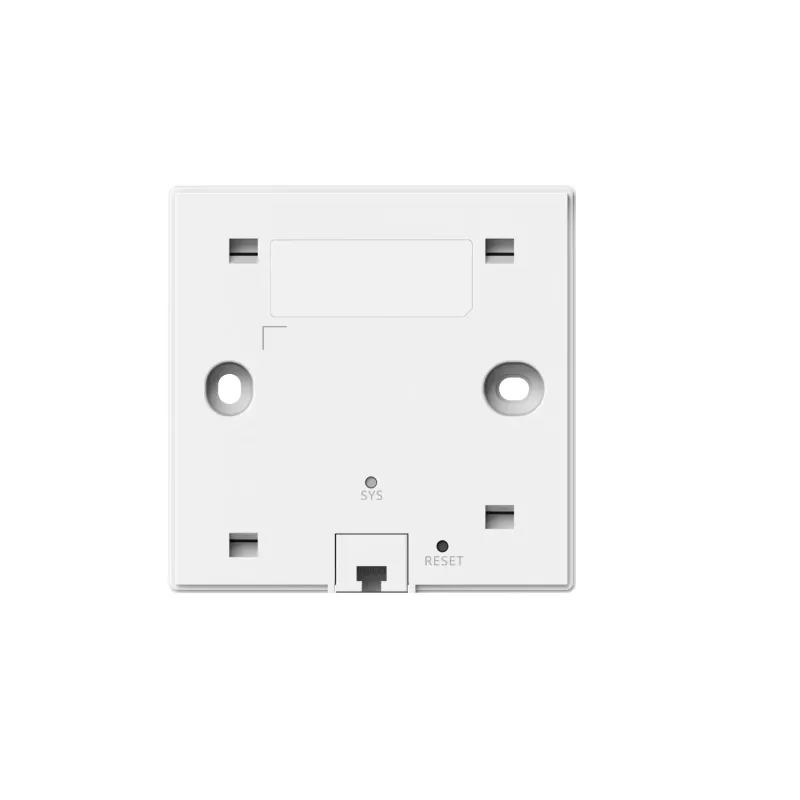

LED | 1 x System status LED |
Reset Hole | 1 x Reset hole |
Dimensions (W x D x H) | 86mm x 38mm x 86mm (3.39 in. x 1.50 in. x 3.39 in.) |
Weight | ≤ 0.25 kg (0.55 lbs.) (without packaging materials) |
Power Supply | IEEE 802.3af/at PoE |
Max. Power Consumption | 11.2 W |
Environment |
Operating Temperature | 0°C to 40°C (32°F to 104°F ) |
Storage Temperature | -40°C to +70°C (-40°F to +158°F ) |
Ingress Protection Rating (IP Rating) | IP41 |
MTBF | 400,000 hours |
รับประกัน | 3 ปี |
| |
