เหมาะกับงานที่ต้องการเชื่อมต่อเครือข่าย (Point To Point) ในงานที่ไม่สะดวกเดินสาย Lan เช่น ติดตั้งกล้อง IP Camera ที่ป้อม รปภ. และต้องการส่งข้อมูลกล้องกลับมาบันทึกลง NVR ในสำนักงาน หรือ งานเชื่อมต่อเครือข่ายระหว่างอาคาร
แต่ข้อจำกัดในการใช้อุปกรณ์ Wireless Bridge คือ จุดที่ติดตั้งตัวต้นทาง ส่งสัญญาณไปยังตัวปลายทาง ต้องไม่มีสิ่งกีดขวางบังสัญญาณที่ส่งออกไป

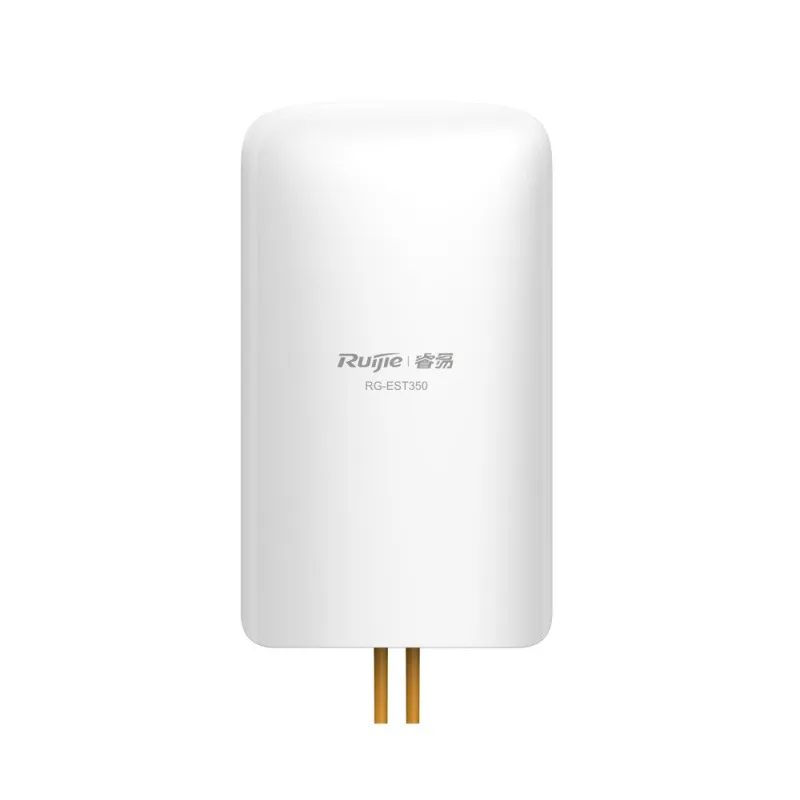

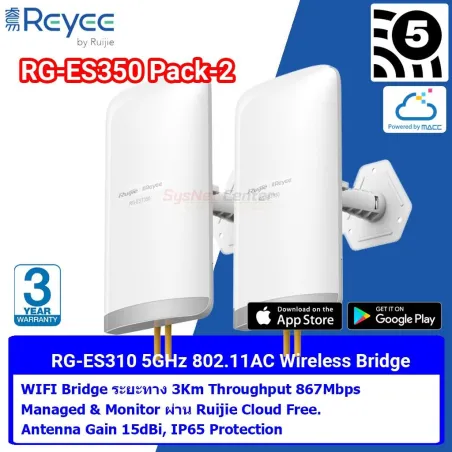

อุปกรณ์ Wireless Bridge RG-EST350 V2 ในชุดมี 2 ตัวครับ เพื่อติดตั้งทั้ง 2 ฝั่ง ใช้มาตรฐาน WIFI 802.11ac Port Lan ความเร็วสูง 1Gbps เหมาะกับงานเชื่อมต่อเครือข่ายระหว่างอาคาร ที่ต้องการความเร็วสูง Bandwidth ที่ได้ก็จะได้สูงสุดคือ 230Mbps ที่ระยะทาง 1Km.
อัตราขยายของเสา 15dBi มีมุมองศาของสัญญาณในแนวนอนประมาณ 31 องศา และแนวตั้ง 14 องศา เพื่อให้ส่งสัญญาณได้ไกล การติดตั้งจะยากกว่ารุ่น EST310 ต้องหันหรือก้มเงยอุปกรณ์ให้ตรงกัน ส่งสัญญาณได้ระยะสูงสุด 5กม. แต่ยิ่งระยะไกล ความเร็วที่ได้ก็จะลดลงครับ แนะนำใช้ที่ระยะไม่ควรเกิน 3กม.
Product Specification | |
Model | RG-EST350 V2 |
Radio Design | 5 GHz Single-Band Dual-Stream |
Operating Band | 802.11a/n/ac: 5.150~5 .350GHz, 5.470~5.725GHz , 5.725~5 .850GHz |
Antenna | Directional antennas, 15 dBi |
Polarization | Horizontal: 31°, Vertical: 14° |
Bridging Distance | 5 KM (recommended) |
Spatial Streams | 2x2, MU-MIMO |
Memory/Flash | 128 MB/8 MB |
Maximum Throughput | Up to 867 Mbps at 5 GHz |

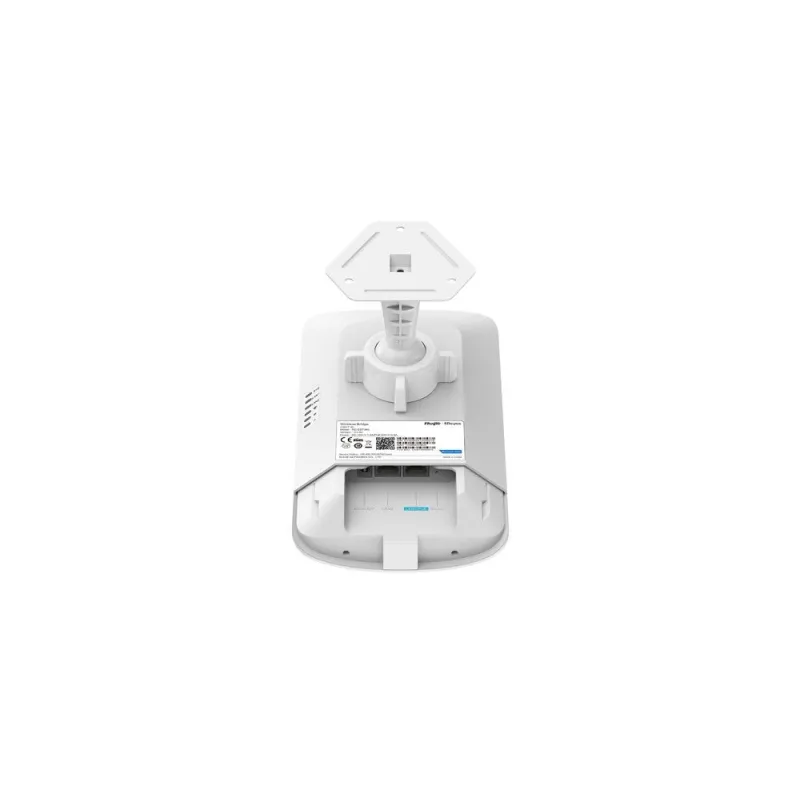

Ports | 2 10/100/1000Base-T Ethernet ports, port 1 with Passive PoE |
Max. Transmit Power | ≤400 mW(26 dBm) (adjustable) |
IP Rating | IP54 |
Lightning Protection | 4 KV |

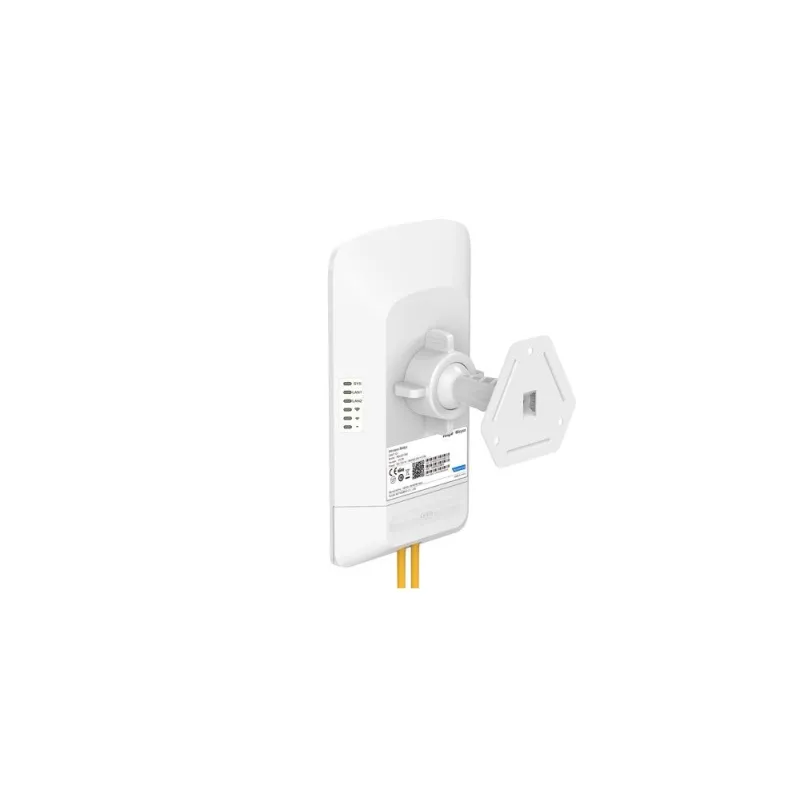

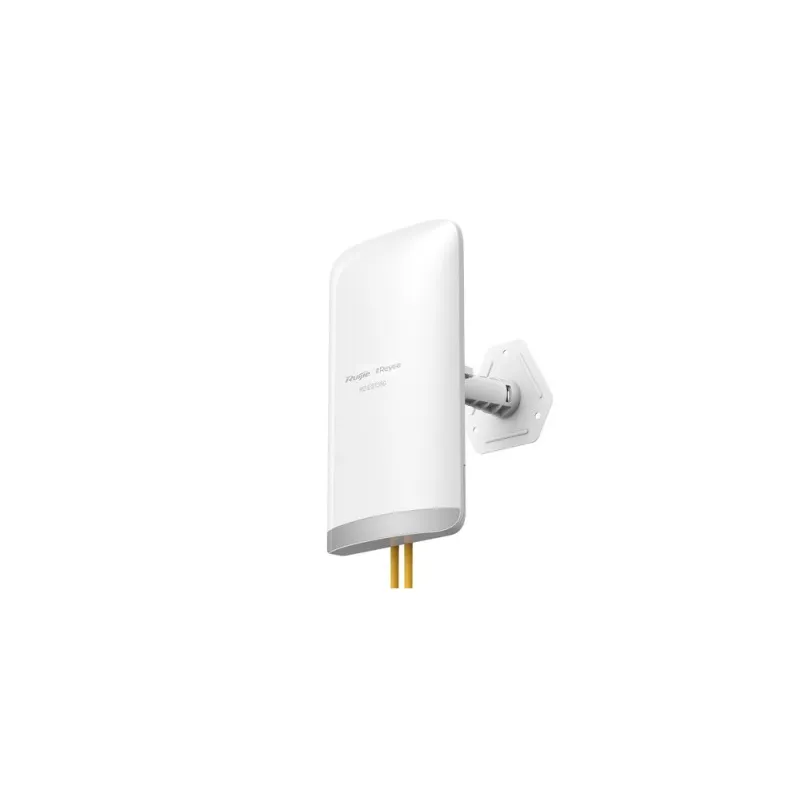

Installation | Wall-mounted/ Pole-mounted |
Weight | 0.5 kg |
Dimensions ( D x W x H ) | 230 mm × 132 mm × 48 mm |
Software Features | |
802.1Q VLAN | Support |
Multi-VLAN Transparent Transmission | Support |
ARP | 256 |
Max. Concurrent Connections | 8000 |
Ping | Support |
Traceroute | Support |
Management IP | 192.168.120.1 |
Wireless | |
SSID/SSID Hiding | |
Password | Open / WPA-PSK / WPA2-PSK / WPA/WPA2-PSK |
RSSI | -58 dBm@1KM |
Performance | 230 Mbps@1KM(HT40) |
One-Click Optimization | Support |
DFS | Support |
Management | |
Zero Provisioning on Cloud | QR-Code / Serial Number |
CWMP(TR069) Support | Support |
Point-to-Point | Support |
Point-to-Multipoint | Recommended 3 |
AP/CPE Switchover | Support |
Interface Configuration | Support |
Maintanance | |
Alarm | Support |
Diagnostics | Support |
Reboot | Support |
Cloud Features | |
Remote Access | Support |
Remote Reboot | Support |
Statistics Monitoring | Support |
Working mode | Normal / High performance / Anti-interference |
Remote SSH | Support |
Remote EWeb | Support |
Camera Reference | |
3Mbps Video Bit Rate | 50 Units/1KM |
4-5Mbps Video Bit Rate | 30 Units/1KM |
6Mbps Video Bit Rate | 20 Units/1KM |
Physical Features | |
LED indicator | LEDs indicate the bridging quality: |
Hardware Button | 1 reset button |
Power Supply | 12 VDC power supply or 24 VDC Passive PoE |
Power Consumption | 9W |
Environment | Operating temperature: -30°C to 65°C (-22°F ~ 149°F) |
MTBF | > 250,000H |
รับประกัน | 3 ปี |
แค่เชื่อมต่อ POE ก็สามารถใช้งานได้เลย ไม่ต้อง Config เพิ่มเติม
