Product Specification | |

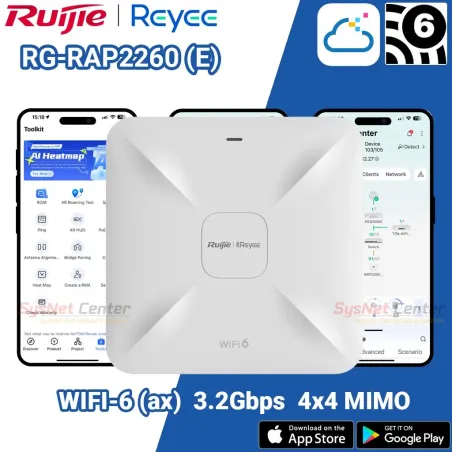

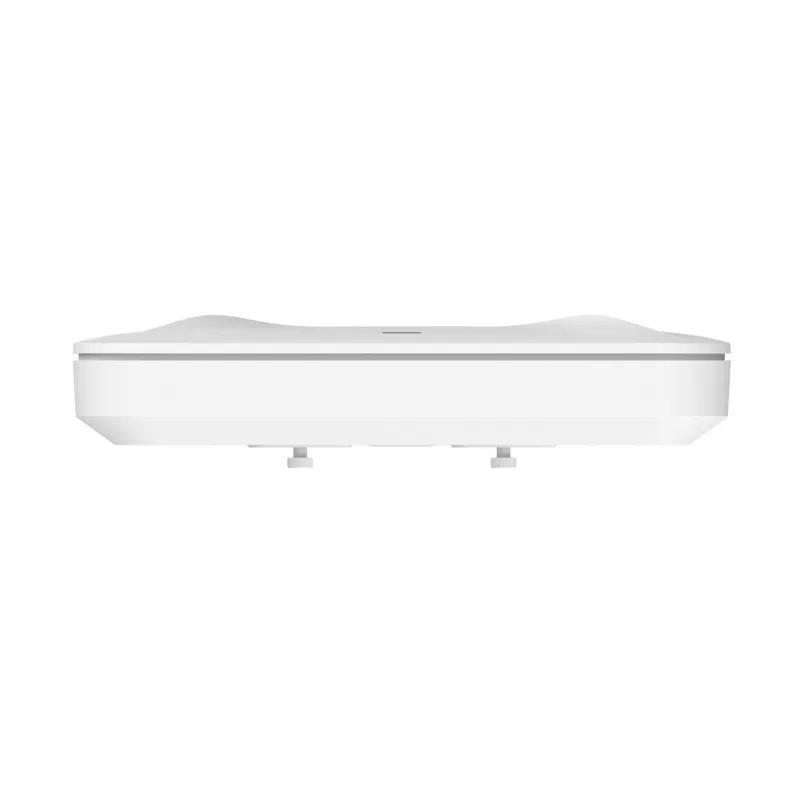

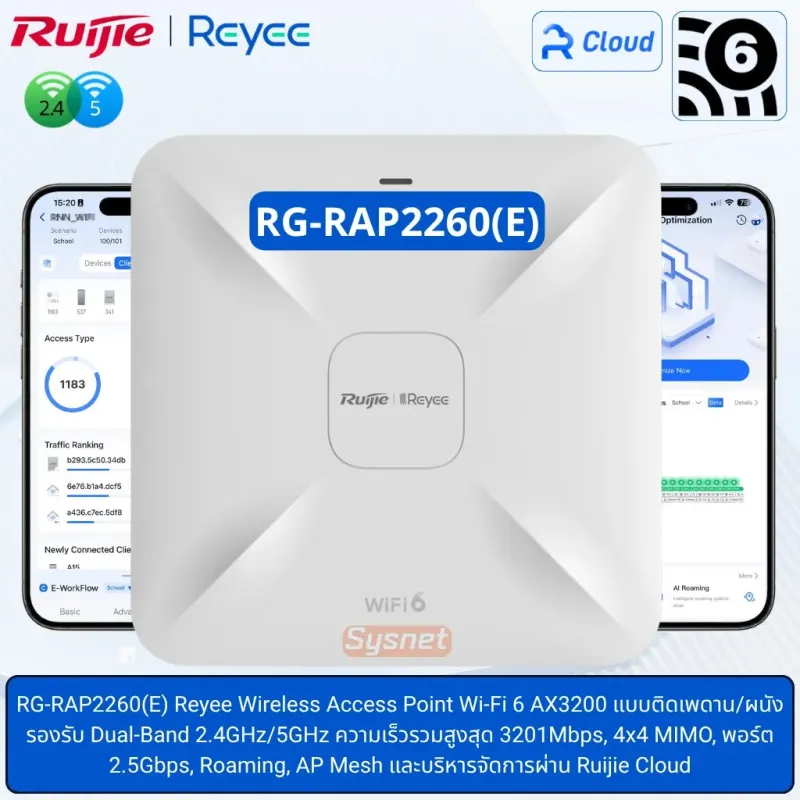

Overview | Reyee by Ruijie RG-RAP2260(E) AX3202 Wi-Fi 6 Dual Band Gigabit Access Point, มาตรฐาน WIFI-6 4x4 MIMO ความเร็วสูงสุด 3.202Gbps/AP, Port Lan ความเร็ว Multi-Gig 1/2.5Gbps Manage ผ่าน Ruijie Cloud License แบบ Lifetime |
Model | RG-RAP2260(E) |
Radio | Dual-stream dual-band |
Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
Operating Bands | 802.11b/g/n/ax : 2.4G - 2.4835GHz |
Antenna | Internal antennas (2.4G: 3dBi, 5G: 3dBi) |
Spatial Streams | 2.4G 4x4 MIMO |
Max Throughput | Up to 800Mbps at 2.4G |
Modulation | OFDM:BPSK@6/9Mbps, QPSK@12/18Mbps,16QAM@24Mbps, 64QAM@48/54Mbps DSSS:DBPSK@1Mbps, DQPSK@2Mbps and CCK@5.5/11Mbps MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA |
Receive Sensitivity | 11b : -96dBm (1Mbps) , -93dBm (5Mbps) , -89dBm (11Mbps) 11a/g : -91dBm (6Mbps) , -85dBm (24Mbps),-80dBm (36Mbps) , -74dBm (54Mbps) 11n : -90dBm (MCS0) , -70dBm (MCS7) , -89dBm (MCS8) , -68dBm (MCS15) 11ac : 20MHz : -88dBm (MCS0) , -63dBm (MCS9) 11ac : 40MHz : -85dBm (MCS0) , -60dBm (MCS9) 11ac : 80MHz : -85dBm (MCS0) , 60dBm (MCS9) 11ax : 80MHz : -82dBm (MCS0) , -57dBm (MCS9), -52dBm (MCS11) |
Maximum Transmit Power | 5.725 - 5.850GHz : ≤20dBm (EIRP) |
Adjustable Power | 1dBm |
Dimensions | 220mm×220mm×35mm (excluding mounting kits) |
Weight | 1.05 (excluding mounting kits) |

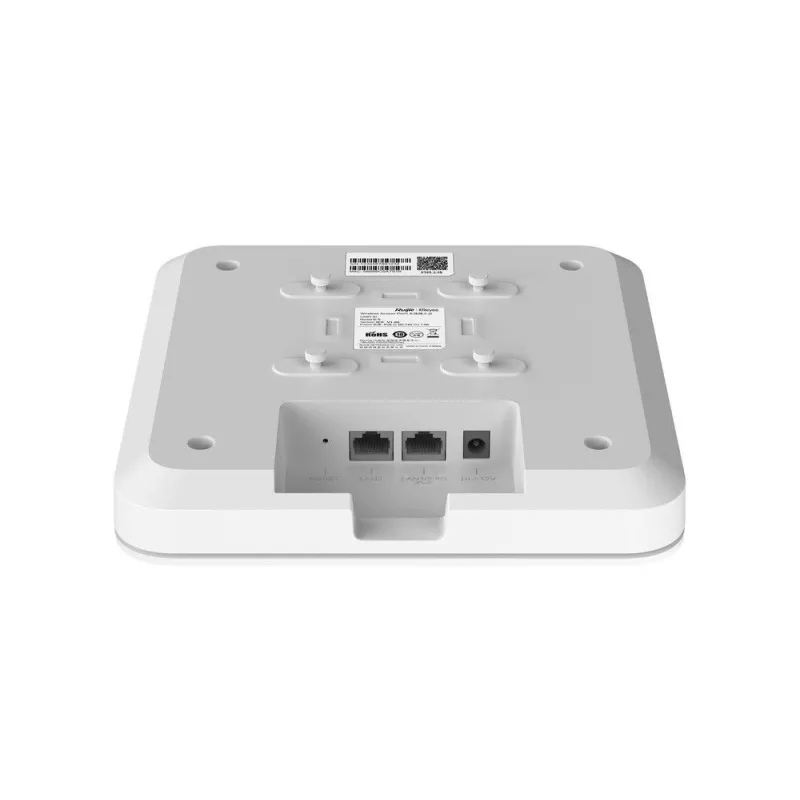

Service Ports | 1 10/100/1000M/2.5G Base-T Ethernet ports supports PoE; |
Management Port | NA |
LED Indicator | Single indicator (green light) |
Power Supply | Local power supply, DC 12V/2A (Note: The power adapter is sold as an optional accessory) POE และ DC Adapter ไม่มีในชุด |
Power Consumption | ≤ 25.4W |
Environment | Operating temperature: 0°C~40°C |
Installation | Ceiling/wall-mountable |
Safety Standard | GB4943, IEC 62368-1 |
EMC Standard | GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035 |
Vibration Standard | IEC61373 |
Radio Standard | EN300 328, EN301 893 |
MTBF | > 400000H |
Software Features |
|
Operating Mode | AP mode and routing mode |
WLAN | Maximum number of clients: 512 |
Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support PSK authentication |
Routing | Support static IP address, DHCP, PPPoE Dial Up |
Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
Platform management features | Automatic RF adjustment via the platform |
ประกัน | 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
Model | ||||||
สัญญาณครอบคลุม | 20 เมตร | 20 เมตร | 30 เมตร | 30 เมตร | 30 เมตร | 30 เมตร |
จำนวน Clients ที่แนะนำ | 40 | 80 | 48 | 80 | 100 | 100 |
มาตรฐาน WIFI | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11ac wave2 | 802.11ac wave2, wave1 | 802.11ax | 802.11ax |
ความเร็วสูงสุด (2.4GHz) | 400Mbps | 400Mbps | 400Mbps | 400Mbps | 574Mbps | 800Mbps |
ความเร็วสูงสุด (5GHz) | 867Mbps | 867Mbps | 867Mbps | 867Mbps | 1201Mbps | 2402Mbps |
กำลังส่งสูงสุด (2.4G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
กำลังส่งสูงสุด (5G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
จำนวน SSID | 8 | 8 | 8 | 8 | 8 | 8 |
Spatial Streams | 2.4G: 2x2 MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 4x4 MIMO |
Antenna | PCB antenna | PF antenna | Array antennas 2.4G: 2dBi | Array antennas | Internal antennas 2.4G: 3dBi | Internal antennas 2.4G: 3dBi |
Service Ports | Front: Rear: | Front: Rear: | 2 Port 10/100 Mbps PoE/LAN1 port supports PoE | 2 Port 10/100/1000 Mbps | 2 Port 10/100/1000 Mbps | 1 Port 10/100/1000M/2.5G supports PoE; 1 Port 10/100/1000Mbps |
SON Number | 150 | 150 | 150 | 300 | 300 | 300 |
Power Supply | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1at | PoE 803.1at |
Port Aggregation | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
VLAN | Support | Support | Support | Support | Support | Support |
Port Base VLAN | Support | Support | Not Support | Not Support | Not Support | Not Support |
DHCP Snooping | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
ARP Check | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
IP Source Guard | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
LLDP | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Static ARP Bind | Support | Support | Support | Support | Support | Support |
ARP Proxy | Support | Support | Support | Support | Support | Support |
Ping | Support | Support | Support | Support | Support | Support |
Traceroute | Support | Support | Support | Support | Support | Support |
NAT | Support | Support | Support | Support | Support | Support |
Static Route | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
DHCP Server | Support | Support | Support | Support | Support | Support |
Telnet | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
SSH | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
รองรับการจัดการผ่าน Ruijie Cloud | Support | Support | Support | Support | Support | Support |
รองรับการจัดการผ่าน Ruijie Cloud APP | Support | Support | Support | Support | Support | Support |
802.1x | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PPPoE | Support | Support | Support | Support | Support | Support |
Same SSID with differnet VLAN | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Same VLAN with differnet SSID | Support | Support | Support | Support | Support | Support |
L2 Roaming | Support | Support | Support | Support | Support | Support |
L3 Roaming | Support | Support | Support | Support | Support | Support |
Global whitelist/blacklist | Support | Support | Support | Support | Support | Support |
SSID-based whitelist/blacklist | Support | Support | Support | Support | Support | Support |
Wireless bridge | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PoE Out | Not Support | Support | Not Support | Not Support | Not Support | Not Support |
