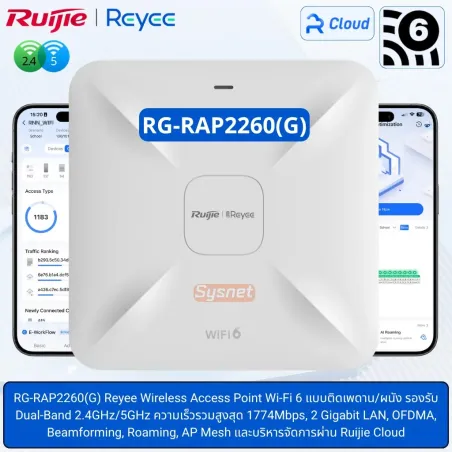

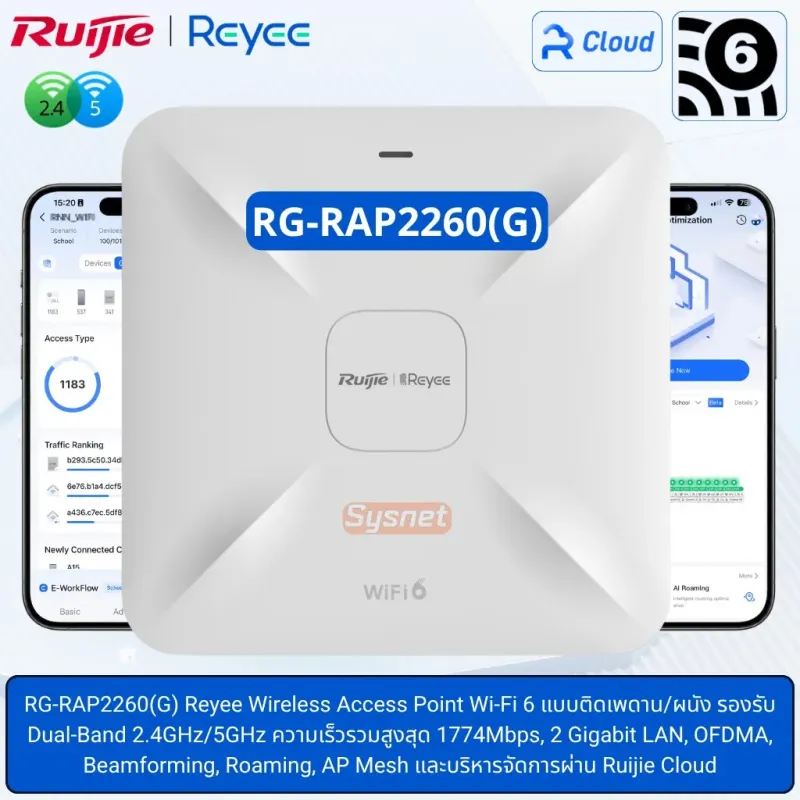

Reyee RG-RAP2260(G) Wireless Access Point WIFI-6 1,775Mbps 2x2 MIMO, 2 Port Lan Gigabit รองรับ POE, รองรับ L2/L3 Roaming, บริหารจัดการผ่าน Ruijie Cloud Controller/Standalone
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud ฟรี
แนะนำการเลือกใช้งาน Reyee Access-Point RAP Series
Reyee Series Implementation Cookbook V1.0
Ruijie Reyee RG-RAP and RG-EAP Series Access Points Web-based Configuration Guide
RG-RAP2260(G/E) Series Wi-Fi 6 Access Point Datasheet
RG-RAP2260(G) Hardware Installation Guide
คู่มือการใช้งาน Ruijie Cloud App V7 บน Smartphone Android/iOS
Product Specification | |
Model | RG-RAP2260(G) |
Radio | Dual-stream dual-band |
Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
Operating Bands | 802.11b/g/n/ax : 2.4G - 2.4835GHz |
Antenna | Internal antennas (2.4G: 3dBi, 5G: 3dBi) |
Spatial Streams | 2.4G 2x2 MIMO |
Max Throughput | Up to 574Mbps at 2.4G |
Modulation | OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps |
Receive Sensitivity | 11b : -96dBm (1Mbps) , -93dBm (5Mbps) , -89dBm (11Mbps) |
Maximum Transmit Power | 5.725 - 5.850GHz : ≤20dBm (EIRP) |
Adjustable Power | 1dBm |
Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
Weight | 0.56kg (excluding mounting kits) |

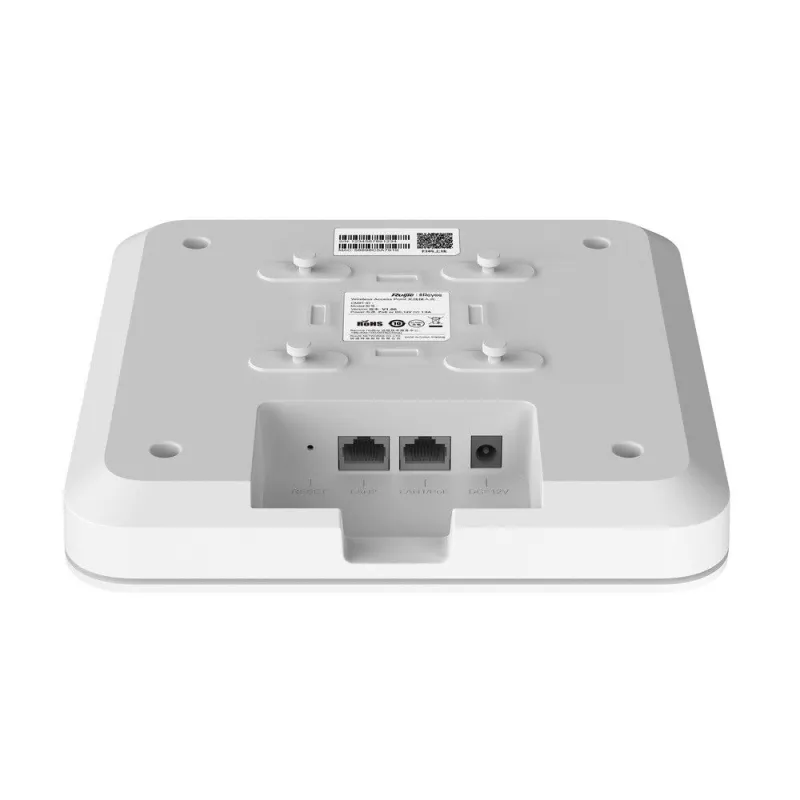

Service Ports | 2 Port 10/100/1000Base-T Ethernet ports PoE/LAN1 port supports PoE |
Management Port | NA |
LED Indicator | Single indicator (green light) |
Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) |
Power Consumption | ≤ 15.3W |
Environment | Operating temperature: 0°C～40°C |
Installation | Ceiling/wall-mountable |
Safety Standard | GB4943, IEC 62368-1 |
EMC Standard | GB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035 |
Vibration Standard | IEC61373 |
Radio Standard | EN300 328, EN301 893 |
MTBF | > 400000H |
Software Features | |
Operating Mode | AP mode and routing mode |
WLAN | Maximum number of clients: 512 |

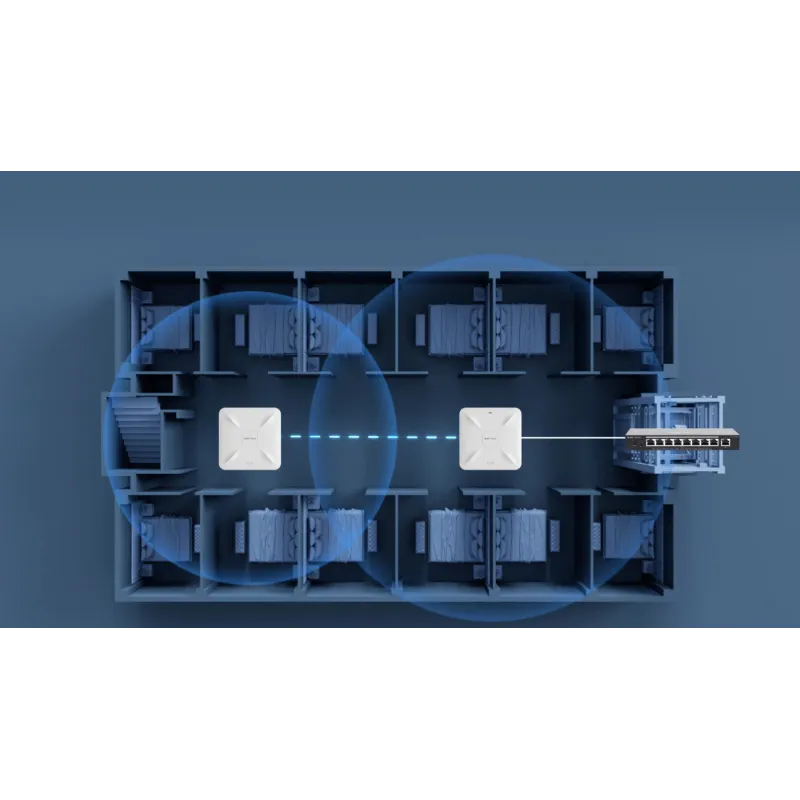

Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support PSK authentication |
Routing | Support static IP address, DHCP, PPPoE Dial Up |
Management and maintenance | Support unified networking of all network equipment |
Platform management features | Automatic RF adjustment via the platform |
ประกัน | ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
| Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
| Model | ||||||
| สัญญาณครอบคลุม | 20 เมตร | 20 เมตร | 30 เมตร | 30 เมตร | 30 เมตร | 30 เมตร |
| จำนวน Clients ที่แนะนำ | 40 | 80 | 48 | 80 | 100 | 100 |
| มาตรฐาน WIFI | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11ac wave2 | 802.11ac wave2, wave1 | 802.11ax | 802.11ax |
| ความเร็วสูงสุด (2.4GHz) | 400Mbps | 400Mbps | 400Mbps | 400Mbps | 574Mbps | 800Mbps |
| ความเร็วสูงสุด (5GHz) | 867Mbps | 867Mbps | 867Mbps | 867Mbps | 1201Mbps | 2402Mbps |
| กำลังส่งสูงสุด (2.4G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
| กำลังส่งสูงสุด (5G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
| จำนวน SSID | 8 | 8 | 8 | 8 | 8 | 8 |
Spatial Streams | 2.4G: 2x2 MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 4x4 MIMO |
| Antenna | PCB antenna | PF antenna | Array antennas 2.4G: 2dBi | Array antennas | Internal antennas 2.4G: 3dBi | Internal antennas 2.4G: 3dBi |
Service Ports | Front: Rear: | Front： Rear： | 2 Port 10/100 Mbps PoE/LAN1 port supports PoE | 2 Port 10/100/1000 Mbps | 2 Port 10/100/1000 Mbps | 1 Port 10/100/1000M/2.5G supports PoE; 1 Port 10/100/1000Mbps |
| SON Number | 150 | 150 | 150 | 300 | 300 | 300 |
| Power Supply | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1at | PoE 803.1at |
| Port Aggregation | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| VLAN | Support | Support | Support | Support | Support | Support |
| Port Base VLAN | Support | Support | Not Support | Not Support | Not Support | Not Support |
| DHCP Snooping | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| ARP Check | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| IP Source Guard | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| LLDP | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| Static ARP Bind | Support | Support | Support | Support | Support | Support |
| ARP Proxy | Support | Support | Support | Support | Support | Support |
| Ping | Support | Support | Support | Support | Support | Support |
| Traceroute | Support | Support | Support | Support | Support | Support |
| NAT | Support | Support | Support | Support | Support | Support |
| Static Route | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| DHCP Server | Support | Support | Support | Support | Support | Support |
| Telnet | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| SSH | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| รองรับการจัดการผ่าน Ruijie Cloud | Support | Support | Support | Support | Support | Support |
| รองรับการจัดการผ่าน Ruijie Cloud APP | Support | Support | Support | Support | Support | Support |
| 802.1x | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| PPPoE | Support | Support | Support | Support | Support | Support |
| Same SSID with differnet VLAN | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| Same VLAN with differnet SSID | Support | Support | Support | Support | Support | Support |
| L2 Roaming | Support | Support | Support | Support | Support | Support |
| L3 Roaming | Support | Support | Support | Support | Support | Support |
| Global whitelist/blacklist | Support | Support | Support | Support | Support | Support |
| SSID-based whitelist/blacklist | Support | Support | Support | Support | Support | Support |
| Wireless bridge | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
| PoE Out | Not Support | Support | Not Support | Not Support | Not Support | Not Support |
