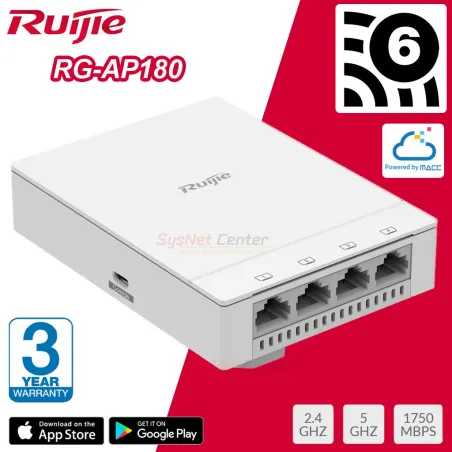

RG-AP180 Ruijie Wall Access Point AX Wi-Fi 6, 1.774Gbps, 5 Port Gigabit, Cloud Control

Product Specification

Overview

Ruijie RG-AP180 Wall-Plate Wireless AP AX Wi-Fi 6 ความเร็วสูงสุด [email protected] และ 1.2Gbps@5GHz, 4 Port Switch Lan Gigabit, 1 Port Uplink Gigabit

รองรับ POE มาตรฐาน 802.3at

รองรับการทำ Authenticate แบบ Captive Portal, Social Login

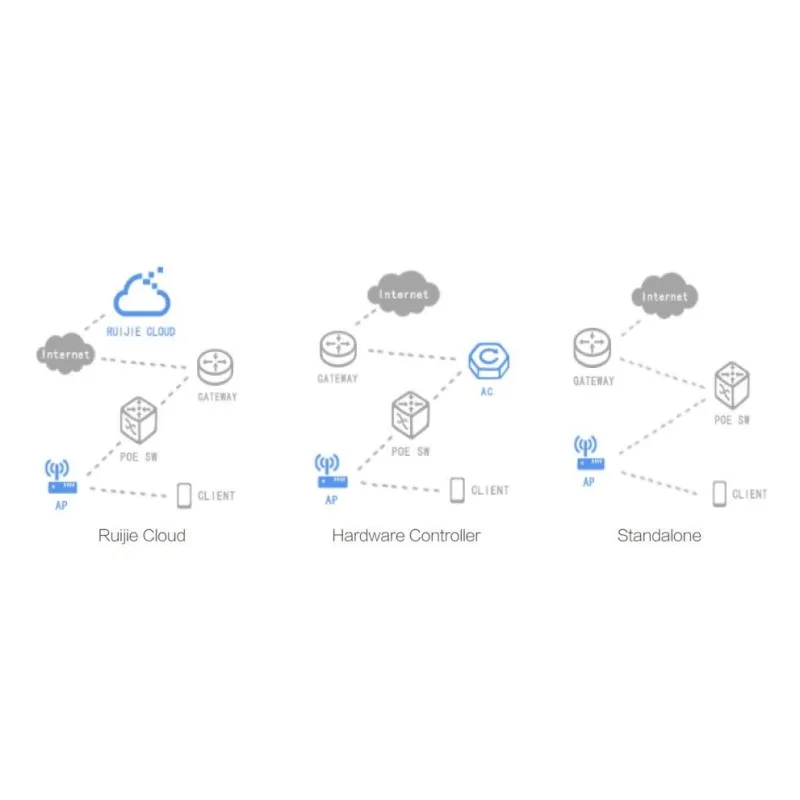

Manage และ Monitor ผ่าน Cloud, Standalone และ Hardware Control

พร้อม Ruijie Cloud License แบบ Lifetime

Type

Wall-mounting

Radio

Dual-band dual-radio

Protocol

Support concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax

Operating Bands

2.4GHz and 5GHz

Antenna

Built-in omnidirectional antenna
2x2 MU-MIMO

Max Throughput

1,167Mbps

Spatial Streams

4 spatial streams, 2x2 MIMO

Modulation

11b：DSS: [email protected]/11Mbps,
DQPSK@2Mbps,  DBPSK@1Mbps

11a/g：OFDM: 64QAM@48/54Mbps,
16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps

11n：MIMO-OFDM: BPSK,
QPSK,16QAM,64QAM

11ac：MIMO-OFDM: BPSK,QPSK, 16QAM, 64QAM,256QAM

11ax: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM, 256QAM,1024QAM

Maximum Transmit Power

≤100mw（20dBm, radio transmit power only )

IP Rating

IP41

Ports

Front：
4 10/100/1000Mbps Ethernet ports
Rear：
1 10/100/1000Mbps uplink port

Management Port

1 Micro USB port (hidden)

11ax Feature

Support 802.11ax
Support MU-MIMO

Reset

Support (hidden)

Built-in Antenna

Built-in low-radiation omnidirectional antenna (antenna gain 3.5dBi)

IoT Protocol

Support Bluetooth5.0（BLE）, Zigbee

Power Consumption

＜10W

IP Rating

IP41

Anti-theft

Standard: ordinary screws

Color of AP Enclosure

White

Environment

Operating temperature：0°C～45°C
Storage temperature：-40°C～70°C
Operating humidity：5％～95％non-condensing
Storage humidity：5％～95％ non-condensing

MTBF

>250000H

Installation Mode

Compatible with UK/US/EU
Junction box
*Universal Mount Kit need to purchase separately for US/EU junction box

WLAN Feature

BSSID capacity

8（recommended to configure a maximum of 5 BSSIDs per radio in actual application）

Maximum clients per AP

1024

SSID hiding

Support

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

Support

Remote Intelligent Perception Technology (RIPT)

Support

Intelligent load balancing based on the number of users or traffic

Support

STA control

SSID/radio-based

Bandwidth control

STA/SSID/AP-based speed control

Security

PSK, Web, 802.1x authentication

Support

Data encryption

WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

QR code authentication

Support

SMS authentication

Support

PEAP authentication

Support

Data frame filtering

Whitelist, static/dynamic blacklist

User isolation

Support

Rogue AP detection and countermeasure

Support

Dynamic ACL assignment

Support

RADIUS

Support

CPU Protection Policy (CPP)

Support

Network Foundation Protection Policy (NFPP)

Support

Wireless Intrusion Detection System(WIDS)

Support

Wireless Intrusion Prevention System (WIPS)

Support

Routing

IPv4 address

Static IP address or DHCP

IPv6 address

Support

Multicast-IGMP Snooping

Support

Management and Maintenance

Supported wireless LAN controllers

Ruijie WS Series Wireless Controller

Ruijie MACC-Base Software Controller

Ruijie Cloud (Public Cloud)

Management protocol

Telnet, SSH, TFTP, Web

Wireless Intelligent AI Optimization Service (WIS)

Support

SNMP

SNMPV1,V2c,V3

Syslog / Debug

Support

FAT/FIT/MACC mode switching

Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management

ประกัน

3 ปี
