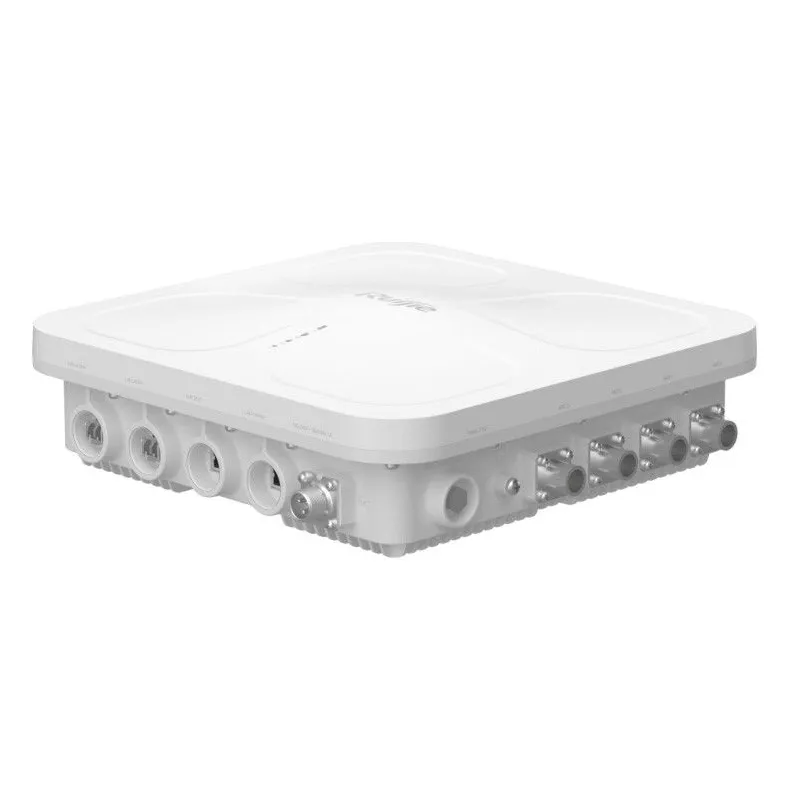

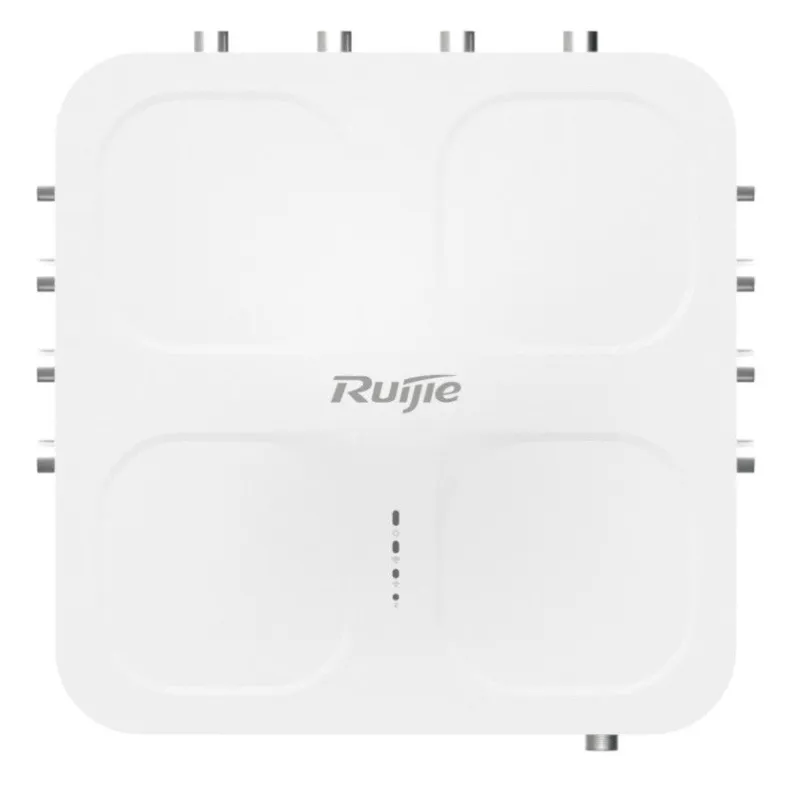

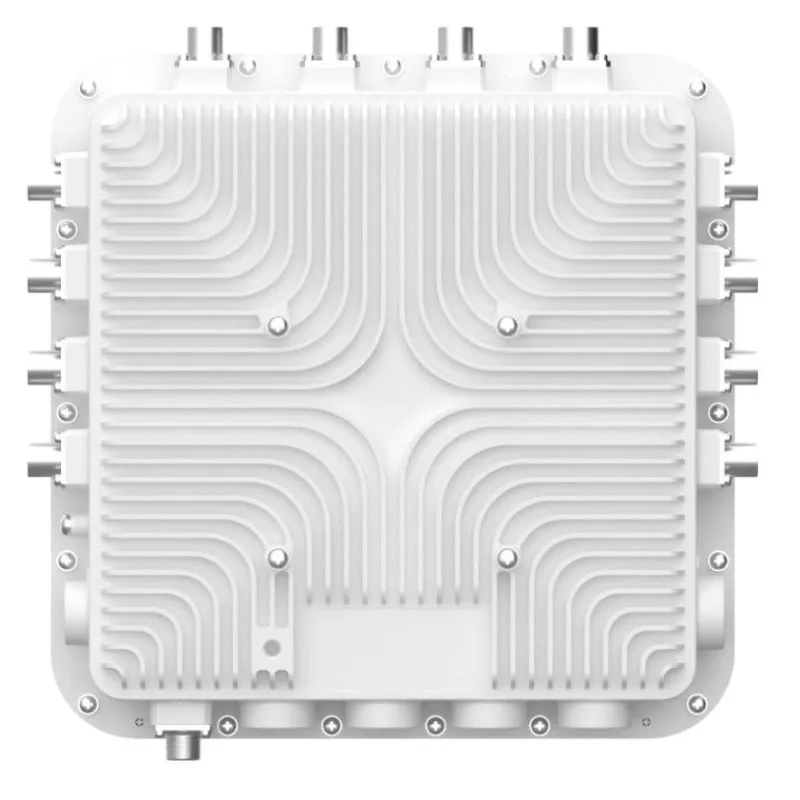

Ruijie RG-AP680-AR Industrial-Grade Access Point แบบ Outdoor สำหรับติดตั้งภายนอกอาคาร มาตรฐาน WIFI6 ความเร็ว 11.622Gbps, Port Lan 5Gbps, Port SFP+ 10Gbps, เสาอากาศกระจายสัญญาณรอบทิศทาง
ทนอุณหถูมิสูงถึง 70 องศา
กันน้ำกันฝุ่นมาตรฐาน IP68
รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Controll
พร้อม Ruijie Cloud License แบบ Lifetime
|
|
Hardware Specifications
|
RG-AP680-AR
|
|
802.11n
|
14 spatial streams
Radio 1 – 2.4 GHz: 4x4 MIMO, four spatial streams
Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams
Radio 3 – 5 GHz: 4x4 MIMO, four spatial streams
Radio 4 – 2.4 GHz/5 GHz: 2x2 MIMO, two spatial streams
Channels:
Radio 1 – 2.4 GHz: 20 MHz and 40 MHz
Radio 2 – 5 GHz: 20 MHz and 40 MHz
Radio 3 – 5 GHz: 20 MHz and 40 MHz
Radio 4 –2.4 GHz/5 GHz: 20 MHz and 40 MHz
Combined peak data rate: 2.1 Gbps
Radio 1 – 2.4 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31)
Radio 2 – 5 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31)
Radio 3 – 5 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31)
Radio 4 –2.4 GHz/5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM
Packet aggregation:
Aggregate MAC Protocol Data Unit (A-MPDU)
Aggregate MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS)
Cyclic Delay/Shift Diversity (CDD/CSD)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low-Density Parity Check (LDPC)
Transmit beam-forming (TxBF)
|
|
802.11ac
|
10 spatial streams
Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams
Radio 3 – 5 GHz: 4x4 MIMO, four spatial streams
Radio 4 – 5 GHz: 2x2 MIMO, two spatial streams
Channels:
Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
Radio 4 –5 GHz: 20 MHz, 40 MHz, and 80 MHz
Combined peak data rate: 7.795 Gbps
Radio 2 – 5 GHz: 6.5 Mbps to 3.464 Gbps (MCS0 to MCS9)
Radio 3 – 5 GHz: 6.5 Mbps to 3.464 Gbps (MCS0 to MCS9)
Radio 4 – 5 GHz: 6.5 Mbps to 0.867 Gbps (MCS0 to MCS9)
Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Packet aggregation:
Aggregate MAC Protocol Data Unit (A-MPDU)
Aggregate MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS)
Cyclic Delay/Shift Diversity (CDD/CSD)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low-Density Parity Check (LDPC)
Transmit beam-forming (TxBF)
|
|
802.11ax
|
12 spatial streams
Radio 1 – 2.4 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams
Radio 2 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams
Radio 3 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams
Channels:
Radio 1 – 2.4 GHz: 20 MHz and 40 MHz
Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz
Combined peak data rate: 10.755 Gbps
Radio 1 – 2.4 GHz: 8.6 Mbps to 1.147 Gbps (MCS0 to MCS11)
Radio 2 – 5 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11)
Radio 3 – 5 GHz: 8.6 Mbps to 4.804 Gbps (MCS0 to MCS11)
Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA)
Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Packet aggregation:
Aggregate MAC Protocol Data Unit (A-MPDU)
Aggregate MAC Service Data Unit (A-MSDU)
Dynamic Frequency Selection (DFS)
Cyclic Delay/Shift Diversity (CDD/CSD)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low-Density Parity Check (LDPC)
Transmit beam-forming (TxBF)
WPA3
|
|
Antenna
|
Wi-Fi
2.4 GHz: four built-in omnidirectional antennas, the max. antenna gain is 6 dBi.
5 GHz: eight built-in omnidirectional antennas, the max. antenna gain is 8 dBi.
Bluetooth
One integrated vertically polarized omnidirectional antenna, the max. antenna gain is 4 dBi.
|
|

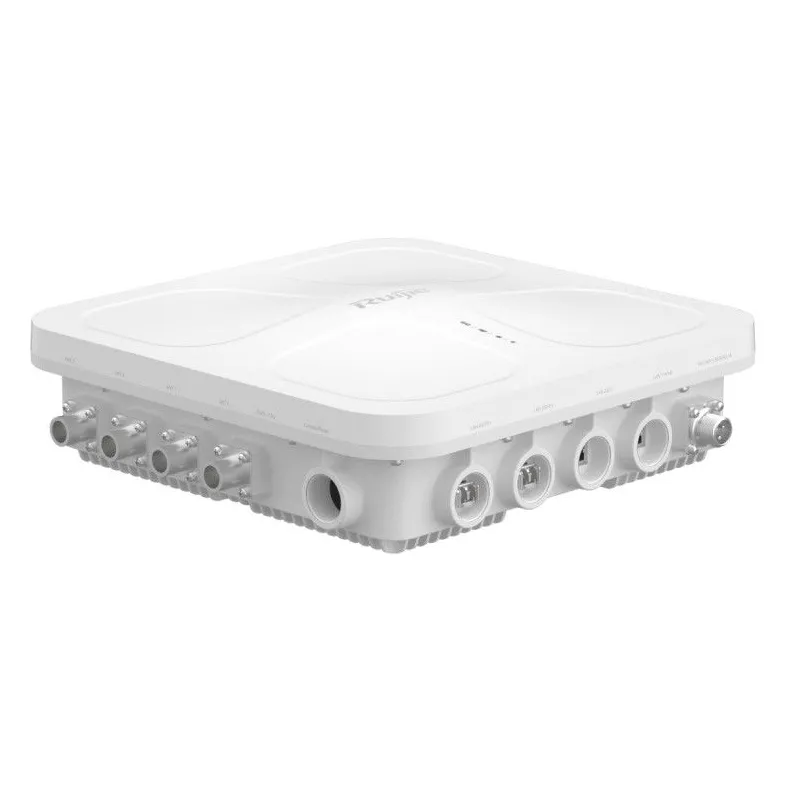

Port
|

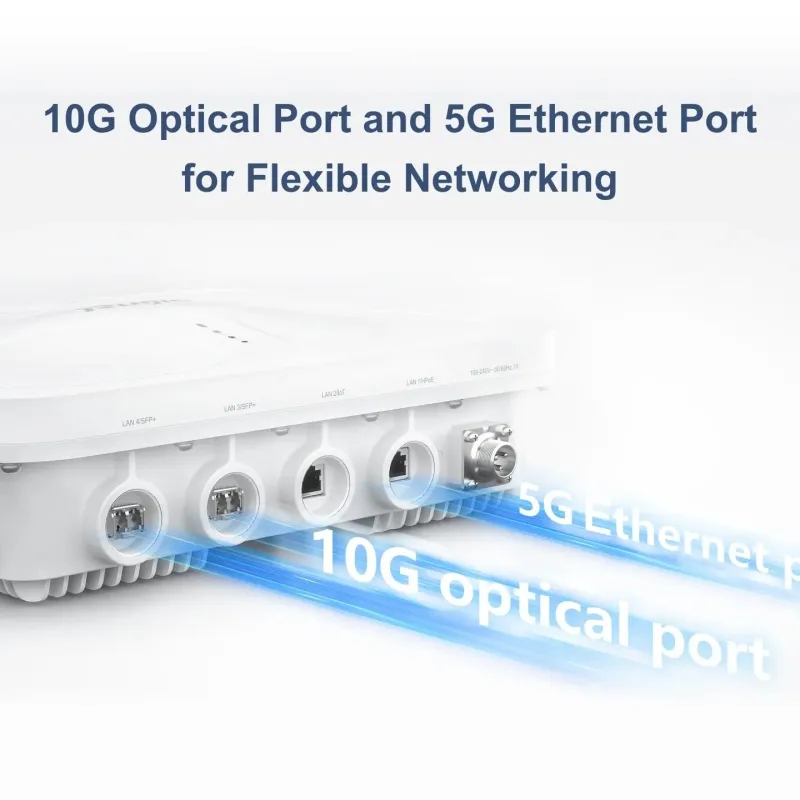

1 x 100/1000/2500/5000Base-T RJ45 Ethernet port with auto-negotiation
1 x 100/1000Base-T RJ45 Ethernet port with auto-negotiation
2 x 10GE optical ports
1 x RJ45 console port (serial console port)
1 x Bluetooth 5.1
|
|
Status LED
|
1 x multi-color system status LED
AP power-on status
Software initialization status and upgrade status
Uplink service interface status
Wireless user online status
CAPWAP tunnel timeout
Specific AP locating
Three single-color signal strength LEDs:
Whether bridging is enabled
Whether bridging is successful
Wireless signal strength after successful bridging
|
|
Button
|
1 x Reset button
Press the button for shorter than 2 seconds. Then the device restarts.
Press the button for longer than 5 seconds. Then the device restores to factory settings.
|
|
Dimensions (W x D x H)
|
Main unit: 300 mm x 300 mm x 94 mm (11.81 in. x 11.81 in. x 3.70 in.)
Shipping: 470 mm x 410 mm x 170 mm (18.50 in. x 16.14 in. x 6.69 in.)
|
|
Weight
|
Main unit: 4.3 kg (9.48 lbs)
Mounting bracket: 1.2 kg (2.65 lbs)
Shipping: 7.18 kg (15.83 lbs)
|
|
Mounting
|
Wall or pole-mounting (a mounting bracket is delivered with the main unit)
|
|
Input power supply
|
The AP supports the following two power supply modes:
100–240 V AC power supply: The device is equipped with the RG-PL-M16-3M cable, and 1 A current must be guaranteed. The AC power supply needs to be purchased separately.
PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).
Note: If both AC power and PoE are available, AC power is preferred.
|
|
Power consumption
|
Maximum power consumption: 50 W
AC power: 50 W, 2.4 GHz radio 4x4, 5 GHz radio 4x4, LAN 2 for PoE supply
802.3bt (PoE++) : 50 W, 2.4 GHz radio 4x4, 5 GHz radio 4x4, LAN 2 for PoE supply
802.3at (PoE+) : 25 W, 2.4 GHz radio 4x4, 5 GHz radio 4x4, and Radio 3 and AI Radio disabled (LAN 2 fails to provide power for external devices )
802.3af (PoE) : 12.95 W (all radios do not work, and LAN 2 fails to provide power for external devices)
Idle mode: 10 W
|
|
Environment
|
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Storage humidity: 5% RH to 95% RH (non-condensing)
Storage altitude: < 5,000 m (16,404.20 ft.) at 25°C (77°F)
Operating temperature: –40°C to +70°C (–40°F to +158°F)
Operating humidity: 5% RH to 95% RH (non-condensing)
Operating altitude: < 5,000 m (16,404.20 ft.) at 60°C (140°F)
At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 166 m (546 ft.), the maximum temperature decreases by 1°C (1.8°F).
|
|
IP Rating
|
IP68
|
|
Mean Time Between Failure (MTBF)
|
200,000 hours (22 years) at the operating temperature of 25°C (77°F)
|
|
System memory
|
2 GB DRAM, 256 MB flash
|
|
Transmit power
|
2.4 GHz
Max. transmit power: 29 dBm (794.33 mW)
Minimum transmit power: 9 dBm (7.94 mW)
5 GHz
Max. transmit power: 27 dBm (501.19 mW)
Minimum transmit power: 7 dBm (5.01 mW)
Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements.
|
|
Basic Function
|
RG-AP680-AR
|
|
Applicable software version
|
RGOS11.9(6)W1B5 or higher
|
|
WLAN
|
|
|
Max. number of associated STAs
|
1,536 (up to 512 STAs per radio)
|
|
Max. number of BSSIDs
|
48 (up to 16 BSSIDs per radio)
|
|
Max. number of WLAN IDs
|
16
|
|
STA management
|
SSID hiding
Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.
Remote Intelligent Perception Technology (RIPT)
Intelligent STA identification
Intelligent load balancing based on the STA quantity or traffic
|
|
STA limiting
|
SSID-based STA limiting
Radio-based STA limiting
|
|
Bandwidth limiting
|
STA/SSID/AP-based rate limiting
|
|
CAPWAP
|
IPv4/IPv6 CAPWAP
Layer 2 and Layer 3 topology between an AP and an AC
An AP can automatically discover the accessible AC.
An AP can be automatically upgraded through the AC.
An AP can automatically download the configuration file from the AC.
CAPWAP through NAT
|
|
Data forwarding
|
Centralized and local forwarding
|
|
Wireless roaming
|
Layer 2 and Layer 3 roaming
|
|
Wireless locating
|
MU and TAG device locating
|
|
Security and Authentication
|
|
|
Authentication and encryption
|
Remote Authentication Dial-In User Service (RADIUS)
PSK and web authentication
QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication
Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES) , WPA3-Enterprise, WPA3-Individual
|
|
Data frame filtering
|
Allowlist, static blocklist, and dynamic blocklist
|
|
WIDS
|
Wireless Intrusion Detection System(WIDS)
User isolation
Rogue AP detection and containment
|
|
ACL
|
IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL
Time range-based ACL
ACL based on a Layer 2 interface
ACL based on a Layer 3 interface
Ingress ACL based on a wireless interface
Dynamic ACL assignment based on 802.1X authentication (used with the AC)
|
|
CPP
|
CPU Protect Policy (CPP)
|
|
NFPP
|
Network Foundation Protection Policy (NFPP)
|
|
Routing and Switching
|
|
|
MAC
|
Static and filtered MAC addresses
MAC address table size: 2,048
Max. number of static MAC addresses: 2,048
Max. number of filtered MAC addresses: 2,048
|
|
Ethernet
|
Jumbo frame length: 1,518
Full-duplex and half-duplex modes of interfaces
IEEE802.1p and IEEE802.1Q
Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP)
|
|
VLAN
|
Interface-based VLAN assignment
Max. number of SVIs: 187
Max. number of VLANs: 4,094
VLAN ID range: 1–4,094
|
|
ARP
|
ARP entry aging, gratuitous ARP learning, and proxy ARP
Max. number of ARP entries: 2,048
ARP check
|
|
IPv4 services
|
Static and DHCP-assigned IPv4 addresses
NAT, FTP ALG and DNS ALG
|
|
IPv6 services
|
IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, IPv6 ping
IPv6 DHCP client
|
|
IP routing
|
IPv4/IPv6 static route
Max. number of static IPv4 routes: 1,024
Max. number of static IPv6 routes: 1,000
|
|
Multicast
|
Multicast-to-unicast conversion
|
|
VPN
|
PPPoE client
IPsec VPN
|
|
Network Management and Monitoring
|
|
|
Network management
|
NTP server and NTP client
SNTP client
SNMPv1/v2c/v3
Fault detection and alarm
Information statistics and logging
|
|
Network management platform
|
Web management (Eweb)
|
|
User access management
|
Telnet, SSH, FTP client, FTP server, and TFTP client
|
|
Switchover among Fat, Fit, and cloud modes
|
When the AP works in Fit mode, it can be switched to Fat mode through an AC.
When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.
When the AP works in cloud mode, it can be managed through Ruijie Cloud.
|
|
ประกัน
|
3 ปี
|
