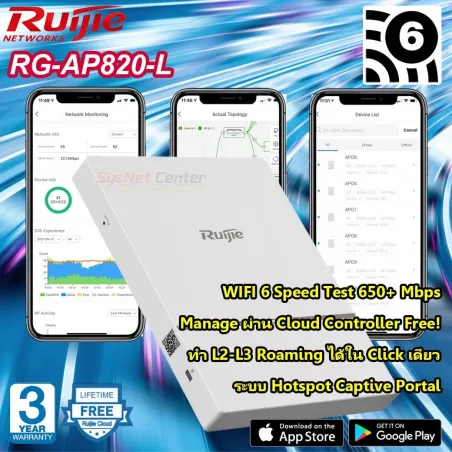

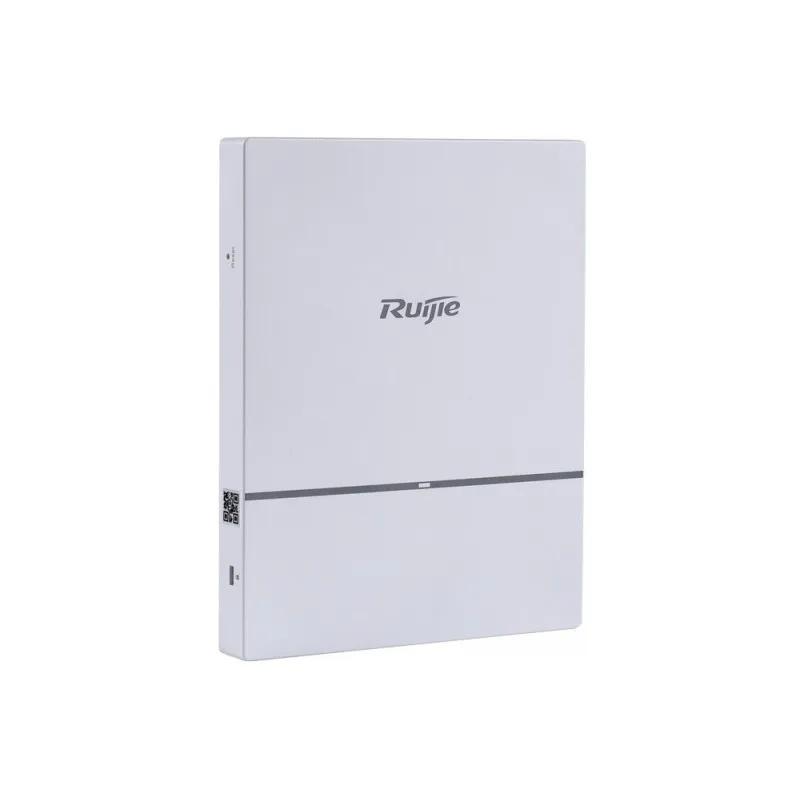

    Ruijie RG-AP820-L(V2) Wireless Access Point ax 2x2 MIMO, 1.775Gbps Cloud Control

    Ruijie Networks

    Ruijie RG-AP820-L (V2) Wireless Access Point WIFI6 มาตรฐาน ax, 2x2 MU-MIMO, 1.775Gbps, Port Lan Gigabit, Managed ผ่าน Ruijie Cloud Control, รองรับ Captive Portal

    ฿0.00
    ยังไม่ได้รวมภาษี
    จำนวน


    ทักทาง Line@ สอบถามราคาลดพิเศษได้เลยครับ


    Line: @sysnet
    Click โทรสอบถามข้อมูลเพิ่มเติม

    รายละเอียด

    Review ระบบ Controller Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

    Free! โปรแกรมออกคูปอง Voucher ใช้งาน Internet ทั้ง Windows และ Android

    Ruijie RG-AP820-L (V2) Wireless Access Point Datasheet
    Ruijie RG-AP820-L (V2) Access Points Hardware Installation Reference Guide

    Ruijie RG-WLAN Access Points RGOS Configuration Guide


    Test Speed ได้สูงถึง 700+Mbps



    Product Specification

    Overview

    Ruijie RG-AP820-L (V2) Wireless Access Point WIFI 6 มาตรฐาน ax, 2×2:2 MU-MIMO OFDMA สำหรับ 5GHz, 2x2:2 สำหรับ 2.4GHz ความเร็วสูงสุด 1.775Gbps, Port Gigabit, รองรับการ Managed & Monitor l แบบ Standalone, Cloud Controller, Hardware Controller

    รองรับการทำ Authenticate แบบ Captive Portal, PPSK

    พร้อม Ruijie Cloud License แบบ Free Lifetime

    Radio

    Dual-radio dual-band:

    Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO
    Radio 2: 5G 11ax: 2x2 MIMO

    Protocol

    Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac

    Operating Bands

    802.11b/g/n :2.4G - 2.483GHz
    802.11a/n/ac/ax : 5.150 - 5.350GHz,5.47-5.725GHz,5.725-5.850GHz (vary depending on different countries)

    Spatial Streams

    Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz

    Max Throughput

    Maximum throughput (5G+5G mode) per AP: 2.4Gbps

    Radio1:5G low band 1.2Gbps
    Radio2:5G high band 1.2Gbps

    2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps

    Radio1:2.4G 0.574Gbps
    Radio2:5G 1.2Gbps

    Modulation

    OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps

    DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps

    MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM

    OFDMA (up to 1024-QAM)

    Receiver Sensitivity

    11b:-96dBm (1Mbps) -93dBm (5Mbps)  -89dBm (11Mbps)

    11a/g: -91dBm (6Mbps) -85dBm (24Mbps) -80dBm (36Mbps) -74dBm (54Mbps)

    11n: -90dBm (MCS0) -70dBm (MCS7) -89dBm (MCS8),-68dBm (MCS15)

    11ac HT20: -88dBm (MCS0), -63dBm (MCS9)

    11ac HT40: -85dBm (MCS0), -60dBm (MCS9)

    11ac HT80: -82dBm (MCS0) , -57dBm (MCS9)

    11ax HT80: -82dBm (MCS0), -57dBm (MCS9) , -52dBm (MCS11)

    11ax HT160: -80dBm (MCS0), -49dBm (MCS11)

    Antenna

    Integrated antenna design

    Antenna Gain

    2.4G: 3dBi
    5G: 3dBi

    Service Ports

    1 10/100/1000M Ethernet ports, PoE In

    Management Port

    1 console port

    Reset Button

    Support

    Anti-theft Lock

    Support

    LED Indicator

    1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)

    Transmit Power

    ≤100mw (20dBm) (vary depending on different countries)

    Adjustable Power

    1dBm

    Power Supply

    Local power supply  (DC 48V/1A) (Power adapters are sold separately)

    PoE 802.3af/at (Not Include)

    Power Consumption

    <12.95W

    Physical Specifications

    Temperature

    Operating Temperature: -10°C to 50°C

    Storage Temperature: -40°C to 70°C

    Humidity

    Operating Humidity: 5% to 95% (non-condensing)

    Storage Humidity: 5% to 95% (non-condensing)

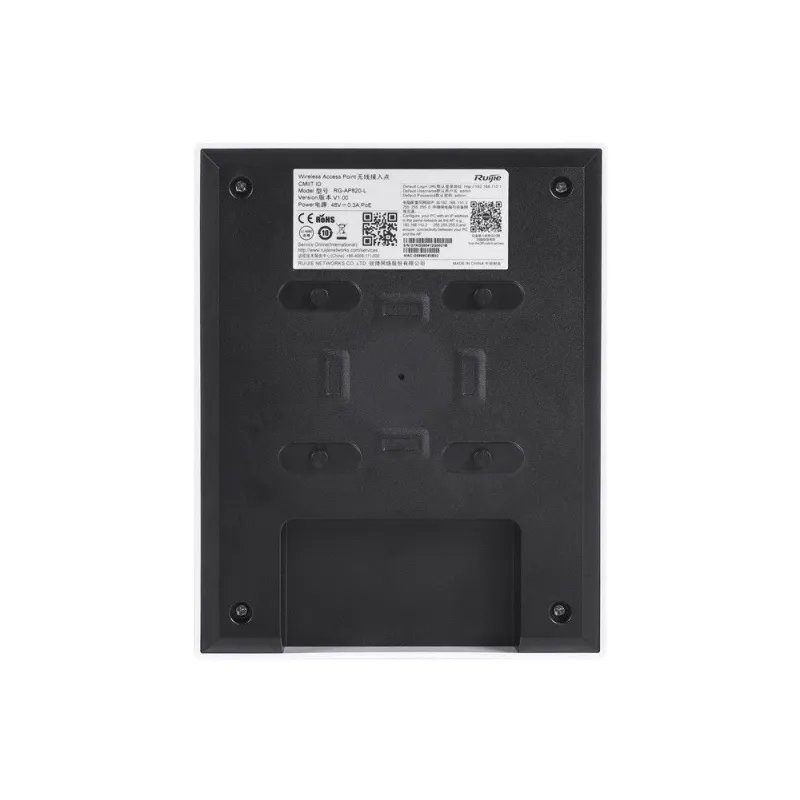

    Installation Mode

    Ceiling/wall-mountable

    Dimensions (W x D x H)

    153mm ×193mm x26mm
    (Height of the AP only, excluding the mount kit)

    Weight

    ≤0.5kg (include mount kit)

    IP Rating

    IP41

    Certifications and Compliance

    Safety Standard

    GB4943, EN/IEC 60950-1

    EMC Standard

    GB9254, EN301 489

    Radio Standard

    SRRC, EN300 328, EN301 893

    Maximum clients per AP

    1024

    BSSID capacity

    Up to 32

    SSID hiding

    Support

    5G Priority (Band Steering)

    Support

    Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID

    Support

    Remote Intelligent Perception Technology (RIPT)

    Support

    Intelligent device recognition technology

    Support

    Intelligent load balancing based on the number of users or traffic

    Support

    STA control

    SSID/radio-based

    Bandwidth control

    STA/SSID/AP-based bandwidth control

    Data encryption

    WPA (TKIP) , WPA-PSK, WPA2 (AES), WPA3, WEP (64/128 bits)

    PSK and web authentication

    Support

    PPSK authentication (For Employee)

    Support (require wireless controller)

    802.1x authentication

    Support

    PEAP authentication

    Support

    Data frame filtering

    Whitelist, static/dynamic blacklist

    User isolation

    Support

    Rogue AP detection and countermeasure

    Support

    Dynamic ACL assignment

    Support

    RADIUS

    Support

    CPU Protection Policy (CPP)

    Support

    Network Foundation Protection Policy (NFPP)

    Support

    IPv4 and IPv6 address

    Support

    Multicast routing

    Multicast to unicast conversion

    DHCP service

    DHCP Snooping, Option 82, Server, Client

    Supported wireless LAN controllers

    Ruijie WS Series Wireless Controller
    Ruijie MACC-Base Software Controller
    Ruijie Cloud (Public Cloud)

    Management protocol

    Telnet, SSH, TFTP, Web

    Wireless Intelligent AI Optimization Service (WIS)

    Support

    SNMP

    SNMPV1,V2c,V3

    Syslog / Debug

    Support

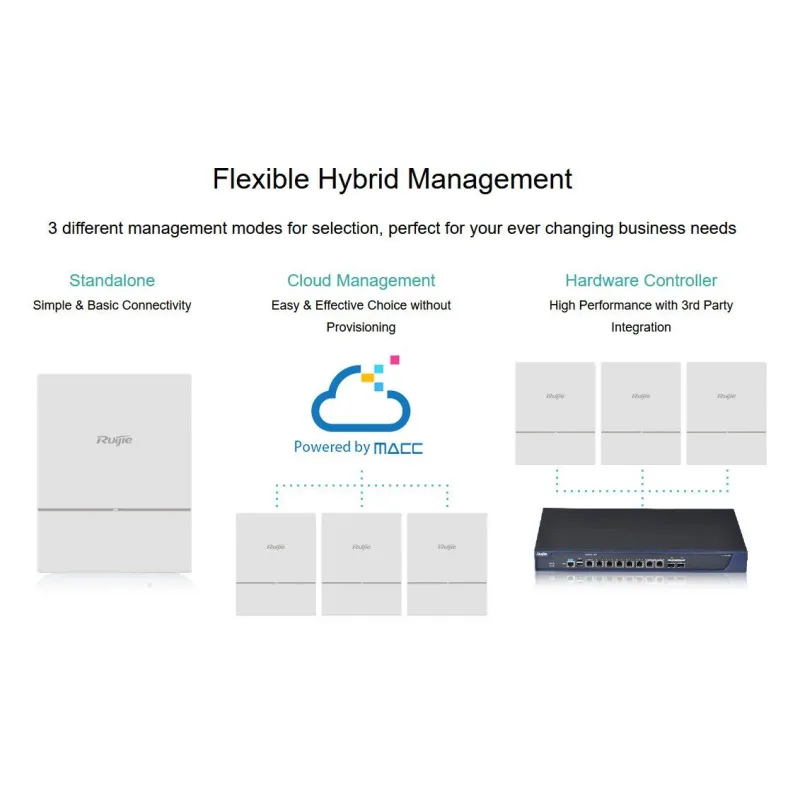

    FAT/FIT/MACC mode switching

    Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management

    ประกัน

    3 ปี

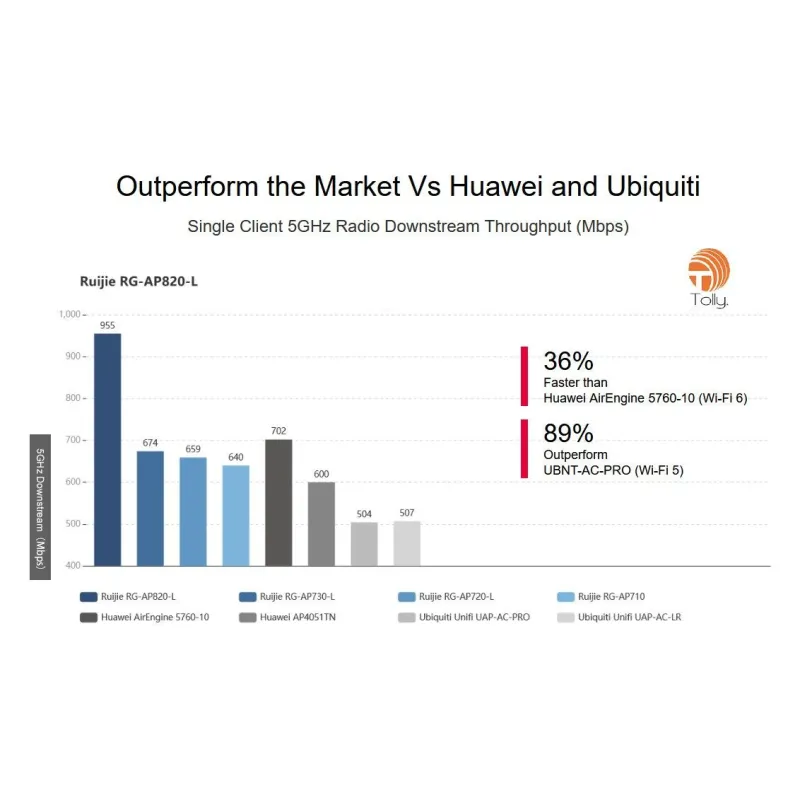

    Performance may vary with different IxChariot scripts, test environment and hardware/software. For a fair comparison, in each test, the same test environment and IxChariot script was used for the Ruijie AP and the Huawei AP. Tolly engineers recorded higher Huawei AP5760-10 performance than those reported here in a separate test with different IxChariot scripts, test environment and hardware/software. However, Ruijie RG-AP820-L's single client throughput results reported here are the highest ones Tolly has ever tested using a laptop equipped with the Intel Wi-Fi 6 AX200 adapter as a client.



    Multi-Client Performance


    Multimedia Streaming


    Engineers used the Spirent TestCenter Wi-Fi modules to emulate Wi-Fi 6 and Wi-Fi 5 clients and evaluated the maximum number of clients that each access point can support with 1Mbps throughput to each client. 1Mbps of throughput can support general online multimedia streaming.
    Ruijie's flagship 8x8:8 dual-radio Wi-Fi 6 access point RG-AP880-I supported up to 430 users of concurrent simulated multimedia streaming; Ruijie's tri-radio 4x4:4 Wi-Fi 6 access point RG-AP850-I(V2) supported up to 600 users of concurrent simulated multimedia streaming; Ruijie's 2x2:2 dual-radio Wi-Fi 6 access point RG-AP820-L supported up to 300 users of concurrent simulated multimedia streaming. Ruckus'8x8:8 dual-radio Wi-Fi 6 access point R730 supported up to 370 users of concurrent simulated multimedia streaming. See Table 1 for results.





    Wi-Fi 6 AP vs. Wi-Fi 5 AP


    Since Wi-Fi 6 is quite a new protocol, a large portion of mobile devices on the market can only support Wi-Fi 5. Tolly engineers used twelve Wi-Fi 5 clients to evaluate whether Ruijie's new Wi-Fi 6 access point provides improvement over Ruijie's Wi-Fi 5 access point with the Wi-Fi 5 clients. Results show that Ruijie RG-AP820-L (Wi-Fi 6 AP) provide 65% higher total throughput to the twelve W-Fi 5 clients than the Ruijie RG-AP720-L (W-Fi AP). See Figure 6 for detailed results.
    Ruijie's Wi-Fi 6 APs are not only future-proof but also able to provide instant improvement over the Wi-Fi 5 APs.



    User Capacity


    Ruijie RG-AP880-I, RG-AP840-I and RG-AP820-L each provides one 2.4GHz radio and one 5GHz radio. Tolly engineers verified that Ruijie RG-AP880-I, RG-AP840-I and RG-AP820-L each supported 1,024 Wi-Fi clients/users on one AP with 512 Wi-Fi clients/users on each radio.
    Ruijie RG-AP850-I(V2) provides one 2.4GHz radio and two 5GFHz radios. Tolly engineers verified that the Ruijie RG-AP850-I(V2) access point supported 1,280 Wi-Fi clients/ users on one AP with 512 Wi-Fi clients/users on the 2.4GHz radio, 512 Wi-FI clients/users on the 5GHz radio 1 and 256 Wi-Fi clients/ users on the 5GHz radio 2. See Table 2 for results. Ruijie RG-AP850-I(V2) is the largest user capacity access point that Tolly has ever tested to the test date.



    รายละเอียดสินค้า
    50 รายการ

    Data sheet

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว Wireless
    WIFI-6 (802.11ax: 1.2Gbps+)
    ย่านความถี่
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Cloud Controller

    ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

    Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

    Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

    Ruijie Cloud: Perfect Network Solution For SME

    Ruijie Cloud Site Survey Planner (SSP) Overview

    Ruijie AP Quick Provisioning

    Ruijie Cloud Deployment Quick Start

    ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie VS Reyee

    Feature

    Ruijie Enterprise

    Reyee

    Ruijie Cloud

    Support

    Support

    Mobile App
    (รองรับ iOS และ Android)

    Support

    Support

    Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

    Presales Tools
    (ระบบการขาย เช่น BOM, การคำนวนกำลังไฟ POE, Report)

    Support

    Support

    Fast Provisioning
    (การเพิ่มอุปกรณ์ขึ้น Cloud))

    Scan QR-code Device
    Cloud Config Sync

    Self-organizing network (SON)
    Scan QR-code Device

    Monitoring & Alarm

    Support

    Support

    Device Management

    Additional:
    RRM
    Web CLI
    Telnet/SSH
    Configuration Mgmt (Backup/Restore)

    Basic
    Web Config
    Cloud Config

    Gateway Management

    WAN Load Balance
    Block Web
    Block Bittorrent
    App/Web Control L7 Filter
    L7 DPI Analysis
    App Cache
    Sub-Interface VLAN (802.1Q)
    VPN L2TP, PPTP, IPSecs
    Bandwidth Management
    ACL
    EWeb Tunnel (Remote Config ผ่าน Cloud)

    WAN Load Balance
    Block Web
    Block Bittorrent
    Sub-Interface VLAN (802.1Q)
    VPN L2TP, PPTP, IPSecs
    Bandwidth Management
    ACL
    NO-IP, DDNS
    EWeb Tunnel (Remote Config ผ่าน Cloud)

    Gateway Authen

    Local Authen (Captive Portal)
    Sync with Cloud Auth (Captive Portal)
    Web Audit (เก็บ Log การเข้า Website)

    Local Authen (Captive Portal)
    Sync with Cloud Auth (Captive Portal)
    QR-Code Auth

    Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway
    Review Reyee Gateway RG-EG210G-E แบบ Full Test

    Multi-tenant
    รองรับการจัดการ Project จากหลาย Account

    Support

    Support

    Scenario-based
    Config Wizard

    N/A

    Support (App)

    Wireless

    Standard

    WIFI 4 (n)
    WIFI 5 (ac)
    WIFI 5 Wave2 (ac)
    WIFI 6 (ax)

    WIFI 5 Wave2 (ac)
    WIFI 6 (ax)

    Capacity

    Max Client 1024 (Wi-Fi 6)

    Max Client 128

    WLAN Auth

    802.1x Auth
    PPSK

    Customized Captive Portal
    Voucher, Account, Facebook, SMS OTP

    PSK/WPA2
    Basic Captive-Portal (ต้องใช้ร่วมกับ Ruijie/Reyee Gateway)

    Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet

    WLAN Features

    L2/L3 Roaming
    Adv CLI script configuration
    WIDS(Rogue AP detection)
    Wireless Radio Analytics (RRM)
    Location tracking (LBS)
    Bluetooth (BLE) support
    Speed Limit Per Client
    Speed Limit Per SSID

    L2 Roaming
    Wireless Load Balance
    Basic Feature

    WLAN Controller
    (Appliances)

    Yes
    RG-WS6000 Series (upto 6400 AP)

    Yes
    RG-NBC Series (up to 500 AP)

    Switches

    Capacity

    Chassis model option (upto 48 10GE)

    Box Switches model (upto 24GE +10G uplink

    L2

    IGMP Snooping
    MSTP
    LACP VLAN
    Link Aggregate (LACP)
    SuperVlan
    VoiceVlan
    ACL
    DHCP Snooping
    Port Isolate

    VLAN
    Link Aggregate (Static)
    ACL
    DHCP Snnoping
    Port Isolate

    L3

    IPv6, RIP, OSPF, PBR, VRRP

    N/A<

    Security / Availability

    802.1x, CPP/NFPP, REUP, VSU

    N/A

    Management

    Managed with Web & CLI (Console port), SSH, SNMP

    Web Smart Managed & Unmanaged

    Review Ruijie RG-ES200 Series Cloud Managed POE Switch
