Product Specification
|
|
Overview
|

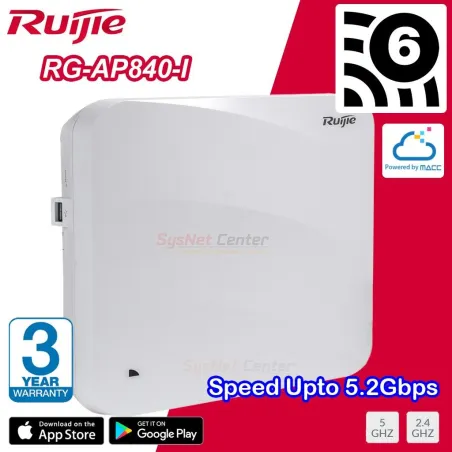

Ruijie RG-AP840-I Wireless Access Point WIFI 6 มาตรฐาน ax, 4×4:4 MIMO สำหรับ 5GHz, 2x2:2 สำหรับ 2.4GHz ความเร็วสูงสุด 5.2Gbps,3 Port Gigabit, รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control
รองรับการทำ Authenticate แบบ Captive Portal, Social Login
พร้อม Ruijie Cloud License แบบ Lifetime
ICT Spec อุปกรณ์กระจายสัญญาณไร้สาย (Access Point) แบบที่ 2
|
|
LED Indicator
|
1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.)
|
|
Transmit Power
|
≤100mw（20dBm） (vary depending on different countries)
|
|
Adjustable Power
|
1dBm
|
|
Power Supply
|
Not Include
Local power supply (DC 48V/1A) （Power adapters are sold separately
PoE+ (802.3at)
PoE (802.3af) – Not recommended: 5G radio is degraded to 2x2 MIMO, and the PoE out of the LAN3/ IoT port is disabled
|
|
Power Consumption
|
＜25.4W
|
|
Temperature
|
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
|
|
Humidity
|
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
|
|
Installation Mode
|
Ceiling/wall-mountable
|
|
Dimensions (W x D x H)
|
220mm ×220mm x48.85mm（Height of the AP only, excluding the mount kit）
|
|
Weight
|
1.30kg
|
|
IP Rating
|
IP41
|
|
Safety Standard
|
GB4943, EN/IEC 60950-1
|
|
EMC Standard
|
GB9254, EN301 489
|
|
Radio Standard
|
SRRC, EN300 328, EN301 893
|
|
Wi-Fi Alliance
|
Wi-Fi CERTIFIED™ a, b, g, n, ac, ax
|
|
Health Standard
|
EN 62311
|
|
Software Specifications
|
|
Maximum clients per AP
|
1024
|
|
BSSID capacity
|
Up to 32
|
|
SSID hiding
|
Support
|
|
5G Priority (Band Steering)
|
Support
|
|
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID
|
Support
|
|
Remote Intelligent Perception Technology (RIPT)
|
Support
|
|
Intelligent device recognition technology
|
Support
|
|
Intelligent load balancing based on the number of users or traffic
|
Support
|
|
STA control
|
SSID/radio-based
|
|
Bandwidth control
|
STA/SSID/AP-based bandwidth control
|
|
Data encryption
|
WPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits）
|
|
PSK and web authentication
|
Support
|
|
PPSK authentication (For Employee)
|
Support (require wireless controller)
|
|
802.1x authenticationPEAP authentication
|
Support
|
|
Data frame filtering
|
Whitelist, static/dynamic blacklist
|
|
User isolation
|
Support
|
|
Rogue AP detection and countermeasure
|
Support
|
|
Dynamic ACL assignment
|
Support
|
|
RADIUS
|
Support
|
|
CPU Protection Policy (CPP)
|
Support
|
|
Network Foundation Protection Policy (NFPP)
|
Support
|
|
IP
|
|
|
IPv4 and IPv6 address
|
Support
|
|
Multicast routing
|
Multicast to unicast conversion
|
|
DHCP service
|
DHCP Snooping, Option 82, Server, Client
|
|
Management and Maintenance
|
|
Supported wireless LAN controllers
|
Ruijie WS Series Wireless Controller
Ruijie MACC-Base Software Controller
Ruijie Cloud (Public Cloud)
|
|
Management protocol
|
Telnet, SSH, TFTP, Web
|
|
Wireless Intelligent AI Optimization Service (WIS)
|
Support
|
|
SNMP
|
SNMPV1,V2c,V3
|
|
Syslog / Debug
|
Support
|
|
FAT/FIT/MACC mode switching
|
Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
|
|
ประกัน
|
3 ปี
|
Public Cloud for SMEs
With Ruijie Public Cloud Service adoption, the Ruijie AP800 Wi-Fi 6 series access point is perfect for various SME scenarios including small offices, boutique hotel, retail store and etc. Ruijie Cloud is the only vendor offering Enterprise Cloud at Lifetime FREE, which significantly streamline the IT operational efficiency, as well as reducing the Wi-Fi deployment complexity with cost effective approach for SMEs.
The Ruijie Cloud service provide equipment deployment, monitoring, network optimization and operational lifecycle management; enabling customers with simple plug and play deployment and operation and maintenance. Meeting the needs for automatic cloud RF planning and user experience monitoring, it also supports mobile monitoring and alert, and fast provisioning by QR-Code scanning. At the same time, it provides flexible wireless user access control features, including high security “One person, one machine and one password” PPSK, built-in cloud Portal and Facebook social login.
KEY FEATURES
■ Unified Device Management

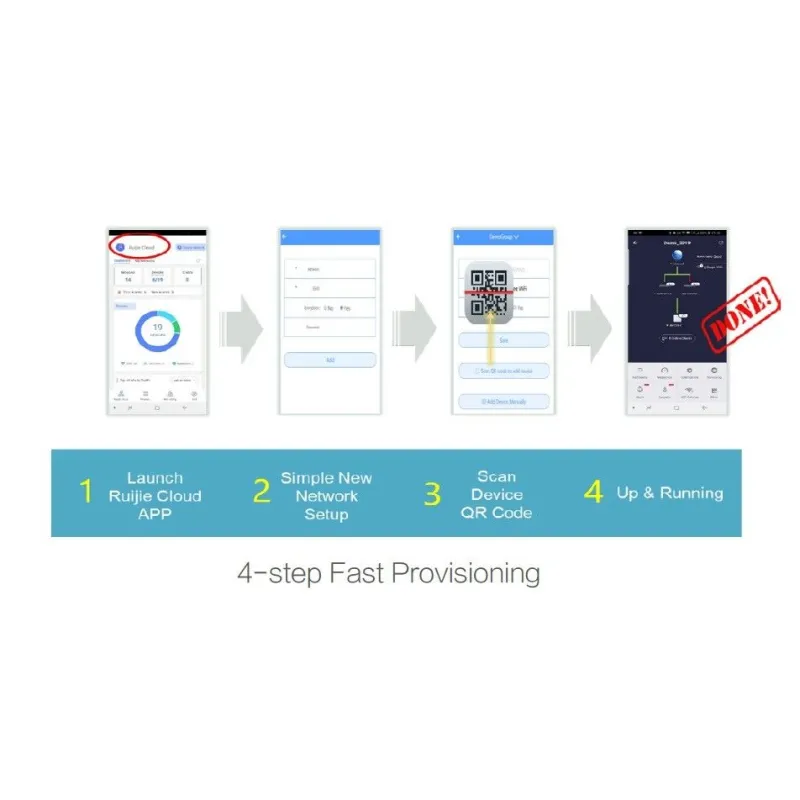

■ Fast Provisioning by Mobile APP
■ Secure PPSK Authentication for Staff
■ Captive Portal & Social Authentication for Guest

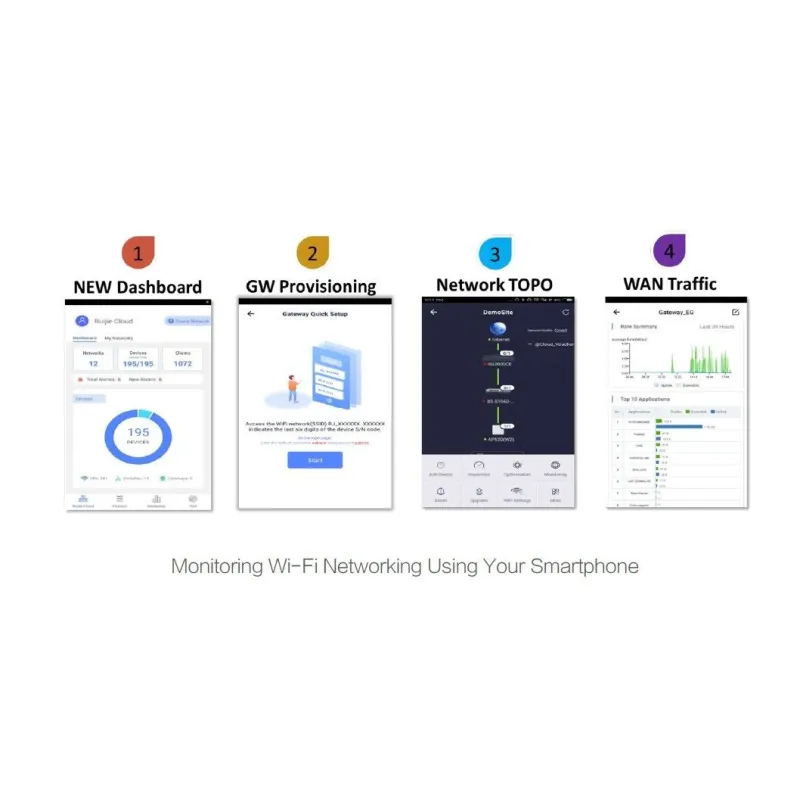

■ Mobile APP Monitoring & Alert

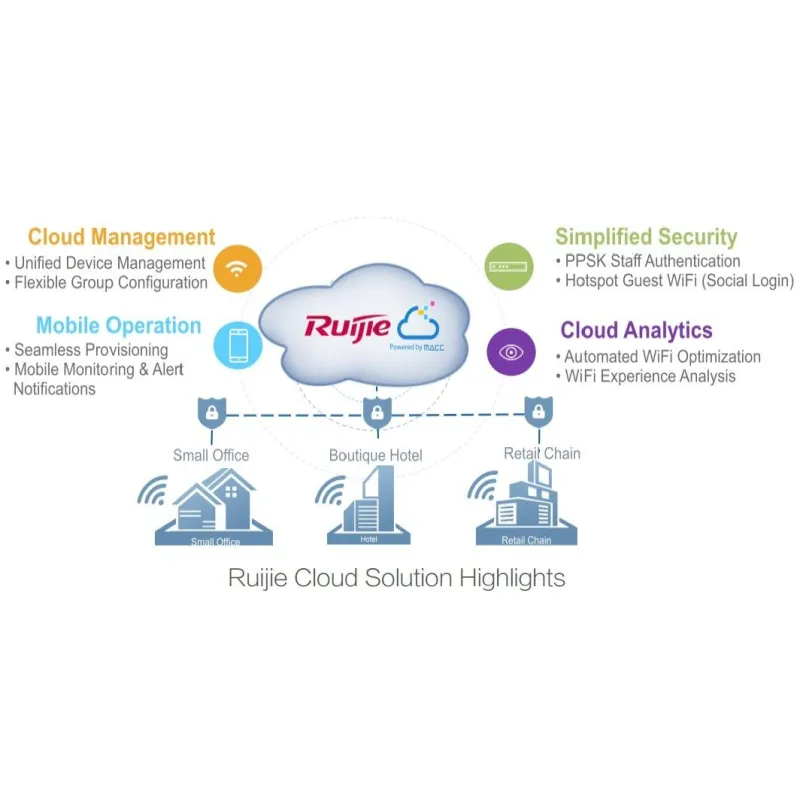

Ruijie Cloud Solution Highlights
Private Cloud for ISP/MSP and Government
For enterprises with high demand on security, billing and portal system integration, along with diverse customer sites, the Ruijie RG-MACC private cloud solution is recommended, especially for ISP/MSP and government sector.
The Ruijie RG-MACC (Managed @ Cloud Center) is a revolutionary cloud management platform which supports unified management and configuration of APs, switches and gateway devices, as well as value-added marketing features and survey, etc. The RG-MACC is designed for education, retail chain stores, shopping malls, hotels, transportation, small and medium-sized enterprises, network operators and settings alike. The RG-MACC is consisted of various feature modules, such as management, marketing, AAA (authentication, authorization and accounting) and diagnostic tools, etc. The platform supports multi-tenancy feature, which is an ideal choice for ISP to deliver cost-effective managed service solution for massive SME customers.
RG-MACC Private Cloud typical solution architecture:
Solution Benefits:
Support multi-tenant management
Support cloud computing virtualization deployment
Support unified networking device management, including access points, switches and gateway devices
Support mobile app management
Open API available for 3rd party integration
Hybrid Cloud for Enterprise and Campus
For enterprise office and campus with single or multiple sites and high-density AP deployment, Ruijie RG-WS6000 Series Wireless Controllers (on-premises) plus cloud management (optional) is recommended. The wireless controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc.
Solution Benefits:
Support centralized device management and reporting service by Ruijie Cloud (optional)
Support ultra-seamless roaming management
Support one-click AI radio (RF) optimization powered by WIS engine
High performance and security with all user authentication and traffic forwarding handled locally
Support flexible authentication options, such as 802.1x, PPSK employee authentication, guest hotspot and voucher access code, etc.
Support all series of Ruijie wireless access points
