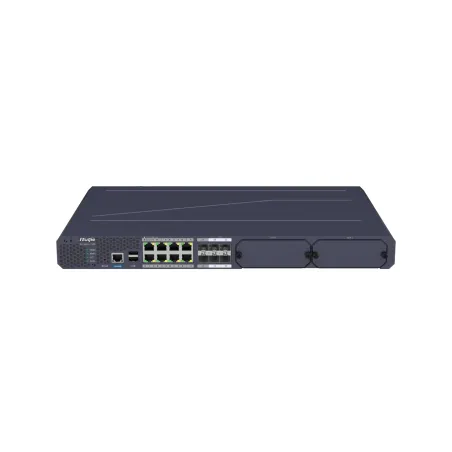

Ruijie RG-WALL 1600-Z5100-S Product Specification
|
| Overview |
Ruijie RG-WALL 1600-Z5100-S Next-Generation Z Series Firewall รองรับ Intrusion Prevention, Antivirus, Port Scan, Traffic Learning, Application Control, DoS/DDoS attacks.
|
System Performance and Capacity
|
|
Firewall throughput of IPv4 packets (1518-byte UDP packets)4
|
15 Gbps
|
|
Firewall throughput (packets per second)
|
2.3 Mpps
|
|
Concurrent sessions (TCP)
|
1000000
|
|
New sessions/second (TCP)
|
134000
|
|
Firewall policies
|
4000
|
|
SSL VPN throughput (1392-byte)
|
3 Gbps
|
|
Concurrent SSL VPN users (recommended maximum, tunnel mode)
|
1000
|
|
Application control throughput (HTTP 64K) 2
|
10 Gbps
|
|
IPsec VPN throughput (512-byte)
|
4 Gbps
|
|
Gateway-to-Gateway IPsec VPN Tunnels
|
1000
|
Dimensions and Weight
|
|
Product dimensions (W x D x H)
|
440 mm x 300 mm x 43.6 mm (17.32 in. x 11.81 in. x 1.72 in.)
|
|
Shipping dimensions (W x D x H)
|
545 mm x 450 mm x 130 mm (21.46 in. x 17.72 in. x 5.12 in.)
|
|
Product weight
|
4.44 kg (9.79 lbs)
|
|
Shipping weight
|
5.7 kg (12.57 lbs)
|
|
Form factor
|
1 RU rack
|
Port Specifications
|
|
Fixed service port
|
8 x 10/100/1000BASE-T ports
2 x 1GE SFP ports
4 x 10GE SFP+ ports
|
|
Fixed management port
|
1 x RJ45 MGMT port (reusing Ge0/0)
1 x RJ45 console port (RS-232)
|
|
USB port
|
2 x USB 2.0 ports
|
Storage
|
|
Hard disk
|
No hard disk for factory delivery. A 1 TB SATA hard drive can be added.
|
Power Supply and Consumption
|
|
Power supply
|
2 x pluggable power modules (one power module for factory delivery)
l Rated input voltage: 100-240 V; 50-60 Hz
l Rated input current: 2 A (maximum)
|
|
Max. Power Consumption
|
< 60 W
|
Environment and Reliability
|
|
Operating temperature
|
0°C to 45°C (32°F to 113°F)
|
|
Storage temperature
|
-40°C to +70°C (-40°F to +158°F)
|
|
Operating humidity
|
40% RH to 65% RH (non-condensing)
|
|
Storage humidity
|
10% RH to 90% RH (non-condensing)
|
|
Noise level
|
36 dB
|
|
Operating altitude
|
0-5000 m (0-16404 ft.)
|
|
Compliance
|
EMC SZEM2404002506ATV
LVD SZES2404002242AT
|
Network
|
|
Physical interface
|
Configuring interfaces as LAN/WAN interfaces; three modes for WAN interfaces: PPPoE, DHCP, and static IP; configuring the routing, transparent, or bypass mode for interfaces
|
|
Sub-interface
|
Configuring sub-interfaces and VLAN IDs
|
|
Bridge interface
|
Configuring interfaces in transparent mode as bridge interfaces
|
|
Aggregate interface
|
Configuring aggregate interfaces
|
|
Routing
|
IPv4/IPv6 static and dynamic routing, routing policy, Policy-based Routing (PBR), ISP address library-based routing, application-based routing, and egress load balancing
|
|
DHCP server
|
DHCP server functions
|
|
DNS server
|
Configuring DNS addresses for devices
|
|
DDNS
|
Multiple DDNS service providers supported
|
|
Link detection
|
Link detection and link detection logs
|
|
VPN
|
SSL VPN and IPsec VPN
|
|
VRRP
|
VRRP functions
|
Object
|
|
Address and address group
|
Configuring IPv4/IPv6 address objects in IP address/range format
|
|
Zone
|
Configuring security zones
|
|
Application and application group
|
Configuring application types in application/application group mode
|
|
Service and service group
|
Configuring service objects; common default port services supported
|
|
Time plan
|
Configuring time objects; one-off time plans and cyclic time plans supported
|
|
ISP address library
|
Default ISP address libraries: China Telecom (CHN), China Mobile (CHN), China Unicom (CHN), CERNET (CHN), and Beijing Teletron (CHN); customizing, importing, and exporting ISP address libraries
|
|
Virus protection template
|
Configuring content object templates; antivirus (AV) templates supported; configuring quick scan or deep scan; configuring templates based on protocols and directions; setting excluded viruses
|
|
Intrusion prevention template
|
Configuring content object templates; predefined Intrusion Prevention System (IPS) templates supported; customizing IPS templates; configuring rule filters based on objects, severity, protocols, and threat types; setting excluded rules
|
|
File filtering
|
Configuring content object templates; file filter templates (filtering by file type) supported
|
|
URL filtering
|
URL filtering
|
|
SSL proxy certificate
|
Adding, importing, deleting, viewing, and downloading SSL proxy certificates; configuring a global SSL proxy certificate
|
|
Server certificate
|
Importing, deleting, viewing, and downloading server certificates
|
|
Security rule base
|
Viewing default security rules in the IPS security library
|
|
Content identification
|
URL category and keyword configuration
|
|
User authentication
|
User management, user import, authentication server configuration, real-name user information synchronization, and authentication policy configuration
|
Policy
|
|
Traffic learning
|
Traffic learning to record destination IP addresses and port numbers as well as abnormal traffic; exporting traffic learning logs
|
|
Network address translation (NAT)
|
NAT; configuring NAT policies; importing NAT policies in a batch; common NAT application-level gateway (ALG) services; server port mapping; viewing NAT address pool status
|
|
Security policy
|
Configuring security policies; customizing policies based on parameters including objects, contents, and zones; viewing the policy list; importing security policies in a batch
|
|
Policy simulation
|
Simulating policy execution in the simulation space to check whether uncertain security policies can achieve expected effects
|
|
Policy configuration wizard
|
Security policy configuration wizard for conducting port scan, performing configurations, testing configurations, and other steps to generate security policies
|
|
Policy optimization
|
Sorting out configured security policies and analyzing policies to identify redundant, expired, and conflicting policies
|
|
Policy lifecycle
|
Full lifecycle display of security policies, including detailed records of policy changes
|
|

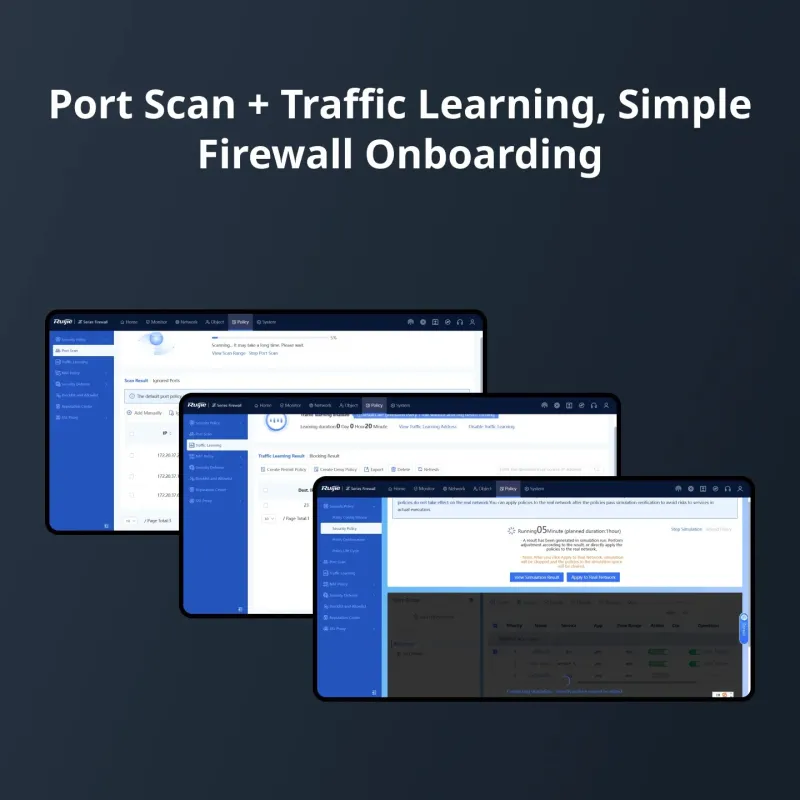

Port scan
|
Port scan of configured IP ranges for all ports or selected ports; policy creation prompt for scan results
|
|
DoS/DDoS attack defense
|
Different DDoS attack defense policies in security defense
|
|
ARP attack defense
|
Preventing ARP attacks including ARP spoofing and ARP flooding in security defense
|
|
Local defense
|
Configuring local defense policies in security defense
|
|
Threat intelligence
|
Enabling or disabling threat intelligence; customizing threat intelligence; managing excluded threats
|
|
Blocklist and allowlist
|
Configuring global blocklists and allowlists
|
|
SSL proxy policy
|
Configuring SSL proxy policies; customizing policies based on parameters including objects, contents, and zones; viewing the policy list
|
|
SSL proxy template
|
Configuring SSL proxy templates; setting the template type to protecting client or server
|
|
Allowlist
|
Configuring domain name allowlists and application allowlists
|
|
Behavior analysis
|
Configuring analysis policies, templates, and allowlists
|
System
|
|
Simple Network Management Protocol (SNMP)
|
Connecting to third-party platforms for management through SNMPv1/v2/v3
|
|
Patch installation
|
Downloading and installing patches for upgrade
|
|
Cloud management platform
|
Enabling or disabling unified management on the cloud management platform; log upload to the cloud
|
|

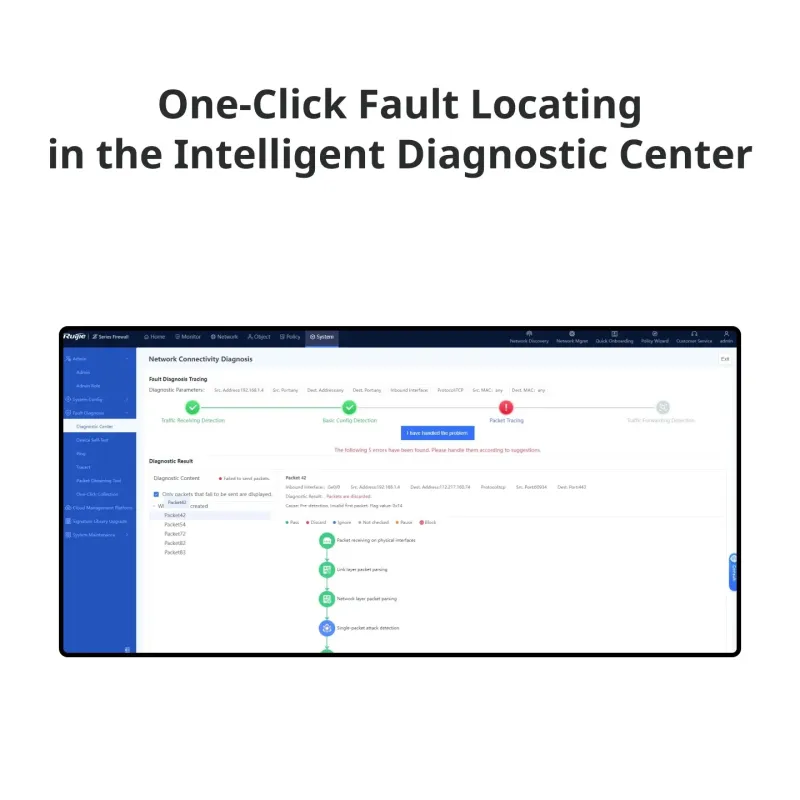

One-click collection
|
Collecting fault information with one click
|
|
Device health
|
Device health diagnosis
|
|
Service diagnosis
|
Service continuity diagnosis
|
|
System upgrade
|
System upgrade and rollback
|
|
Database backup
|
System database backup and restoration
|
|
Factory settings restoration
|
Restoring factory settings on the web UI
|
|
รับประกัน
|
3 ปี
|
