Review TP-Link Omada Network Controller
TP-Link IES208G Datasheet

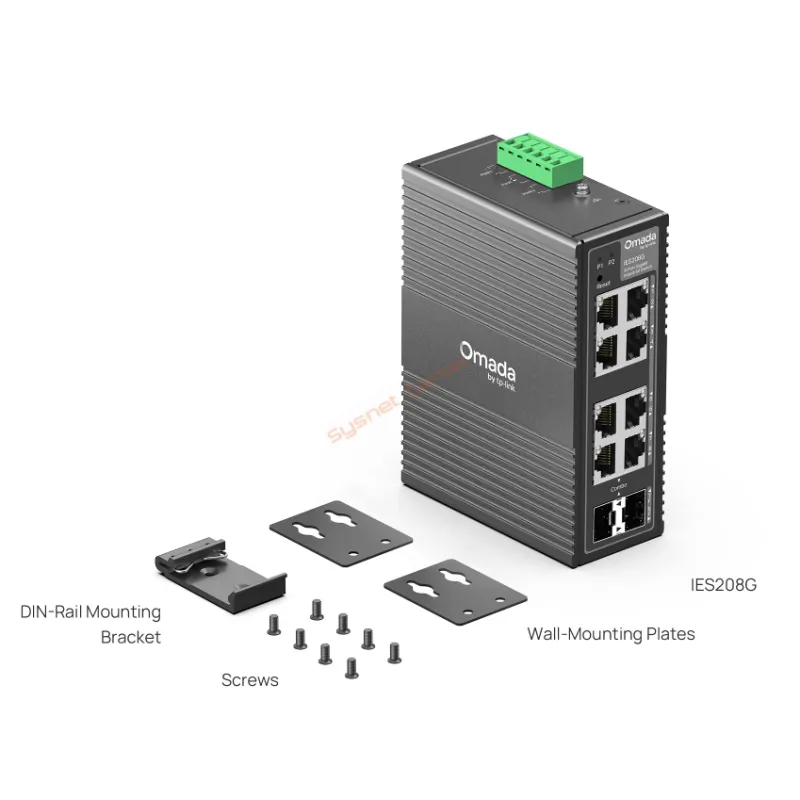

Omada 8-Port Gigabit Easy Managed Switch 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo) Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input Abundant Features: VLAN, QoS, and STP/RSTP Centralized Cloud Management via the Web or Omada App† Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design TP-Link IES208 Product Specification Overview
TP-LINK IES208G Omada 8-Port Gigabit Industrial Easy Managed Switch (6× RJ45, 2× RJ45/SFP Combo) Industrial-Grade IP40 Aluminum Casing รองรับ VLAN 802.1q, Port Mirroring, Loop Prevention, IGMP Snooping, Link Aggregation
HARDWARE FEATURES Interface • 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX Fan Quantity Fanless Installation • DIN-rail mounting • Wall mounting Uitgangsvermogen 9.6-60V 1+1 Redundant DC Power Input Surge Protection • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports Dimensions ( W x D x H ) 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) Surge Protection ±6kV PERFORMANCE Switching Capacity 16 Gbps Packet Forwarding Rate 11.9 Mpps MAC Address Table 8 K Packet Buffer Memory 4 Mbits Jumbo Frame 15 KB SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ L2 Features • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward Management Features Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† OTHERS Certification FCC, CE, RoHS Package Content • IES208G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide Environment • Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing รับประกัน Limited lifetime
