EasyCam C420

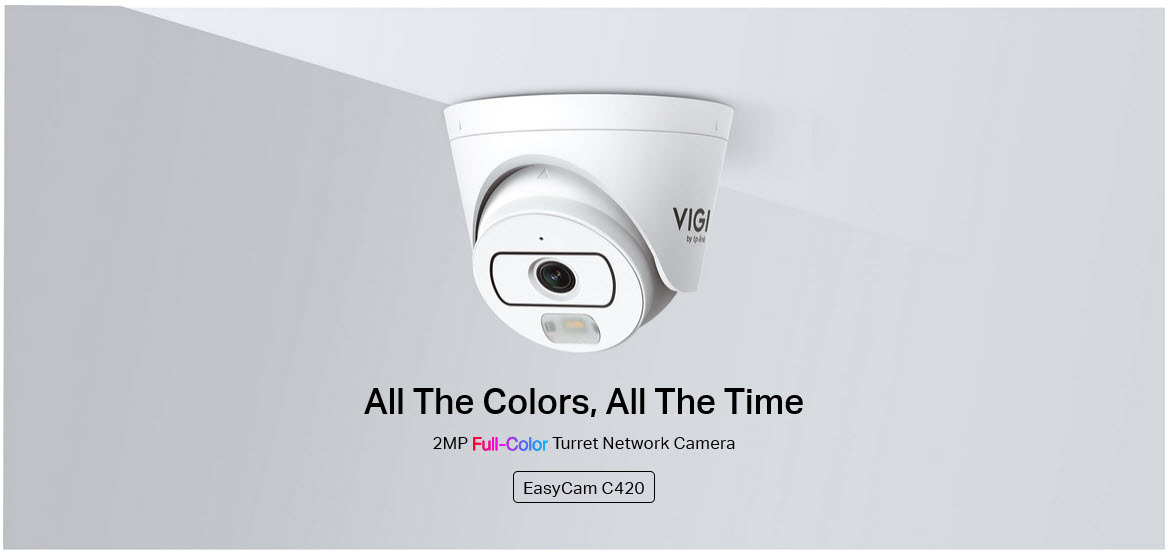

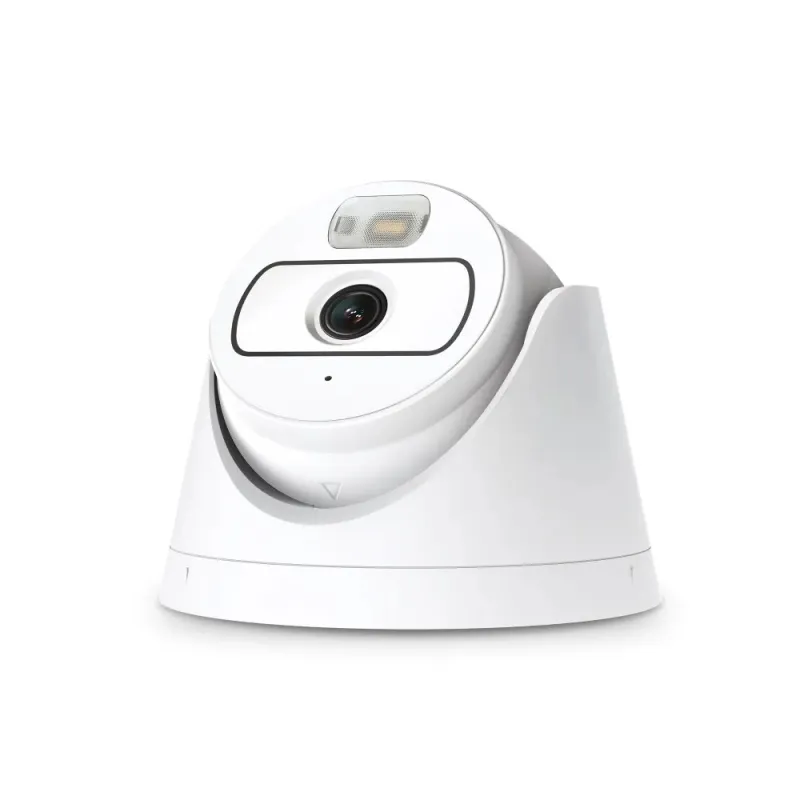

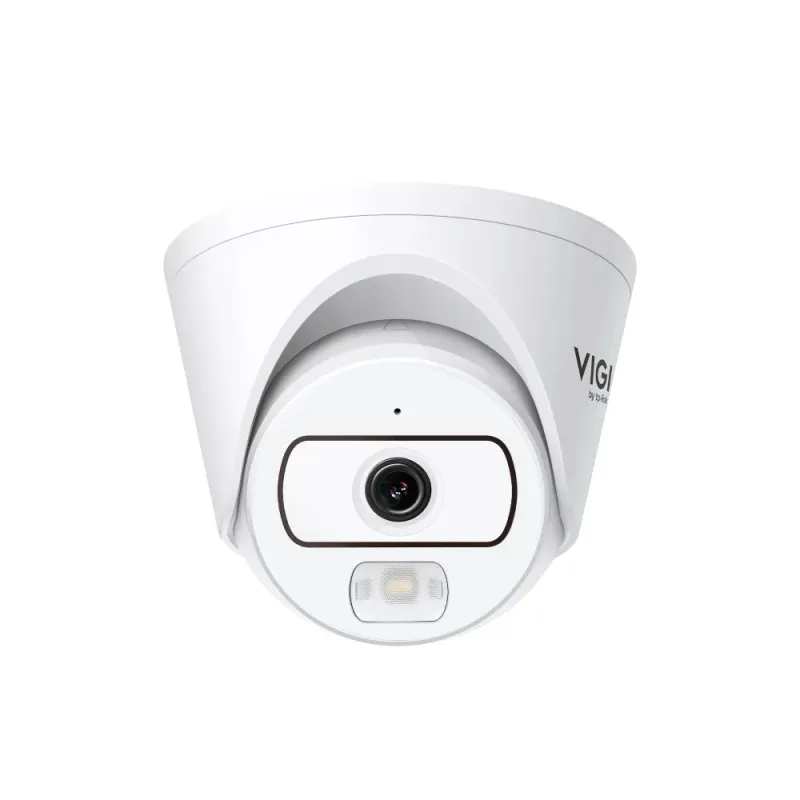

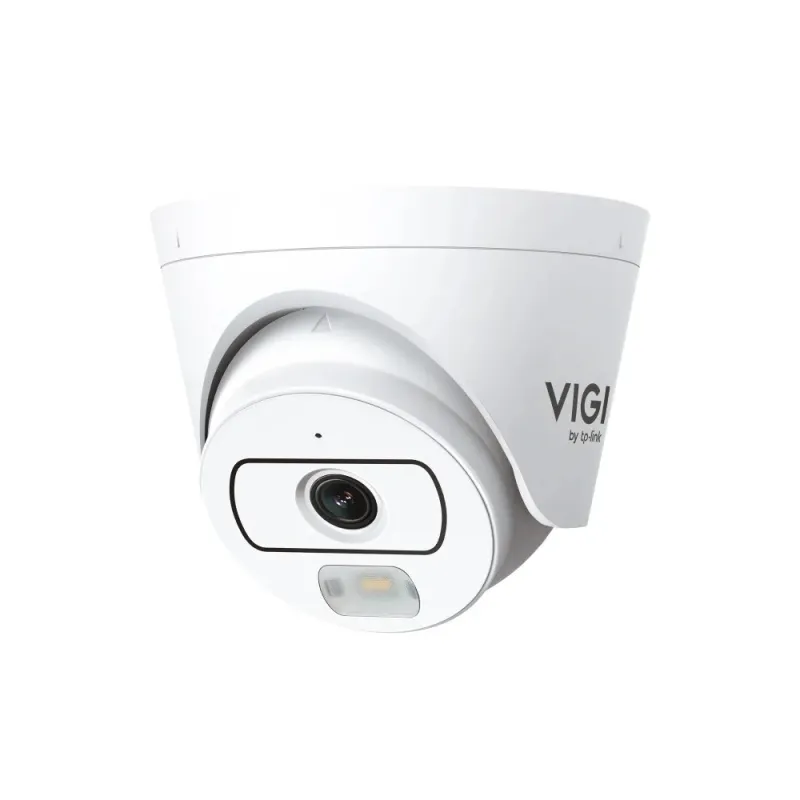

TP-Link VIGI กล้อง IP-Camera Full-Color แบบ Turret ความละเอียด 2MP ติดตั้งภายในอาคาร บันทึก Video มาตรฐาน H.265+ เลนส์ให้เลือกขนาด 2.8/4mm รองรับการบันทึกลงบน NVR รองรับ POE
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
คู่มือการใช้งานเชื่อมต่อกล้องกับเครื่องบันทึก NVR (ไทย)
วิธีการติดตั้ง TP-Link VIGI App บน Smartphone
EasyCam C420(UN) V1 Datasheet TH
กล้อง EasyCam C420 Product Specification | |
Overview | EasyCam C420 TP-Link VIGI กล้อง IP-Camera Full-Color แบบ Turret ความละเอียด 2MP ติดตั้งภายในอาคาร บันทึก Video มาตรฐาน H.265+ เลนส์ให้เลือกขนาด 2.8/4mm รองรับการบันทึกลงบน NVR รองรับ POE |
CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.01 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | F2.0 |
| FOV | • 2.8 mm: Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117° • 4 mm: Horizontal : 75.2°, Vertical: 40.8°, Diagonal: 88.3° |
| Lens Mount | M12 |
| DORI Distance | • 2.8 mm Detect: 154.2 ft (47 m) Observe: 62.3 ft (19 m) Recognize: 29.5 ft (9 m) Identify: 16.4 ft (5 m) • 4 mm Detect: 193.6 ft (59 m) Observe: 82 ft (25 m) Recognize: 39.4 ft (12 m) Identify: 19.7 ft (6 m) |
Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
ILLUMINATOR | |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Integrated Infrared-White LED | • Quantity: 2 • IR Range: 98 ft (30 m)‡ • White LED Range: 98 ft (30 m)‡ • IR Wavelength: 850 nm |
VIDEO | |
| Max. Resolution | 1920x1080 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1920x1080, 1280x960, 1280x720 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360,352x288, 320x240 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
Image | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO | |
| Audio Communication | N/A |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • People Detection • Vehicle Detection |
| Basic Event | • Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts) • Camera Tampering • Exception (Illegal Login) |
| Alarm Linkage | • Upload to FTP server • Push Notifications • Send to Alarm Server • Email Alarm |
INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | PoE Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4 ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
GENERAL | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |

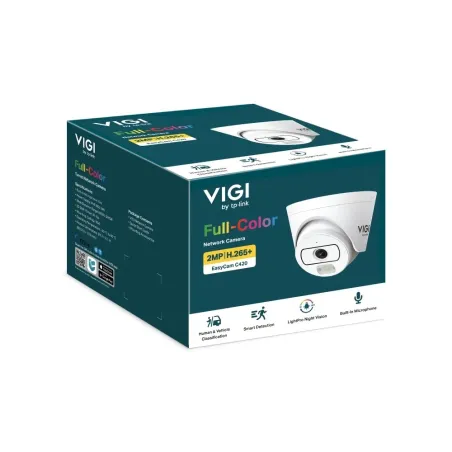

| Package Content | • VIGI Network Camera • Quick Start Guide • Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.165 Kg |
| Power Supply | PoE: 802.3af, class 0, Max. 7.1 W |
| Protection | N/A |

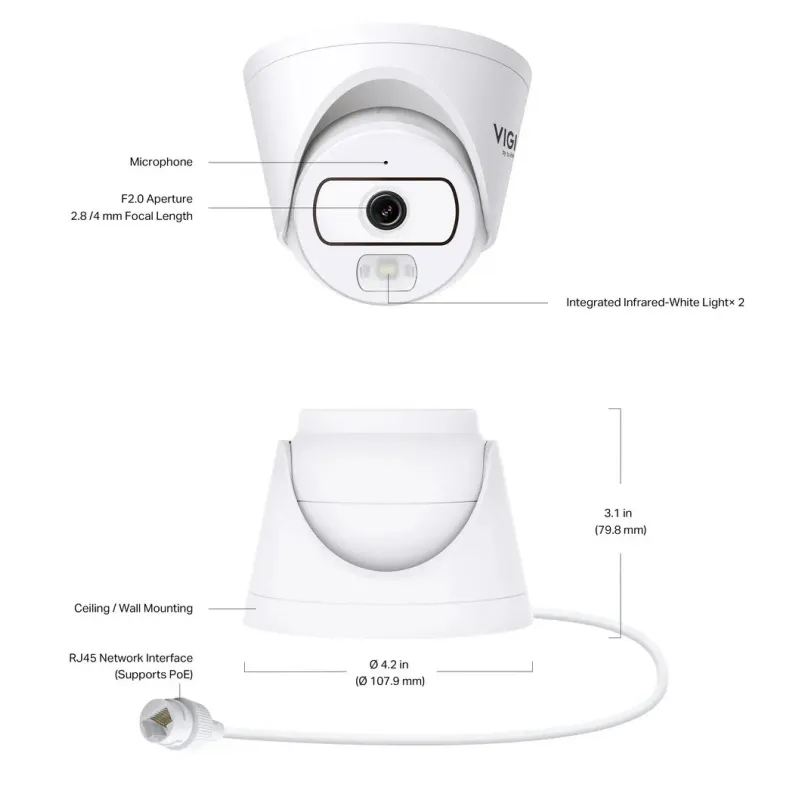

| Product Dimensions (L x W x H) | Ø4.2 × 3.1 in (Ø107.9 × 79.8 mm) |
| Certifications | CE, KC, VCCI, BSMI, ONVIF |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
