VIGI Insight S245Zi Product Specification |

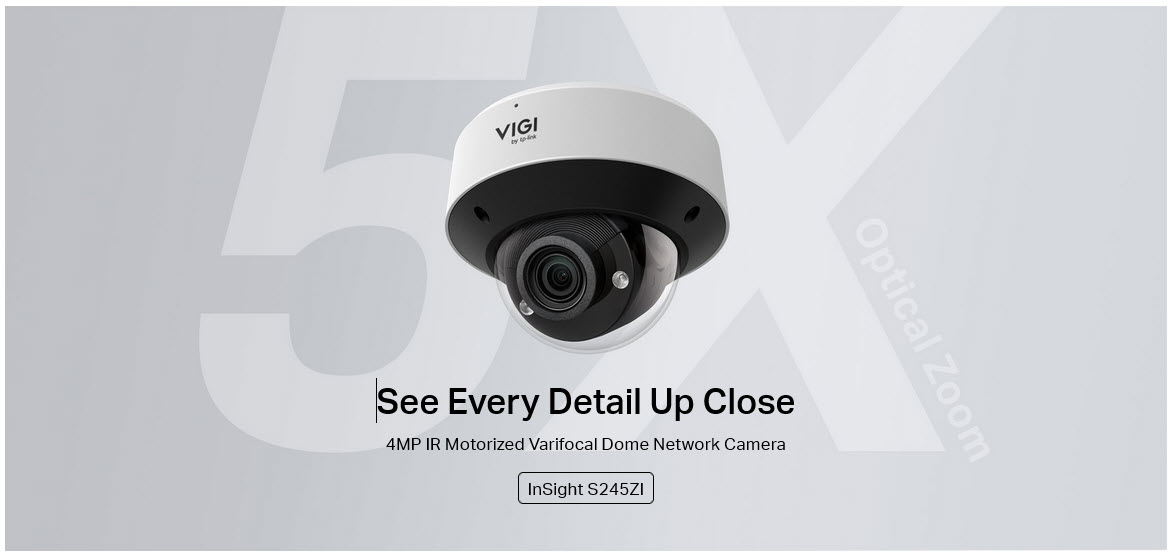

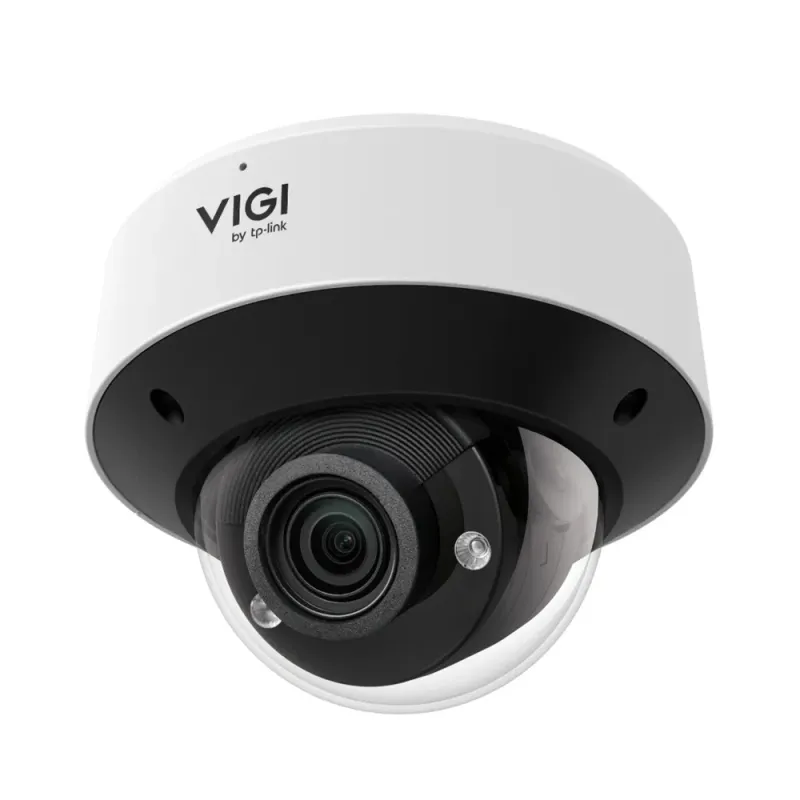

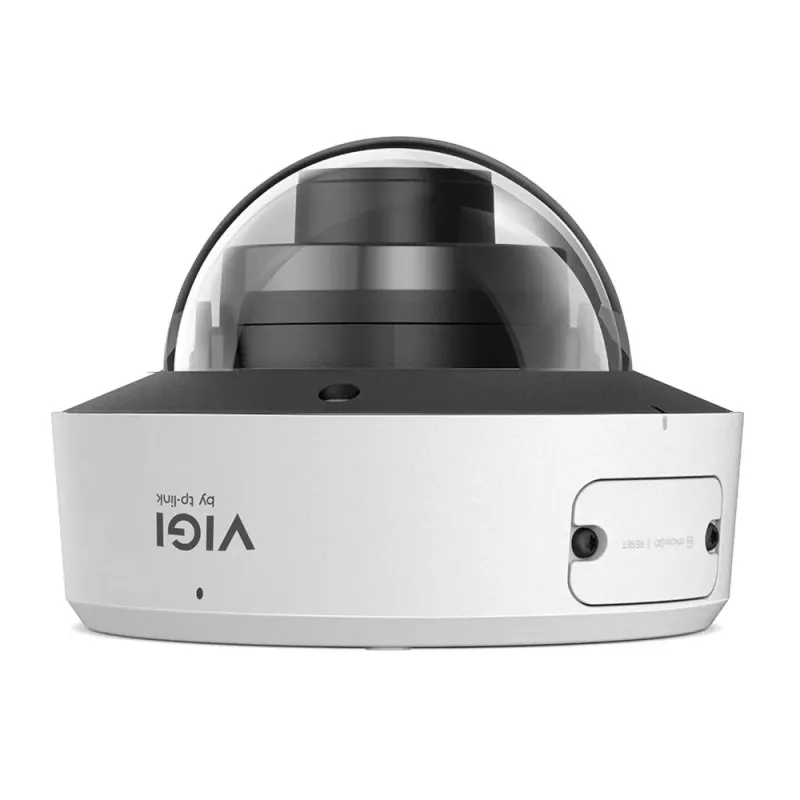

Overview | TP-Link VIGI Insight S245Zi 4MP Outdoor IR Motorized Varifocal Dome Network Camera กล้อง IP-Camera แบบ Bullet ความละเอียด 4MP ซูมออปติคอล 5 เท่า ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE |
CAMERA |
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
LENS |
| Type | Motorized Varifocal Lens |
| Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
| Aperture | F1.6 |
| FOV | 2.7-13.5 mm:
• Horizontal FOV: 29.6°-102.0°
• Vertical FOV: 16.8°-53.8°
• Diagonal FOV: 34.1°-122.8° |
| Lens Mount | Φ14 |
| DORI Distance | 2.7-13.5 mm:
• Detect: 203-656 ft (62-200 m)
• Observe: 89-276 ft (27-84 m)
• Recognize: 43-131 ft (13-40 m)
• Identify: 23-69 ft (7-21 m) |
Angle Adjustment (Manual) |
| Range | Pan: 0° to 350°, Tilt: 0° to 75°, Rotate: 0° to 344° |
ILLUMINATOR |
| IR LED | • Quantity: 4
• Range: 197 ft (60 m)*1
• Wavelength: 850 nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 2688x1520 |
| Main Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 1024 Kbps |
Image |
| Image Settings | • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT |
| Smart Event | • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection |

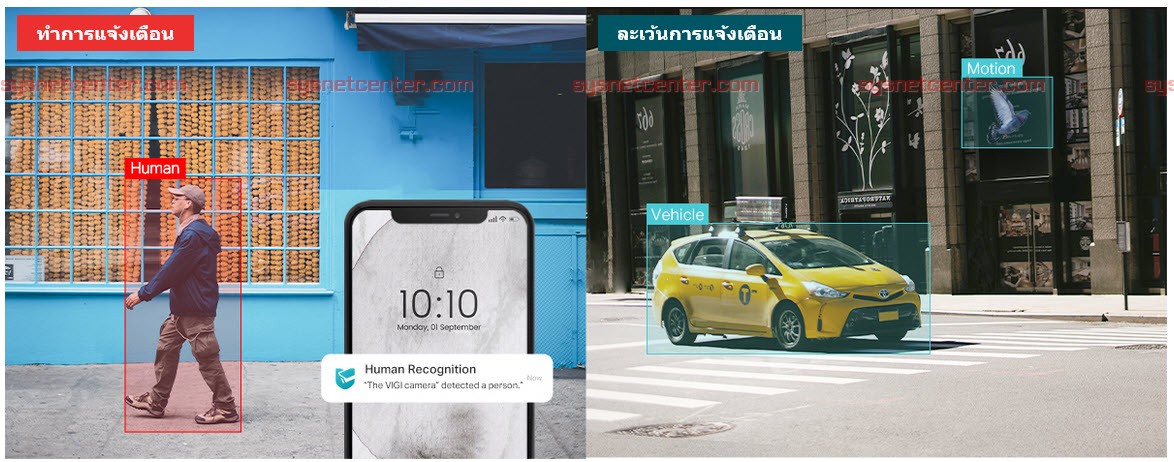

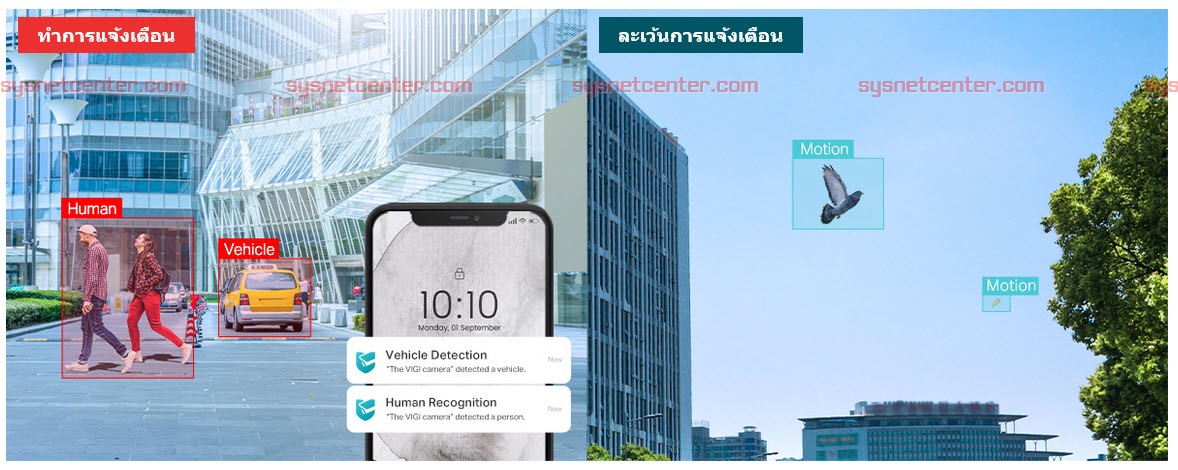

| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Input Device |
| Alarm Linkage | • Memory Card Video Recording
• Push Notifications
• Active Defence-Sound Alarm
• Email Alarm
• Upload to FTP Server
• Alarm Output Device
• Send to Alarm Server |

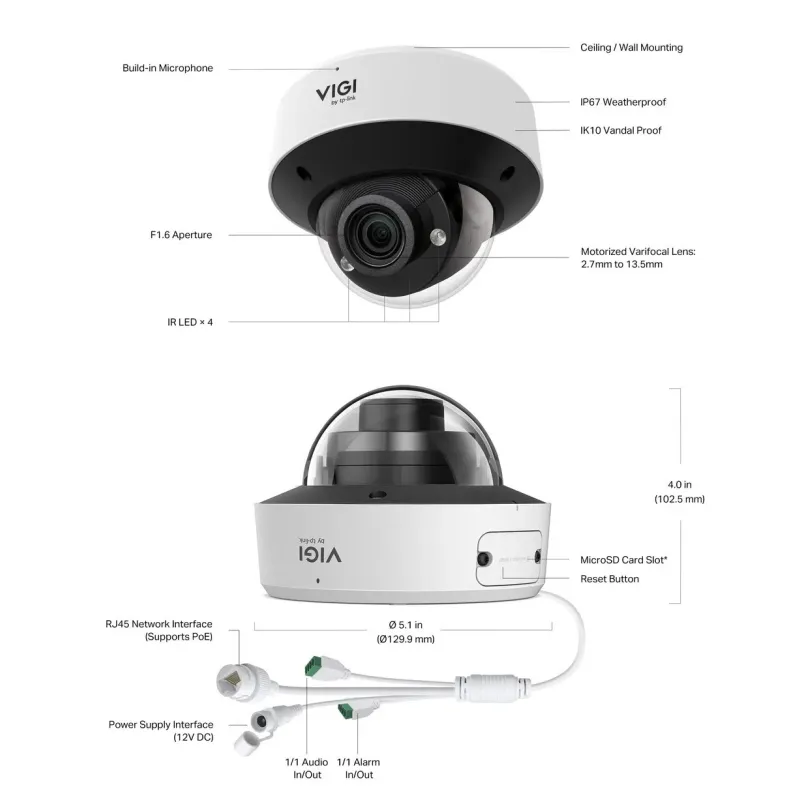

INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support microSD Card, up to 512 GB*3 |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | 1 Audio In, 1 Audio Out |
GENERAL |
| Operating Temperature | -30°C to 60 °C |
| Storage Temperature | -40°C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories |
| Material | Metal |
| Net Weight | 0.775 Kg |
| Power Supply | • 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max.12 W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10 |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
