TP-Link VIGI InSight S385DPS 8MP Outdoor ColorPro Panoramic Bullet Network Camera ความละเอียด 8MP (4K) ภาพพาโนรามาแบบประสานกันด้วยเลนส์คู่ ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
คู่มือการใช้งานเชื่อมต่อกล้องกับเครื่องบันทึก NVR (ไทย)
วิธีการติดตั้ง TP-Link VIGI App บน Smartphone
VIGI Wired Camera(EU1_Asia-Pacific_14 Languages) Installation Guide
Insight S385PDPSi Product Specification | |
Overview | TP-Link VIGI InSight S385DPS 8MP Outdoor ColorPro Panoramic Bullet Network Camera ความละเอียด 8MP (4K) ภาพพาโนรามาแบบประสานกันด้วยเลนส์คู่ ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE |
CAMERA | |
| Image Sensor | Dual 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 5 mm |
| Aperture | Dual F1.0 |
| FOV | • Horizontal FOV: 180°, Vertical FOV: 51°, Diagonal FOV: 180° |
| Lens Mount | M16 |
| DORI Distance | 5mm: • D: 249 ft (76 m) • O: 95 ft (29 m) • R: 46 ft (14 m) • I: 23 ft (7 m) |
Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR | |
| IR LED | • Quantity: 2 • Range: 164 ft (50 m)† • Wavelength: 850 nm |
| White LED | • Quantity: 2 • Range: 164 ft (50 m)† |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
| Max. Resolution | 5456×1520 |
| Main Stream | • Frame Rate： 50Hz：1fps 5fps 10fps 15fps 20fps 25fps 60Hz：1fps 5fps 10fps 15fps 20fps 24fps • Resolution: 5456×1520, 4096×1152, 2160×608 Note: Enabling people counting or object attribute analysis limits the frame rate to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz：1fps 5fps 10fps 15fps 20fps 25fps 60Hz：1fps 5fps 10fps 15fps 20fps 24fps • Resolution: 2160×608, 1280×360 Note: Enabling people counting or object attribute analysis limits the frame rate to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps |
Image | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | Yes |
AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Dual-Microphone Audio In Interface |
| Audio Output | Built-in Speaker Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) • Alarm Input Device |
| Alarm Linkage | • Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm |
Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡ |
INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
GENERAL | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Material | Metal |
| Net Weight | 1.12 kg |
| Power Supply | • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, Class 4, Max. 21W |
| Protection | IP67 Weatherproof, IK10 Vandal-Proof |

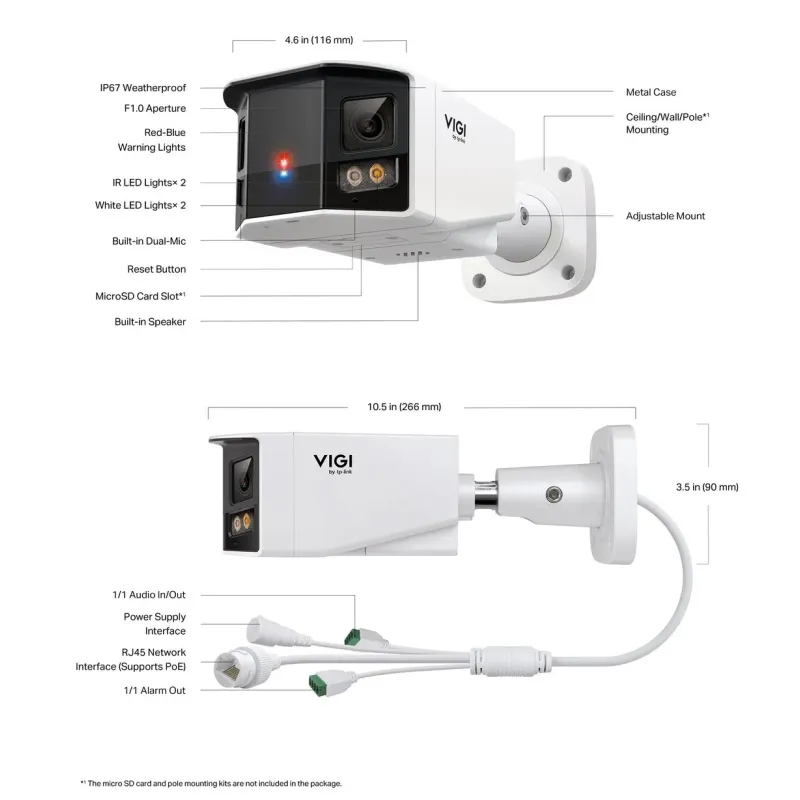

| Product Dimensions (L x W x H) | 10.5 × 4.6 × 3.5 in (266 × 116 × 90 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
