Insight S385Pi
TP-Link VIGI 8MP Outdoor IR Panoramic Bullet Network Camera ความละเอียด 8MP มุมกว้าง 180 องศา Outdoor บันทึก Video มาตรฐาน H.265+ บันทึกลงบน NVR หรือ Memory Card สูงสุด 512GB รองรับ POE
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
คู่มือการใช้กล้อง TP-Link VIGI ดูผ่าน Cloud แบบไม่มี NVR
TP-Link Omada Cloud จัดการระบบ Network และ CCTV ผ่าน Cloud
Review VIGI VMS บริหารจัดการระบบ VIGI CCTV Multi-Site ผ่าน Cloud
Review กล้อง VIGI Insight S385Pi ความละเอียด 8MP มุม180องศา พร้อมระบบ AI
Review กล้อง VIGI Insight S385Pi ความละเอียด 8MP มุม180องศา พร้อมระบบ AI
คู่มือการใช้งานเชื่อมต่อกล้องกับเครื่องบันทึก NVR (ไทย)
วิธีการติดตั้ง TP-Link VIGI App บน Smartphone
VIGI Wired Camera(EU1_Asia-Pacific_14 Languages) Installation Guide
VIGI InSight S385Pi V1 Datasheet
Insight S385Pi Product Specification | |
Overview | TP-Link VIGI Insight S385Pi 8MP Outdoor IR Panoramic Bullet Network Camera ความละเอียด 8MP มุมกว้าง 180 องศา ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 512GB รองรับ POE |
VIGI 8MP Outdoor IR Panoramic Bullet Network Camera SPEC: 8MP, 1.65mm Fixed Lens, 1/2.7’’ Progressive Scan CMOS, H.265+/H.265/H.264+/H.264, IR LED, 25fps/30fps (3840 × 2160), IP67, IK10, PoE/DC 12V,120dB WDR, Built-in Mic/Speaker, micro-SD Slot (up to 512GB), Alarm In/Out, Audio In/Out FEATURE: 180° Panorama View, Red-Blue Warning, Lights IR Night Vision (Up to 20 m), Smart Detection (Human &Vehicle Classification), People & Vehicle Analytics, SmartVid (Smart IR, 3D DNR, BLC), ONVIF (Profile S/T/G), Remote Monitoring, VIGI App, Web, NVR, VMS | |
CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | • Horizontal FOV: 180° • Vertical FOV: 86° • Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | 1.65mm: • D: 144.36 ft (44 m) • O: 60.15 ft (18.33 m) • R: 28.87 ft (8.8 m) • I: 14.44 ft (4.4 m) |
Angle Adjustment (Manual) | |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR | |
| IR LED | • Quantity: 4 • Range: 65.62 ft (20 m)*1 • Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
| Max. Resolution | 3840 x 2160 |
| Main Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps |
Image | |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | Yes |
AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone Audio In Interface |
| Audio Output | Built-in Speaker Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) • Alarm Input Device |
| Alarm Linkage | • Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm |
Deep Learning Function | |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. *2 |
INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5 |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
GENERAL | |
| Operating Temperature | -30℃ to 60 °C |
| Storage Temperature | -40 to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Material | Metal |
| Net Weight | 1.01Kg |
| Power Supply | • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, Class 4, Max. 21W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |

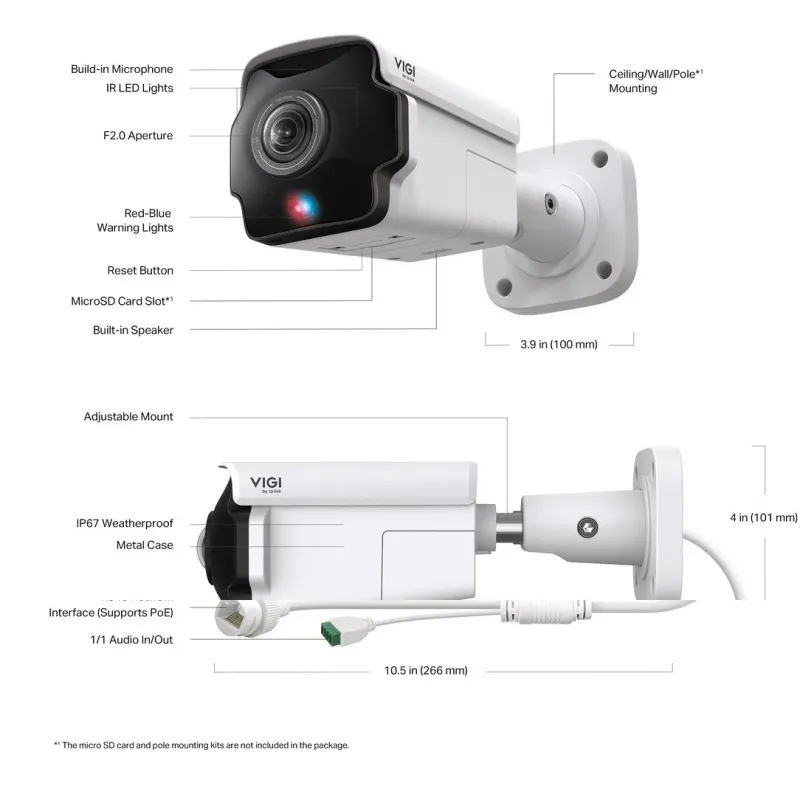

| Product Dimensions (L x W x H) | 10.5 × 3.9 × 4 in (266 × 100 × 101 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |

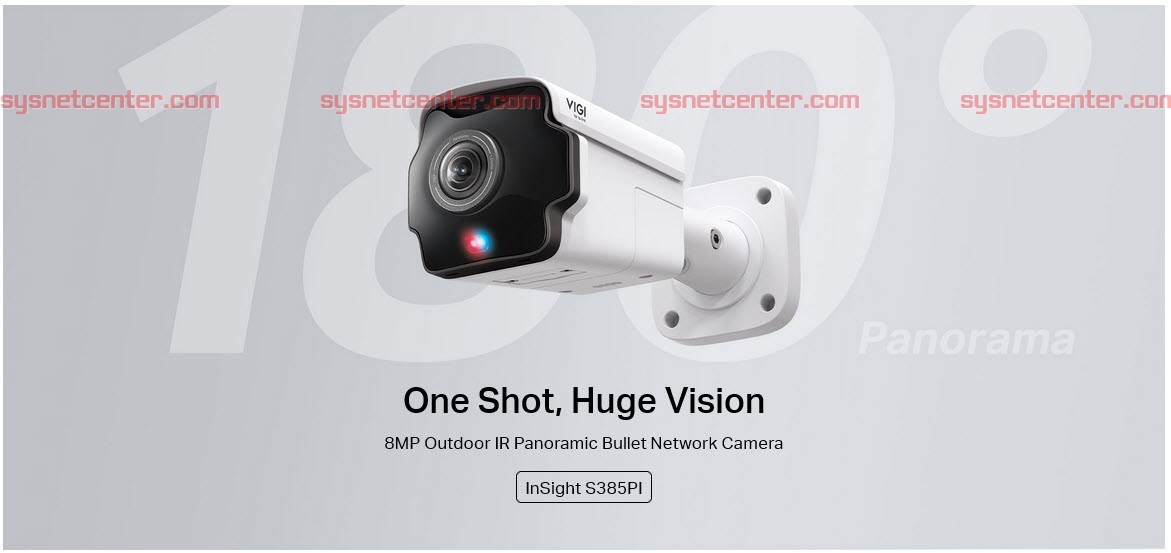

One Shot, Huge Vision.
8MP Outdoor IR Panoramic Bullet Network Camera

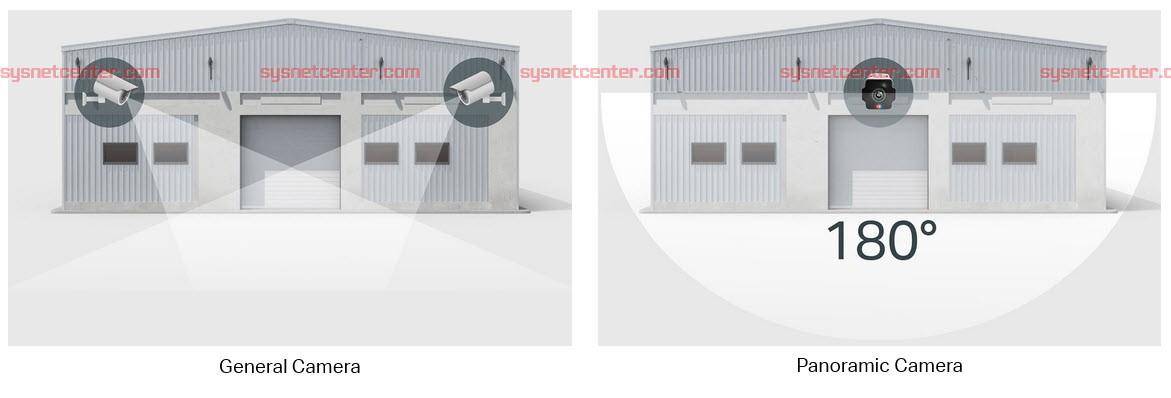

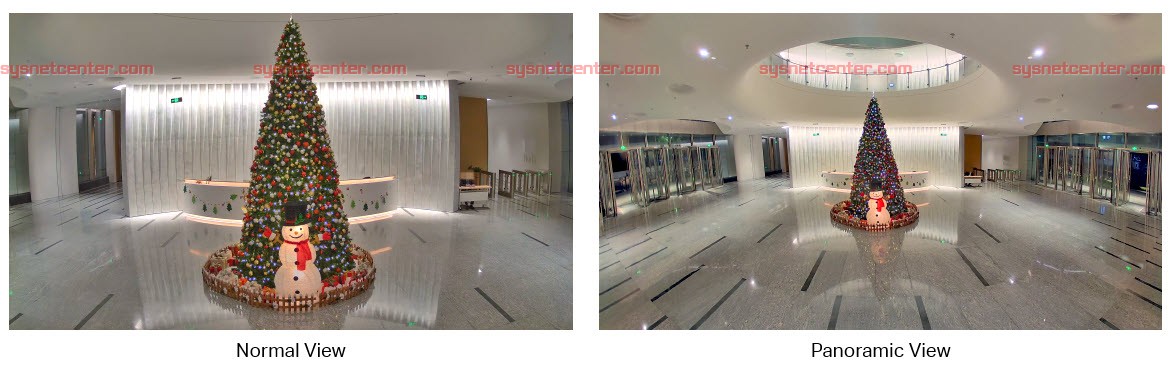

General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.

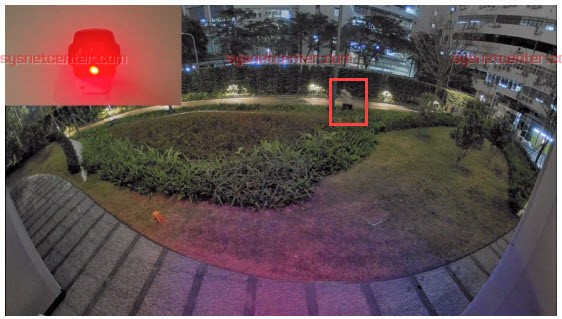

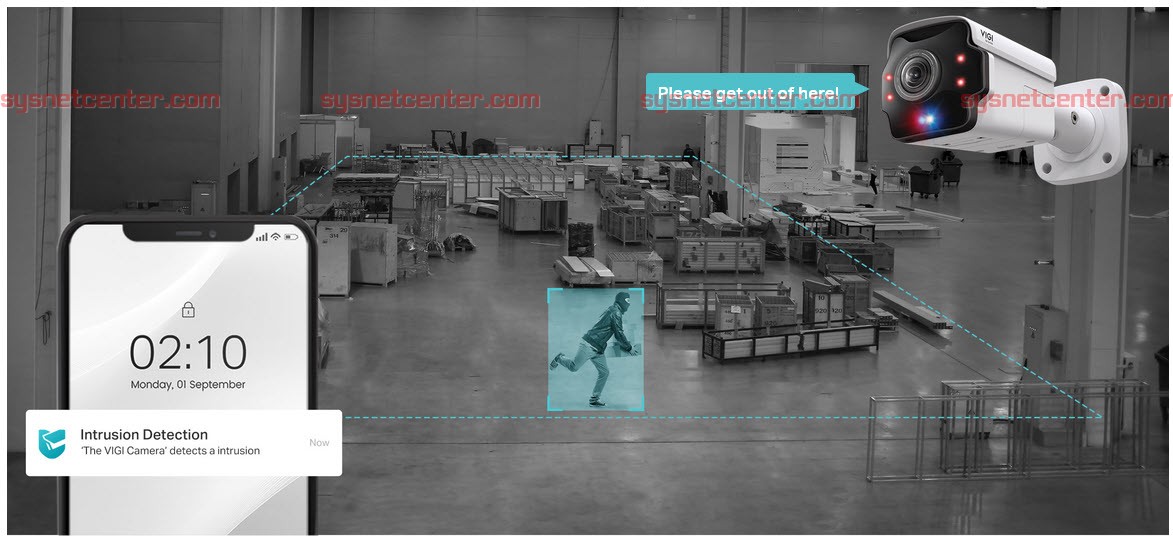

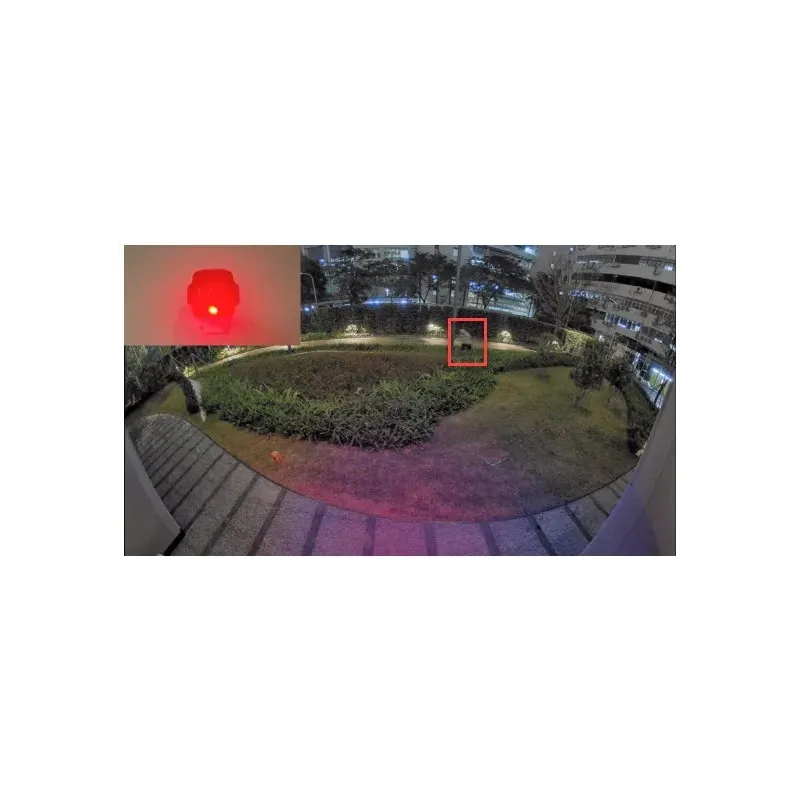

Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.

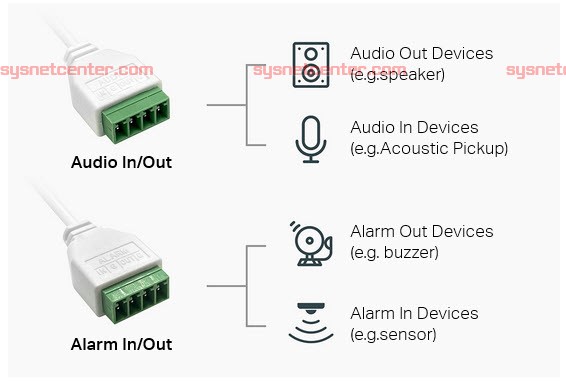

The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.

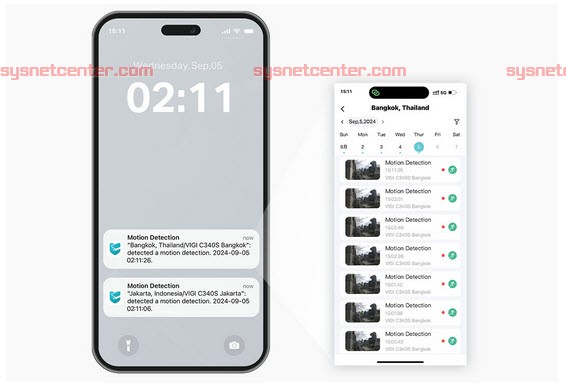

When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.*3
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.*2
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*4
