VIGI Insight S425 Product Specification |

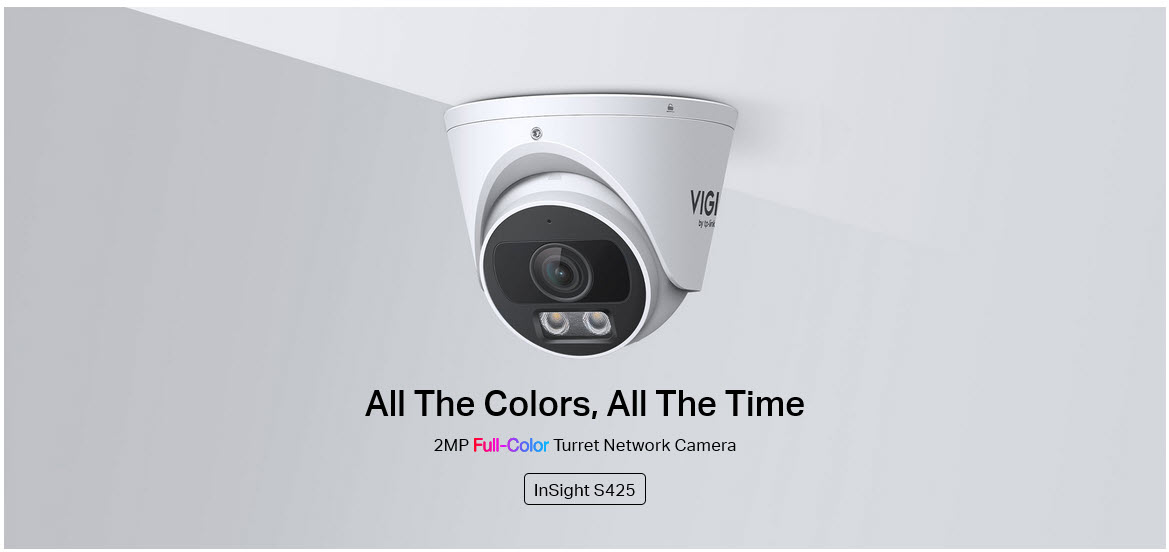

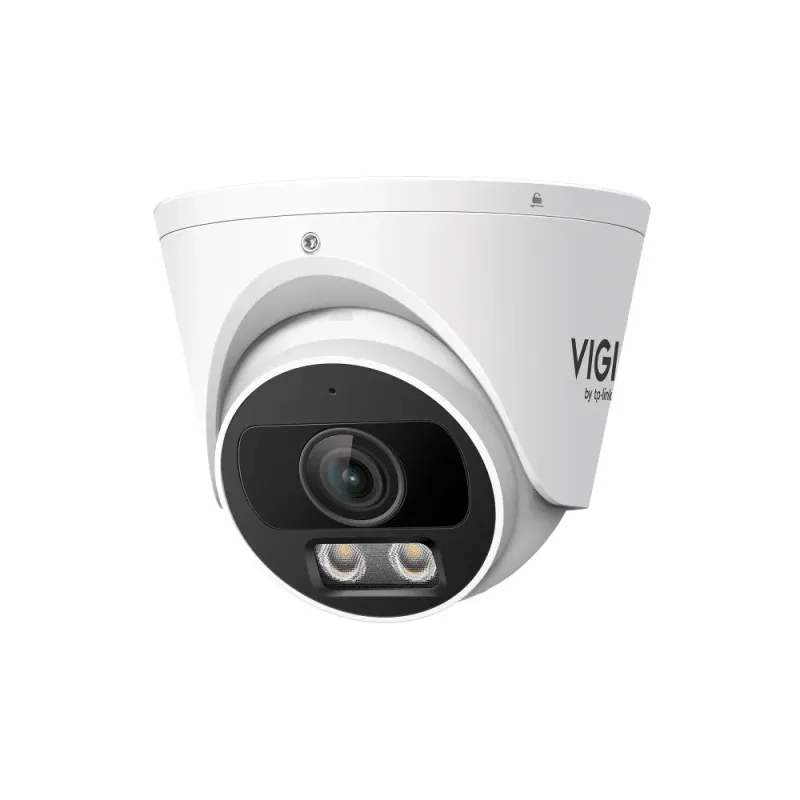

Overview | TP-Link VIGI Insight S425 2MP Full-Color Turret Network Camera กล้อง IP-Camera แบบ Turret ความละเอียด 2MP เลนส์ให้เลือกขนาด 2.8/4mm บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR รองรับ POE |
CAMERA |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.01 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F2.0 |
| FOV | • 2.8 mm:
Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117°
• 4 mm:
Horizontal : 75.2°, Vertical: 40.8°, Diagonal: 88.3° |
| Lens Mount | M12 |
| DORI Distance | • 2.8 mm
Detect: 153 ft (47 m)
Observe: 64 ft (19 m)
Recognize: 31 ft (9 m)
Identify: 15 ft (5 m)
• 4 mm
Detect: 194 ft (59 m)
Observe: 81 ft (25 m)
Recognize: 39 ft (12 m)
Identify: 19 ft (6 m) |
Angle Adjustment (Manual) |
| Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
ILLUMINATOR |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Integrated Infrared-White LED | • Quantity: 2
• IR Range: 98 ft (30 m)*2
• White LED Range: 98 ft (30 m)*2
• IR Wavelength: 850 nm |
VIDEO |
| Max. Resolution | 1920x1080 |
| Main Stream | • Frame Rate：
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
1920x1080, 1280x960, 1280x720
• Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240
• Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps |
Image |
| Image Settings | • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | N/A |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI APP, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool |
| Web Browser | • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT |
| Smart Event | • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection

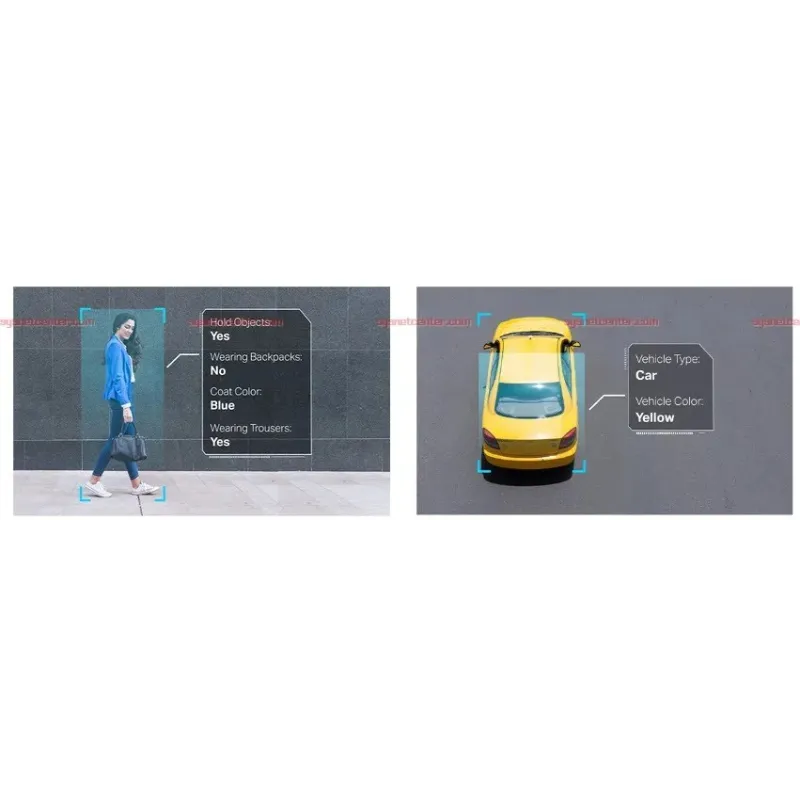

• People Detection
• Vehicle Detection |

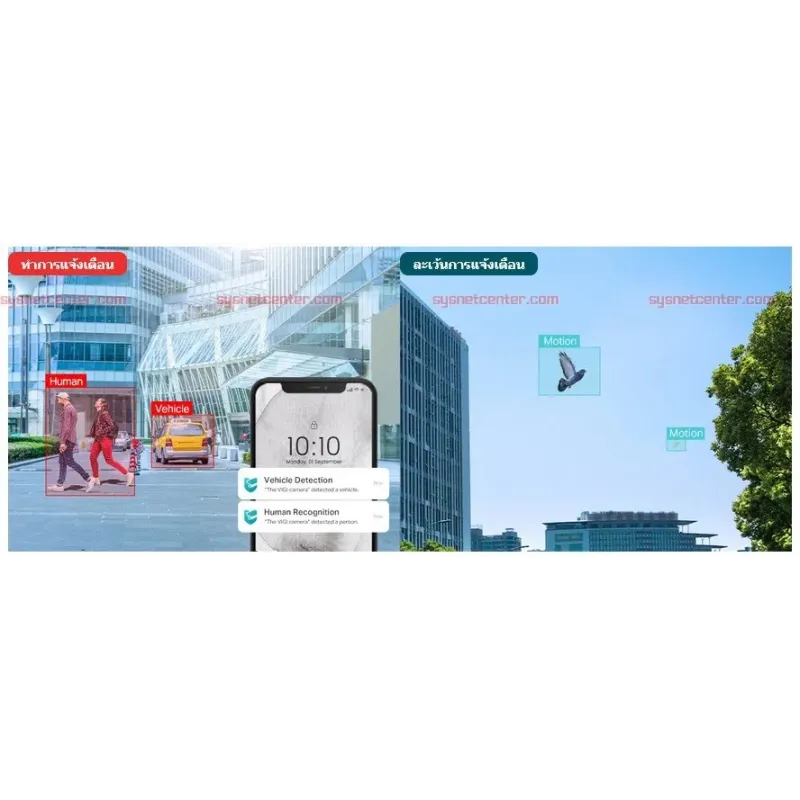

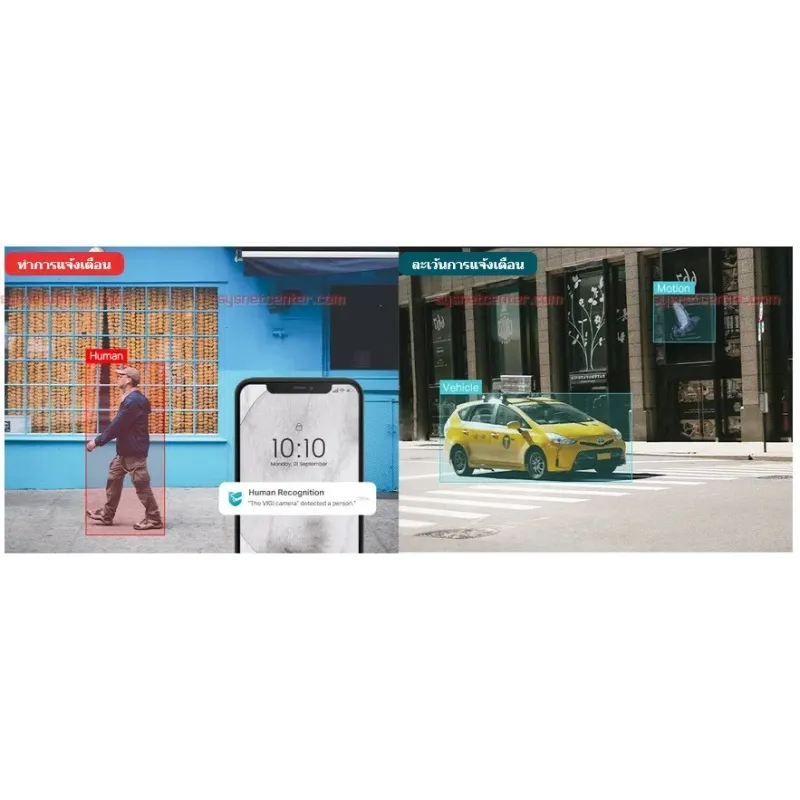

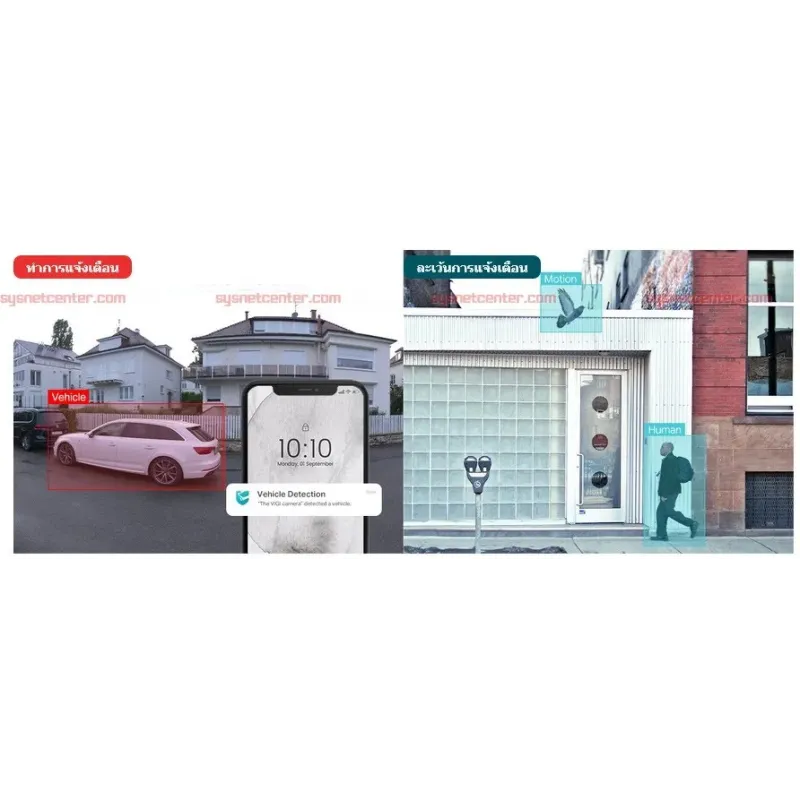

| Basic Event | • Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
• Camera Tampering
• Exception (Illegal Login) |
| Alarm Linkage | • Upload to FTP server
• Push Notifications
• Send to Alarm Server
• Email Alarm |
INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4 ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
GENERAL |
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories |
| Material | Metal |
| Net Weight | 0.43 Kg |
| Power Supply | • 12V DC ± 5%, Max. 7.4 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 8 W |
| Protection | IP67 Waterproof, IK08 Vandal Proof |

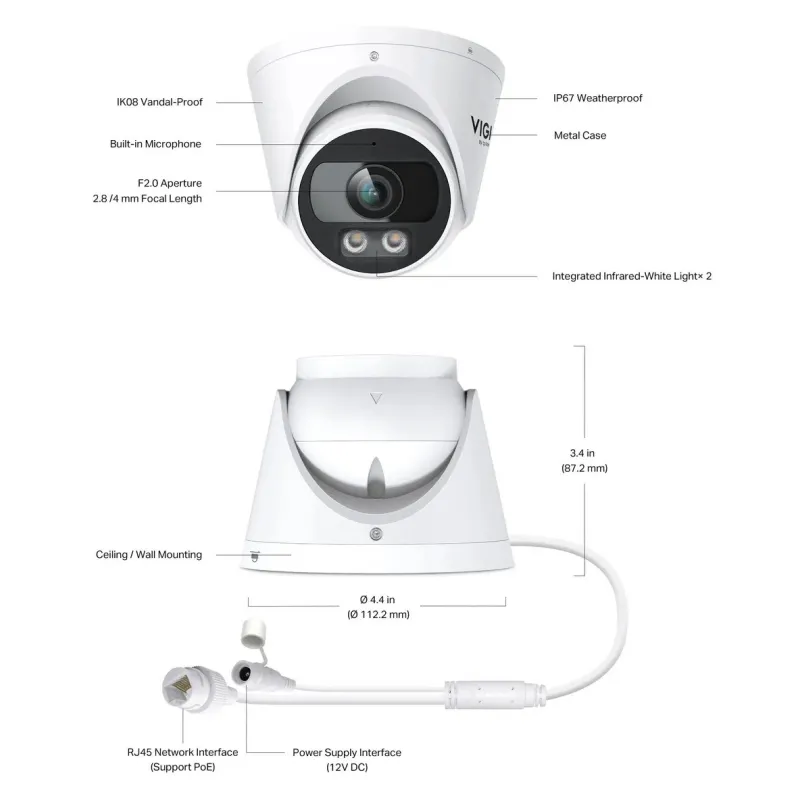

| Product Dimensions (L x W x H) | Ø4.4 × 3.4 in (Ø112.2 × 87.2 mm) |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK08 |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
