VIGI Insight S485Pi Product Specification |

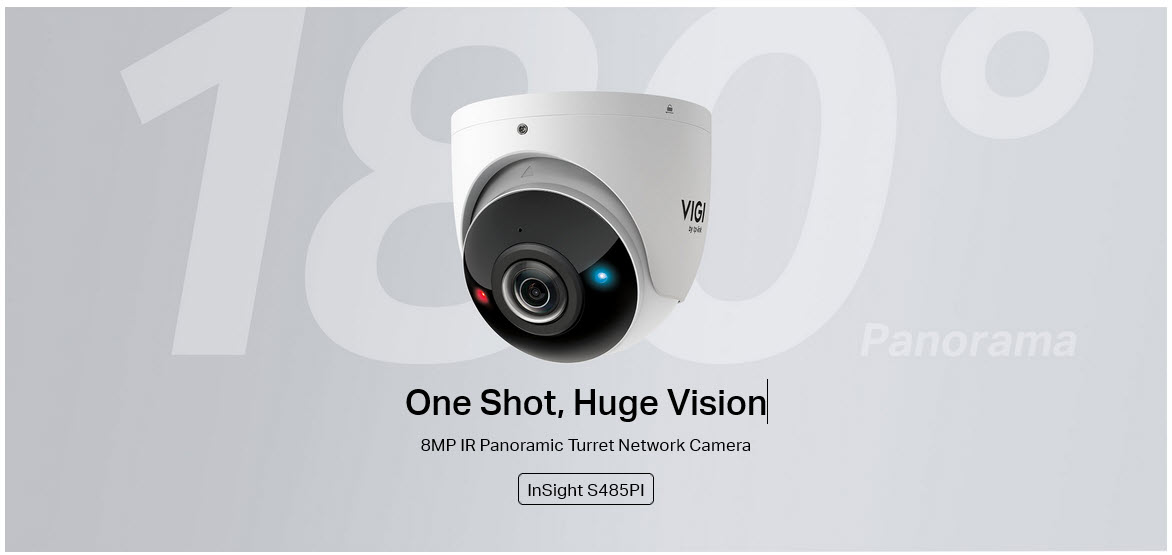

Overview | TP-Link VIGI Insight S485Pi 8MP Outdoor IR Panoramic Turret Network Camera ความละเอียด 8MP มุมกว้าง 180 องศา ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 512GB รองรับ POE |
| | VIGI 8MP IR Panoramic Turret Network Camera SPEC: 8MP, 1.65mm Fixed Lens, 1/2.7’’ Progressive Scan CMOS, H.265+/H.265/H.264+/H.264, IR LED, 25fps/30fps (3840 × 2160), IP67, IK10, PoE/DC 12V,120dB WDR, Built-in Mic/Speaker, micro-SD Slot (up to 512GB), Alarm In/Out, Audio In/Out FEATURE: 180° Panorama View, Red-Blue Warning, Lights IR Night Vision (Up to 20 m), Smart Detection (Human &Vehicle Classification), People & Vehicle Analytics, SmartVid (Smart IR, 3D DNR, BLC), ONVIF (Profile S/T/G), Remote Monitoring, VIGI App, Web, NVR, VMS |
CAMERA |
| Image Sensor | 1/2.7“ Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | 1.65mm:

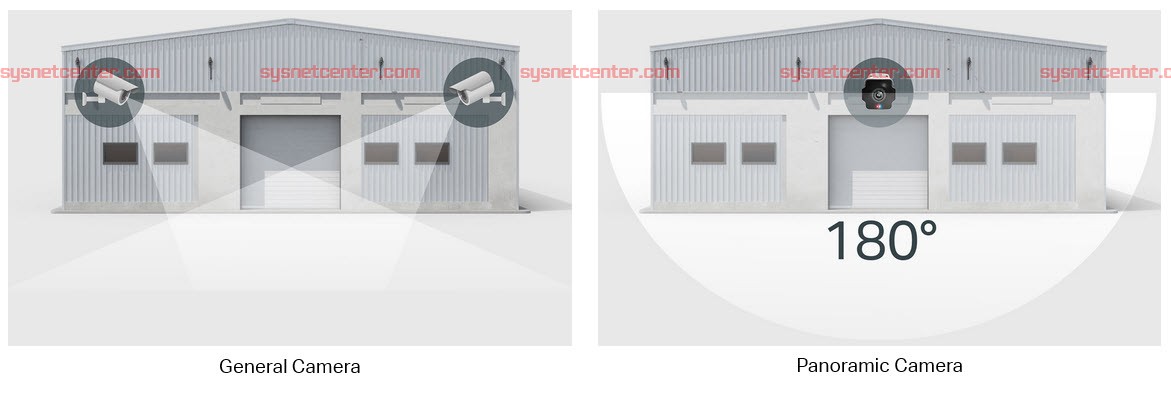

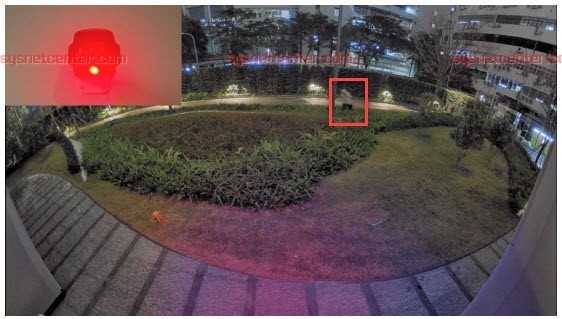

• Horizontal FOV: 180°
• Vertical FOV: 86°
• Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | 1.65mm
• Detect: 144.36 ft (44 m)
• Observe: 60.15 ft (18.33 m)
• Recognize: 28.87 ft (8.8 m)
• Identify: 14.44 ft (4.4 m) |
Angle Adjustment (Manual) |
| Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
ILLUMINATOR |
| IR LED | Quantity: 4
Range: 65.62 ft (20 m)
Wavelength: 850 nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 3840x2160 |
| Main Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps
Sub-Stream: 64 Kbps to 1024 Kbps |
Image |
| Image Settings | • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone
Audio In Interface |
| Audio Output | Built-in Speaker
Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT |
| Smart Event | • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection |

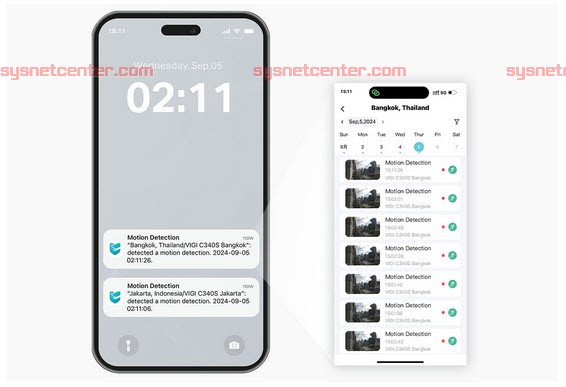

| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Input Device |
| Alarm Linkage | • Memory Card Video Recording
• Upload to FTP Server
• Alarm Output Device
• Push Notifications
• Send to Alarm Server
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm |
Deep Learning Function |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3 |

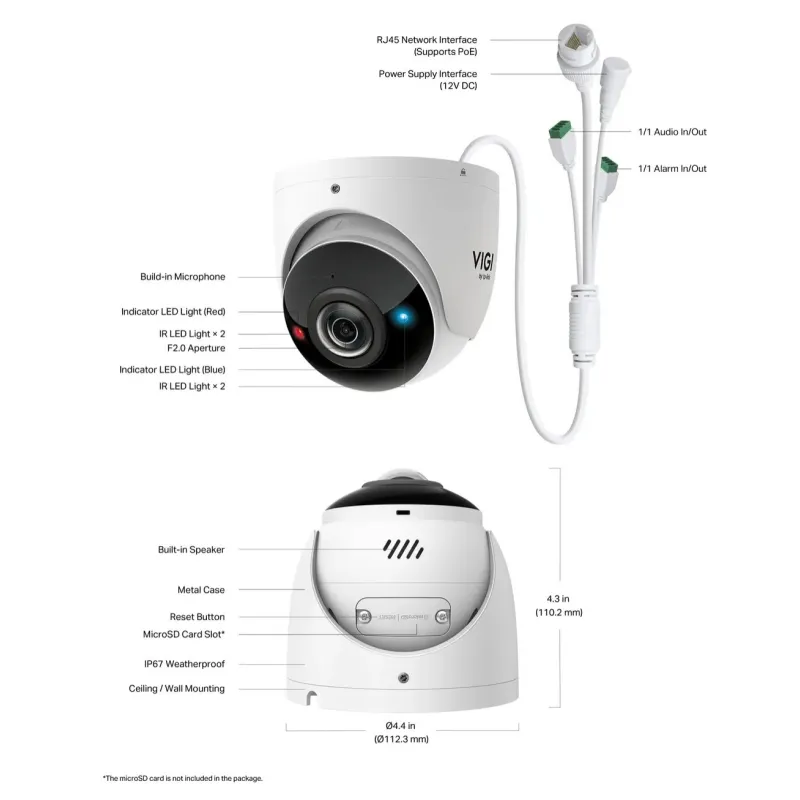

INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |

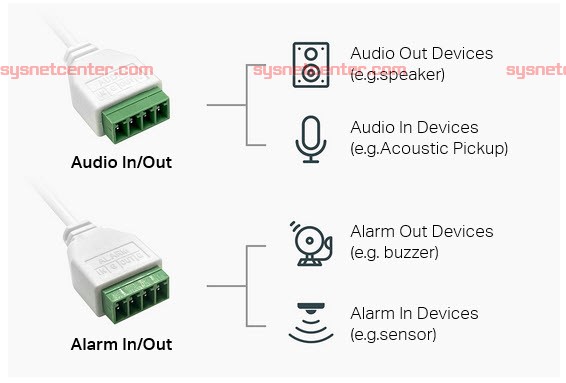

| Alarm | 1 Alarm In, 1 Alarm Out
Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5 |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
GENERAL |
| Operating Temperature | -30 to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-condensing) |
| Storage Humidity | 95% or Less (Non-condensing) |
| Package Content | VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
| Material | Metal |
| Net Weight | 0.76 Kg |
| Power Supply | • 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3at, class 4, Max. 21 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm) |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10 |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
