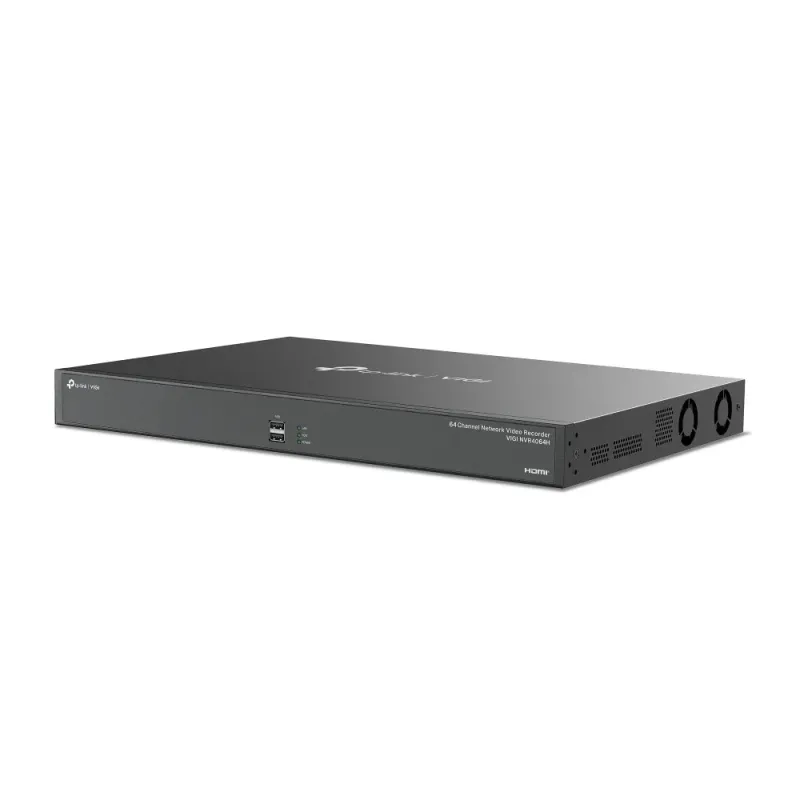

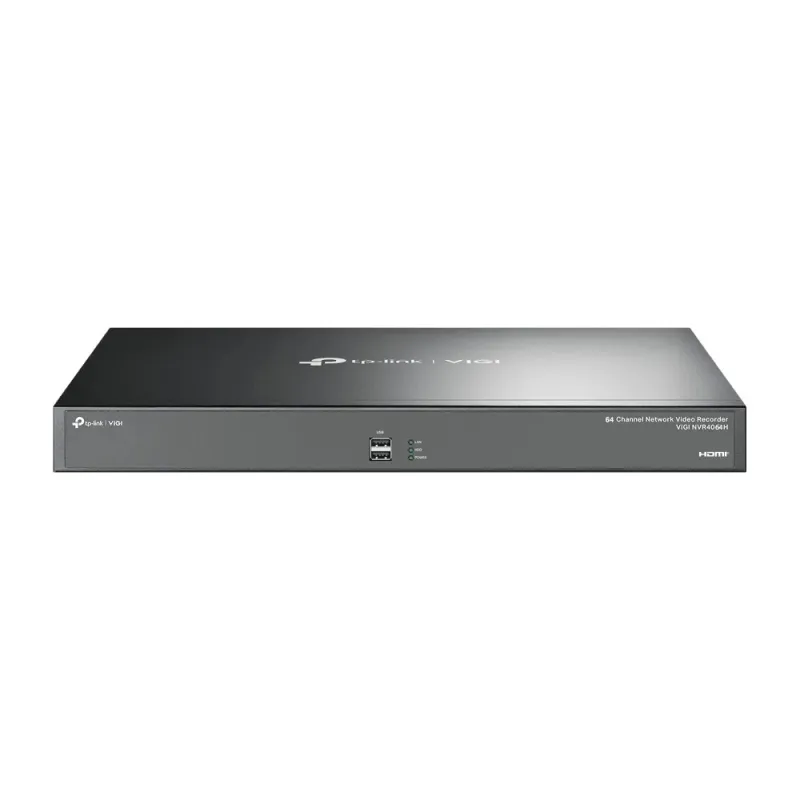

VIGI NVR4064H TP-Link NVR เครื่องบันทึก Network Video Recorder 64 Channel บันทึกมาตรฐาน H.265+ รองรับ HDD 4 ลูก รวมสูงสุด 16TB (Not Include)
Support / ติดตั้งด้วยทีมงานที่มีความชำนาญ Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
TP-Link Omada Cloud จัดการระบบ Network และ CCTV ผ่าน Cloud
Review VIGI VMS บริหารจัดการระบบ VIGI CCTV Multi-Site ผ่าน Cloud
VIGI Security Manager_User Guide
วิธีการติดตั้ง TP-Link VIGI App บน Smartphone
VIGI Security Manager_User Guide
Product Specification | |
Overview | TP-Link VIGI NVR4064H NVR เครื่องบันทึก Network Video Recorder 64 Channel บันทึกมาตรฐาน H.265+ รองรับ HDD 4 ลูก รวมสูงสุด 16TB (Not Include) |
Video and Audio | |
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260Mbps Extended Bandwidth Mode: 320Mbps |
| Outgoing Bandwidth | Default: 180Mbps Extended Bandwidth Mode: 320Mbps |
| HDMI Output Resolution | 2 Channels • HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz • HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | • HDMI1/HDMI2 Independent output • HDMI1/VGA Independent output Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output. |
| Multi-View Display | 1,4,6,8,9,16,25,32,36,49,64 |
DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel† |
| Capability | • 25fps: 16-ch@2MP、32-ch@720P、64-ch@D1 • 30fps: 4-ch@8MP、6-ch@5MP、8-ch@4MP |
Record Management | |
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |

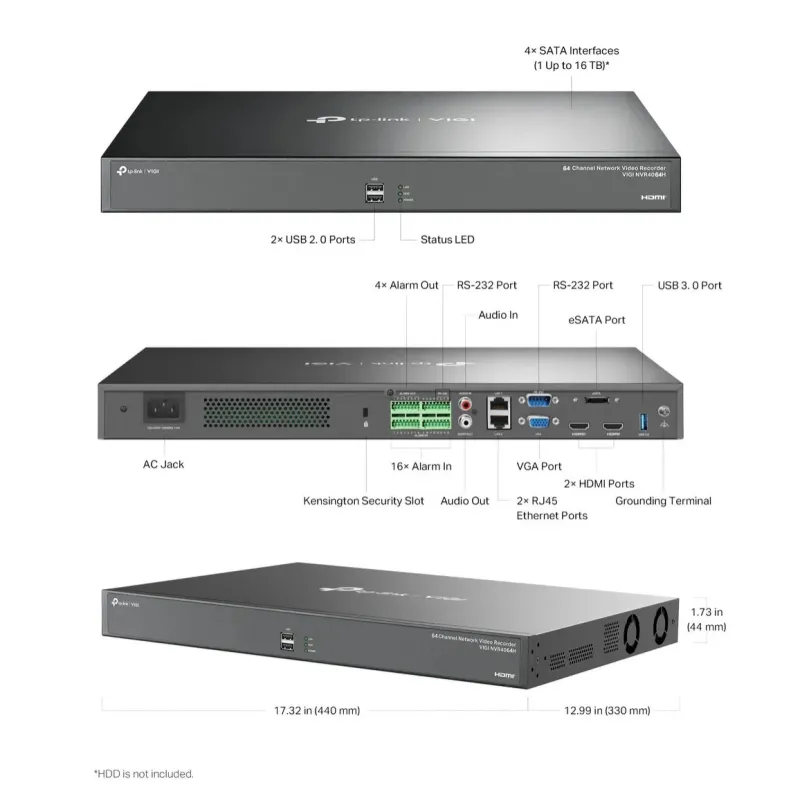

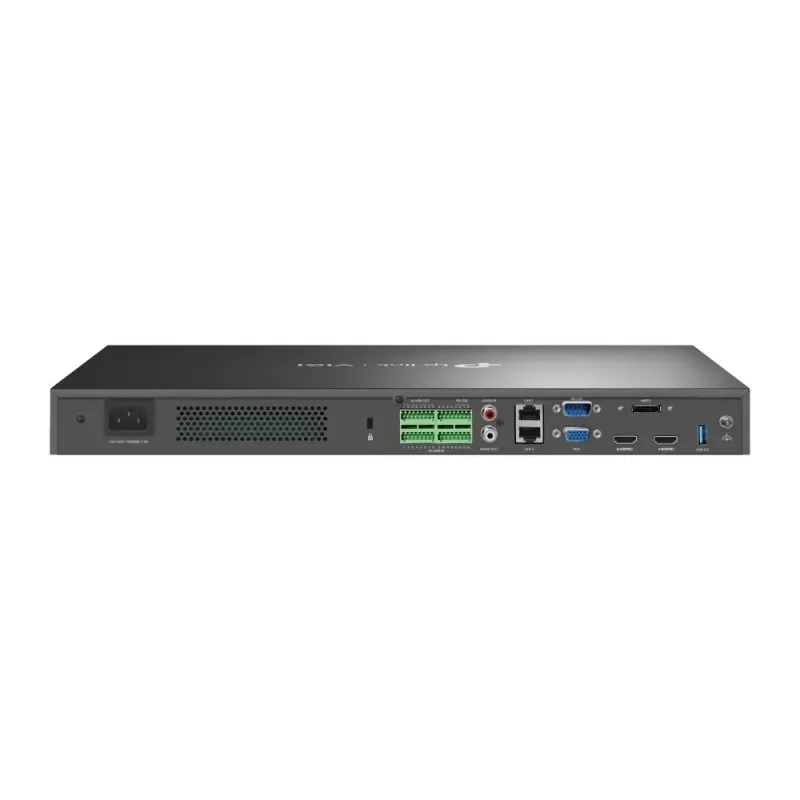

External Interface | |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
HARD DISK | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
Alarm | |
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera. |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | • VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet |
| Working Temperature | NVR: -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm) |
| Net Weight | 4.0 Kg# |
| Gross Weight | 5.0 Kg# |
| Power Supply | 100-240 VAC, 50 to 60Hz, 1.5A |
| Max. Power Consumption | • 6.95 W (Without Disk) • 48.38 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
