Product Specification |

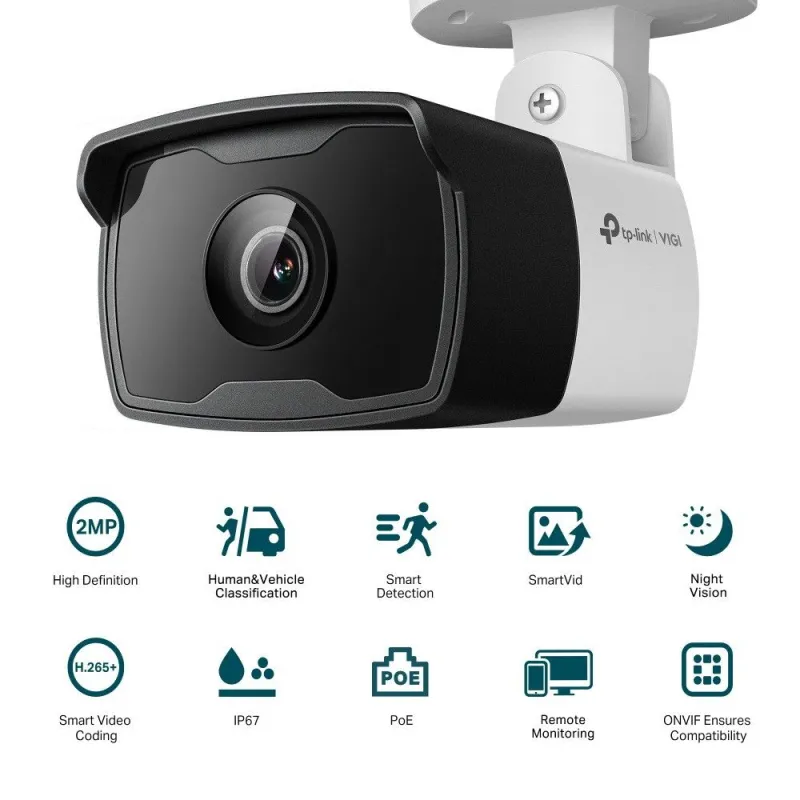

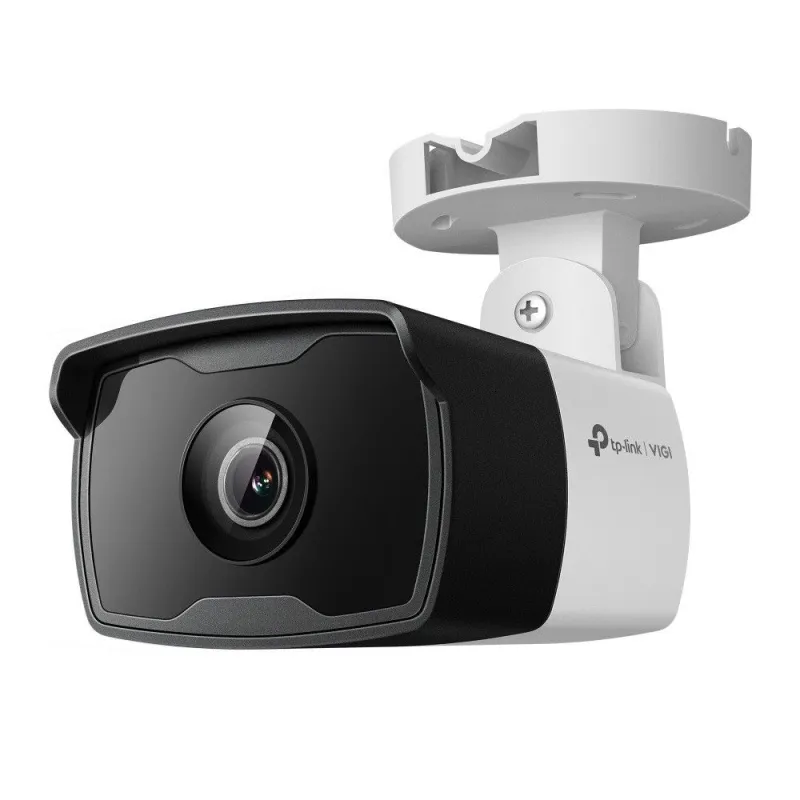

Overview | TP-Link VIGI C320I กล้อง IP-Camera แบบ Bullet ความละเอียด 2MP ติดตั้งภายใน/ภายนอกอาคาร กันน้ำกันฝุ่นมาตรฐาน IP67 เลนส์ให้เลือกขนาด 2.8/4/6mm บันทึก Video มาตรฐาน H.265+ รองรับ POE |
CAMERA |
|---|
Image Sensor | 1/3” Progressive Scan CMOS |
|---|
Lens | 2.8 mm/ 4 mm/6 mm |
|---|
Aperture | 2.8 mm: F2.2
4 mm: F2.0
6 mm: F2.0 |
|---|
Lens Mount | M12 |
|---|

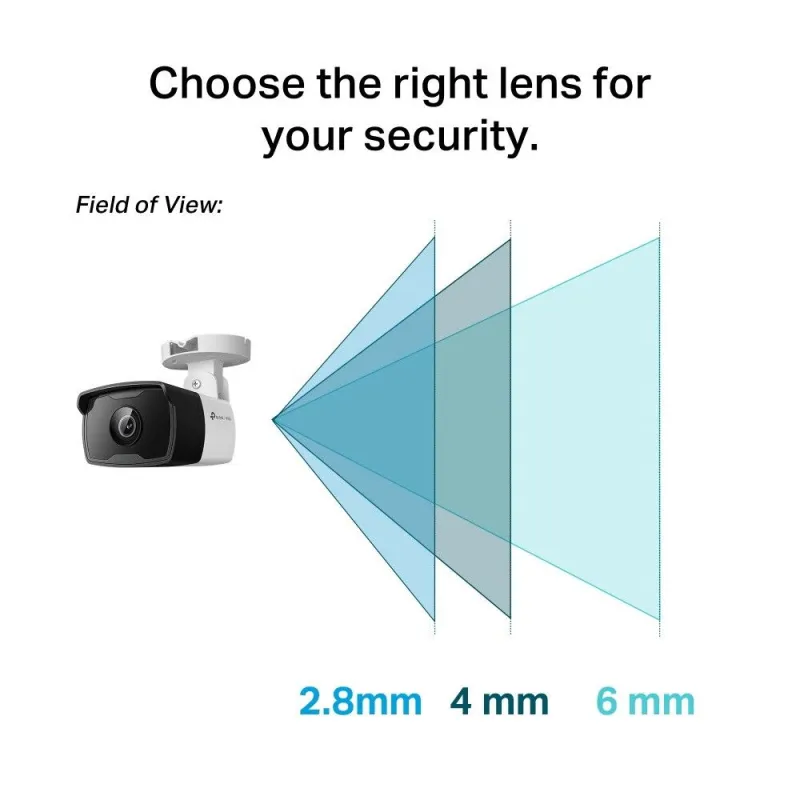

Viewing Angle | 2.8mm: 88.2°/48.7°/106.5°(H/V/D)
4mm: 74.6°/41.3°/88.1°(H/V/D)
6mm: 47.7°/26.5°/56°(H/V/D) |
|---|
Day/Night Mechanism | IR Cut Filter |
|---|
IR Working Distance | 30m |
|---|
Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
|---|

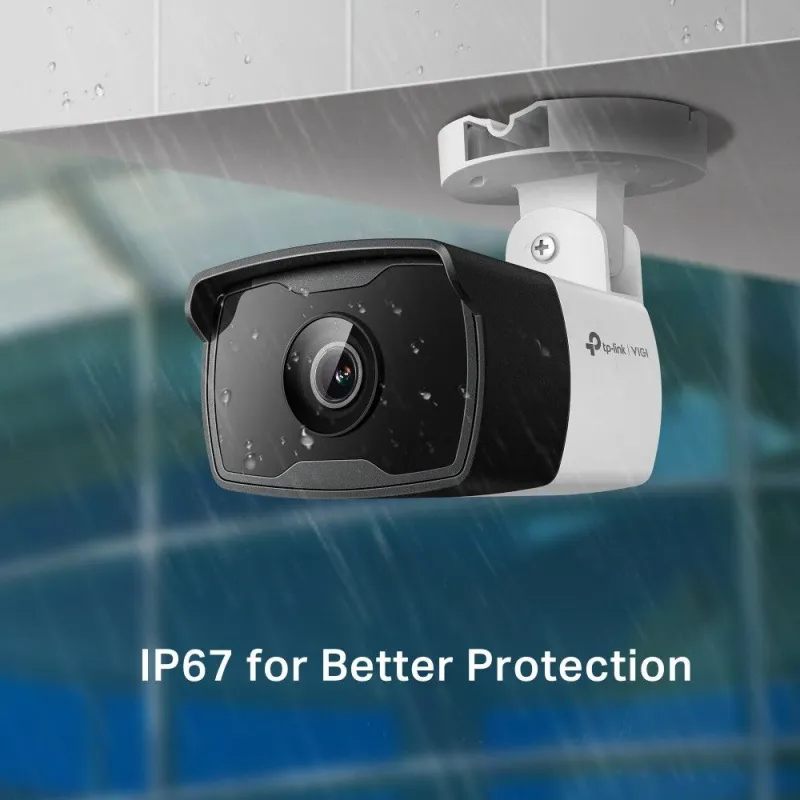

Weatherproof Rating | IP67 |
|---|
Digital Noise Reduction | 3D DNR |
|---|
WDR | DWDR |
|---|
NETWORK |
|---|
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
|---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS |
|---|
API | ONVIF |
|---|
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
|---|
Client | VIGI App, VIGI Security Manager, VIGI NVR |
|---|
GENERAL |
|---|

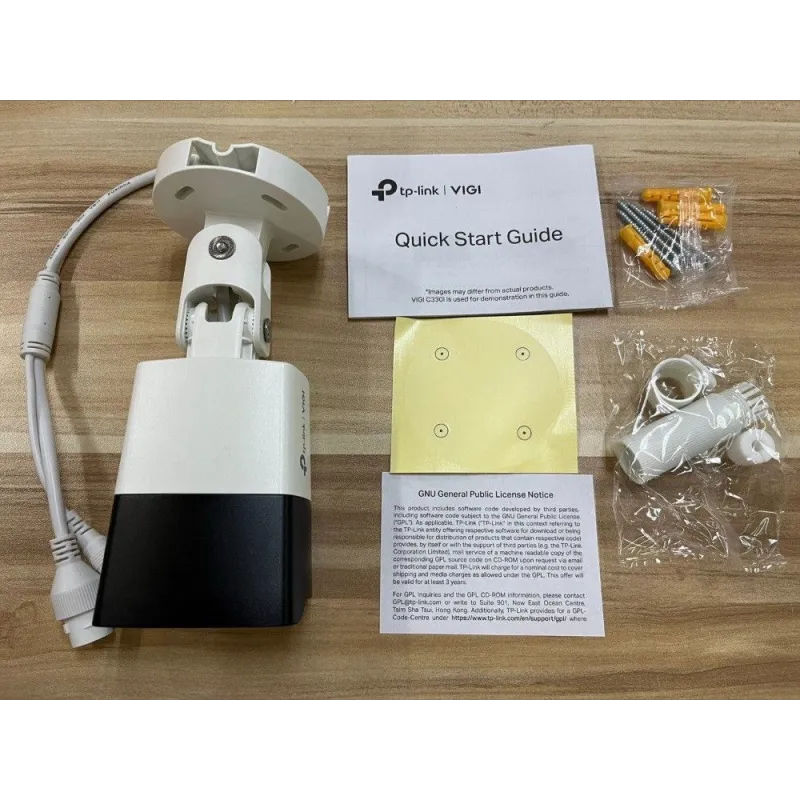

Package Contents | VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
|---|
Operating Temperature | -30–60 °C |
|---|
Certifications | CE/BSMI/VCCI/ONVIF |
|---|
Dimensions( H X W X D ) | 115 × 115 × 86 mm |
|---|
Material | Plastic |
|---|
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
|---|
Power Supply | PoE (802.3af/at, class 0)
|
|---|
Power Consumption | PoE: Class 0 |
|---|
Vandal Resistant | IK10 |
|---|
VIDEO/IMAGE |
|---|

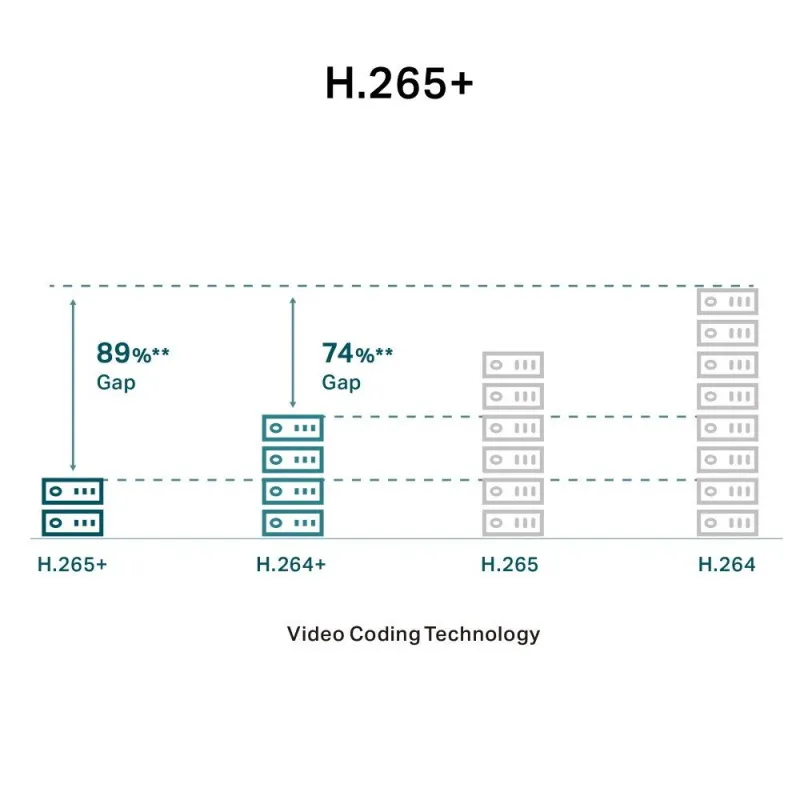

Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
|---|
Frame Rate & Resolutions | Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920x1080, 1280x960, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240 |
|---|
Max. Resolution | 2MP (1920 × 1080) |
|---|
Video Streaming | Main Stream
Sub-Stream |
|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
|---|

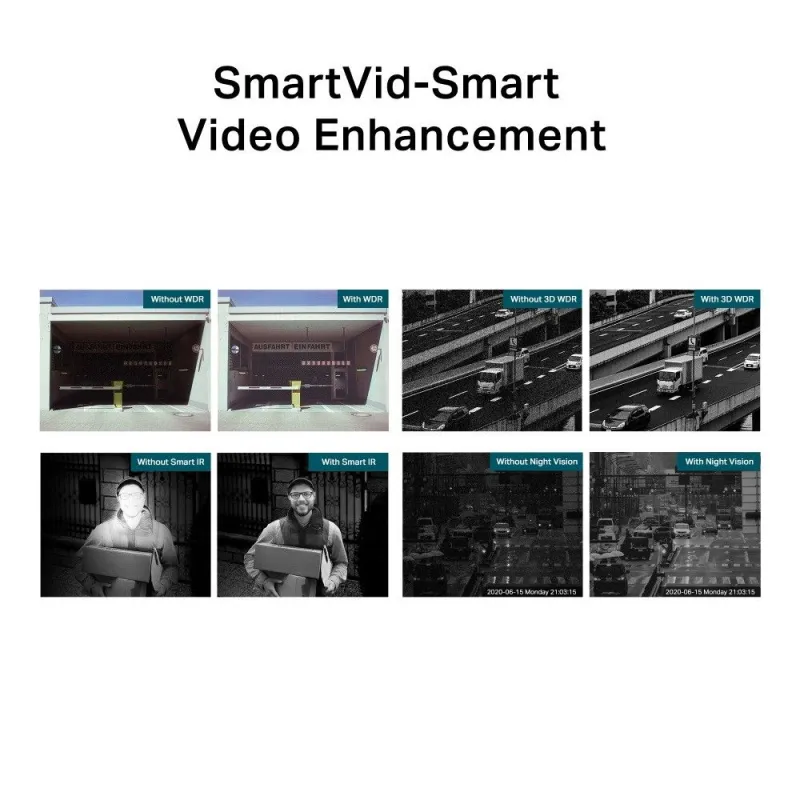

Image Enhancement | BLC/3D DNR/HLC/SmartIR |
|---|
Video Bit Rate | 64 Kbps to 4 Mbps |
|---|
Day/Night Switch | Day/Night/Auto/Schedule |
|---|
SMART FEATURE-SET |
|---|
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
|---|
Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
|---|
Linkage Method | Trigger Notification: ONVIF, HTTPS |
|---|
Region of Interest | 1 Region |
|---|
INTERFACES |
|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
|---|
Button | - |
|---|
Video Output | - |
|---|
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
|---|
