VIGI C640-W Product Specification |

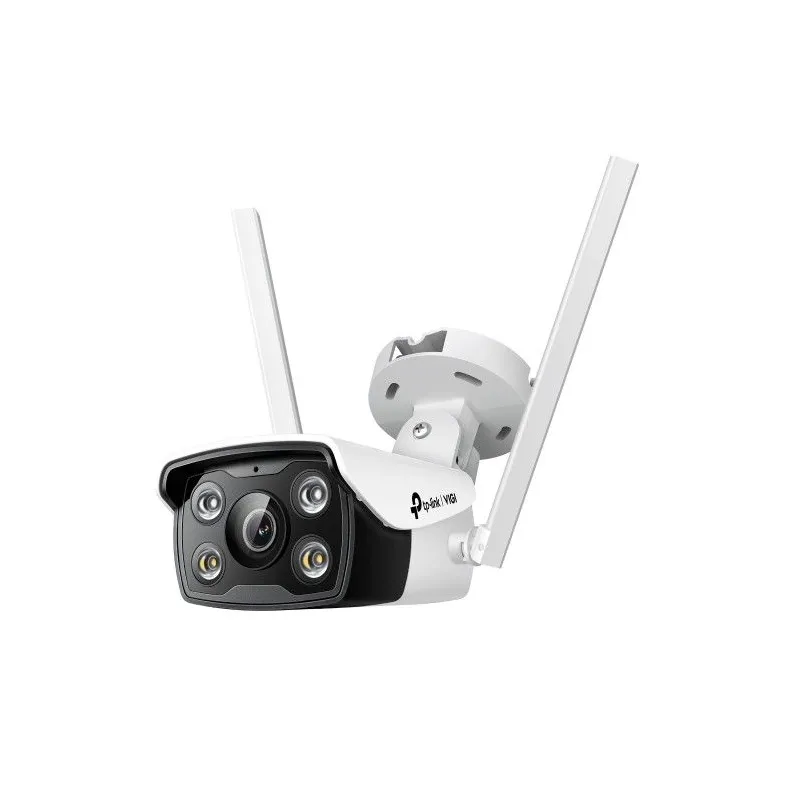

Overview | TP-Link VIGI C340-W กล้อง IP-Camera แบบ Bullet ความละเอียด 3MP Two-Way Audio รองรับเชื่อมต่อ WIFI 2.4GHz ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ เลนส์ขนาด 4mm รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 512GB |
CAMERA |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2° |
| Lens Mount | M12 |
| DORI Distance | • Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft) |
Angle Adjustment (Manual) |
| Range | • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360° |
| ILLUMINATOR |
| IR LED | • Quantity: 2
• Range: 30m
• Wavelength: 850nm |
| White LED | • Quantity: 2
• Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 2560 X 1440 |
| Main Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps |
Image |
| Image Settings | • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness, Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | • TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
WIRELESS |
| Standards and Protocols | IEEE 802.11b/g/n |
| WiFi Channels | • UN: 1-13
• US: 1-11 |
| Frequency | 2.4 GHz |
| Wireless Transmit Power | High |
| Auto Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Monitoring | N/A |
| Radio Bandwidth | • Auto: N/A
• 20M: Yes
• 40M: Yes |
| Wireless Rate | • 11Mbps(802.11b)
• 54Mbps(802.11g)
• 150/300Mbps(802.11n) |
| Wireless Security | WPA-PSK/WPA2-PSK |
| Wireless Mode | AP, AP Client |
ALARM AND EVENT MANAGEMENT |
| Smart Event | • Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Scene Change Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection
• Loitering Detection |
| Basic Event | • Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Upload Capture to FTP |
| Linkage Method | N/A |
| Output Notification | Message Push |
INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
GENERAL |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Power Adapter
• Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.38 Kg |
| Gross Weight | 0.66 Kg |
| Power Supply | 9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug |
| Antenna | • Quantity: 2
• Type: 2.4GHz Welded Dipole Omni-Directional Antenna
• Gain: 2.0dBi |
| Protection | IP66 Waterproof |
| Product Dimensions (L x W x H) | 78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in) |
| Certifications | CE NTRA JRF VCCI BSMI NCC |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
