CAMERA |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | • 2.8 mm: F2.2
• 4 mm: F2.0 |
| FOV | • 2.8mm:
Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°
• 4mm:
Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3° |
| Lens Mount | M12 |
| DORI Distance | • 2.8 mm
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)
• 4 mm
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft) |
Angle Adjustment (Manual) |
| Range | • Pan: 0° to 360°
• Tilt: 0° to 85°
• Rotate: 0° to 360° |
ILLUMINATOR |
| IR LED | • Quantity: 1
• Range: 30m
• Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 1920 × 1080 |
| Main Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
1920x1080, 1280x960, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps |
Image |
| Image Settings | • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | • TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• RTSP
• IPv4
• ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT |
| Smart Event | • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Abnormal Sound Detection
• People Detection
• Vehicle Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login) |
| Alarm Linkage | Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | N/A |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
GENERAL |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera
• Quick Start Guide
• Mounting Accessories |
| Material | Plastic |
| Net Weight | 0.19 Kg |
| Gross Weight | 0.34 Kg |

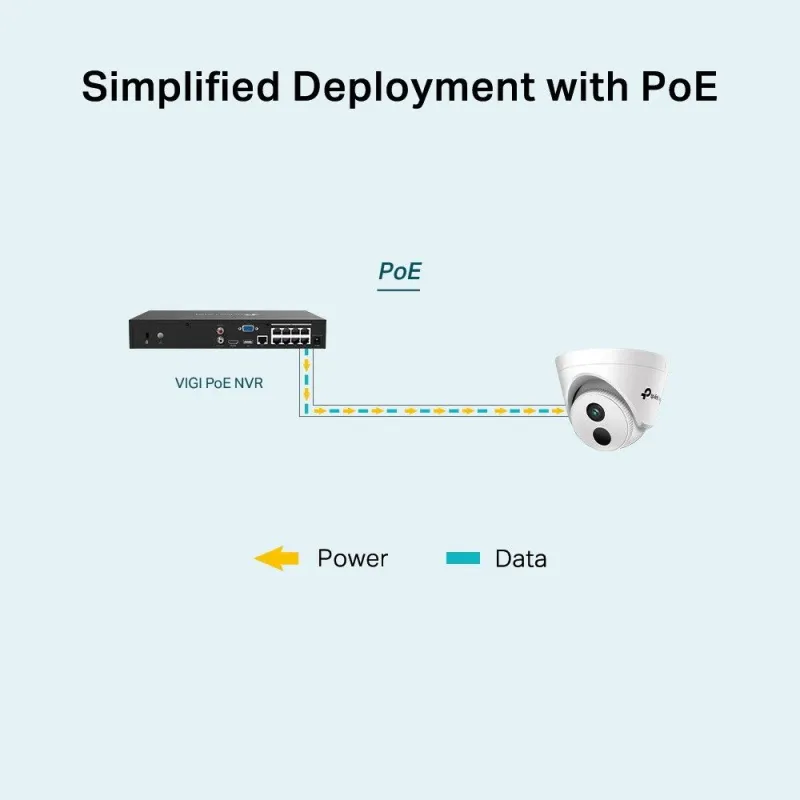

| Power Supply | PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123 × 123 × 83 mm (4.84 × 4.84 × 3.27 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
