VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera
  • VIGI C430 TP-Link 3MP Full-Color Turret Network Camera

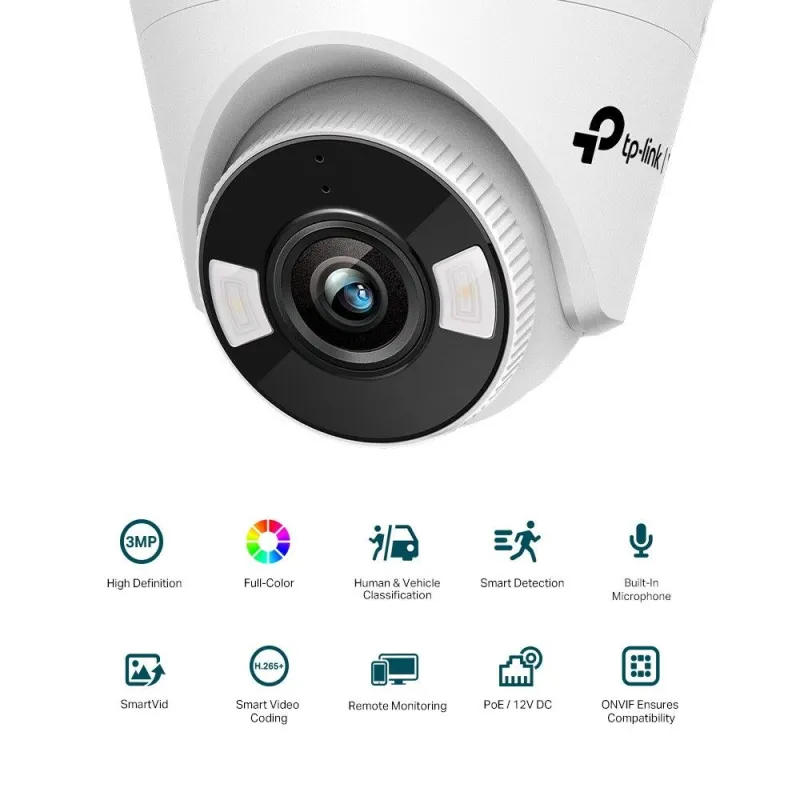

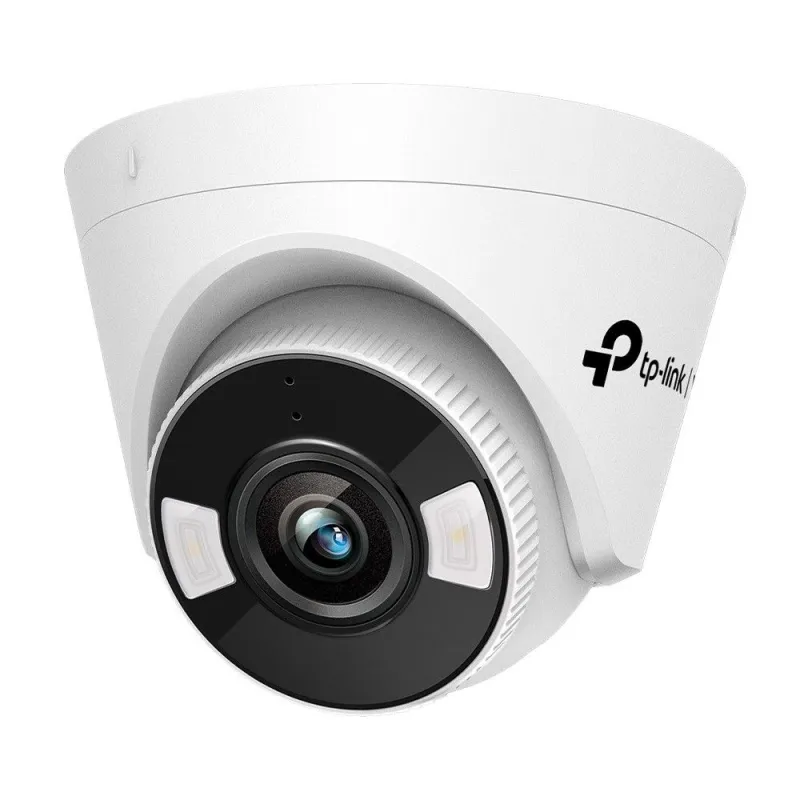

VIGI C430 TP-Link 3MP Full-Color Turret Network Camera

VIGI C430

TP-Link VIGI C430 กล้อง  IP-Camera แบบ Turret ความละเอียด 3MP Full-Color ติดตั้งภายในอาคาร เลนส์ให้เลือกขนาด 2.8/4mm รองรับ POE

฿0.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

รายละเอียด

คู่มือการใช้งานเชื่อมต่อกล้องกับเครื่องบันทึก NVR (ไทย)

วิธีการติดตั้ง TP-Link VIGI App บน Smartphone

TP-Link VIGI C440(UN)_V1_Datasheet
TP-Link VIGI App UG

TP-Link VIGI WiFi Camera(EU1&Asia-Pacific-14Lanuages)_Installation Guide

TP-Link VIGI Camera(ID)_Installation Guide

TP-Link VIGI Security Manager User Guide

TP-Link VIGI C430

กล้องวงจรปิด VIGI 3MP Full-Color Turret Network Camera

  • 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.



Product Specification

Overview

TP-Link VIGI C430 กล้อง  IP-Camera แบบ Turret ความละเอียด 3MP Full-Color ติดตั้งภายในอาคาร บันทึก Video มาตรฐาน H.265+

เลนส์ให้เลือกขนาด 2.8/4mm

รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE

CAMERA

Image Sensor

1/2.8” Progressive Scan CMOS

Minimum Illumination

Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism

IR Cut Filter

Lens

2.8 mm/ 4 mm

Aperture

2.8 mm: F1.6
4 mm: F1.6

Lens Mount

M12

Viewing Angle

2.8mm: 107.5°/57.2°/128.7°(H/V/D)
4mm: 89.1°/45.1°/106.9°(H/V/D)

IR Working Distance

30m

Digital Noise Reduction

3D DNR

WDR

DWDR

NETWORK

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, VIGI NVR, Web

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Button

-

Video Output

-

Built-in Microphone

Yes

GENERAL

Package Contents

VIGI Network Camera
Quick Start Guide
Mounting Accessories

Operating Temperature

-30–60 °C

Dimensions( H X W X D )

123 × 123 × 83 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

Power Consumption

12V DC: Max 4.2W
PoE: Class 0

Certifications

CE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240

Max. Resolution

3MP (2304 × 1296)

Video Streaming

Main Stream
Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Video Bit Rate

64 Kbps to 4 Mbps

Day/Night Switch

Day/Night/Auto/Schedule

SMART FEATURE-SET

Smart Event

Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region

รับประกัน

ประกันศูนย์ TP-Link Thailand 3 ปี



All The Colors, All The Time

VIGI C430 3MP Full-Color Turret Network Camera

TP-Link VIGI IP Camera

TP-Link VIGI IP Camera

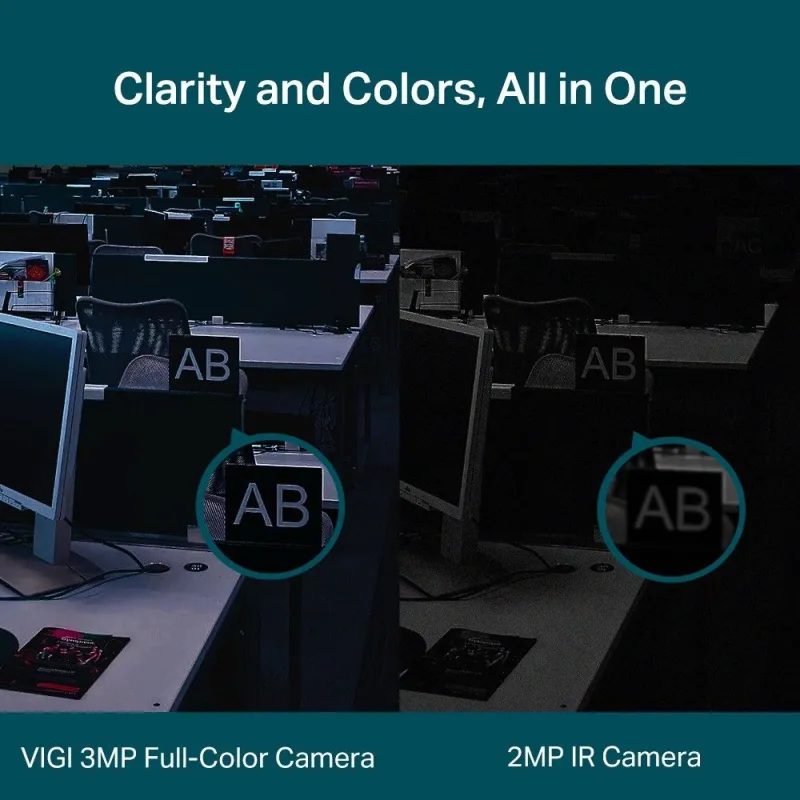

Clarity and Colors, All in One

ตรวจสอบรายละเอียดชองภาพที่ชัดเจนและมีสีสันตลอด 24 ชั่วโมงแม้ในคืนที่มืดสนิท กล้อง VIGI Full-Color ให้ความละเอียดสูงสุด 3 ล้านพิกเซล และให้การบันทึกภาพที่มีสีสันด้วยเลนส์รูรับแสงขนาดใหญ่ เซ็นเซอร์ความไวสูง และ LED ไฟเสริมที่แนบมา

TP-Link VIGI IP Camera

Human & Vehicle Classification

มาพร้อมกับชิปประมวลผล AI รองรับระบบอัลกอริทึมขั้นสูง ช่วยให้สามารถแยกแยะบุคคลและยานพาหนะออกจากวัตถุชนิตอื่น ให้คุณสามารถปรับแต่งการแจ้งเตือนได้ตามความต้องการใช้งาน เพื่อให้ได้รับการแจ้งเตือนที่แม่นยำ

ระบบจำแนกบุคคลและยานพาหนะ

TP-Link VIGI IP Camera Human & Vehicle Classification

เปิดใช้งานเฉพาะระบบจำแนกบุคคล

TP-Link VIGI IP Camera Human & Vehicle Classification

เปิดใช้งานเฉพาะระบบจำแนกยานพาหนะ

TP-Link VIGI IP Camera Human & Vehicle Classification

We keep an eye on your business.

Smart Detection

รับการแจ้งเตือนและตรวจสอบฟีดเมื่อมีคนข้ามเขต เข้าไปในพื้นที่ที่คุณกำหนดไว้ หรือกีดขวางหน้ากล้อง ผ่านแอปพลิเคชั่น

TP-Link VIGI IP Camera

No more silent surveillance.

Built-In Microphone

The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

TP-Link VIGI IP Camera Smart Detection

Never miss a detail.

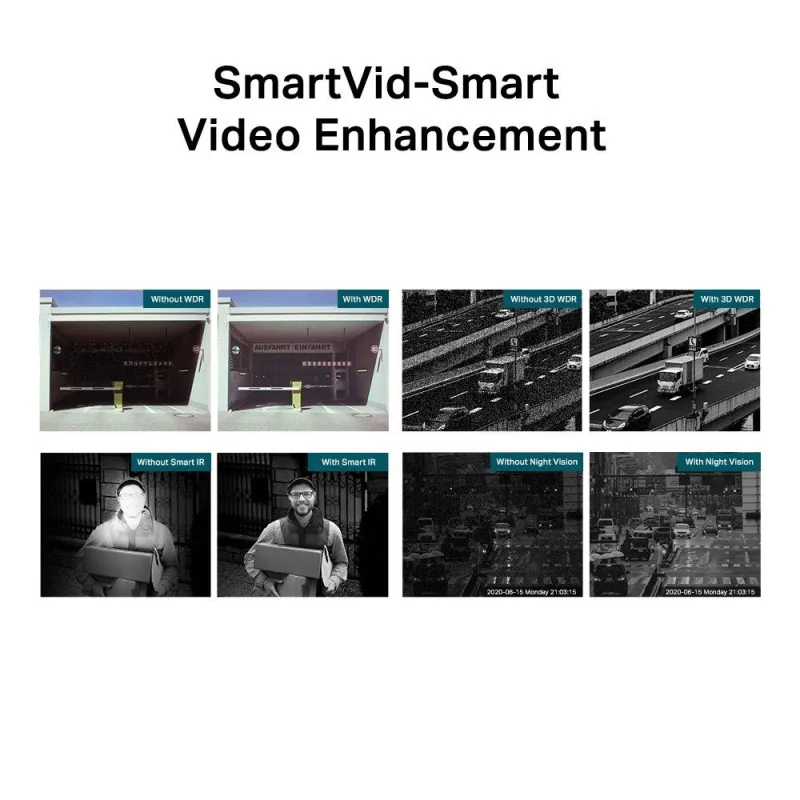

SmartVid - เพิ่มประสิทธิภาพการแสดงผลอย่างชาญฉลาด

เทคโนโลยีการประมาลผลภาพวิดีโอระดับมืออาชีพของ VIGI จะช่วยปรับปรุงคุณภาพการแสดงผลภาพให้ดียิ่งขึ้น มาพร้อมกับเทคโนโลยี Smart IR, WDR, 3D DNR และ Night Vision

TP-Link VIGI IP Camera Smart Detection

เลนส์ขนาด 2.8/4 มม.

ไม่ว่าคุณจะต้องการเลนส์มุมกว้างเพื่อให้ครอบคลุมพื้นที่แคบอย่างลิฟต์โดยสาร หรือเลนส์ระยะไกลเพื่อรองรับพื้นที่กว้างอย่างลานจอดรถ C440I มีขนาดหน้าเลนส์ 2 ระยะให้เลือกเพื่อให้ครอบคลุมความต้องการของคุณ

TP-Link VIGI IP Camera

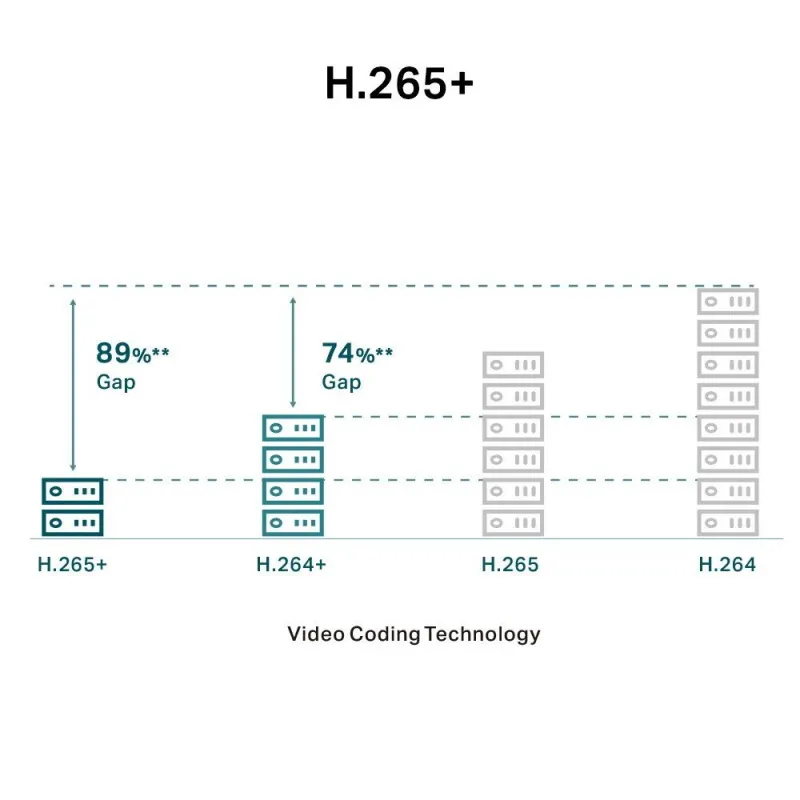

More compression. More savings. Same quality.

กล้องวงจรปิดจะทำการส่งข้อมูลวิดีโอความคมชัดสูงที่ผ่านการบีบอัดเพื่อประหยัดพื้นที่จัดเก็บข้อมูล ลดปริมาณการใช้งานแบนด์วิธให้น้อยลง ช่วยลดขนาดไฟล์พื้นที่จัดเก็บข้อมูลโดยไม่ลดความละเอียดภาพ

**ผลการคำนวณจากการทดลองโดยใช้กล้องวงจรปิด VIGI ความละเอียด 3 ล้านพิกเซล ประสิทธิภาพในการใช้งานจริงอาจแตกต่างกัน ขึ้นอยู่กับสถานการณ์ที่เกิดขึ้น ความละเอียดของภาพ และปัจจัยอื่นๆ

TP-Link VIGI IP Camera

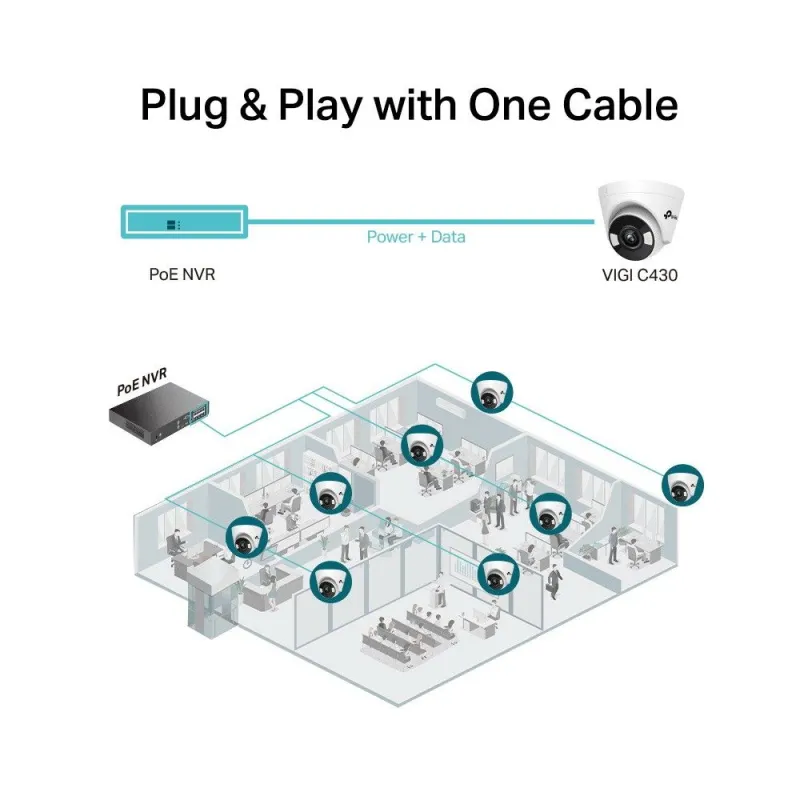

Plug & Play with One Cable

สะดวกกับการเดินสายแลนอย่างง่ายด้วยการเชื่อมต่อกับ PoE กับกล้องของคุณด้วยสายเคเบิล RJ45 จากนั้น การจ่ายไฟและส่งข้อมูลของคุณทั้งหมดจะผ่านสายแลน ไม่ยุ่งยากกับการหาที่เสียบปลั๊กไฟ

TP-Link VIGI IP Camera



Flexible Management

จัดการระบบความปลอดภัยของคุณได้เต็มที่ผ่าน 3 ช่องทาง : หน้าระบบตั้งค่าใน NVR, แอป VIGI บนมือถือ และโปรแกรม VIGI Security Manger

TP-Link VIGI IP Camera

Flexible Installation Gives You More Convenience.

เดินสายเคเบิลของกล้องไปที่เพดาน หรือหลีกเลี่ยงการเจาะโดยเสียบผ่านเต้ารับด้านข้างของกล้อง

TP-Link VIGI IP Camera

One system. Full security.

ระบบเฝ้าระวังระดับมืออาชีพของ VIGI โดย TP-Link ให้ความสำคัญกับการปกป้องธุรกิจที่คุณรัก — สามารถติดตั้งได้ง่ายดาย ใช้งานได้ทุกที่ทุกเวลา พร้อมฟังก์ชันการใช้งานที่โดดเด่นของเรา และการรับประกันคุณภาพสินค้า เพื่อให้มั่นใจว่าธุรกิจของคุณจะปลอดภัยให้คุณดำเนินธุรกิจได้อย่างสบายใจ

TP-Link VIGI IP Camera
