VIGI C440-W Product Specification |

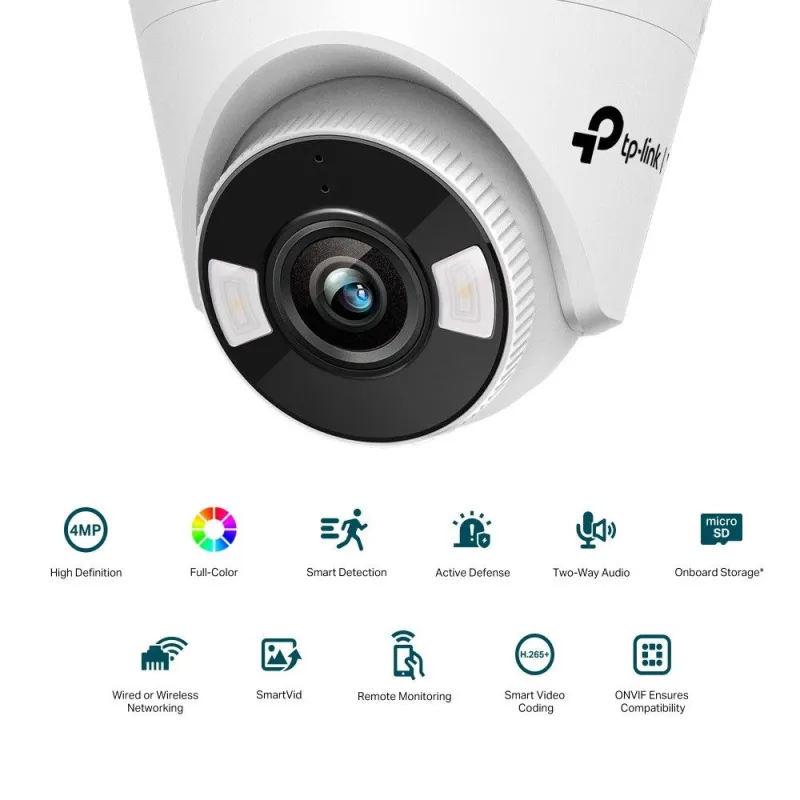

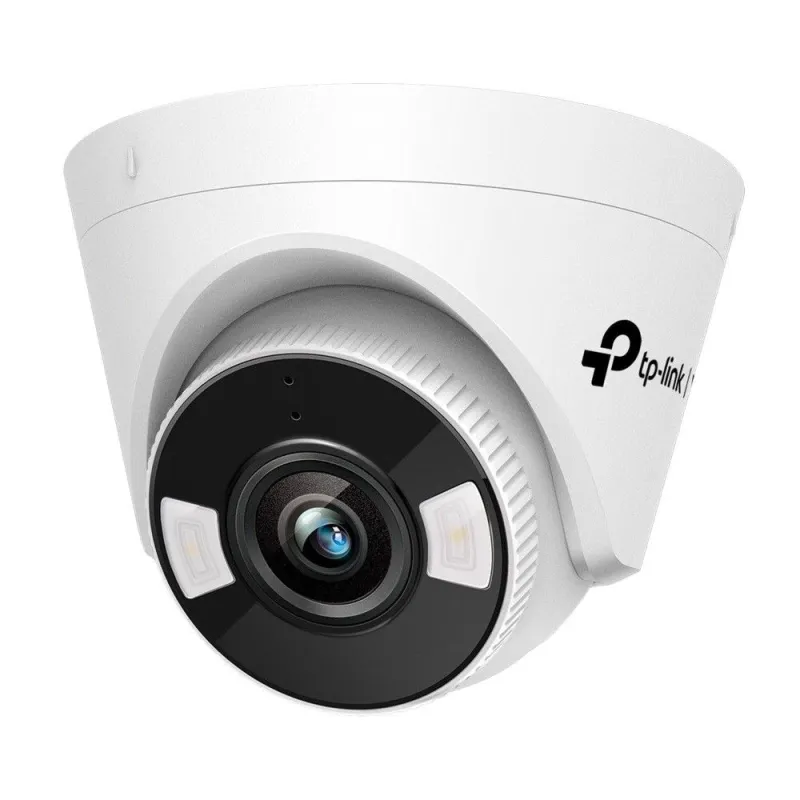

Overview | TP-Link VIGI C440-W กล้อง IP-Camera แบบ Turret เชื่อมต่อ WIFI 2.4GHz ความละเอียด 4MP ติดตั้งภายในอาคาร บันทึก Video มาตรฐาน H.265+ เลนส์ขนาด 4mm รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 512GB |
CAMERA |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Aperture | 4 mm: F1.6 |
| Lens | Fixed focal lens (4 mm) |
| Lens Mount | M12 |
| Minimum Illumination | 0 lux with IR/white Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| IR Working Distance | 30m |
| Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
| Illumination Distance | 30m (LED) |
| Viewing Angle | (4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93° |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft) |
Angle Adjustment (Manual) |
| Range | Pan: 0° to 360°
Tilt: 0° to 85°
Rotate: 0° to 360° |
ILLUMINATOR |
| IR LED | Quantity: 2
Range: 30m
Wavelength: 850nm |
| White LED | Quantity: 2
Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 |
| Sub-Stream | Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 3 Mbps
Sub-Stream: 64 Kbps to 512 Kbps |
Image |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | • TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP UDP
• SSL/TLS
• SNMP
• IEEE 802.1x |
| Wireless Rate | 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n) |
| Wireless Security | WPA/WPA2-PSK |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Web Browser | Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Frequency | 2.4 GHz |
WIRELESS |
| WiFi Channels | 1-13 |
| Frequency | 2.4 GHz |
| Wireless Transmit Power | High |
| Auto Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Monitoring | N/A |
| Radio Bandwidth | Auto: N/A
20M: Yes
40M: Yes |
| Wireless Rate | 11Mbps(802.11b)
54Mbps(802.11g)
150/300Mbps(802.11n) |
| Wireless Security | PWPA/WPA2-PSK |
| Wireless Mode | AP, AP Client |
ALARM AND EVENT MANAGEMENT |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, People Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| Button | Reset Button |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
GENERAL |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |

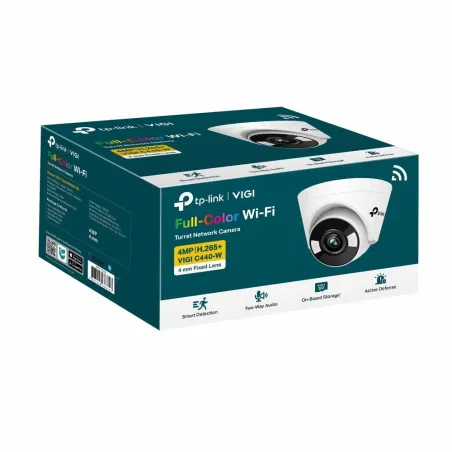

| Package Content | VIGI Network Camera
Quick Start Guide
Power Adapter
Mounting Accessories |
| Dimensions( H X W X D ) | 123 × 123 × 84 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Net Weight | 0.24 Kg |
| Gross Weight | 0.53 Kg |
| Max. Power Consumption | 12V DC: Max 7W |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug |
| Antenna | Quantity: 2
Type: 2.4GHz Welded Dipole Omni-Directional Antenna
Gain: 2.0dBi |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123× 83× 123 mm |
| Certifications | CE, FCC, RCM, BSMI, VCCI, RoHS |
VIDEO/IMAGE |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions | Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240 |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps |
SMART FEATURE-SET |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
