Product Specification |

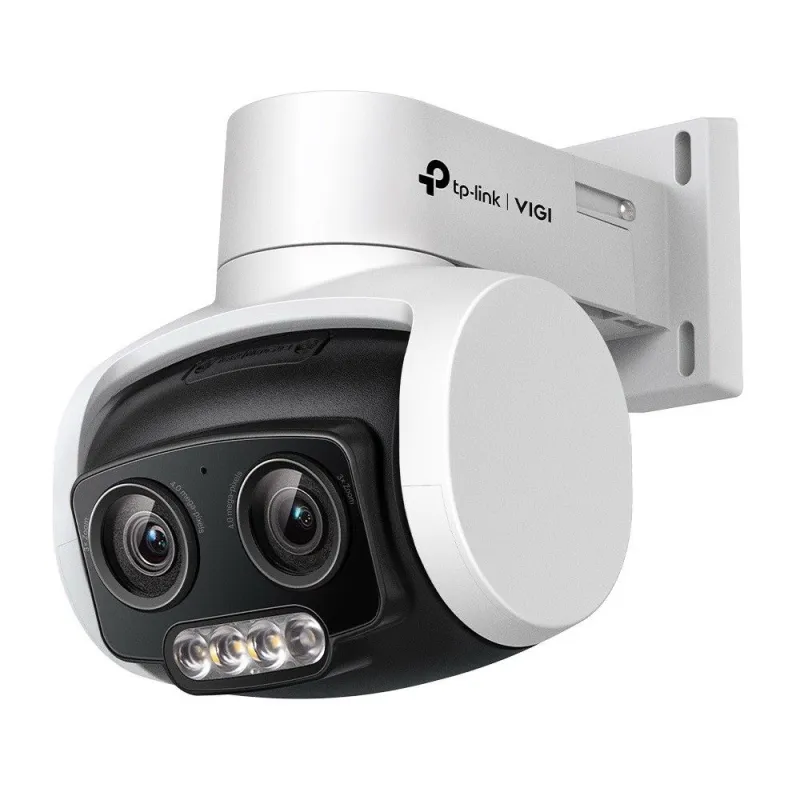

Overview | TP Link VIGI-C540V กล้อง IP-Camera Dual-Lens ความละเอียด 4MP, Zoom 3 เท่า, Full-Color ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB |
CAMERA |
|---|
Image Sensor | 1/3” Progressive Scan CMOS |
|---|
Shutter Speed | 1/3 to 1/10000 s |
|---|
Slow Shutter | Yes |
|---|
Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
|---|
Day/Night Mechanism | IR Cut Filter |
|---|
Day/Night Switch | Day/Night/Auto/Schedule-Switch |
|---|
Zoom | 3x Mixed Zoom |
|---|
LENS |
|---|
Focal Length | 4-12 mm (Mixed Zoom) |
|---|
Aperture | F1.6 |
|---|
FOV | Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46° |
|---|
Lens Mount | M12*P 0.5 |
|---|
PTZ |
|---|
Pan/tilt Range | Pan: 0° to 332°, Tilt: 0° to 120° |
|---|
Pan/tilt Speed | Pan Speed:
Configurable from 1° to 55°/s; Preset Speed: 55°/s
Tilt Speed:
Configurable from 1° to 40°/s, Preset Speed 40°/s |
|---|
Presets | 300 |
|---|
Patrol Scan | 8 patrols, up to 8 presets for each patrol |
|---|
Power-off Memory | Yes;
Auto restore to previous PTZ and lens status after power failure |
|---|
Park Action | Yes;
Preset; Patrol Scan |
|---|
3D Positioning | Yes |
|---|
VIDEO |
|---|
Max. Resolution | 2560 X 1440 |
|---|
Main Stream | Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
|---|
Sub-Stream | Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
|---|
Bit Rate Control | CBR, VBR |
|---|
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
|---|
H.264 Type | Main Profile/High Profile |
|---|
H.264+ | Main Stream Supported |
|---|
H.265 Type | Main Profile |
|---|
H.265+ | Main Stream Supported |
|---|
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps |
|---|
ILLUMINATOR |
|---|
IR LED | Quantity: 1
Range: 30m
Wavelength: 850nm |
|---|
White LED | Quantity: 3
Range: 30m |
|---|
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
|---|
Angle Adjustment (Manual) |
|---|
Range | Pan: 0° to 332°, Tilt: 0° to 120° |
|---|
Image |
|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
|---|
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
|---|
Wide Dynamic Range | DWDR |
|---|
SNR | ≥ 52 dB |
|---|
Image Parameters Switch | Yes |
|---|
Privacy Mask | Up to 4 Masks |
|---|
ROI | 1 Region |
|---|
OSD Setting | Yes |
|---|
AUDIO |
|---|
Audio Communication | Two-Way Audio |
|---|
Audio Input | Yes |
|---|
Audio Output | Yes |
|---|
Audio Compression | Yes |
|---|
Audio Sampling Rate | 8KHz |
|---|
Environment Noise Filtering | Yes |
|---|
Audio Bit Rate | 64 Kbps(G.711 alaw) |
|---|
NETWORK |
|---|
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
|---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|---|
Network Storage | NAS (NFS, SMB/ CIFS) |
|---|
API | Open Network Video Interface (Profile S) |
|---|
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
|---|
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
|---|
Web Browser | Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above |
|---|
Cloud | Yes |
|---|
ONVIF | Yes |
|---|
INTERFACES |
|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
|---|
Alarm | N/A |
|---|
Reset Button | Yes |
|---|
Power | DC Power Port |
|---|
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB |
|---|
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
|---|
Built-in Speaker | Yes |
|---|
Audio | N/A |
|---|
ALARM AND EVENT MANAGEMENT |
|---|
Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
|---|
Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
|---|
Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
|---|
Linkage Method | N/A |
|---|
Output Notification | Message Push |
|---|
GENERAL |
|---|
Package Contents | VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
|---|
Operating Temperature | -30–60 °C |
|---|
Storage Temperature | -40–60 °C |
|---|
Storage Humidity | 95% or Less (Non-Condensing) |
|---|
Operating Humidity | 95% or Less (Non-Condensing) |
|---|
Material | Plastic |
|---|
Net Weight | 0.43 Kg |
|---|
Gross Weight | 0.66 Kg |
|---|
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 4) |
|---|
Power Consumption | Maximum: 14 W
Typical (Day Mode): 2.9 W
Typical (Night Mode with IR LED): 5.7 W
Typical (Night Mode with White LED): 6.1 W |
|---|
Protection | IP66 |
|---|
Product Dimensions (L x W x H) | 139*136*107 mm |
|---|
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
|---|
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
|---|
