TP-Link VIGI NVR1008H

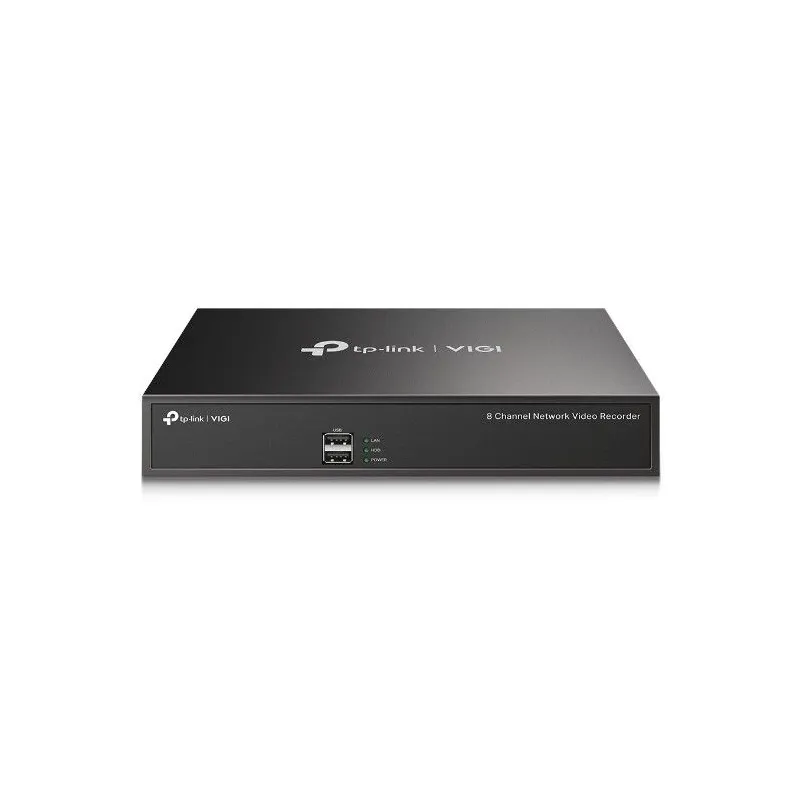

VIGI 8 Channel Network Video Recorder
- 24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 8-Channel Real-Time Live View: Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.
- Simultaneous Playback: Replay the feed from up to 4 cameras† at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility**: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1 HDD Interface (up to 10 TB)△: Stores up to 10 TB (720 days* of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
|
Product Specification
|
|
Overview
|
TP-Link VIGI NVR1008H NVR เครื่องบันทึก Network Video Recorder ขนาด 8 Channel บันทึกมาตรฐาน H.265+ รองรับ HDD 1 ลูก ความจุสูงสุด 10TB (Not Include)
|
|
NETWORK
|
|
Protocol
|
TCP/IP, DHCP, DNS, NTP, UPnP
|
|
Incoming Bandwith
|
80 Mbps
|
|
Outgoing Bandwidth
|
60 Mbps
|
|
GENERAL
|
|
Package Contents
|
VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
|
|
Operating Temperature
|
-10–55 °C
|
|
Dimensions( W X D X H )
|
246.2 × 148.2 × 45 mm
|
|
Weight
|
578.5 g
|
|
External Power Supply
|
DC 12V/1.5A
|
|
Power Consumption
|
4.25 W (without disk)
|
|
VIDEO/IMAGE
|
|
Video Input
|
8-Channel IP Video Input, up to 8 MP Resolution
|
|
Recording Resolution
|
Recording Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA
720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
|
|
HDMI Output Resolution
|
1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
|
|
VGA Output Resolution
|
1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
|
|
DECODING
|
|
Decoding Format
|
H.265+/H.265/ H.264+/H.264
|
|
Live View/Playback Resolution
|
8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA
720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
|
|
Synchronous Playback
|
4 Channel†
|
|
Capability
|
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
|
|
HARD DISK
|
|
SATA
|
1 SATA Interface
|
|
Capacity
|
Up to 10 TB
|
|

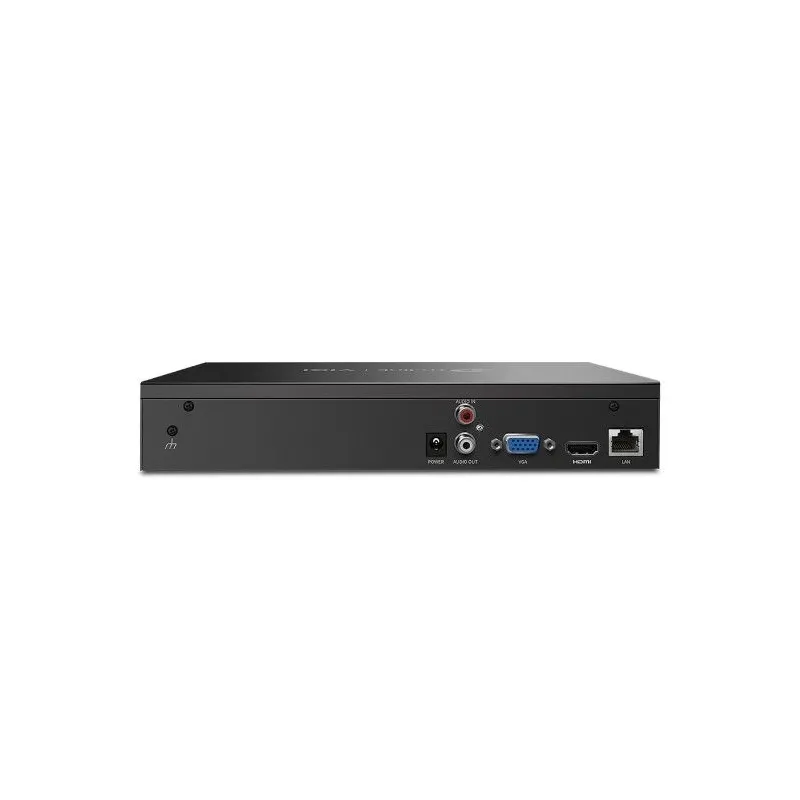

INTERFACES
|
|
Network Interface
|
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
|
|
USB Interface
|
2× USB 2.0
|
|
รับประกัน
|
ประกันศูนย์ TP-Link Thailand 3 ปี
|
Security Never Shuts Down
VIGI NVR1008H 8 Channel PoE Network Video Recorder

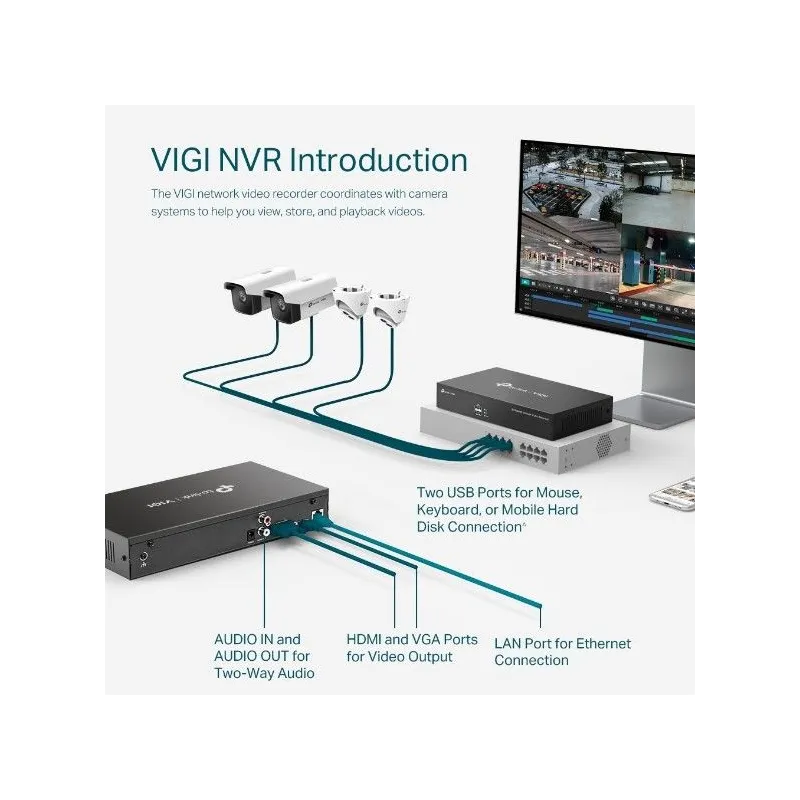

VIGI NVR Introduction
The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.
Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.

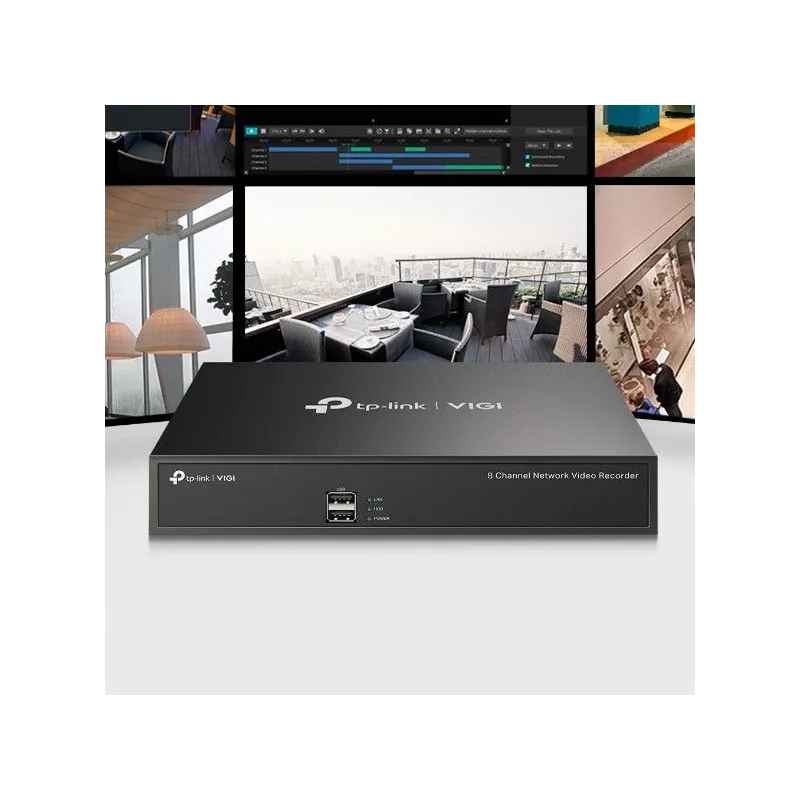

Every angle all on one screen.
8-Channel Real-Time Live View
Sharp image definition up to 8MP and an 8 channel display ensures you capture every detail, from every angle.
Reviewing footage is faster than ever.
4-Channel Simultaneous Playback§
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility△

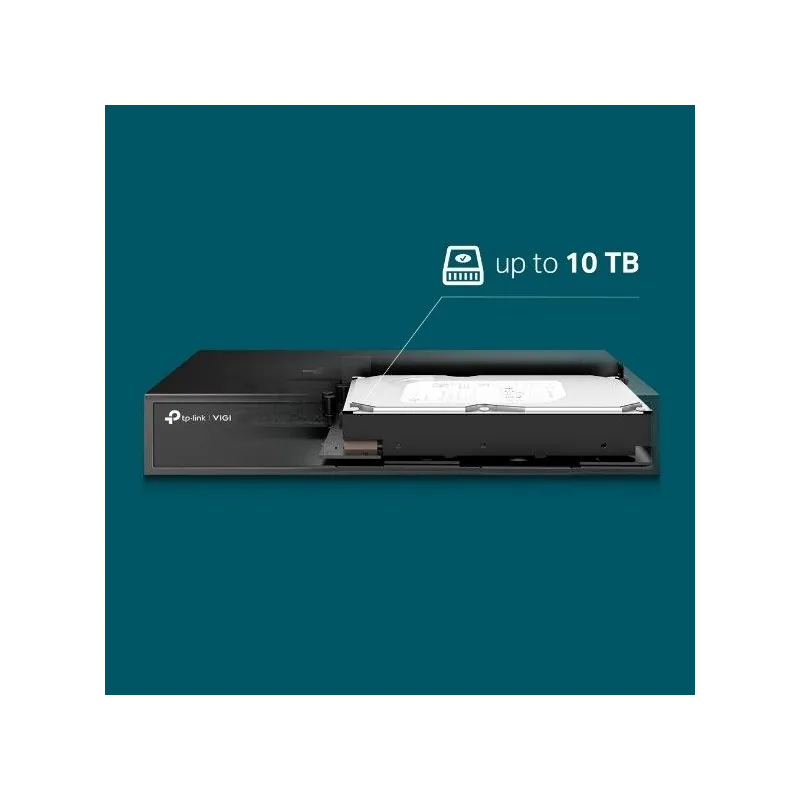

Up to 720 days of footage stored locally.
1 HDD (up to 10 TB)
Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.
Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
More bandwidth for more cameras.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR connects more cameras with high resolution.
Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

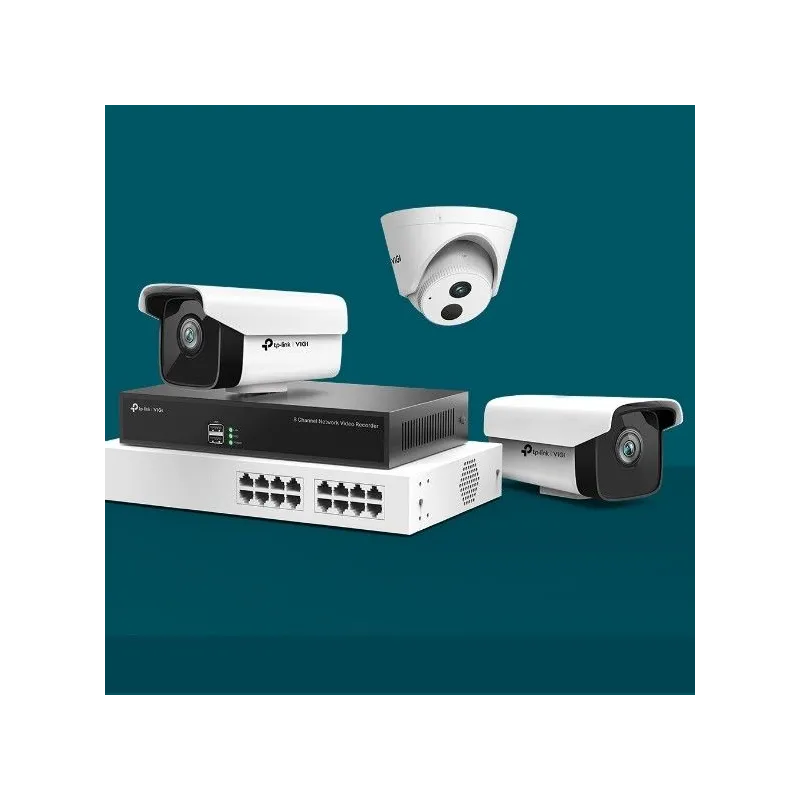

Manage everything with one.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
