Video and Audio |
| IP Video Input | 32-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |

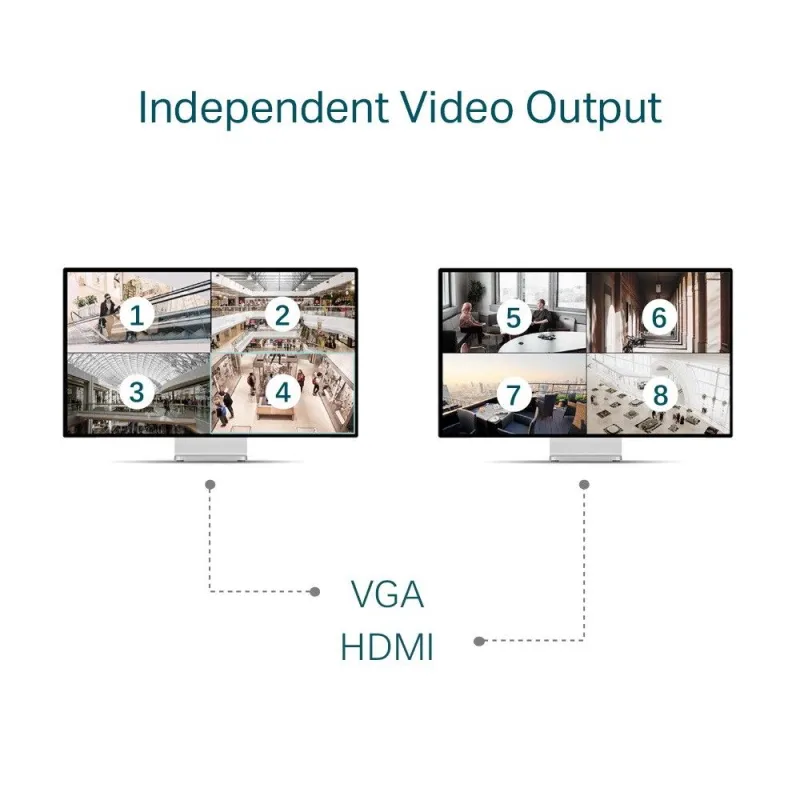

| Video Output Mode | HDMI/VGA Independent Output |
| Multi-View Display | 1/4/6/8/9/16/25/32/36 |
DECODING |
| Audio Compression | G.711A/G.711U/G.726 |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP
(30 fps) |
Record Management |
| Record Mode | • Manual Recording
• Scheduling Recording
• Motion Detection Recording |
| Playback Mode | • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback |
| Backup Mode | • Regular Backup
• Video Clip Backup |
| Playback Function | • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off |
NETWORK |
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Incoming Bandwith | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

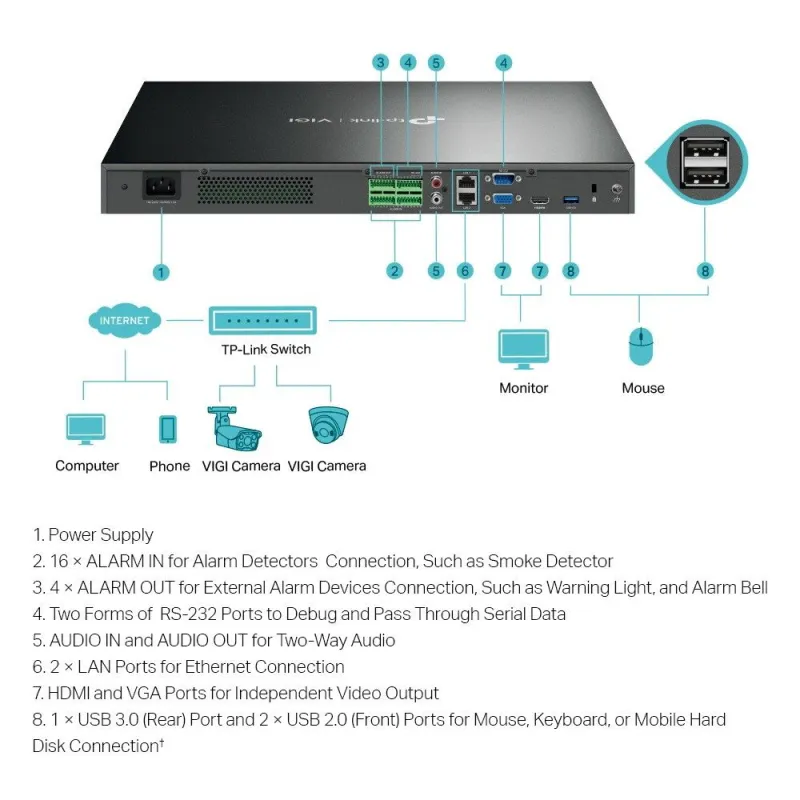

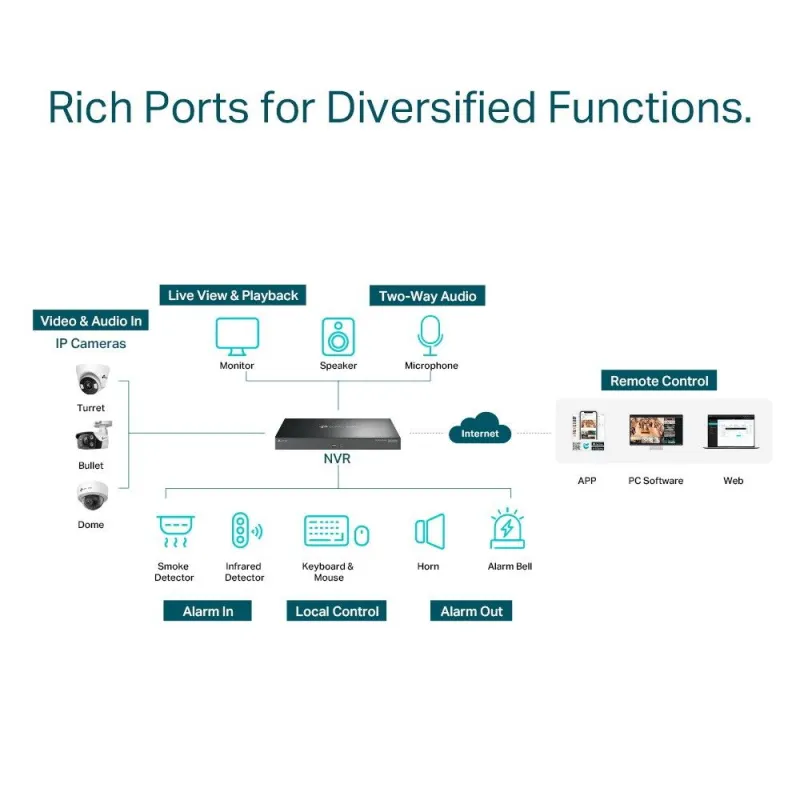

External Interface |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
Interface |
| USB Interface | USB Interface |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
HARD DISK |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD |
Alarm |
| General Alarm | • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame |
| Anomaly Alarm | • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception |
| Alarm Linkage | • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm |
Network Management |
| Network Protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Interoperability | ONVIF, CGI |
| Mobile Phone Access | Android, iOS |
| Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Record Playback |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection
Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event
Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play by
Frame, Full Screen, Video Clip, Export Clip, Digital Zoom,
Lock Recording, Audio On/Off |
GENERAL |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | • VIGI Network Video Recorder
• Mouse
• Installation Guide
• Power Cord
• HDD Power Cables
• HDD Data Cables
• Terminal Blocks
• Mounting Brackets
• Screws
• Rubber Feet |
| Working Temperature | -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 440 × 330 × 44 mm |
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Net Weight | 4.0 Kg |
| Gross Weight | 5.2 Kg |
| Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Max. Power Consumption | 5 W (Without Disk)
48 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI |
VIDEO/IMAGE |
| IP Video Input | 32-Channel |
| Multi-View Dispaly | 1/4/6/8/9/16/25/32/36 |
| Video Output Mode | HDMI/VGA Independent Output |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
