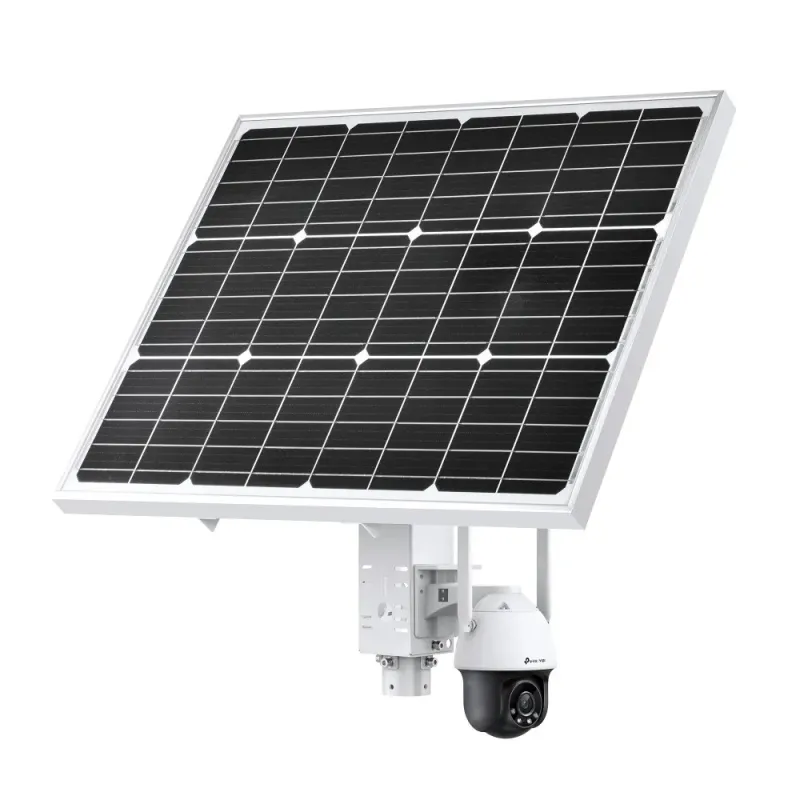

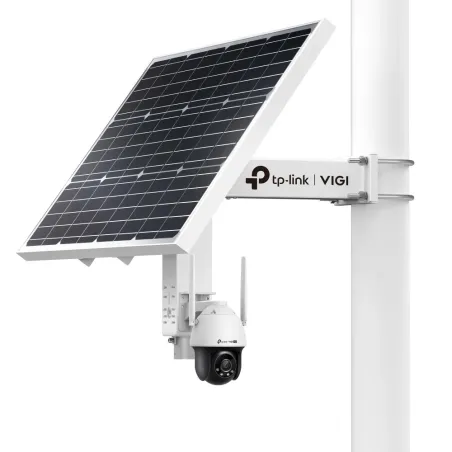

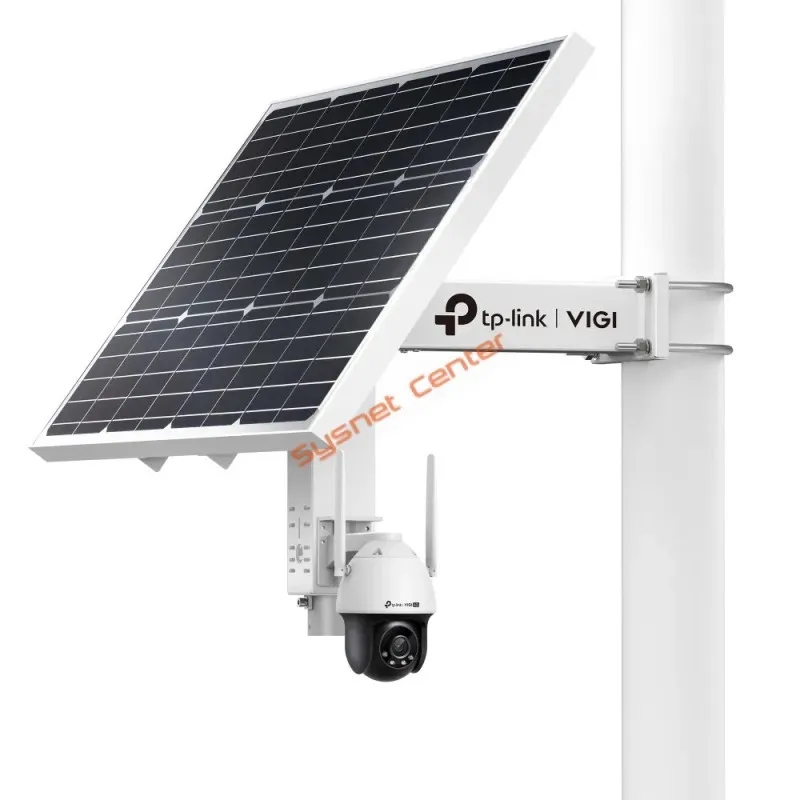

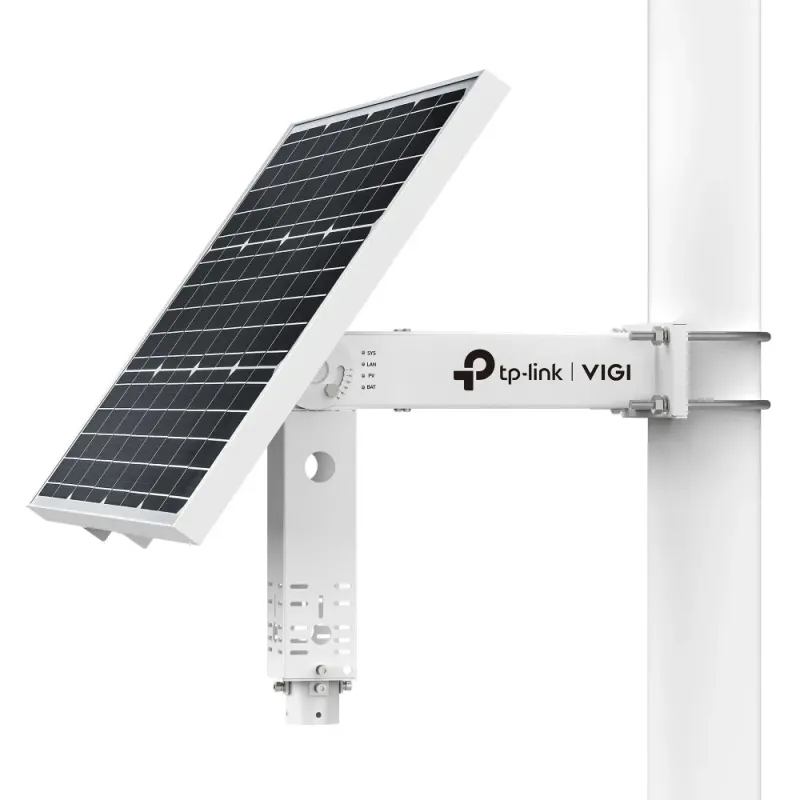

TP-Link VIGI SP6020 ชุดแผงโซลาร์เซลล์ ระบบชาร์จไฟ 60W/18V Intelligent Solar Power Supply

TP-Link VIGI SP6020 Product Specification

Overview

TP-Link VIGI SP6020 ชุดแผงโซลาร์เซลล์ ระบบชาร์จไฟ Intelligent Solar Power Supply System ขนาด 60W/18V และแบตเตอรี่ Lithium 20.8Ah/10.8V ควบคุมการชาร์จ Maximum Power Point Tracking (MPPT) มาตรฐานกันน้ำกันฝุ่น IP66 สำหรับงาน CCTV และระบบ WIFI

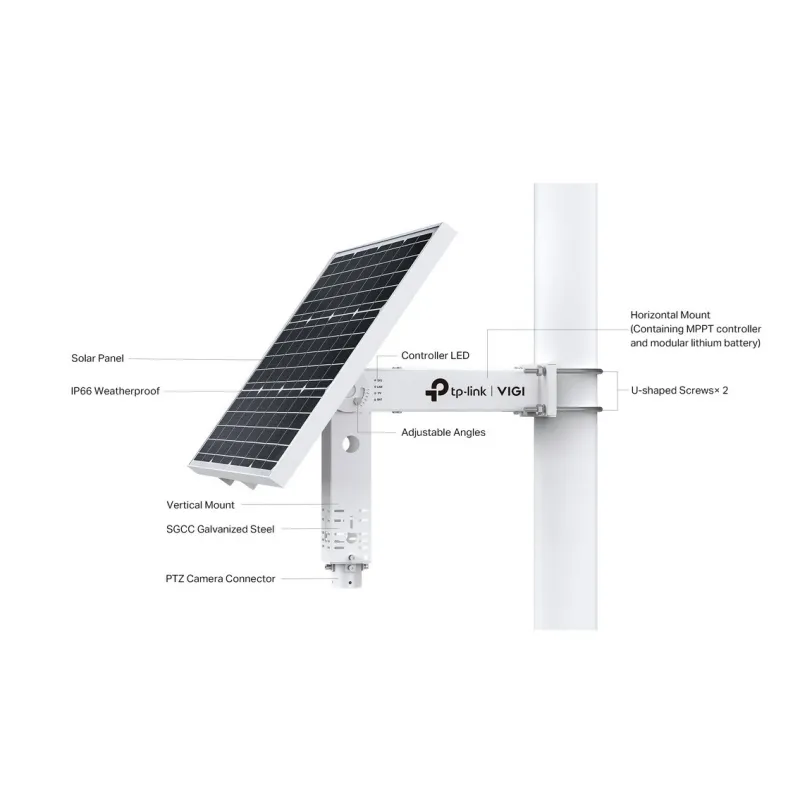

Solar Panel (Photovoltaic Panel)

Power

60 W

Voltage

18 V

Dimensions (L x W x H)

690×516×30 mm (27.2×20.3×1.2 in)

Battery

Type

Lithium

Intelligent Auxiliary Heat

Yes

Battery Capacity

20.8 Ah

Voltage

10.8 V

Max. Output Voltage

12.6 V

Life

More than 500 cycles

Dimension

242×70×55 mm (9.5×2.8×2.2 in)

Charging Condition

• 0°C~45°C
• -30°C~45°C (With intelligent auxiliary heating)

Discharging Condition

• -20°C~60°C
• -30°C~60°C (With intelligent auxiliary heating)

Angle Adjustment (Manual)

Range

5°/15°/25°/35°/45°/55°

HARDWARE

Interface

• 1× 10/100 Mbps RJ45
• 1× Photovoltaic Panel Connector
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)

Indicator LED

• Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
• Color: Blue

SOFTWARE FEATURES

Load Control

Yes

High and Low Temperature Protection

Yes

Overdischarge Protection

Yes

Power Consumption Statistics

Yes

Displays Real-time Load Status

Yes

Battery Level Display

Yes

Time Zone Selection

Yes

Region Selection

Yes

Schedule Saving

Yes

Firmware Remote Update

Yes

Remote Reboot

Yes

Local LAN Management

Yes

Smart Charging Control

-30°C~5°C

Account Management

Yes

Web Management

Yes

Remote Reset

Yes

Remote Message Push

Yes

OTHERS

Certification

• CB, PSE (Battery)
• CE, FCC, VCCI, IC, IP66

Package Contents

• VIGI SP6020
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

Box Dimensions (W X D X H)

800×615×225 mm (31.5×24.2×8.9 in)

Weight

• Product Weight: 13 kg
• Package Weight: 14.5 kg

Environment

• Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
• Operating Humidity: 10%~90%RH, Non-condensing

รับประกัน

ประกันศูนย์ TP-Link Thailand 3 ปี
