VIGI SP9030

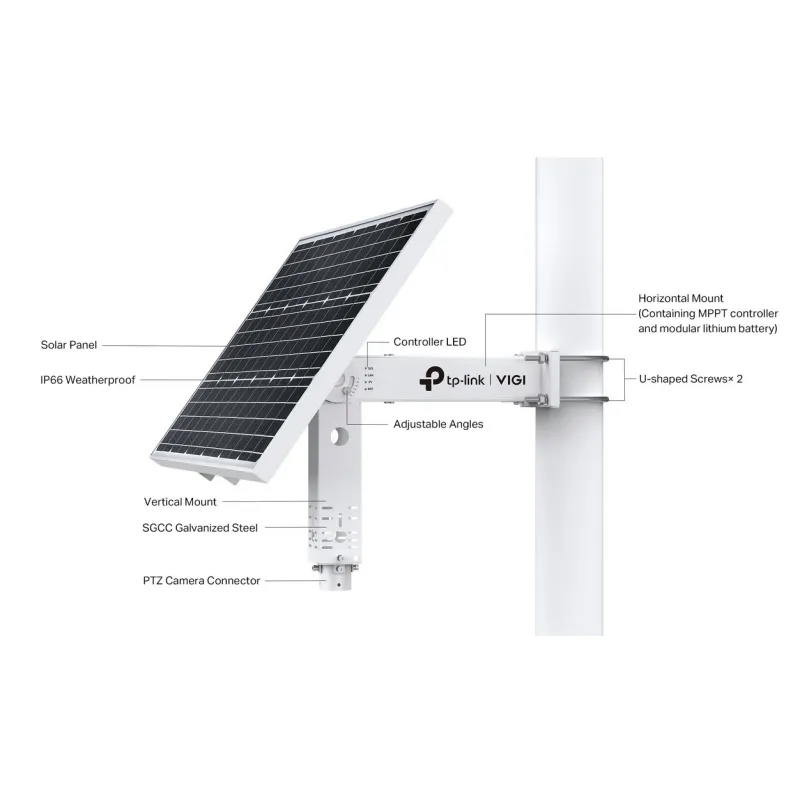

TP-Link VIGI SP9030 ชุดแผงโซลาร์เซลล์ ระบบชาร์จไฟ Intelligent Solar Power Supply System ขนาด 90W/18V และแบตเตอรี่ Lithium 31.2Ah/10.8V ควบคุมการชาร์จ Maximum Power Point Tracking (MPPT) มาตรฐานกันน้ำกันฝุ่น IP66 สำหรับงาน CCTV และระบบ WIFI
สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
TP-Link VIGI SP9030 Datasheet
TP-Link VIGI SP9030 Installation Guide
VIGI App User Guide
Product Specification |
|
Overview |
TP-Link VIGI SP9030 ชุดแผงโซลาร์เซลล์ ระบบชาร์จไฟ Intelligent Solar Power Supply System ขนาด 90W/18V และแบตเตอรี่ Lithium 31.2Ah/10.8V ควบคุมการชาร์จ Maximum Power Point Tracking (MPPT) มาตรฐานกันน้ำกันฝุ่น IP66 สำหรับงาน CCTV และระบบ WIFI |
Solar Panel (Photovoltaic Panel) |
|
---|---|
Power |
90 W |
Voltage |
18 V |
Dimensions (L x W x H) |
998×516×30 mm (39.3×20.3×1.2 in) |
Battery |
|
Type |
Lithium |
Intelligent Auxiliary Heat |
Yes |
Battery Capacity |
31.2 Ah |
Voltage |
10.8 V |
Max. Output Voltage |
12.6 V |
Life |
More than 500 cycles |
Dimension |
242×70×55 mm (9.5×2.8×2.2 in) |
Charging Condition |
0°C~45°C |
Discharging Condition |
-20°C~60°C |
Angle Adjustment (Manual) |
|
Range |
5°/15°/25°/35°/45°/55° |
HARDWARE |
|
Interface |
1× 10/100 Mbps RJ45 |
Indicator LED |
Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) |
SOFTWARE FEATURES |
|
Load Control |
Yes |
High and Low Temperature Protection |
Yes |
Overdischarge Protection |
Yes |
Power Consumption Statistics |
Yes |
Displays Real-time Load Status |
Yes |
Battery Level Display |
Yes |
Time Zone Selection |
Yes |
Region Selection |
Yes |
Schedule Saving |
Yes |
Firmware Remote Update |
Yes |
Remote Reboot |
Yes |
Local LAN Management |
Yes |
Smart Charging Control |
-30°C~5°C |
Account Management |
Yes |
Web Management |
Yes |
Remote Reset |
Yes |
Remote Message Push |
Yes |
OTHERS |
|
Certification |
CB, PSE (Battery) |
Package Contents |
VIGI SP9030 |
Box Dimensions (W X D X H) |
1100×615×225 mm (31.5×24.2×8.9 in) |
Weight |
Product Weight: 15 kg |
Environment |
Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) |
รับประกัน |
ประกันศูนย์ TP-Link Thailand 3 ปี |
VIGI Intelligent Solar Power Supply System
VIGI SP9030 | 4G Cameras
VIGI SP9030 | Wireless Bridge | Bullet Cameras
VIGI SP9030 | Wireless Bridge | Pan Tilt Cameras
ควบคุมอุปกรณ์จากส่วนกลาง, ตรวจสอบการใช้พลังงาน, รับการแจ้งเตือนเมื่อแบตเตอรี่เหลือน้อย, อัปเดตเฟิร์มแวร์,
และรีบูตระบบได้ผ่านแอปฯ บนมือถือ ให้คุณได้ใช้งานอย่างสะดวกสบายไม่ว่าจะอยู่ที่ใดก็ตาม
มาพร้อมกับแบตเตอรี่อัจฉริยะรองรับเทคโนโลยี Auxiliary Heating ซึ่งช่วยให้แบตเตอรี่สามารถทำงานได้เป็นปกติในช่วงของอุณหภูมิที่กว้างขึ้น
ตัวควบคุม MPPT (Maximum Power Point Tracking) เพิ่มประสิทธิภาพพลังงานแผงโซลาร์เซลล์ ลดการสูญเสียพลังงาน และเพิ่มประสิทธิภาพการชาร์จ 20% เมื่อเทียบกับตัวควบคุม PWM (Pulse Width Modulation)
