Product Specification |

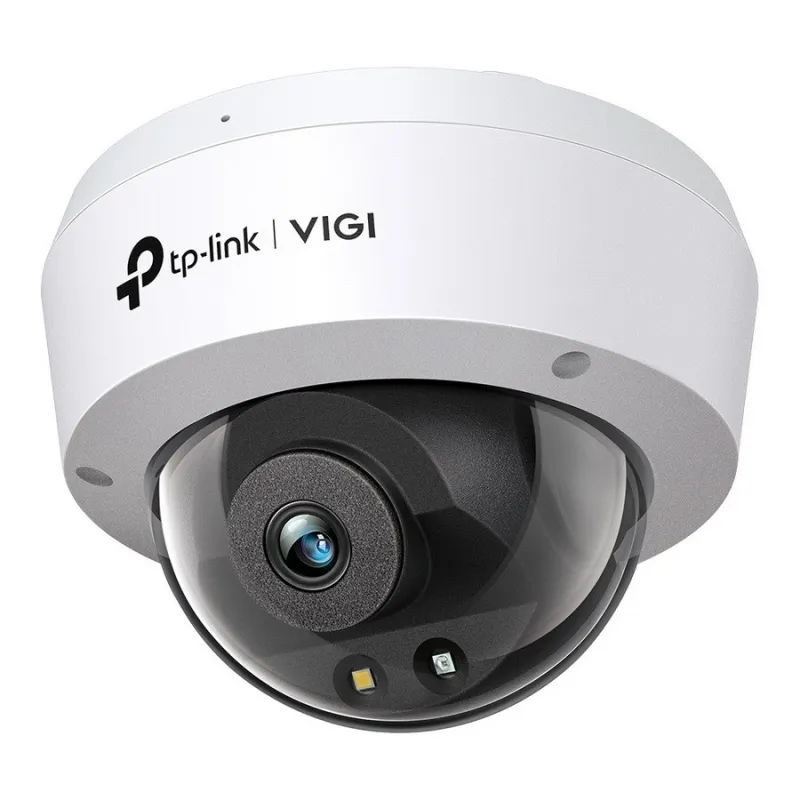

Overview | TP-Link VIGI C250 กล้อง IP-Camera แบบ Dome ความละเอียด 5MP 24h Full-Color ติดตั้งภายใน/ภายนอกอาคาร กันน้ำกันฝุ่นมาตรฐาน IP67 เลนส์ให้เลือกขนาด 2.8/4mm บันทึก Video มาตรฐาน H.265+ รองรับ POE |
CAMERA |
|---|
Image Sensor | 1/2.8” Progressive Scan CMOS |
|---|
Shutter Speed | 1/3 to 1/10000 s |
|---|
Slow Shutter | Yes |
|---|
Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
|---|
Day/Night Mechanism | IR Cut Filter |
|---|
Day/Night Switch | Unified/ Scheduled/ Auto |
|---|
Lens | 2.8 mm/ 4 mm |
|---|
Aperture | 2.8 mm: F1.6
4 mm: F1.6 |
|---|
Lens Mount | M12 |
|---|
Viewing Angle | 2.8mm:
Horizontal FOV: 107.5°, Vertical FOV:57.2°, Diagonal FOV: 128.7°
4mm:
Horizontal FOV: 89.1°, Vertical FOV:45.1°, Diagonal FOV: 106.9° |
|---|
Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
|---|
Digital Noise Reduction | 3D DNR |
|---|
WDR | DWDR |
|---|
Weatherproof Rating | IP67 |
|---|
LENS |
|---|
Type | Fixed Focal Lens |
|---|
Focal Length | 2.8 mm/4 mm |
|---|
Aperture | 2.8 mm: F1.6
4 mm: F1.6 |
|---|
FOV | 2.8 mm:
Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
4 mm:
Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9° |
|---|
Lens Mount | M12 |
|---|
DORI Distance | 2.8 mm:
Detect: 52 m (170 ft)
Observe: 22 m (71 ft)
Recognize: 10 m (34 ft)
Identify: 5 m (17 ft)
4 mm:
Detect: 70 m (230 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft) |
|---|
VIDEO |
|---|
Max. Resolution | 2304 × 1296 |
|---|
Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

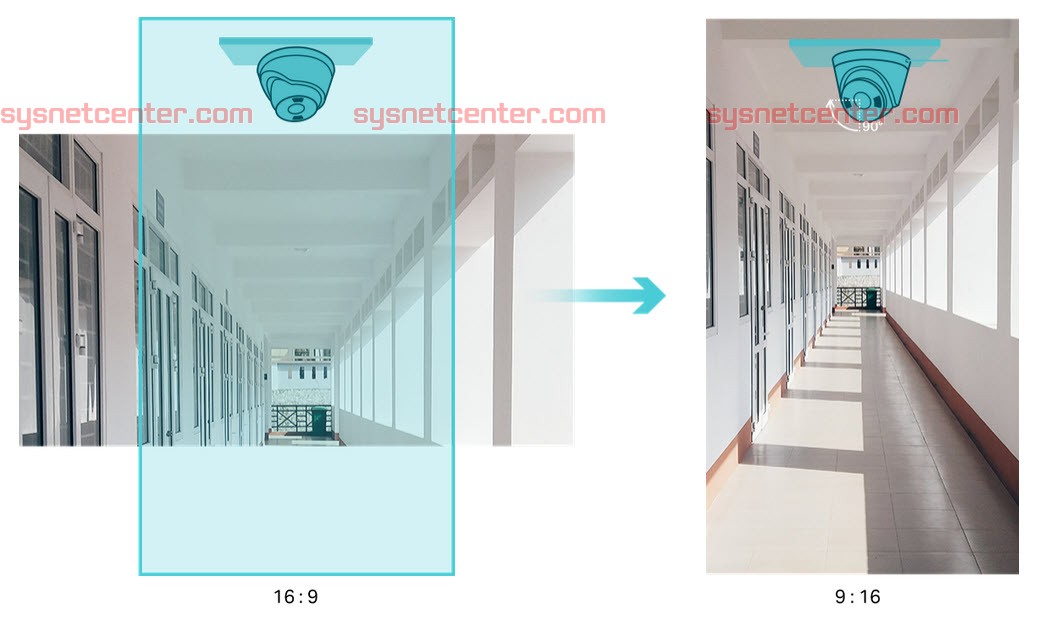

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
|---|
Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
|---|
Bit Rate Control | CBR, VBR |
|---|

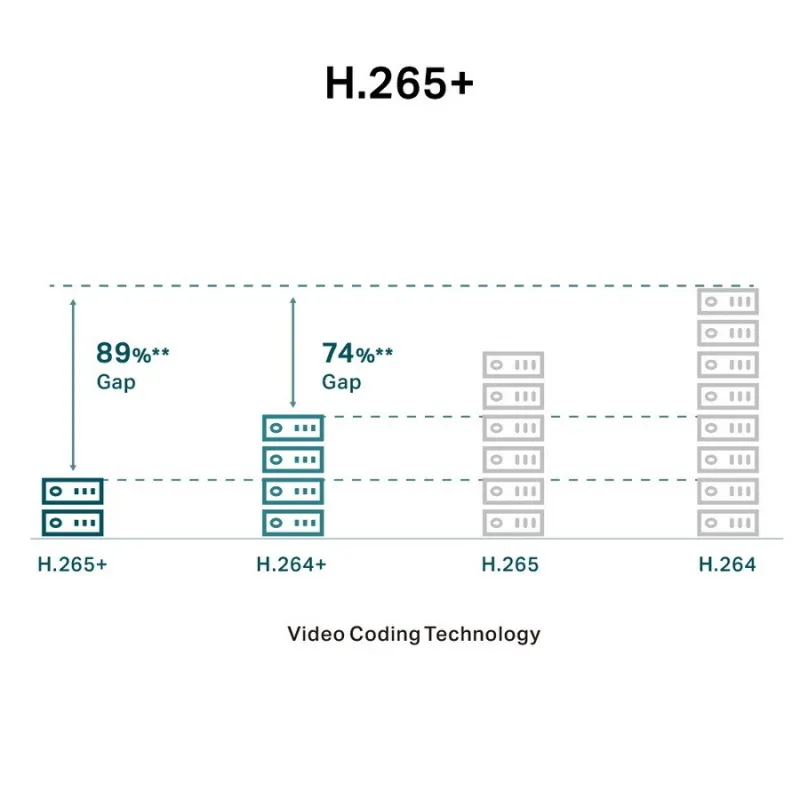

Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
|---|
H.264 Type | Main Profile/High Profile |
|---|
H.264+ | Main Stream Supported |
|---|
H.265 Type | Main Profile |
|---|
H.265+ | Main Stream Supported |
|---|
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps |
|---|
ILLUMINATOR |
|---|
IR LED | Quantity: 1
Range: 30m
Wavelength: 850nm |
|---|
White LED | Quantity: 1
Range: 30m |
|---|
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
|---|
Angle Adjustment (Manual) |
|---|
Range | Pan: 0° to 355°
Tilt: 0° to 75° |
|---|
Image |
|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
|---|

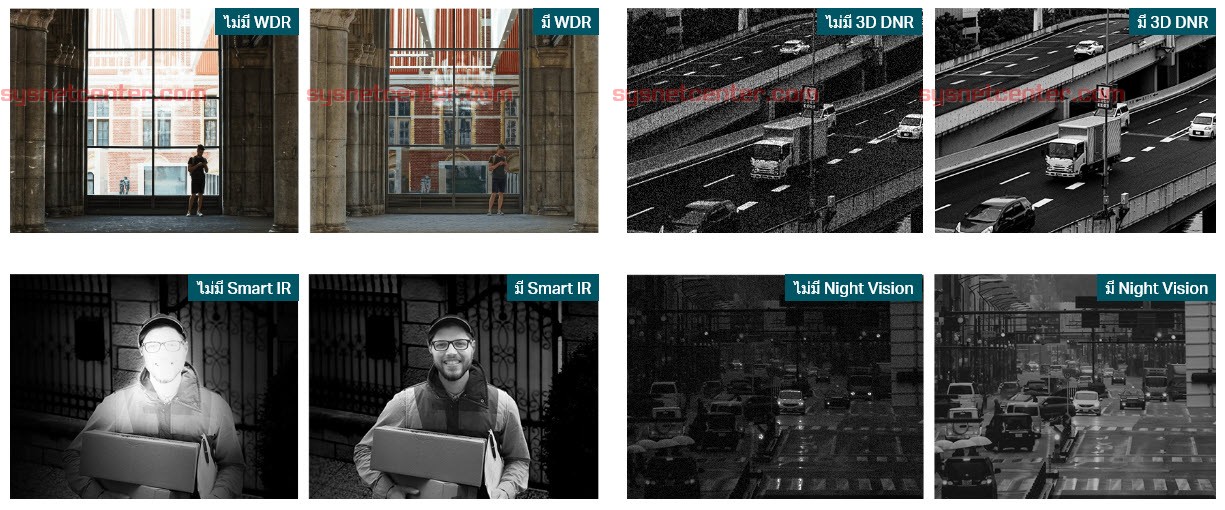

Image Enhancement | BLC/3D DNR/HLC/SmartIR |
|---|
Wide Dynamic Range | DWDR |
|---|
SNR | ≥ 52 dB |
|---|
Image Parameters Switch | Yes |
|---|
Privacy Mask | Up to 4 Masks |
|---|
ROI | 1 Region |
|---|
OSD Setting | Yes |
|---|
AUDIO |
|---|
Audio Communication | N/A |
|---|
Audio Input | Yes |
|---|
Audio Output | N/A |
|---|
Audio Compression | Yes |
|---|
Audio Sampling Rate | 8KHz |
|---|
Environment Noise Filtering | Yes |
|---|
Audio Bit Rate | 64 Kbps(G.711 alaw) |
|---|
NETWORK |
|---|
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
|---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS |
|---|
API | ONVIF |
|---|
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
|---|

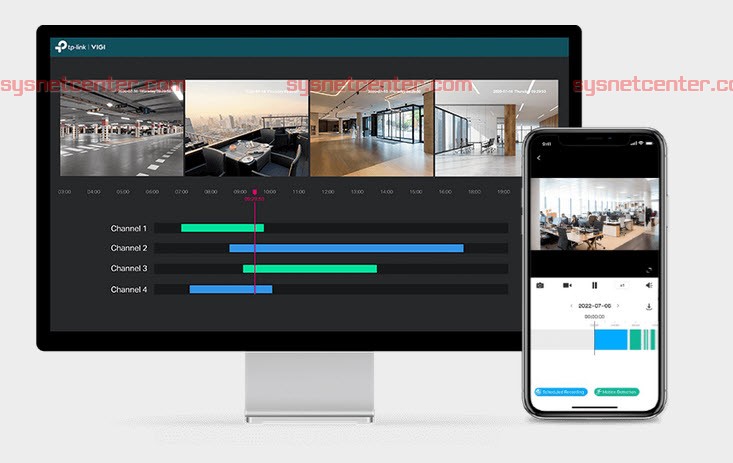

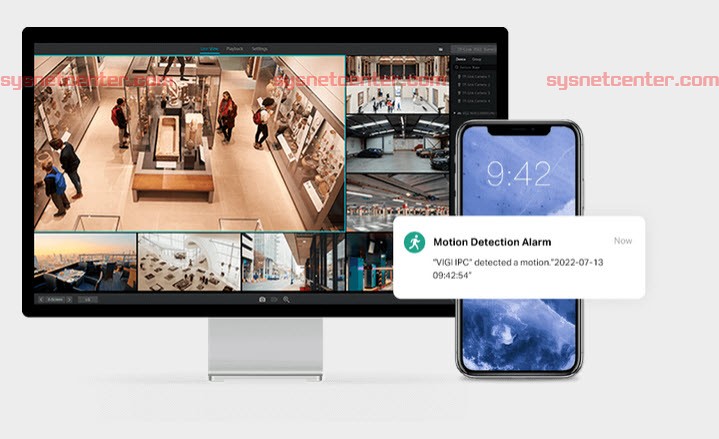

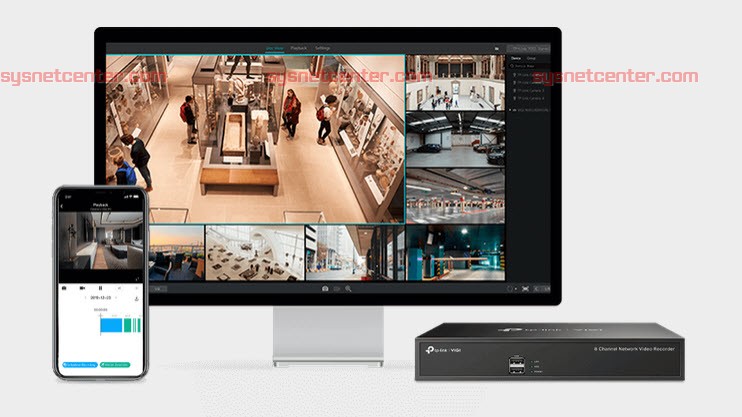

Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
|---|
Web Browser | Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above |
|---|
Cloud | Yes |
|---|
ONVIF | Yes |
|---|
INTERFACES |
|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
|---|
Alarm | N/A |
|---|
Reset Button | N/A |
|---|
Power | DC Power Port |
|---|
Button | - |
|---|
Video Output | - |
|---|
On-board Storage | - |
|---|
Built-in Microphone | Yes |
|---|
Built-in Speaker | N/A |
|---|
Audio | N/A |
|---|
ALARM AND EVENT MANAGEMENT |
|---|

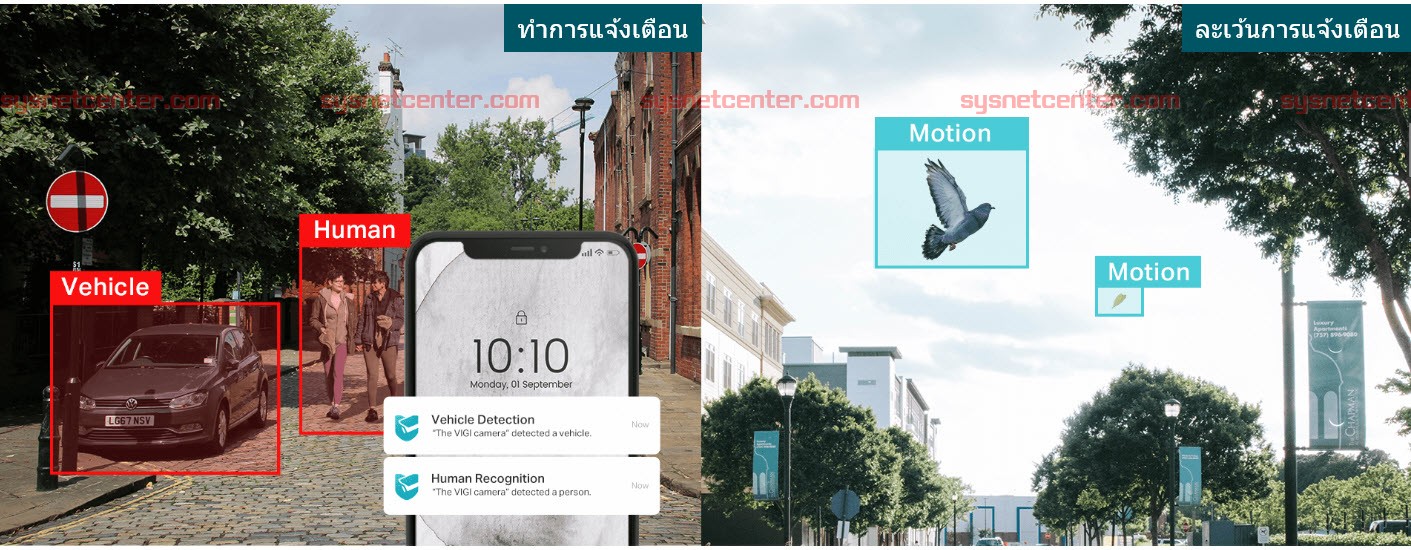

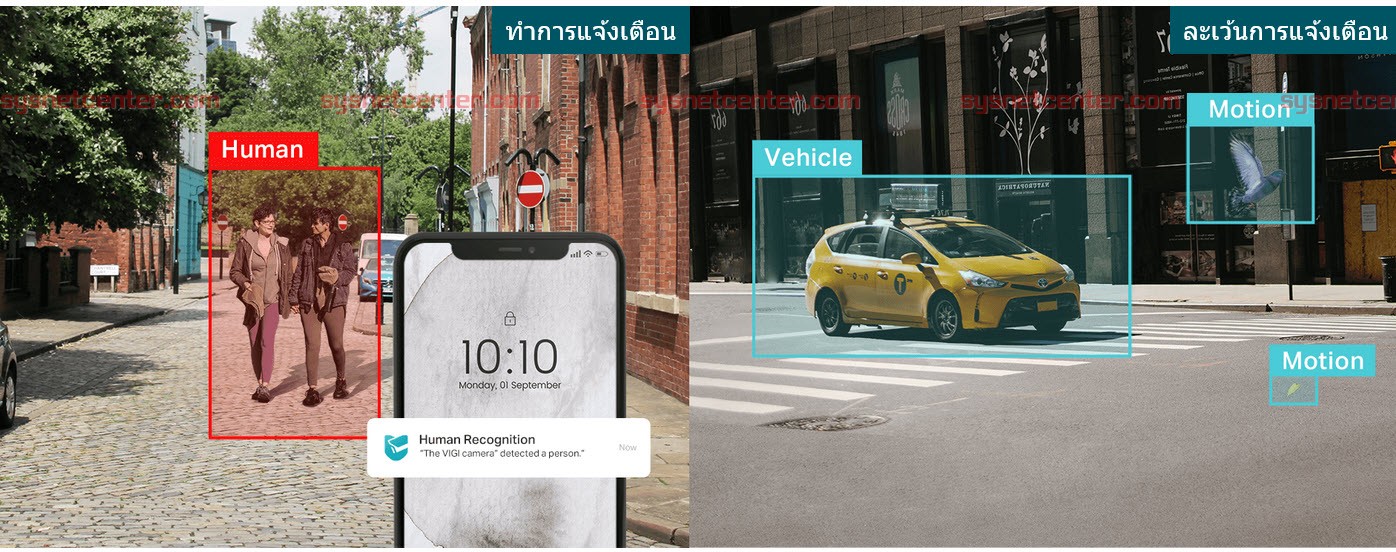

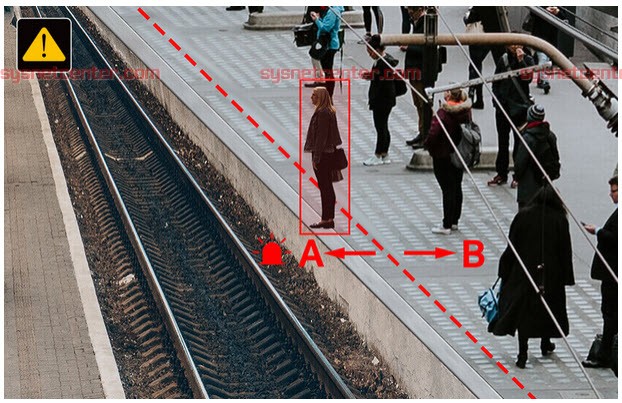

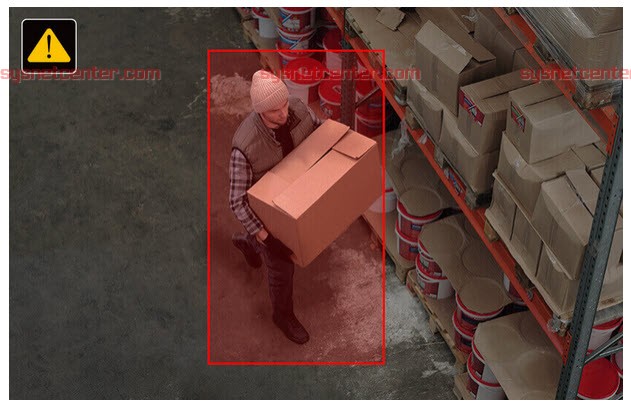

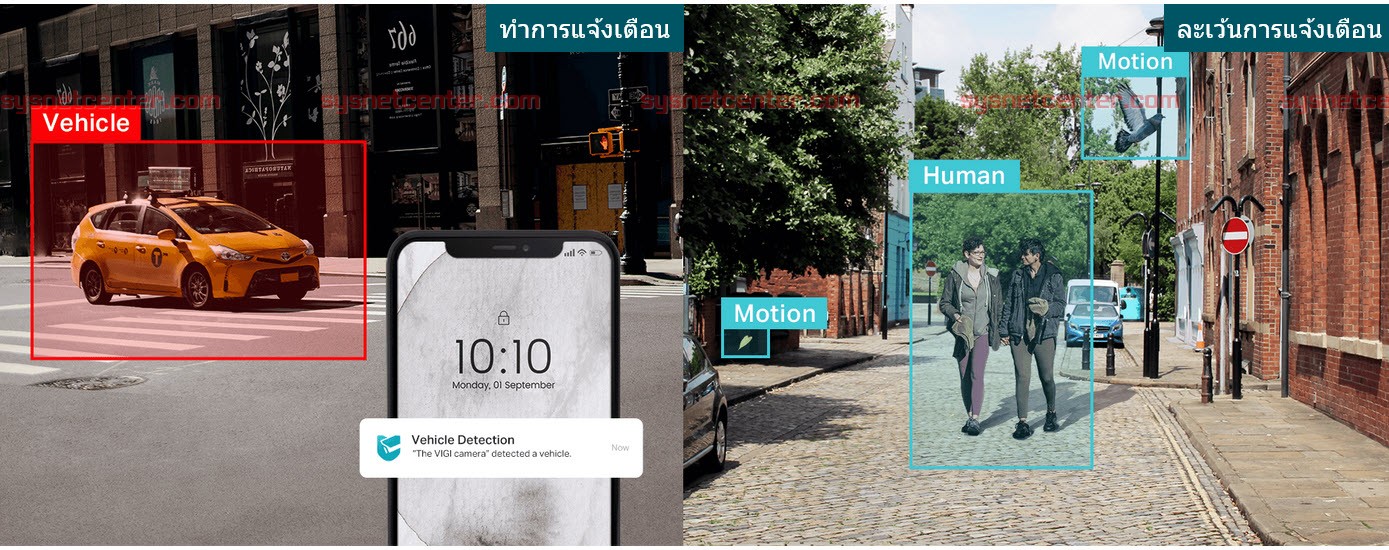

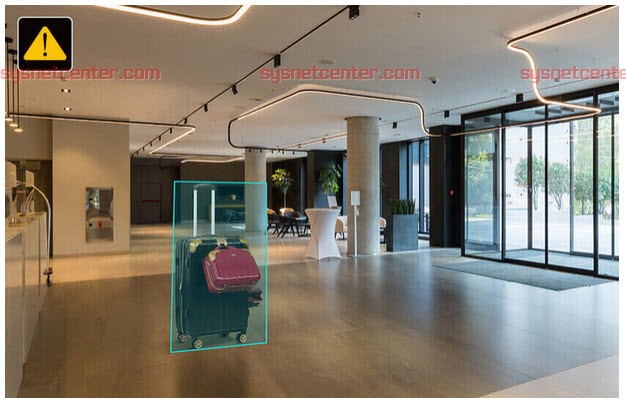

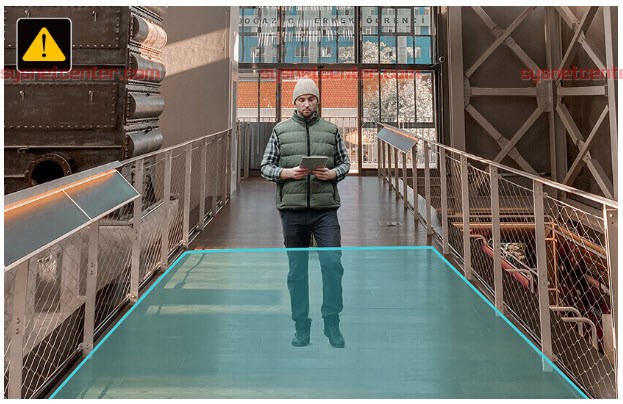

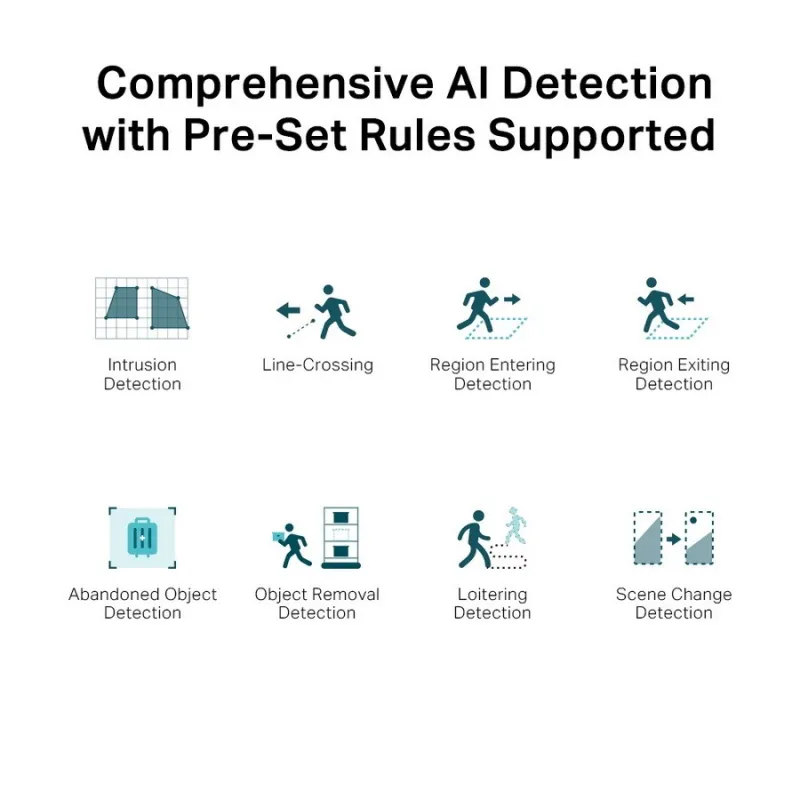

Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
|---|

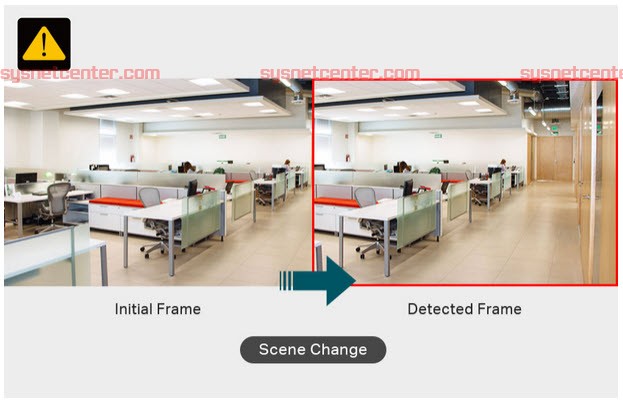

Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
|---|
Alarm Linkage | White Light Flashing, Message Push |
|---|
Linkage Method | N/A |
|---|
Output Notification | Message Push |
|---|
GENERAL |
|---|

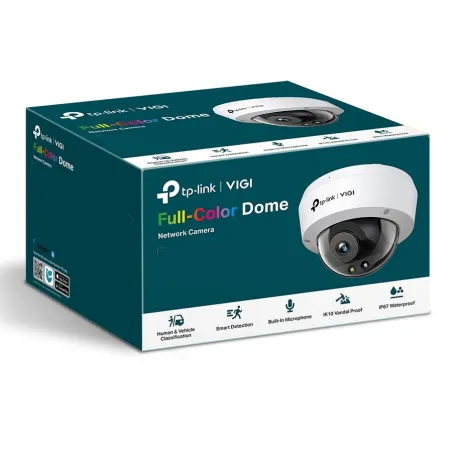

Package Contents | VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
|---|
Operating Temperature | -30–60 °C |
|---|
Storage Temperature | -40–60 °C |
|---|
Storage Humidity | 95% or Less (Non-Condensing) |
|---|
Operating Humidity | 95% or Less (Non-Condensing) |
|---|
Dimensions( H X W X D ) | 115 × 115 × 86 mm |
|---|
Material | Plastic |
|---|
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
|---|
Net Weight | VIGI C230 (2.8mm): 0.2 Kg
VIGI C230(4mm): 0.28 Kg |
|---|
Gross Weight | VIGI C230 (2.8mm): 0.35 Kg
VIGI C230(4mm): 0.47 Kg |
|---|
Power Consumption | 12V DC: Max 4.7W
PoE: Class 0 |
|---|
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug

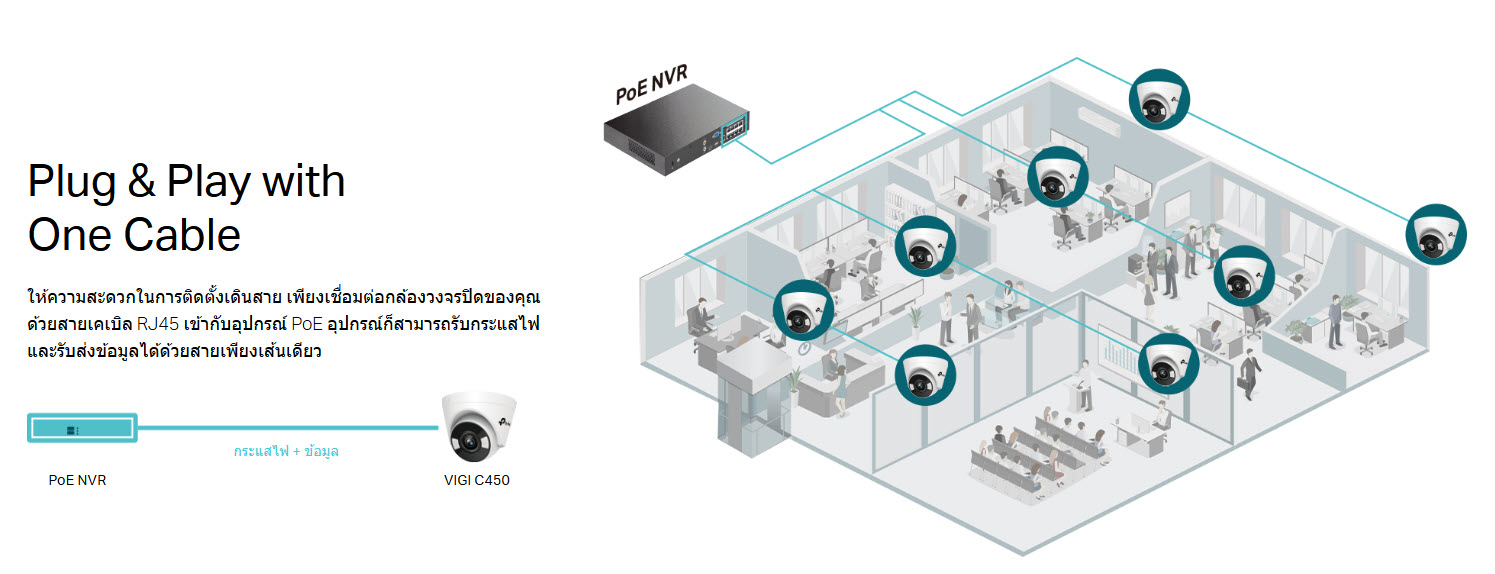

PoE (802.3af/at, class 0)
|
|---|
Vandal Resistant | IK10 |
|---|

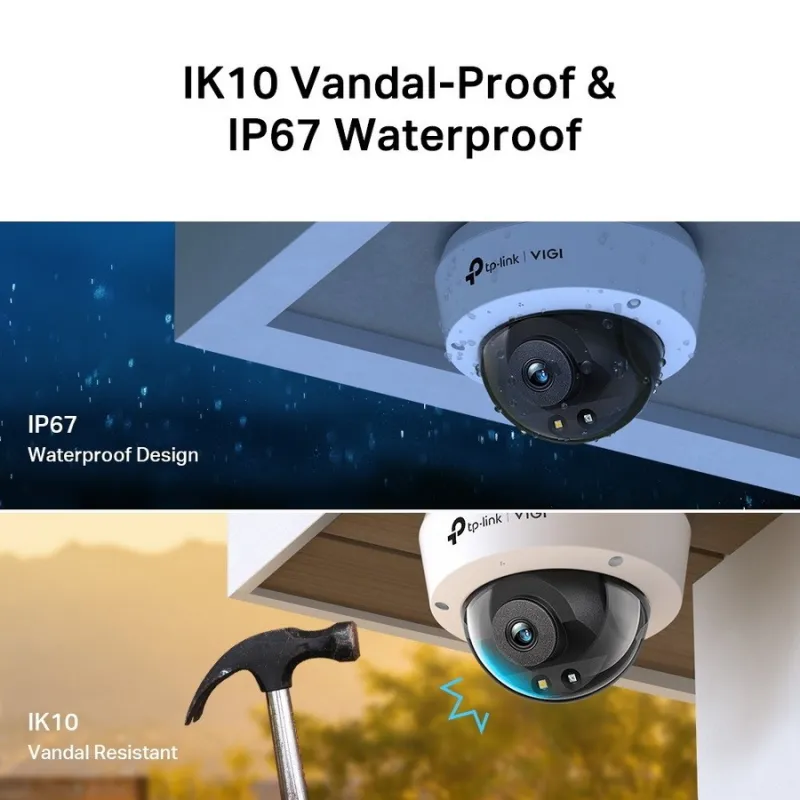

Protection | IP67, IK10 |
|---|
Product Dimensions (L x W x H) | 115× 86× 115 mm |
|---|
Certifications | CE/BSMI/VCCI/ONVIF |
|---|
VIDEO/IMAGE |
|---|
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
|---|
Frame Rate & Resolutions | Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240 |
|---|
Max. Resolution | 3MP (2304 × 1296) |
|---|
Video Streaming | Main Stream
Sub-Stream |
|---|
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
|---|
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
|---|
Video Bit Rate | 64 Kbps to 4 Mbps |
|---|
Day/Night Switch | Day/Night/Auto/Schedule |
|---|
SMART FEATURE-SET |
|---|
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
|---|
Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
|---|
Linkage Method | Trigger Notification: ONVIF, HTTPS |
|---|
Region of Interest | 1 Region |
|---|
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
|---|
