Product Specification |

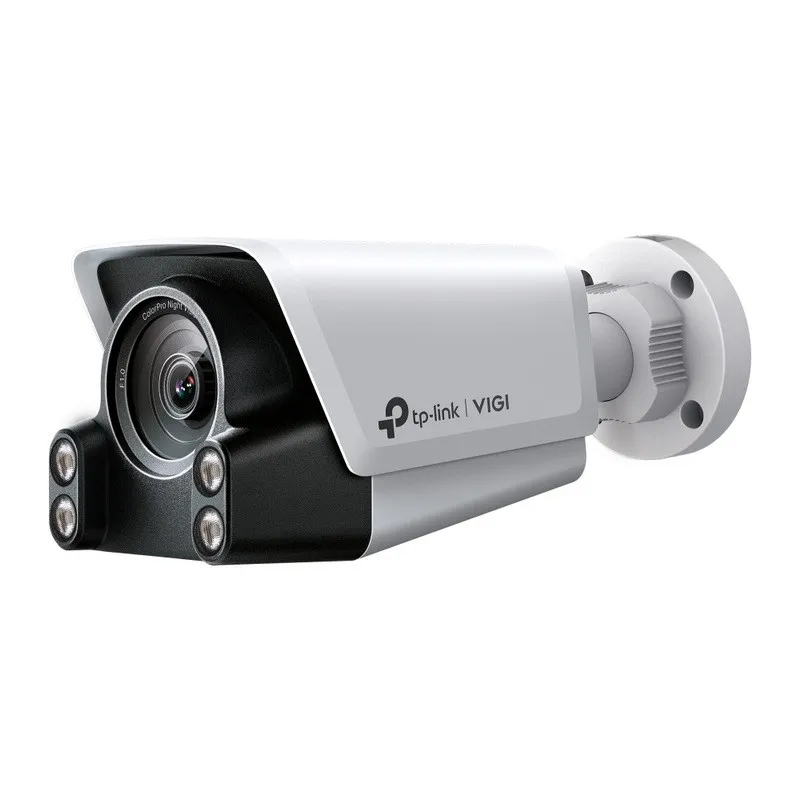

| Overview | TP-Link VIGI C340S กล้อง IP-Camera ColorPro Night Vision แบบ Bullet ความละเอียด 4MP ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ เลนส์ให้เลือกขนาด 4/6mm รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE |
CAMERA |

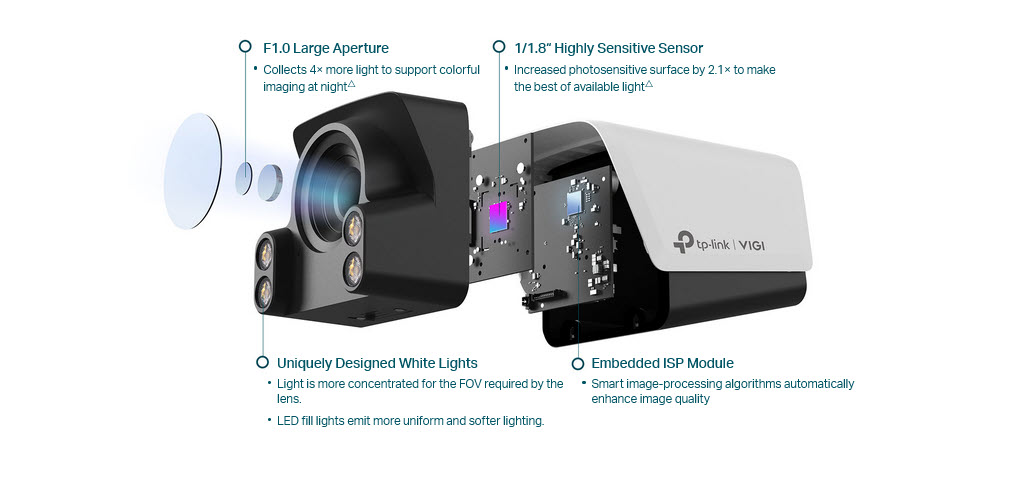

| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with white light |
| Day/Night Mechanism | NA |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0 |
| FOV | 4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
| Lens Mount | M16*P 0.5 |
| DORI Distance | 4 mm:
Detect: 70 m (231 ft)
Observe: 29 m (96 ft)
Recognize: 14 m (46 ft)
Identify: 7 m (23 ft) |
Angle Adjustment (Manual) |
| Range | Pan: -90° to 90°
Tilt: -90° to 90° |
ILLUMINATOR |
| IR LED | N/A |
| White LED | Quantity: 4
Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps |
Image |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Network Storage | NAS (NFS, SMB/ CIFS) |
ALARM AND EVENT MANAGEMENT |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
Deep Learning Function |
| Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Face Capture | Support |
| Face Comparison | Support |
INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
GENERAL |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
| Materia | Front Cover: Metal
Back Cover: Plastic |
| Material | Front Cover: Metal
Back Cover: Plastic |
| Power Consumption | Maximum: 7 W
Typical (Day Mode): 2.3 W
Typical (Night Mode with White LED): 4.3 W |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0) |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 102× 236× 99 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
