VIGI C540-4G Product Specification
|
|
Overview
|
TP-Link VIGI C540-4G กล้อง IP-Camera Pan/Tilt รองรับ 4G-LTE Slot ใส่ Sim ความละเอียด 4MP ติดตั้งภายนอกอาคาร เลนส์ขนาด 4mm บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 512GB
|
CAMERA
|
|
Image Sensor
|
1/3.06” Progressive Scan CMOS
|
|
Shutter Speed
|
1/3 to 1/10000 s
|
|
Slow Shutter
|
Yes
|
|
Minimum Illumination
|
0.005 Lux; 0 Lux with IR/White Light
|
|
Day/Night Mechanism
|
IR Cut Filter
|
|
Day/Night Switch
|
Unified/ Scheduled/ Auto
|
LENS
|
|
Type
|
Fixed Focal Lens
|
|
Focal Length
|
4 mm
|
|
Aperture
|
F1.6
|
|
FOV
|
Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
|
|
Lens Mount
|
M12*0.5
|
|
DORI Distance
|
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
|
PTZ
|
|
Pan/tilt Range
|
Pan: 0° to 348°, Tilt: 0° to 120°
|
|
Pan/tilt Speed
|
• Pan Speed:
Configurable from 8° to 44°/s; Preset Speed: 44°/s
• Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed 44°/s
|
|
Manual Control Speed
|
Configurable from 8° to 35°/s
|
|
Presets
|
300
|
|
Patrol Scan
|
8 patrols, up to 8 presets for each patrol
|
|
Power-off Memory
|
Yes;
Auto restore to previous PTZ and lens status after power failure
|
|
Park Action
|
Yes;
Preset; Patrol Scan
|
|
3D Positioning
|
Yes
|
Angle Adjustment (Manual)
|
|
Range
|
• Pan: 0° to 348°
• Tilt: 0° to 120°
|
ILLUMINATOR
|
|
IR LED
|
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
|
|
White LED
|
• Quantity: 2
• Range: 30m
|
|
Illuminator On/Off Control
|
Auto/Scheduled/Always on/Always off
|
VIDEO
|
|
Max. Resolution
|
2560 X 1440
|
|
Main Stream
|
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
|
|
Sub-Stream
|
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
|
|
Bit Rate Control
|
CBR, VBR
|
|
Video Compression
|
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
|
|
H.264 Type
|
Main Profile/High Profile
|
|
H.264+
|
Main Stream Supported
|
|
H.265 Type
|
Main Profile
|
|
H.265+
|
Main Stream Supported
|
|
Video Bit Rate
|
• Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
|
|
|
Image Settings
|
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
|
|
Image Enhancement
|
BLC/3D DNR/HLC/SmartIR
|
|
Wide Dynamic Range
|
DWDR
|
|
SNR
|
≥ 52 dB
|
|
Image Parameters Switch
|
Yes
|
|
Privacy Mask
|
Up to 4 Masks
|
|
ROI
|
1 Region
|
|
OSD Setting
|
Yes
|
AUDIO
|
|
Audio Communication
|
Two-Way Audio
|
|
Audio Input
|
Yes
|
|
Audio Output
|
Yes
|
|
Audio Compression
|
Yes
|
|
Audio Sampling Rate
|
8KHz
|
|
Environment Noise Filtering
|
Yes
|
|
Audio Bit Rate
|
64 Kbps(G.711 alaw)
|
NETWORK
|
|
Protocol
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
|
|
ONVIF
|
Yes
|
|
API
|
ONVIF
|
|
Simultaneous Live View
|
2 Main Streams & 2 Sub-Streams
|
|
Client
|
VIGI App, VIGI Security Manager, Web UI
|
|
Web Browser
|
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
|
|
Cloud
|
Yes
|
|
Security
|
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
|
4G
|
|
Standard
|
LTE-TDD/LTE-FDD/WCDMA
|
|
SIM Type
|
Nano SIM
|
|
Category
|
4
|
|
Frequency
|
• LTE-FDD: B 1/3/7/8/20/28
• LTE-TDD: B 38/40
• WCDMA: B 1/8
|
ALARM AND EVENT MANAGEMENT
|
|
Smart Event
|

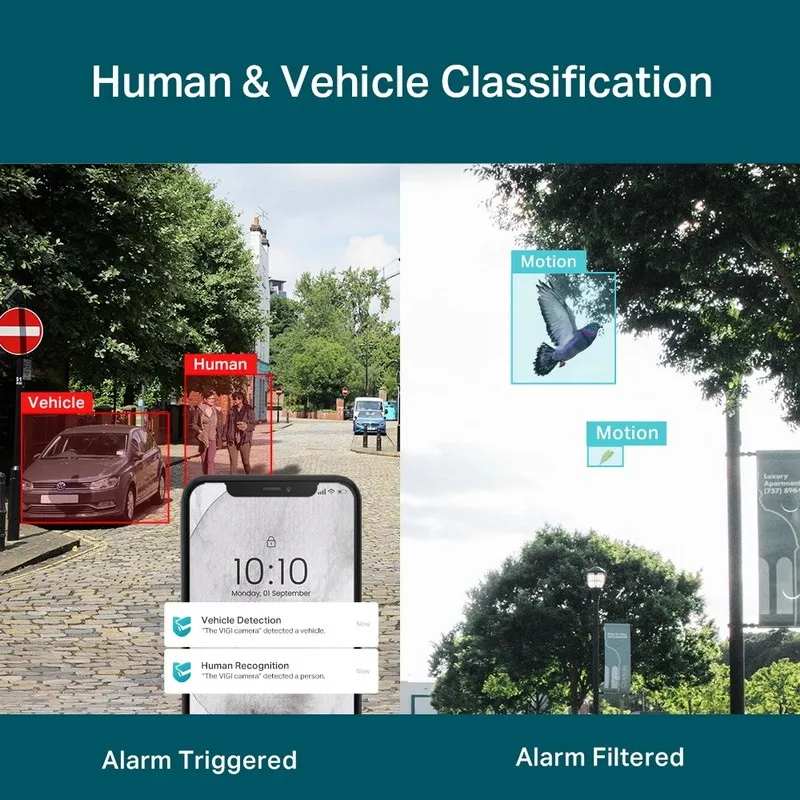

• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• People Detection
• Vehicle Detection
|
|
Basic Event
|
• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
|
|
Alarm Linkage
|
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
|
|
Linkage Method
|
N/A
|
|
Output Notification
|
Message Push
|
INTERFACES
|
|
Network Interface
|
1 RJ45 10/100M Self-Adaptive Ethernet Port
|
|
Alarm
|
N/A
|
|
Reset Button
|
Yes
|
|
Power
|
DC Power Port
|
|
On-board Storage
|
Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
|
|

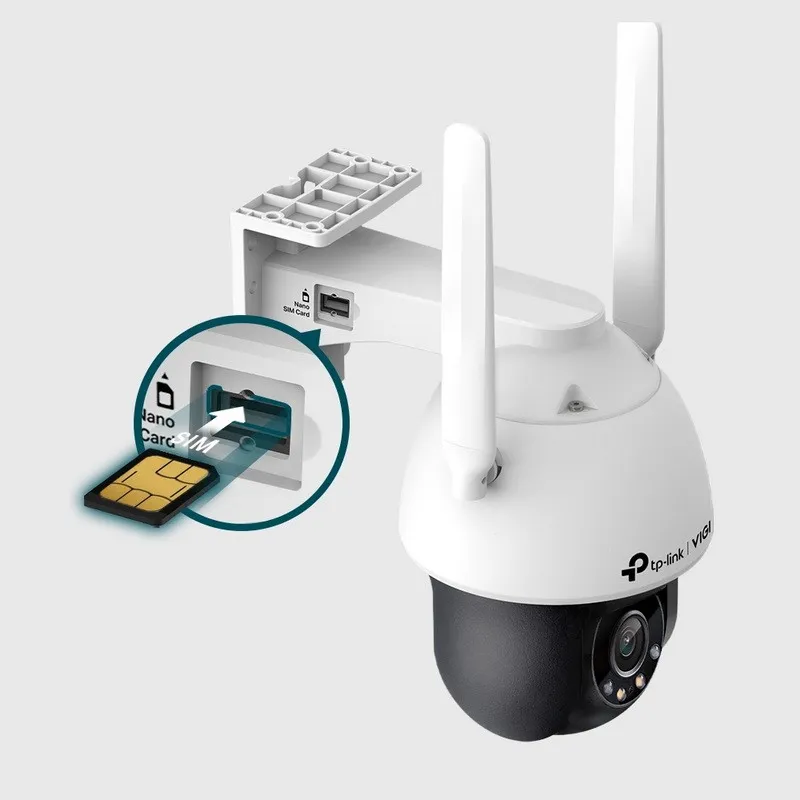

Built-in Nano-SIM Card Slot
|
Yes
|
|
Built-in Microphone
|
Yes; Records Anything Going on within a 15-ft Radius of the Camera
|
|
Built-in Speaker
|
Yes
|
|
Audio
|
N/A
|
GENERAL
|
|
Operating Temperature
|
-30–60 °C
|
|
Storage Temperature
|
-40–60 °C
|
|
Operating Humidity
|
95% or Less (Non-Condensing)
|
|
Storage Humidity
|
95% or Less (Non-Condensing)
|
|
Package Contents
|
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
|
|
Material
|
Plastic
|
|
Net Weight
|
0.69 Kg
|
|
Gross Weight
|
1.16 Kg
|
|
Power Supply
|
12V DC/1A, 5.5mm Coaxial Power Plug
|
|
Antenna
|
• Quantity: 2
• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna
• Gain:
Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
|
|
Protection
|
IP66
|
|
Product Dimensions (L x W x H)
|
120 × 182 × 201 mm (excluding antennas)
|
|
Certifications
|
CE, RCM, BSMI, RoHS, NCC
|
รับประกัน
|
C540-4G 3 ปี
|
