VIGI Insight S485 Product Specification |

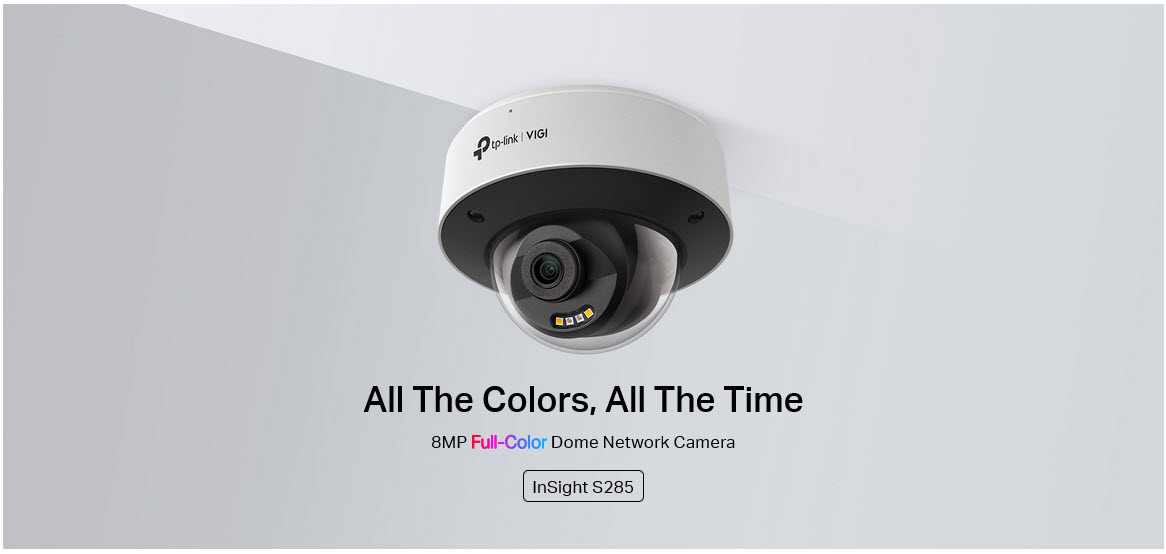

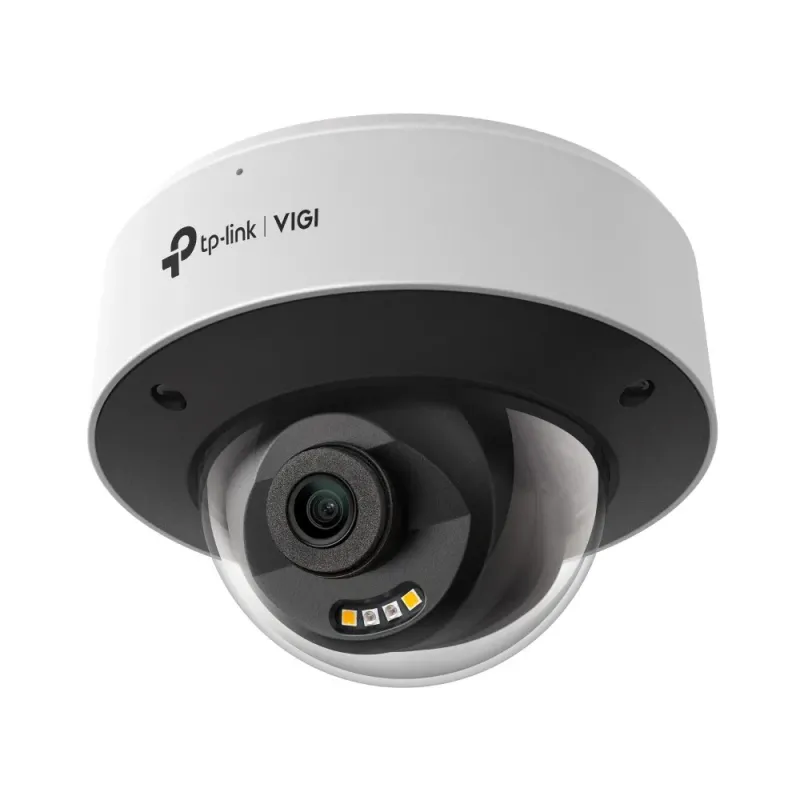

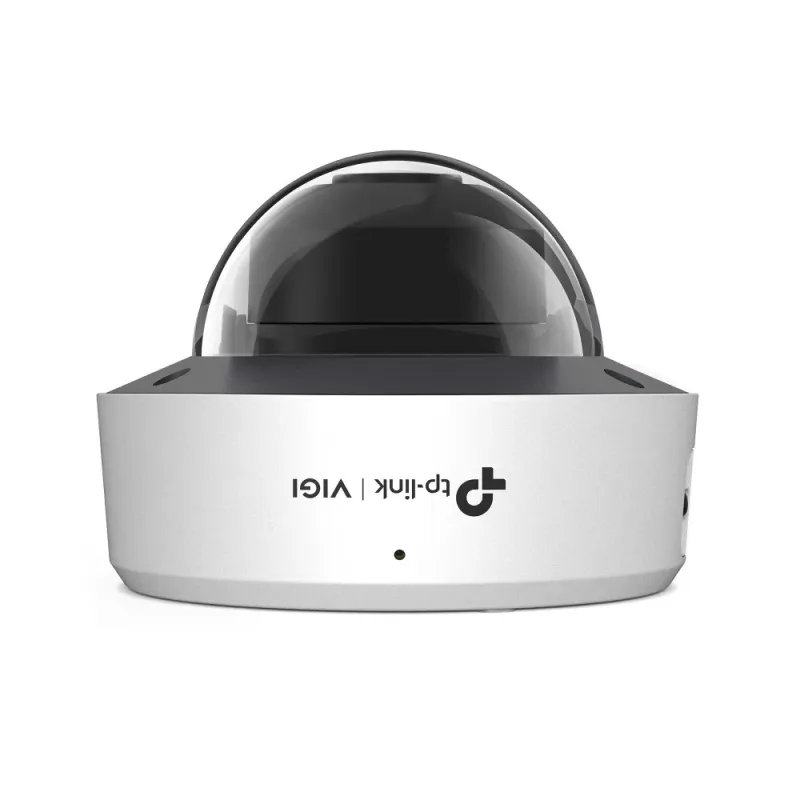

Overview | TP-Link VIGI InSight S285 8MP Outdoor Full-Color Dome Network Camera กล้อง IP-Camera แบบ Dome ความละเอียด 8MP เลนส์ให้เลือกขนาด 2.8/4mm ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE |
| | VIGI 8MP Full-Color Dome Network Camera SPEC: 8MP, 2,8mm/4mm Fixed Lens, 1/2.7” Progressive Scan CMOS, H.265+/H.265/H.264+/H.264, IR/White LED, 25fps (3840 × 2160), IP67, IK10, PoE/DC 12V,120dB WDR, Built-in Mic/Speaker, micro-SD Slot (up to 512GB) FEATURE: Full-Color and IR Night Vision (Up to 30 m), Smart Detection (Human &Vehicle Classification), People & Vehicle Analytics, SmartVid (Smart IR, 3D DNR, BLC), ONVIF (Profile S/T/G), Remote Monitoring, VIGI App, Web, NVR, VMS |
CAMERA |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm:
Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5°
• 4 mm:
Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)
• 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft) |
Angle Adjustment (Manual) |
| Range | Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355° |

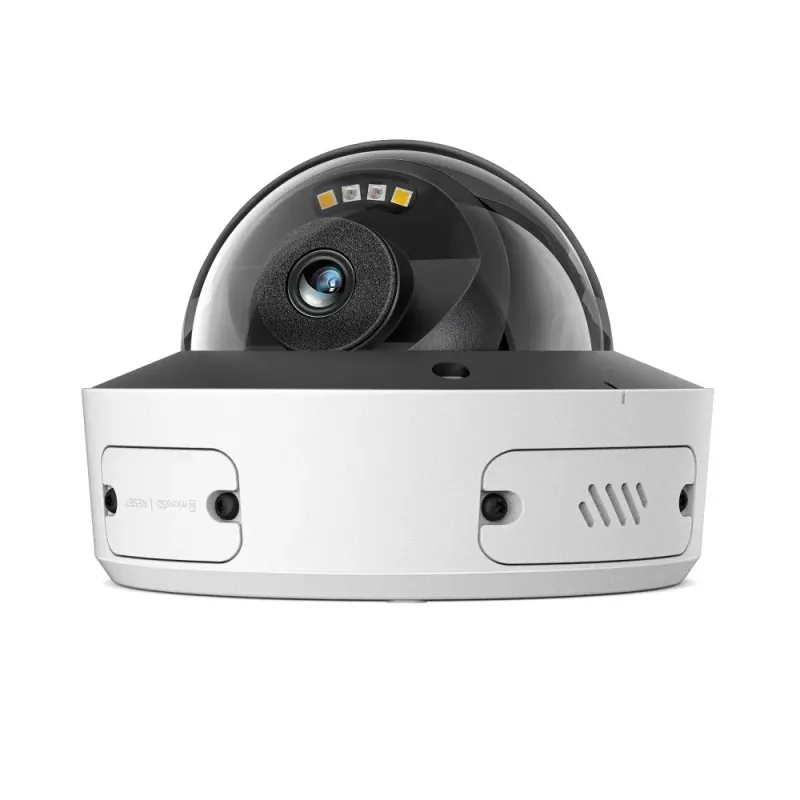

ILLUMINATOR |
| IR LED | • Quantity: 2
• Range: 30m
• Wavelength: 850nm |
| White LED | • Quantity: 2
• Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 3840 x 2160 |
| Main Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If HDR is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If HDR is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 8 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps |
Image |
| Image Settings | • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/Smart IR |
| Wide Dynamic Range | 120 dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, Utility |
| Web Browser | • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT |
| Smart Event | • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection |

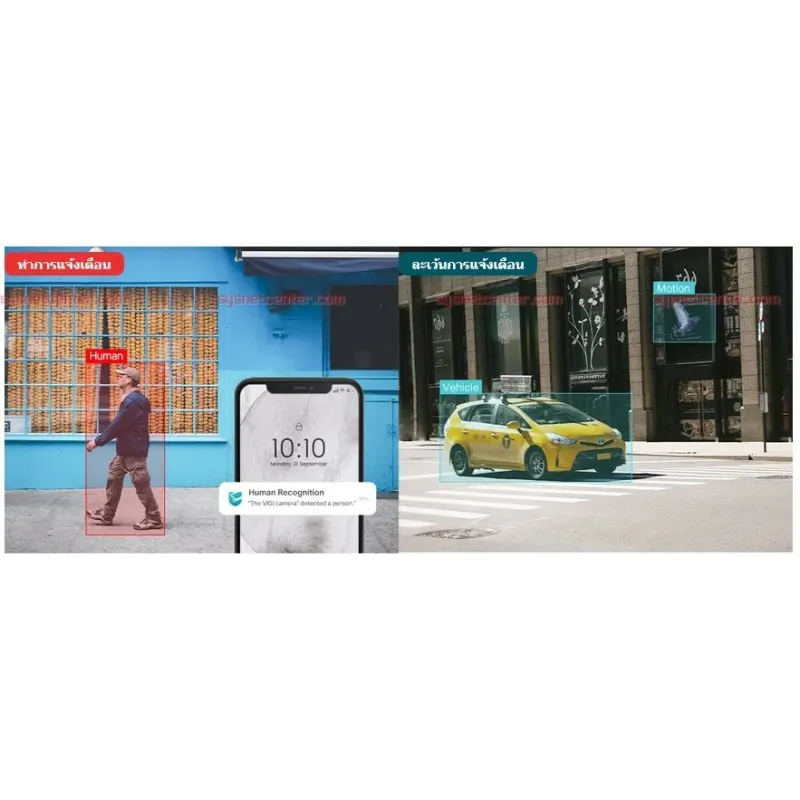

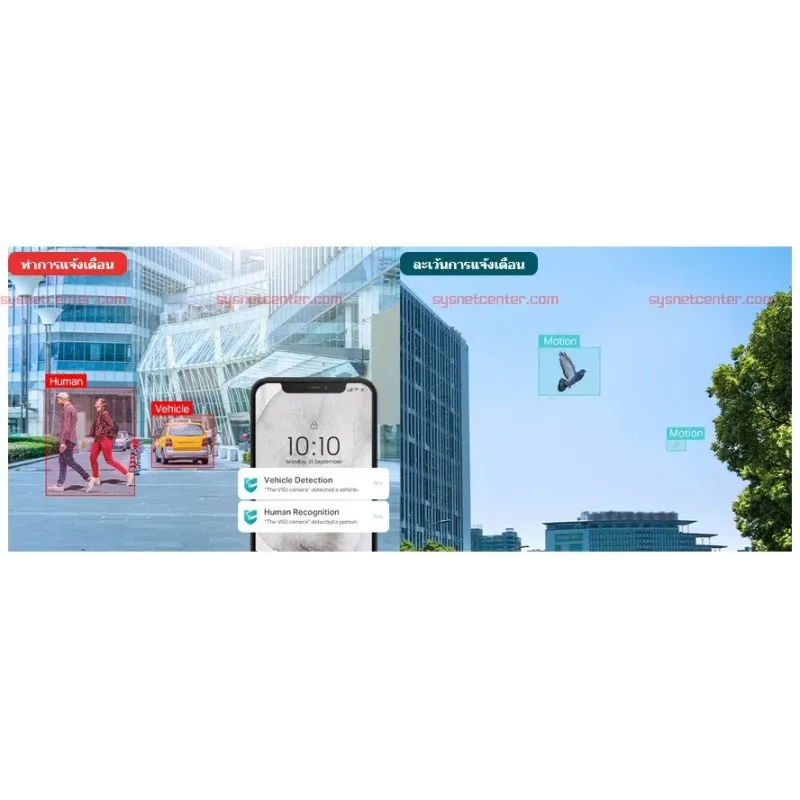

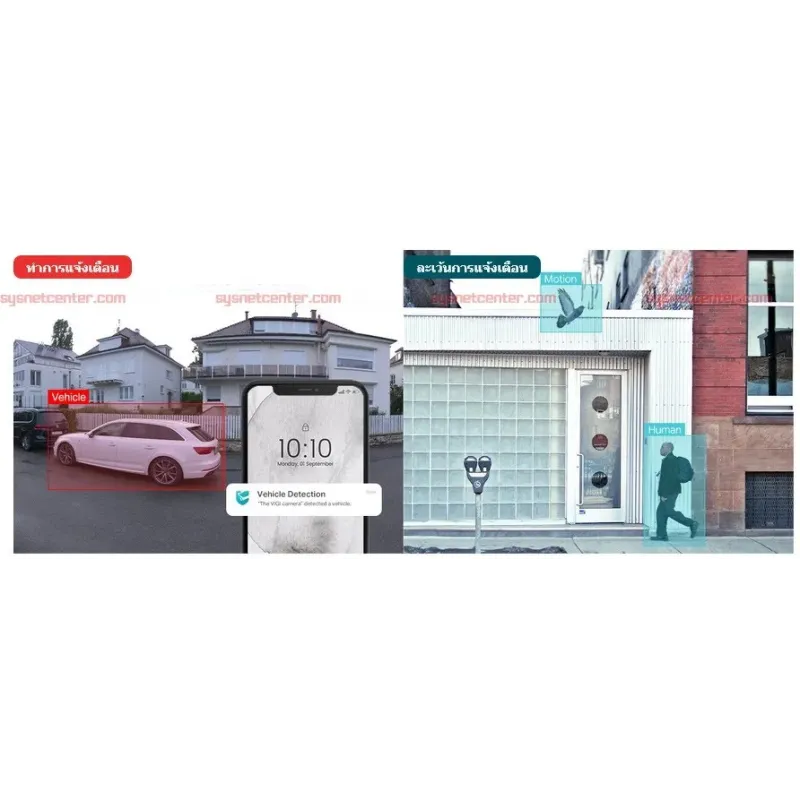

| Basic Event | • Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
• Camera Tampering
• Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing |
Deep Learning Function |

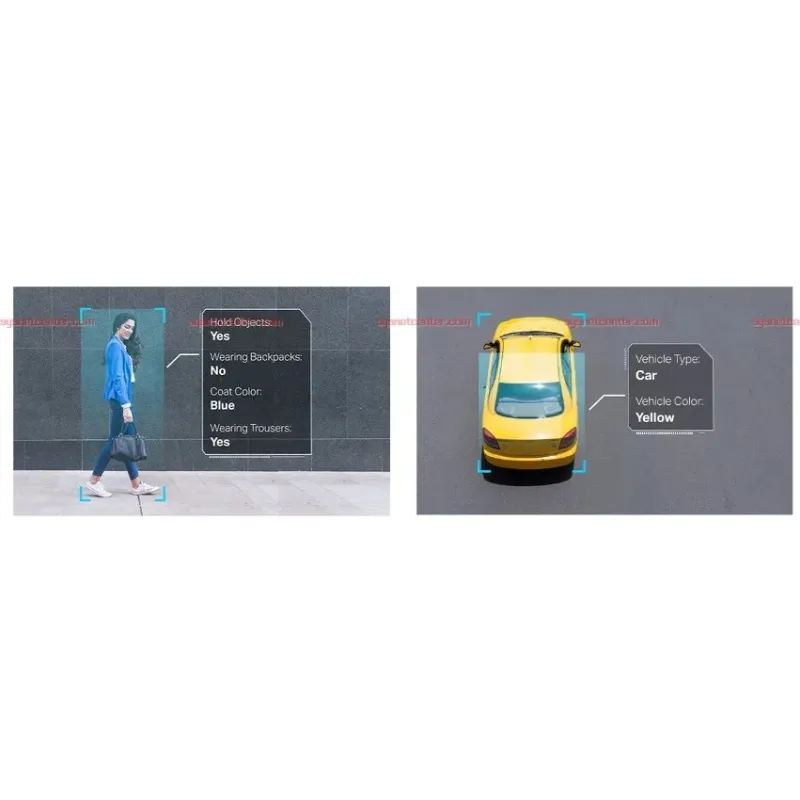

| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.† |
INTERFACES |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§ |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
GENERAL |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories |
| Material | Metal |
| Net Weight | 0.62 Kg |
| Power Supply | • 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12.3 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
