VIGI Insight S355 Product Specification |

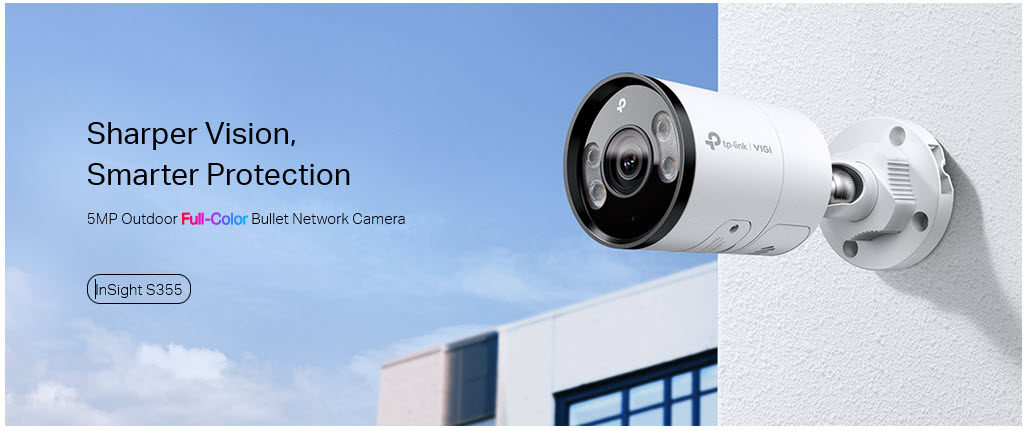

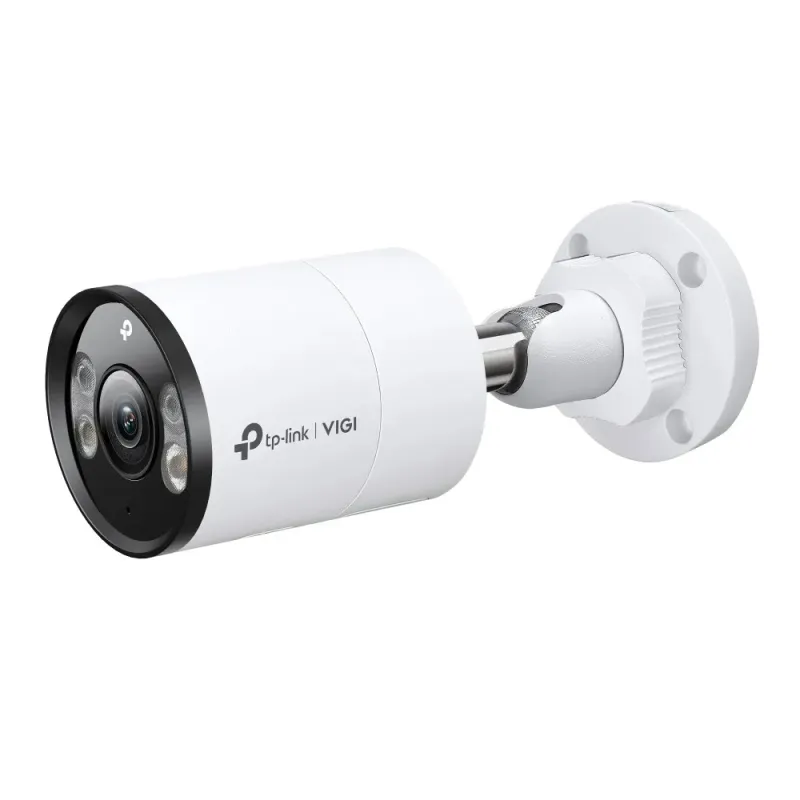

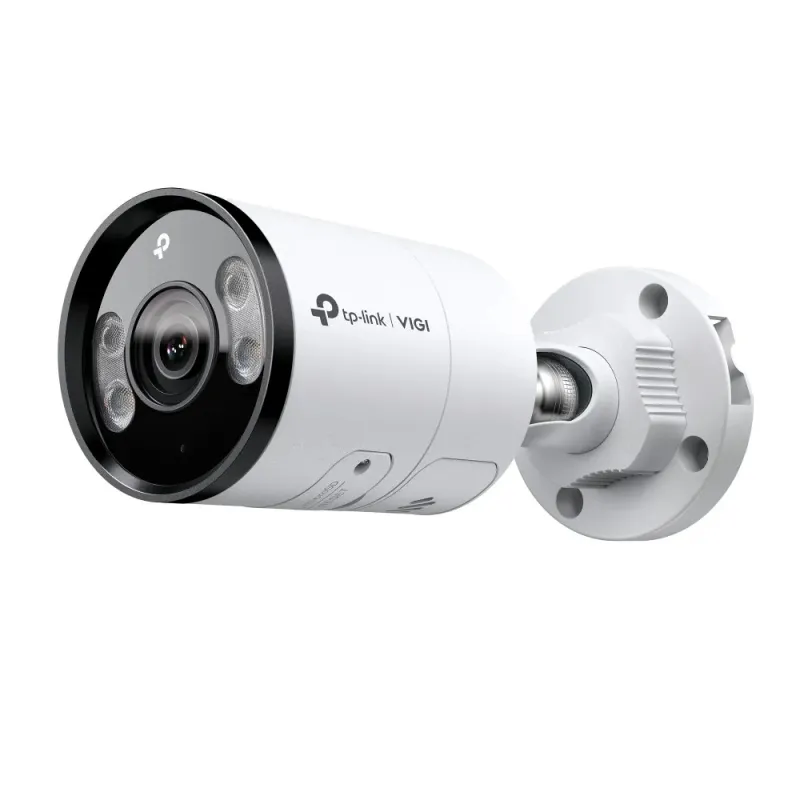

Overview | TP-Link VIGI InSight S355 5MP Outdoor Full-Color Bullet Network Camera กล้อง IP-Camera แบบ Bullet ความละเอียด 5MP เลนส์ให้เลือกขนาด 2.8/4mm ติดตั้งภายนอกอาคาร บันทึก Video มาตรฐาน H.265+ รองรับการบันทึกลงบน NVR หรือ Memory Card สูงสุด 256GB รองรับ POE |
CAMERA |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4/6 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
• 4 mm:
Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
• 6 mm:
Horizontal FOV: 57.3°, Vertical FOV: 31.3°, Diagonal FOV: 67.2° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)
• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
• 6 mm
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft) |
Angle Adjustment (Manual) |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR |

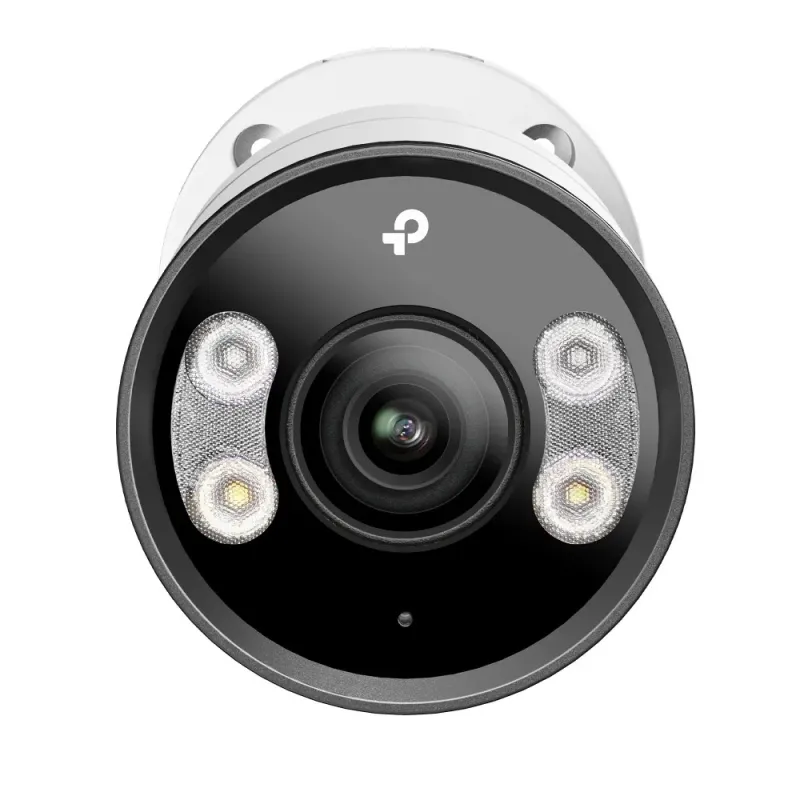

| IR LED | • Quantity: 2
• Range: 30m
• Wavelength: 850nm |
| White LED | • Quantity: 2
• Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
| Max. Resolution | 2880 X 1620 |
| Main Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,
1280x720
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps |
Image |
| Image Settings | • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT |
| Smart Event | • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection |

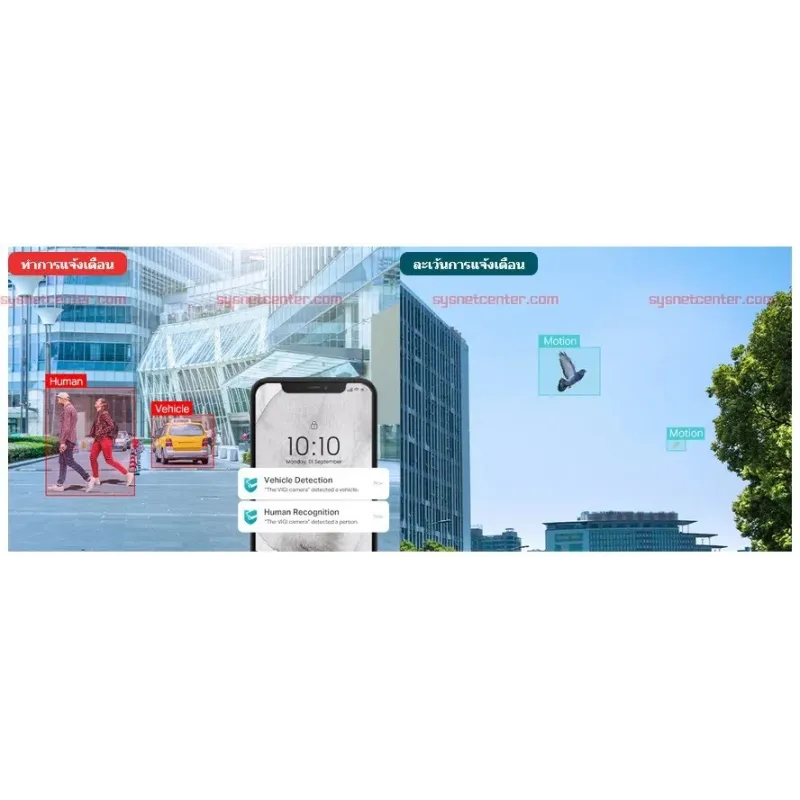

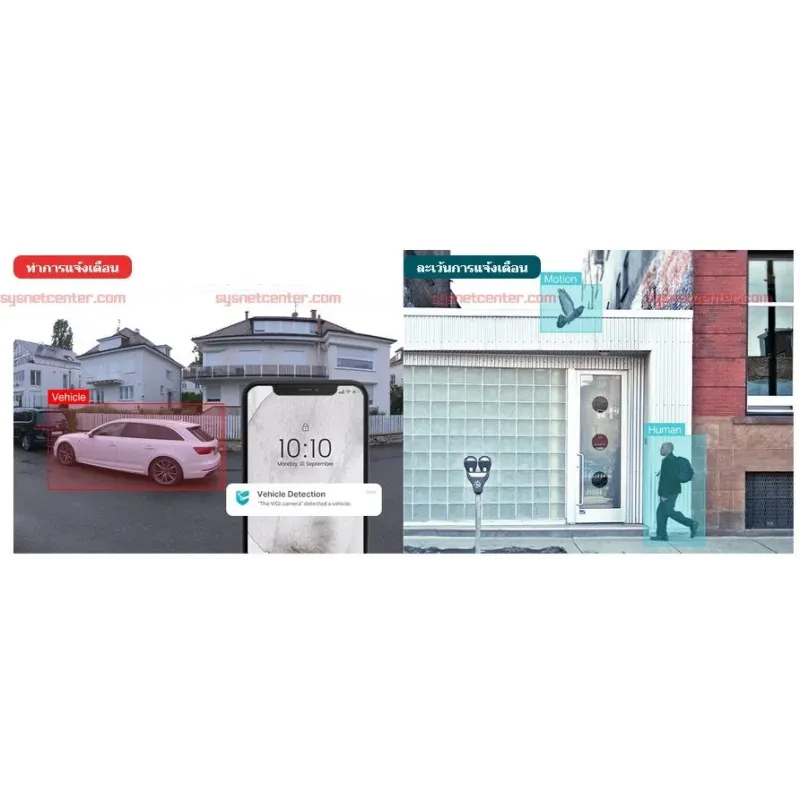

| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
Deep Learning Function |

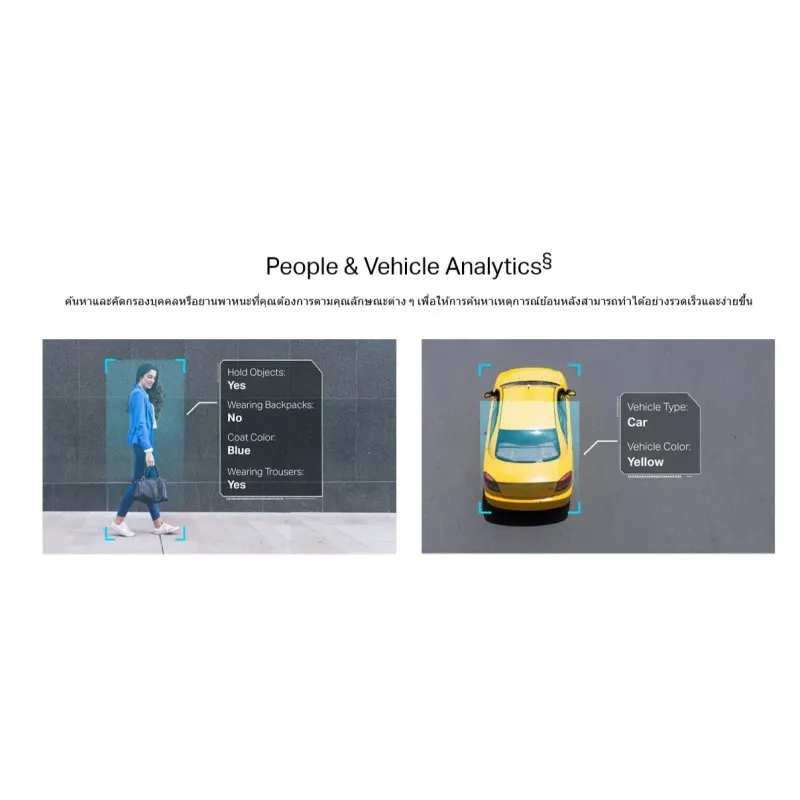

| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ |
INTERFACES |

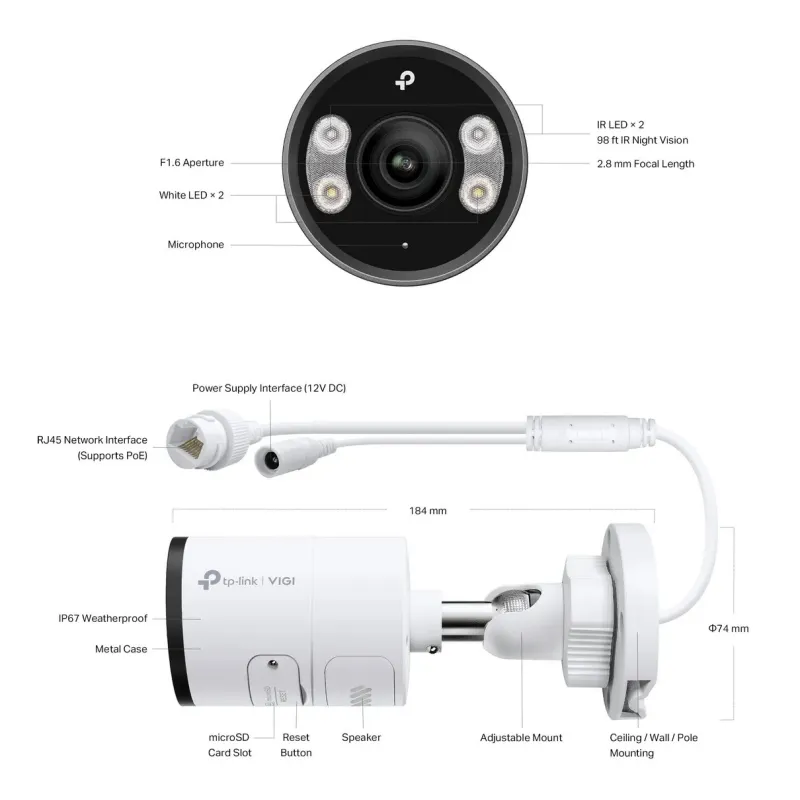

| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
GENERAL |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories |
| Material | Metal |
| Net Weight | 0.525 Kg |
| Power Supply | • 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 10.7 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
รับประกัน | ประกันศูนย์ TP-Link Thailand 3 ปี |
